Complete 2000 Chevy Blazer Radio Wiring Color Code Guide and Diagram
Locate the aftermarket harness connector under the dashboard on the driver’s side–it’s a 24-pin Molex plug labeled GM# 12160626. Pin 1 (dark blue) carries the left front speaker signal, while pin 12 (pink) is the constant 12V power feed. Disconnect the battery negative terminal before probing; voltages remain live at the fuse block even with the ignition off.
Use a multimeter set to DC 20V to verify power sources. Probe the orange wire (pin 11) at the factory harness–it should read 12V regardless of ignition state. The yellow wire (pin 14) delivers switched 12V; test it with the key in the ACC position. If readings are absent, inspect fuse #4 (10A) and #22 (15A) in the underhood box.
Ground connections (black wires, pins 13 and 24) must attach to bare metal chassis points, preferably near the original factory bolt. Avoid the bolt used for seatbelt mounts–it’s a known corrosion trap. For speaker wires, note the resistance: 4-ohm factory setup requires matching impedance to prevent amplifier damage or blown tweeters.
Trace the purple/white wire (pin 8) to the antenna motor–it’s a 5V trigger for power telescopic units. If the antenna doesn’t extend after replacement, check the inline 1A fuse (labeled “AUDIO” on the upper left fuse panel). The dimmer switch circuit (gray wire, pin 20) reduces illumination voltage; adjust the rheostat to confirm it ranges between 0V (full brightness) and 12V (off).
For amplifier-equipped models, the light green wire (pin 9) carries the turn-on signal–verify it pulses to 12V when the unit powers on. If installing a non-factory head unit, splice the pink wire (pin 12) directly to a fused ignition source; failure to do so drains the battery within 48 hours. Always crimp connectors with solder and heat-shrink; electrical tape degrades under dashboard temperatures.
Chevy S-10 Audio System Electrical Guide
Begin by locating the factory harness behind the vehicle’s entertainment unit. The 14-pin connector has color-coded leads: orange (constant 12V), yellow (switched 12V), black (ground), and two purple wires (right and left speaker outputs). Verify each wire with a multimeter before connecting aftermarket components–incorrect polarity will damage amplifiers or speakers.
Check the vehicle’s fuse box for a 10A fuse labeled “RDO.” This protects the audio circuitry; replace blown fuses with identical amperage. The antenna lead (pink) requires direct connection to the head unit–ensure it’s securely inserted to prevent signal dropout at higher frequencies.
| Wire Color | Function | Voltage (Key On) | Notes |
|---|---|---|---|
| Orange | Battery (Constant) | 12V | Powers memory settings |
| Yellow | Ignition (Switched) | 12V | Activates with key turn |
| Black | Chassis Ground | 0V | Scrape paint for clean contact |
| Purple (L/R) | Front Speaker +/- | 4-6V (AC) | Test with audio signal |
| Gray/Green | Rear Speaker +/- | 4-6V (AC) | Twisted pair for noise reduction |
For vehicles with premium sound systems, two additional wires–dark blue/white (amplifier trigger) and brown (mute)–must be connected. The trigger wire activates external amps when the head unit powers on; the mute wire silences audio during phone calls. Use crimp connectors for these; soldering risks melting insulation.
If installing a double-DIN unit, the factory climate controls remain functional only if retained. The original wiring harness adapter (GM Part #12160397) preserves steering wheel controls–alternatives may require soldering six small resistors to emulate the original signal.
Aftermarket harnesses often include extra wires for USB or auxiliary inputs. Cap unused wires with electrical tape; exposed copper will short circuits. Route new cables away from moving parts (e.g., pedals, steering column) and secure with zip ties every 12 inches to prevent rattling or pinching.
For Ford-to-GM adapters, note the inverted signal polarity on speaker outputs. Swap the +/- connections at the harness or risk phase cancellation, causing weak bass response. Test with a sine wave generator before finalizing installations.
Clean corroded connections with baking soda and wire brushes–not sandpaper, which removes plating. Apply dielectric grease to contacts after reassembly to prevent future oxidation. Recheck all connections after driving 50 miles; thermal cycling can loosen crimps.
Selecting the Right Electrical Connector for Your Chevy SUV Audio System
Begin by locating the factory stereo harness behind the dashboard. The original plug on a GM mid-size vehicle of this era typically uses a 12-pin Metri-Pack connector, identifiable by its distinctive gray housing and chamfered corners on one side. Match the physical shape before verifying pin assignments–confusing it with the HVAC connector is a common error.
Check the pin layout against service manual specifications. Pins A6, A7, and A8 supply constant 12V, accessory power, and illumination, respectively, while B3 and B4 handle left and right front speakers. Mistakes here lead to blown fuses or non-functional unit components. Use a digital multimeter set to DC volts to confirm live circuits before connecting.
Common Aftermarket Adapters
Manufacturers like Scosche and PAC offer plug-and-play adapters that convert the factory Metri-Pack to ISO or bare wires. Verify the adapter’s pinout diagram–some models reverse speaker polarity, causing phase cancellation in door-mounted drivers. When splicing, always solder joints and cover with heat-shrink tubing to prevent corrosion from road salt or moisture ingress.
Color codes on generic adapters often follow industry standards, but discrepancies exist. For instance, solid orange usually denotes memory keep-alive, while orange with a white stripe indicates dimmer control. Cross-reference wire gauge with the replacement stereo’s requirements–undersized wires overheat when driving high-power amplifiers.
If the original harness is damaged, fabricate a replacement using TXL automotive wire. Match the gauge: 18AWG for speakers, 14AWG for power feeds. Crimp connectors with a proper tool–pliers crush the metal, creating resistance points. Secure the harness away from moving parts like the steering column and climate control cables to prevent chafing.
Verification Steps
Test each function before final installation. Toggle the ignition between accessory and run modes to ensure the unit powers off correctly. Adjust balance and fade settings to confirm all channels produce equal output–imbalanced levels suggest incorrect speaker connections. If static persists, trace the antenna lead (usually coaxial) back to the mast and check for continuity.
Avoid shortcuts like twist-and-tape connections. Poor joints introduce resistance, causing voltage drops that manifest as intermittent faults or reduced bass response. For vehicles equipped with a premium Bose system, retain the amplifier module–bypassing it voids equalization curves hardwired into the head unit’s DSP.

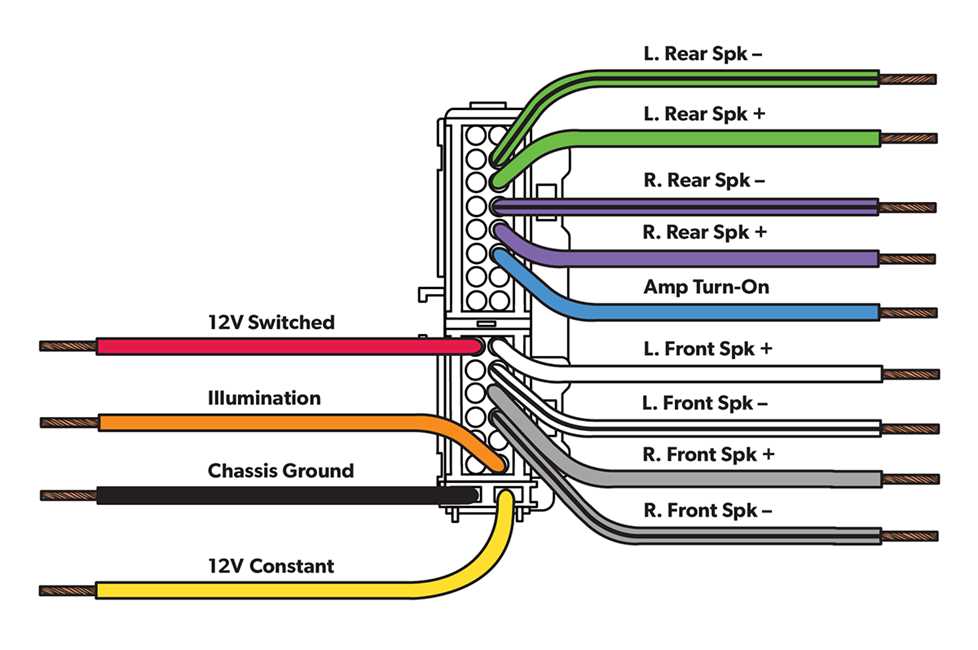

How to Identify Aftermarket Audio System Cable Colors and Their Purposes
Disconnect the vehicle’s negative battery terminal first to prevent short-circuits, then remove the dashboard trim panel using a non-marring pry tool. Label each connector with masking tape as you unplug them–focus on the 12-pin gray plug (primary) and 8-pin brown plug (amplifier input), typically found behind the factory head unit. The orange wire with white stripe delivers 12V constant power for memory retention; yellow handles accessory voltage triggered by the ignition switch in the “on” position. Black wires ground the circuitry–verify continuity with a multimeter before attaching new terminals. Red (right rear speaker positive), white with black stripe (left front speaker negative), and dark blue (power antenna or amplifier turn-on lead) are critical for signal routing.
Use a wiring schematic specific to the model’s trim level–color coding varies between LS and LT configurations. Grey wires often indicate right front speaker positive output, while light green corresponds to left rear speaker positive. For amplified systems, locate the purple wire (data bus for steering wheel controls) and pink (illumination dimmer signal). Test each wire with a 12V test light or multimeter before splicing–accidental reversals can damage the amplifier or cause phase cancellation in audio output. Reconnect ground wires directly to chassis points, avoiding painted surfaces to ensure stable grounding.
How to Properly Connect Aftermarket Speakers to the Factory Head Unit
Locate the vehicle’s OEM harness behind the dashboard or under the driver’s seat–most manufacturers use standard color codes for speaker outputs. Match the aftermarket speaker wires to the corresponding factory leads: white (front left positive), white/black (front left negative), gray (front right positive), gray/black (front right negative), green (rear left positive), green/black (rear left negative), purple (rear right positive), and purple/black (rear right negative). Verify these connections with a multimeter set to DC voltage while playing audio; each channel should register 2-4V during peaks without distortion or popping.
Use high-quality crimp connectors or solder joints to prevent oxidation–twist-and-tape methods fail within months. Strip only 5mm of insulation to avoid shorts, then slide the wire into a butt connector before crimping with a ratcheting tool. For vehicles using amplified systems (common in 1998-2002 GM trucks), ensure the new speakers have a minimum 90dB sensitivity rating and 4-8 ohm impedance to avoid damaging the built-in amp. Check the factory wiring harness for dedicated remote turn-on wires (usually blue or blue/white) if adding an external amplifier–this signal must be tapped for proper operation.
Testing and Troubleshooting
- If a speaker produces no sound, swap its positive and negative leads–phase reversal cancels audio entirely.
- Low volume or muddy bass indicates a mismatched impedance; confirm the new speakers match the factory specs (typically 2-4 ohms).
- Static or intermittent audio often stems from loose or corroded grounds–clean the chassis mounting point with a wire brush and re-secure.
Tape each connection with adhesive-lined heat shrink tubing, not electrical tape–this seals out moisture that corrodes copper over time. Route wires away from sharp edges or moving parts (seat tracks, pedals) using split loom tubing or plastic clips. If the system includes a subwoofer, dedicate a separate 12-gauge power wire directly to the battery, fused within 18 inches of the terminal, to handle higher current draw without voltage drops.
Before finalizing the install, test all door chimes, warning tones, and Bluetooth functions–some GM models integrate speaker outputs with vehicle alerts. If factory equalization sounds harsh with aftermarket components, reset the head unit to default settings or consider a line output converter to bypass signal processing. Document each wire’s location and function with labeled photographs for future repairs–this saves hours if modifications are needed later.
Final Adjustments
Balance the fader and equalizer settings before securing panels–many users skip this step, resulting in lopsided audio. If tweeters (small high-frequency drivers) exhibit shrill tones, add a passive crossover or adjust the head unit’s treble settings. For deeper bass, ensure the subwoofer enclosure is sealed or ported correctly–air leaks drastically reduce efficiency. After 24 hours of use, recheck all connections for heat or discoloration, which indicates resistance buildup and potential failure.
