Complete Wiring Diagram Guide for 2000 Chevrolet Camaro Stereo System
For a precision installation, locate the factory radio harness behind the dash cluster–match the color-coded wires exactly. The constant 12V power (yellow) and accessory lead (red) must connect to the vehicle’s ignition-switched circuit without splicing into unrelated systems like the headlight or A/C controls. Ground (black) requires a dedicated connection to bare metal, preferably the chassis near the original mounting point to prevent interference or voltage drops.
Aftermarket amplifiers demand a dedicated remote turn-on wire (typically blue with white stripe) routed directly from the head unit–resist tapping into the factory amplifier trigger (gray/black) unless verified with a multimeter under 12V load. Speaker outputs (front/rear pairs) follow this standard: left front positive (light green), left front negative (dark green), right front positive (gray), right front negative (dark gray), left rear positive (white), left rear negative (violet), right rear positive (purple), right rear negative (pink).
Dual-voice coil subwoofer setups should split the signal from the rear channels using a line-level converter–never bridge factory speaker wires directly. For vehicles equipped with stock theft-deterrent systems, retain the data bus wire (orange/black) or bypass the security module entirely by cutting the VSS lead (pink/black) if the speed-sensing chime is unnecessary. Verify all connections with a continuity tester before powering the system to avoid damaging the integrated amplifier or fusing the harness.
Guide to Electrical Connections for a Y2K Chevrolet Sports Coupe Audio System
Locate the 12-pin harness behind the factory head unit–pin 2 (orange) delivers constant 12V power, pin 4 (gray) handles illumination, and pin 7 (dark green) carries the amplifier turn-on signal. Splice 18-gauge wire directly to these pins for aftermarket receivers, ensuring crimp connectors are soldered and heat-shrinked to prevent oxidation. Use a circuit tester to verify voltages before connecting; stray resistance above 0.2 ohms indicates corrosion or damaged wiring requiring replacement of the factory harness section.
Speaker Wire Color Codes and Impedance Matching
Front left positive: solid light blue stripe; negative: light blue with black stripe. Front right positive: solid dark green stripe; negative: dark green with black stripe. Rears follow: left positive: gray stripe; negative: gray with black stripe. Right positive: tan stripe; negative: tan with black stripe. Measure each speaker’s impedance–factory units run at 4Ω, so aftermarket amps must support 4Ω loads to avoid thermal shutdown. Trim wire ends cleanly with a stripping tool set to 1/4 inch to prevent shorting against chassis grounds.
Route RCA cables away from power wires and ignition coils to minimize interference; secure them with adhesive-backed mounts under the dashboard. For amplified subwoofer outputs, tap the rear speaker wires before they enter the door jamb harness–use a 10-gauge jumper between the rear positive and negative wires to create a bridged mono signal. Test bass response at low volume first; distorted output suggests ground loop noise requiring an inline noise filter on the RCA lines.
Selecting the Proper Adapter for Fourth-Generation F-Body Audio Upgrades

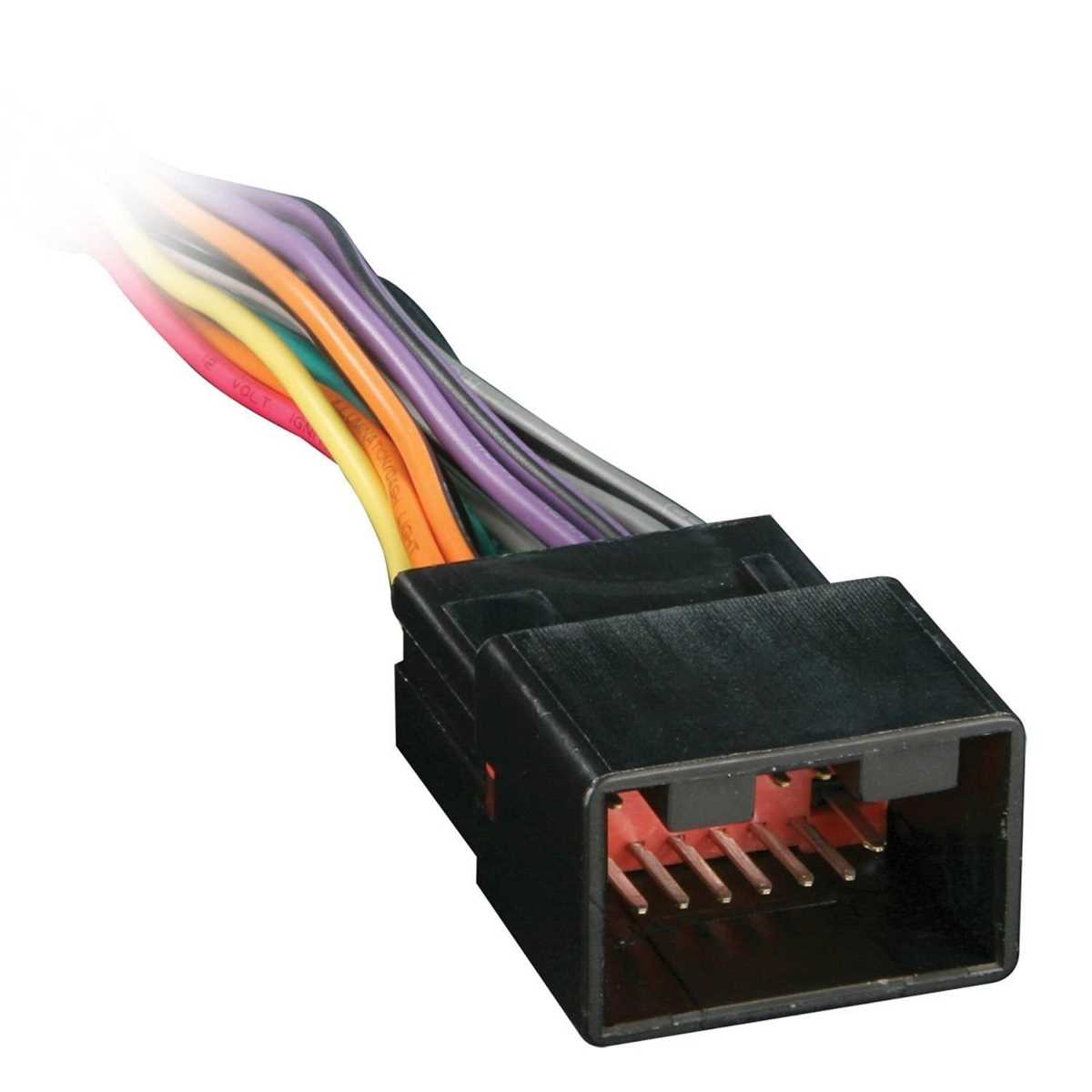

Locate the factory harness connector behind the dash cluster–it’s a 12-pin rectangular plug with two distinct locking tabs. Match the pinout sequence against aftermarket documentation; colors often follow this pattern:
- Constant power: yellow stripe, 12 volts
- Switched power: red stripe, ignition-dependent
- Ground: black, usually thickest gauge
- Speaker leads: two per channel, solid and striped pairs
- Ant. remote: blue stripe, triggers power antenna
Installers frequently mistake the 10-speaker Bose harness for the base system harness. Verify speaker count–base models use four 4-ohm drivers, while premium variants run eight 2-ohm drivers with separate rear fill amplifiers. Measure impedance with a multimeter if labels are missing.
Aftermarket adapters must bridge the gap between Metra 70-2003 and Axxess ASWC-1 interfaces. Check pin compatibility:
- Metra retains factory steering wheel controls but requires separate climate control interface.
- Axxess integrates both audio and climate buttons but loses chime module signals unless spliced.
- Scosche CR02 mirrors OEM pinout exactly but lacks illumination dimming capability.
Identify amp type–base systems use Clarion AM/FM/CD deck with integrated amp; premium models employ separate Bose processor behind the glove box. Trace power wires to determine if they feed through the firewall grommet near the brake master cylinder or directly from the fusebox.
Harness connectors vary by trim level–RS coupes feature simpler seven-wire setups, while Z28 convertibles include additional wiring for rear window defogger and power top mechanisms. Remove the radio bezel first to confirm connector type before purchasing adapters.
Alternative harness solutions like PAC RP5-GM31 preserve OEM amplifiers but require splicing extension wires for additional inputs. For full removal of factory components, disconnect the battery, then remove the lower dash panel to access the CD changer port if equipped.
Verify aftermarket unit compatibility–Kenwood Excelon models demand 5 volts on illumination wire, while Pioneer units tolerate 12 volts. Test with a 9-volt battery if illumination flickers or fails to respond.
Always cross-reference installation guides with vehicle build sheets; even same-model-year variants exhibit harness differences between early and late production runs.
Step-by-Step Color Code Guide for Chevy Sports Coupe Audio Connections
Begin by locating the vehicle’s 12-pin harness connector behind the factory head unit. Identify the constant 12V power lead–this wire is yellow with a thin black stripe and must connect to the aftermarket receiver’s battery input to maintain memory settings.
The red accessory wire (solid red) supplies power only when the ignition is on; splice it to the stereo’s ignition feed to prevent battery drainage. Confirm ground using the black wire (sometimes with a white stripe)–secure it to a bare metal chassis point, sanding away paint for a solid connection.
For speaker outputs, match pairs to their respective door or rear panels: gray (left front positive) with gray/black (negative), white (right front positive) with white/black, purple (left rear positive) with purple/black, and green (right rear positive) with green/black. Avoid reversing polarity to prevent phase cancellation.
Handling Dimmer and Amplifier Triggers
The orange wire (sometimes with a white stripe) controls dashboard illumination–hook it to the stereo’s dimmer input for brightness sync with the instrument cluster. If upgrading to an external amplifier, utilize the factory pink wire (amplifier turn-on) by connecting it to the remote turn-on lead of the aftermarket unit.
For vehicles equipped with a factory amplifier, the light blue and dark blue wires carry amplified signals–bypass these by splicing directly into the speaker wires at the doors instead. Use a multimeter to verify voltages on all connections before finalizing crimps or soldering.
Double-check all splices with electrical tape or heat-shrink tubing, then secure the harness away from moving components like the steering column. Test each function–volume, balance, fade, and illumination–before reassembling the dashboard trim to confirm proper operation.
Integrating Modern Audio Systems with Fourth-Gen F-Body Harnesses
Begin by sourcing a compatible dash adapter harness for the LS1 platform–Metra 70-2004 or Axxess ASWC-1 are reliable options. These harnesses bridge the gap between the OEM electrical layout and aftermarket receivers, eliminating the need for splicing factory cables. Verify the adapter includes a retained accessory power (RAP) lead, which ensures the head unit remains operational when the ignition is off but the door hasn’t been opened, matching the vehicle’s original behavior.
Disconnect the negative battery terminal before handling any connections. The factory amplifier in the Z28/SS models requires a bypass module (e.g., PAC RP4-CH11) to maintain signal integrity–failure to address this will result in weak or distorted audio. For base models, connect the aftermarket unit’s speaker outputs directly to the adapter harness’s corresponding wires, using crimp connectors or solder for durability. Avoid twisting wires together or using electrical tape, as vibration and heat will degrade these connections over time.
Wire Color Codes and Signal Types
| Factory Wire | Function | Aftermarket Connection |
|---|---|---|
| Orange (+) | Constant 12V | Yellow (Memory) |
| Gray (+) | Switched 12V | Red (Accessory) |
| Black (-) | Ground | Black (Ground) |
| Dark Green/White (-) | Left Front Speaker (-) | Gray (-) |
| Dark Green (+) | Left Front Speaker (+) | Gray (+) |
| Light Blue/White (O) | Amplifier Trigger | Blue/White (Remote Turn-On) |
The steering wheel control interface requires a separate adapter (e.g., iDatalink Maestro SW). Program it using the manufacturer’s software–generic resistors and switches will not work due to the vehicle’s serial data bus. If retaining the factory chime module is necessary (for seatbelt warnings), connect the adapter’s chime wire to the light blue stripe on the OEM harness. Skipping this step will silence critical alerts.
For vehicles equipped with the Monsoon audio package, the factory amplifier must be bypassed or replaced. Remove the amplifier from its mount behind the rear seat, then tap into the purple and green wires for rear speaker signals. Use a 4-channel amplifier with high-pass crossovers to prevent distortion from the stock 6.5-inch full-range units. Adjust gain levels using a 1 kHz test tone set to 0.5V–distortion at high volumes indicates incorrect settings.
Secure all connections with loomed wiring and zip ties, routing cables away from sharp edges and moving components (e.g., seat tracks, parking brake). Reconnect the battery, then test all functions: volume, balance, fade, and USB/auxiliary inputs if applicable. If the head unit powers off unexpectedly, check the RAP wire connection–this is a common failure point. For troubleshooting, a multimeter set to DC voltage should read 12V at the memory wire with the ignition off and 14V at the accessory wire with the engine running.
Common Pitfalls and Solutions
| Issue | Diagnosis | Fix |
|---|---|---|
| Head unit powers off with ignition | Missing RAP wire connection | Connect to OEM pink wire |
| No audio from rear speakers | Factory amplifier not bypassed | Install PAC RP4-CH11 or splice direct |
| Distorted treble | High-frequency roll-off from OEM filters | Add passive crossovers or upgrade tweeters |
| Intermittent steering controls | Incorrect SW adapter programming | Reprogram using iDatalink software |
