Complete 2000 Dodge Ram Trailer Wiring Diagram and Electrical Guide
Install the 7-way RV blade connector behind the rear bumper using the factory mounting bracket. Match the color-coded wires exactly: white (ground), brown (running lights), green (right turn/brake), yellow (left turn/brake), blue (electric brakes/auxiliary), and black (12V power). Verify each circuit with a multimeter before finalizing connections–incorrect pairing can fry the truck’s integrated relay module or burn out trailer fuses rated at 30A.
Locate the integrated power module (IPM) under the driver-side dashboard. It houses the trailer tow fuse block and relay bank. Tap the black power wire directly into the IG1 circuit at fuse slot #23 (20A) using a weatherproof splice connector. Avoid splicing into the accessory circuit–drawing current here risks draining the battery if the ignition is off. Attach the blue brake controller wire to the pre-wired pigtail labeled “Trailer Brake” inside the IPM; this circuit is pre-fused at 15A.
Ground the white wire to a bare metal chassis point within 18 inches of the connector. Paint corrosion or rust beneath the mounting surface can cause intermittent failures–scrape down to fresh metal and apply dielectric grease. Test continuity between the ground point and the truck’s negative battery terminal; resistance should read
Route harness wires away from moving suspension components and exhaust heat shields using nylon loom tubing. Secure with zip ties every 12 inches–vibration loosens connections over time. On models with stability control, disable the “Trailer Sway Mitigation” feature via the onboard computer menu before towing heavy loads; failure to do so triggers unnecessary braking intervention during sharp turns.
Electrical Hookup Guide for Heavy-Duty Hauling
Start by verifying the vehicle’s existing plug configuration–standard 4-pin flat or 7-pin round connectors. Locate the factory harness behind the rear bumper, typically secured with a white plastic clip near the driver-side tail light. Use a multimeter to test each terminal: brown (tail lamps), yellow (left turn/brake), green (right turn/brake), and white (ground). If voltages deviate from 12V ±0.5V under load, inspect for corroded connections or frayed wires–replace 18-gauge wiring with 16-gauge for improved durability.
Troubleshooting Underperforming Circuits
- No brake or turn signal: Check the fuse box (integrated relay/F3 at 20A) and tow/haul mode activation via the instrument cluster menu. Override defective relays by splicing a 30A relay directly into the brake circuit.
- Flickering lights: Bypass the factory load equalizer–install a dedicated 40A breaker between the battery and harness to prevent voltage drop under LED loads. Ensure ground connections are torqued to 8-10 ft-lbs on bare metal surfaces.

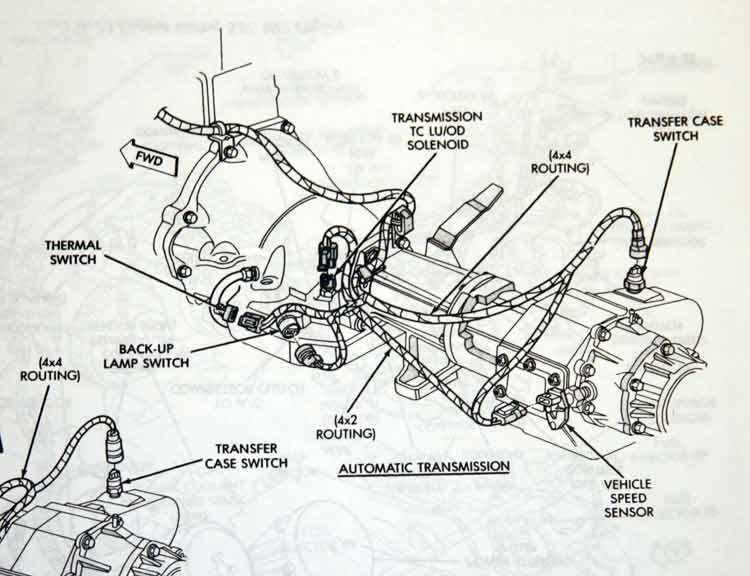

- Reverse lamps inoperable: Trace the purple wire to the transmission control module; if damaged, reroute from the backup light switch using 14-gauge wire and heat-shrink butt connectors.
- Strip ½ inch of insulation from adapter wires; twist strands clockwise before crimping.
- Apply dielectric grease to connectors to prevent oxidation in wet conditions.
- Test under maximum load (all turn signals, brakes, and auxiliary circuits active) for 30 seconds before finalizing.
For auxiliary power needs, tap into the orange wire (always-on 12V) at the fusebox using a 25A inline fuse. Avoid splicing into the pink ignition wire–voltage fluctuations can damage sensitive electronics. Document all modifications with labeled schematics for future diagnostics.
Finding the Tow Vehicle’s Electrical Plug on a First-Generation Heavy-Duty Pickup

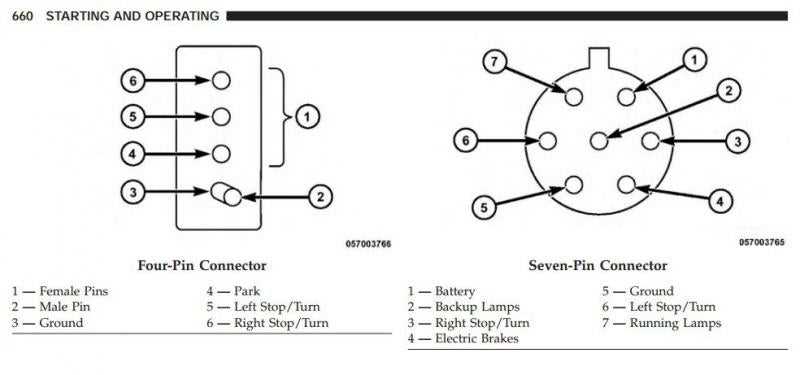

Check behind the rear bumper’s driver-side corner–manufacturers typically mount the factory harness there on models from this era. If obscured by a protective cover, remove it by pressing the plastic clips inward. The connector is a rectangular 7-pin receptacle, often black with a gray latch; verify by counting each terminal slot against the reference chart below.
| Terminal Number | Wire Color | Function |
|---|---|---|
| 1 | White | Ground |
| 2 | Black | Battery feed |
| 3 | Yellow/brown stripe | Left turn/brake |
| 4 | Green/brown stripe | Right turn/brake |
| 5 | Brown | Tail/running lights |
| 6 | Blue | Electric brakes |
| 7 | Red | Auxiliary/backup lights |
For pickups lacking the OEM socket, trace the main harness bundle exiting the cab near the spare tire hanger. Split loom tubes usually branch into a 6-ft pigtail leading to the same 7-pin format–splice colors match the table. If corrosion is present, clean terminals with sandpaper or replace the entire plug assembly from aftermarket kits; part numbers end in “30030” for the exact fitment.
Alternative Mounting Spots
Rarely, the harness exits directly below the bed floorpan, behind the rear axle. Drop the spare tire to access; cables sit inside a protective steel channel. Some extended-cab variants route connections through the driver-side tail light housing–remove the inner panel to locate.
Decoding the Electrical Color Standards for Your Heavy-Duty Pickup’s Towing Setup
Begin by locating the manufacturer’s standard color scheme in the vehicle’s harness connector–typically a 7-pin round plug. The brown wire carries the running lights circuit, often labeled as “marker” or “clearance.” Confirm its function by switching on the vehicle’s headlights; the trailer’s side and tail lamps should illuminate. If no response occurs, test for continuity at the pin using a multimeter set to 12V DC. A reading below 10V suggests corrosion or a broken connection inside the cable jacket. Strip insulation back ½ inch, twist strands tightly, and apply dielectric grease before crimping a new terminal.
Identify the yellow and green wires next: these control the left and right turn signals, respectively, alongside the brake lights. Verify operation by activating each turn signal independently–each should flash in sync with the corresponding vehicle lamp, accompanied by a steady brake light when the pedal is pressed. A common failure occurs when the green wire’s circuit shorts to ground; symptoms include a single-side brake light staying on continuously. Isolate the fault by disconnecting the connector and probing the green wire with a test light–if lit without pedal input, trace the harness along the frame for chafing near sharp edges or suspension components.
Critical power management relies on the black wire, designated for the auxiliary 12V circuit. This line supplies constant voltage to charge trailer-mounted batteries or power electric trailer brakes. Measure voltage at the pin with the ignition off–readings should match the vehicle’s battery (12.6V–13.8V). Voltage drop exceeding 0.5V indicates resistance; inspect the main fuse (typically 30A) and relay in the under-dash fuse block. Replace burned fuse links with the identical amperage rating–never substitute with higher-rated alternatives, as this risks melting the harness jacket or starting a fire.
- White wire: Ground reference–secure connection to vehicle frame required. Poor grounding often manifests as flickering lights or erratic brake controller behavior.
- Blue wire: Electric brake output–must connect to a compatible brake controller. Factory configurations include a 4-pin inline connector; ensure it’s mated before testing.
- Red wire: Reverse lights–activates only when the transmission is engaged in reverse. Test by shifting into gear while observing trailer backup lamps.
Troubleshoot intermittent faults by replacing the factory connector with a molded plastic 7-way plug assembly. Solder each wire joint rather than relying on crimp terminals–maintain minimum 2-inch segments of heat-shrink tubing over soldered splices to prevent moisture intrusion. Label each wire with colored vinyl tape before reinstallation to simplify future diagnostics. After reassembly, apply a load tester (minimum 5A draw per circuit) to confirm all pins deliver consistent voltage without flickering.
Document custom modifications if deviations from OEM standards exist. For example, aftermarket camper shells or lift-kit installations often reroute ground wires to the bed rather than the original chassis points. Note these changes in a logbook alongside fuse locations and relay part numbers–this streamlines dealer diagnostics or third-party service visits by eliminating guesswork when interpreting OBD-II trouble codes related to lighting faults.
How to Verify Electrical Connections on Your Heavy-Duty Pickup
Begin by disconnecting the plug from the vehicle’s rear harness to isolate the system. Use a multimeter set to 12V DC and probe the ground pin (typically the white wire) against the chassis–voltages above 0.1V indicate corrosion or poor grounding, requiring immediate cleaning of connections with a wire brush and dielectric grease application. Next, check each remaining pin (brown for running lights, yellow for left turn/brake, green for right turn/brake) while activating the corresponding function on the dash; sustained readings below 11.5V signal a faulty relay or blown fuse–consult the fuse box map for location 8 (10A) and 16 (15A).
Pinpointing Intermittent Failures
For sporadic signal loss, twist the harness near the plug and observe the multimeter for voltage drops–chafed insulation often causes this. Splice a known-good wire (18-16 AWG) into the affected circuit to bypass damaged sections, ensuring soldered joints are sealed with heat-shrink tubing. If turn signals blink erratically, test the flasher unit behind the dash panel by substituting it with a relocatable three-prong flasher (standard part #FLT-7). Ground issues in the tow package may also trigger false ABS warnings–measure resistance between the trailer frame and vehicle chassis (should be <1Ω) to confirm.
Validate the brake controller integration by accessing the OBD-II diagnostic port (16-pin female) under the dash–use a scanner with PIDs for trailer brake output (mode 0x09, PID 0x03) to verify signal timing matches the trailer’s actuator requirements (typically 12V pulse width modulation). Adjust gain settings on the controller if stopping distances feel uneven; improper calibration causes uneven brake application. For auxiliary circuits (e.g., reverse lights or 12V auxiliary), trace the wiring loom to the rear bumper, checking for voltage bleed-over from adjacent circuits–separate wires with loom tape if insulation is compromised.
