Chevrolet Impala 2000 Radio Wiring Color Codes and Connection Guide

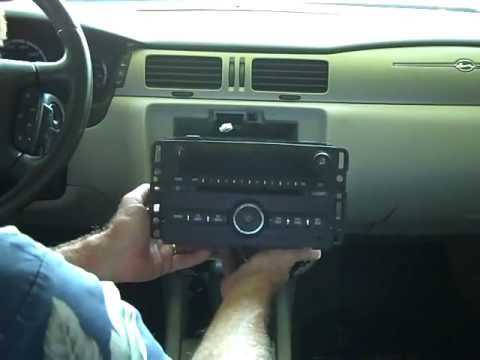

Locate the factory harness behind the original stereo unit and disconnect it from the vehicle’s power distribution network. Use a multimeter to verify constant 12V on the yellow wire (battery), ignition-switched 12V on the red wire (accessory), and ground on the black wire. Cross-check these readings against a color-coded reference from a verified schematic for GM platform vehicles produced between 1999 and 2001 to avoid miswiring common in aftermarket installations.
Identify the dimmer control wire (typically brown with a white stripe) and the antenna trigger wire (blue) before cutting or splicing. These connections affect dashboard illumination and amplifier power, respectively–failure to properly integrate them will result in dimmed displays or no signal reception. For premium sound systems, retain the factory amplifier wiring (gray and light blue wires) unless replacing with a higher-wattage unit; improper bypass can cause audio distortion or speaker damage.
Use crimp connectors or solder joints with heat-shrink tubing for all wire splices. Avoid twisting wires exposed to moisture or vibration, which leads to intermittent failure within weeks. Install a fuse (10A) on the yellow wire within 18 inches of the battery terminal to prevent electrical fires. For vehicles with theft-deterrent systems, preserve the data bus wire (light green) to retain steering wheel controls and OnStar functionality if equipped.
Test the system with all speakers disconnected before final reassembly. Verify each channel produces sound at equal volume and no popping occurs during power cycles. If interference is detected, relocate RCA cables away from power wires and ground the head unit’s chassis directly to the vehicle’s frame using a dedicated 10-gauge wire. Reassemble the dashboard only after confirming all functions operate as intended.
Chevy Sedan Audio System Connection Guide
Locate the factory harness behind the dashboard cluster on the driver’s side. Pinout follows this sequence: yellow (constant 12V), red (switched 12V), black (ground), gray (left front speaker +), white (left front speaker –), purple (right front speaker +), green (right front speaker –). Strip ¼ inch of insulation, crimp 18-22 AWG connectors, and match each wire to the aftermarket unit’s color-coded harness.
Troubleshooting Common Issues
- No power: Verify fuses F22 (10A) and F23 (15A) in the instrument panel fuse box.
- Distorted sound: Check for short circuits at the speaker connections; use a multimeter set to 200Ω to confirm impedance between 2Ω and 4Ω.
- Static noise: Insert a noise filter (Littelfuse 03430100) between the power lead and head unit.
- Illumination failure: Splice the dimmer wire (light blue) to the vehicle’s existing dashboard lighting circuit.
For vehicles equipped with premium sound systems (Bose), note the additional amplifier module under the passenger seat. Disconnect the battery before handling the amplifier’s orange (turn-on signal) and tan (amplifier ground) wires. Reconnect in under 30 minutes to prevent loss of presets in the vehicle’s computer.
Matching the Right Connector for Chevrolet’s Early 2000s Sedan Audio System
Begin by locating the factory-installed audio unit’s plug beneath the dashboard. Chevrolet’s LS and base trims from this era use a 12-pin Metra 70-1732 harness, while higher LT and SS packages integrate an 8-pin add-on for amplified outputs. Cross-reference the pin count with the donor stereo’s adapter–most aftermarket decks require Metra’s AXX-HS20 or Scosche GM06B harness for seamless integration without splicing.
Pin Configuration Breakdown
| Harness Model | Pin Color | Function | Volts (Typical) |
|---|---|---|---|
| Metra 70-1732 | Yellow/Black | Battery Constant | 12.6 |
| Red | Ignition Switched | 12.0 | |
| Black | Ground | 0 | |
| Scosche GM06B | Dark Blue/White | Amplified Speaker (+) | 4.5 |
| White | Front Left Speaker (-) | 0 |
Check the OEM harness for double-wire speakers–Chevrolet often pairs front and rear outputs on a single pin. Aftermarket adapters typically split these, so verify each connection with a multimeter. Factory retainers may include a pink retention clip; remove it only after confirming the adapter’s locking mechanism engages fully.
If the vehicle came with OnStar, the telematics module occupies pins previously used for audio signals. Install a bypass harness (e.g., PAC C2R-CHY4) to reroute these without cutting factory wires. LT models with premium sound include a factory amplifier under the driver’s seat; mismatched harnesses here will mute rear channels or trigger error codes on the RPO UQ4 system.
For late-model replacements, Pioneer and Kenwood decks often default to RCA pre-outs for amplified systems. If the original setup lacked RCA jacks, use a line-output converter between the harness and new unit to prevent impedance mismatch–most converters attach directly to the rear speaker wires, avoiding voltage drop across extended runs.
Color-Coded Guide for Chevrolet Sedan Audio System Connections
Begin by locating the yellow (B+) wire–this supplies constant power from the battery, ensuring memory retention for presets and clock settings. Secure it directly to the fuse box tap or an existing accessory line rated for at least 10 amps; improper splicing risks draining the battery.
Identify the red (accessory) line next. This wire activates with the ignition, delivering power only when the key is turned to “on” or “acc.” Connect it to the ignition-switched outlet to prevent parasitic draw. Avoid linking it to the yellow wire, as this bypasses the vehicle’s power management system.
The black (ground) requires a clean, rust-free chassis connection. Scrape paint or corrosion from a bolt near the stereo’s mounting location, then attach using a crimp ring terminal. A poor ground creates static, humming, or intermittent failure–verify continuity with a multimeter before finalizing.
Pair the gray (right front speaker +) and gray/black (right front speaker –) wires to the corresponding outputs of the aftermarket unit. Match polarity strictly; reversed connections distort audio. Test with a 1 kHz tone before securing connections to confirm channel accuracy.
Light blue/white (antenna trigger) activates the power antenna or amplifier when the system powers on. If retaining the factory antenna, splice this wire to the new head unit’s designated lead. For aftermarket amplifiers, route it to the remote turn-on input–failure results in no signal to external speakers.
For vehicles with OnStar, the orange (illumination) and brown (dimmer) wires adjust display brightness in sync with dashboard lights. Connect these to the replacement unit’s dimmer inputs; skipping this step leaves the display overly bright at night or unreadable in daylight.
Factory-equipped models include dark green/white (left rear speaker +) and dark green (left rear speaker –). Verify impedance before pairing–most systems expect 4 ohms. Higher loads risk overheating; lower loads may trigger protection mode, muting rear channels entirely.
Conclude by wrapping exposed connections with heat-shrink tubing or electrical tape to prevent shorts. Route bundled harness away from moving parts and heat sources like exhaust manifolds. Recheck all splices with a load test: play audio at 50% volume for 10 minutes, monitoring for overheating or signal dropouts.
Tools and Materials Needed for Safely Upgrading Your Vehicle’s Audio System
Begin with a 12V test light or a multimeter to verify power sources before handling any connections. Ensure the probe’s ground clip is secured to a clean metal surface on the chassis–avoid painted or corroded areas to prevent faulty readings. Disconnect the negative battery terminal first to eliminate risk of shorts; use a 10mm wrench or a quick-release ratchet for efficiency. A wiring harness adapter specific to GM vehicles simplifies integration, reducing splicing errors–match the color codes precisely to avoid mismatched speaker outputs.
Core Equipment for Secure Installation
Wire strippers with a 16-22 AWG range are critical for cleanly exposing copper strands without nicking them. Crimp connectors (butt and ring types) paired with a heat gun or soldering iron (60W minimum) ensure durable joints; avoid electrical tape alone as it degrades over time. For stubborn factory plugs, a small flathead screwdriver or trim removal tool helps pry open dash panels without snapping plastic clips–work methodically from the outer edges inward. A flashlight with a magnetic base or a headlamp improves visibility in tight spaces behind the audio unit’s mounting bracket.
Include side-cutters with insulated handles for trimming excess wire and a cable ties kit to organize loose runs–route wires away from moving components like the steering column or HVAC controls. A non-contact voltage detector adds an extra layer of safety when confirming circuits are dead before touching them. For troubleshooting, keep a spare 10A fuse on hand to test circuits if the audio unit fails to power on after reconnection.
Common Electrical Installation Errors and Preventive Measures for Chevy’s Classic Sedan
Incorrectly linking the aftermarket harness to the factory speaker outputs often melts the OEM connectors. Verify pin assignments against the vehicle’s service manual–specifically, the 8-pin mini connector labeled “C2” on the back of the stock receiver. Mismatched gauge sizes between new leads and original cables can create voltage drops, leading to distorted audio or amplifier failures. Use 18-gauge wires for signal paths and minimum 16-gauge for power and ground lines when integrating auxiliary devices.
- Reversing polarity on constant power (battery line) versus switched power (accessory line) will drain the battery overnight. Test both lines with a multimeter: constant power should read 12V at all times, switched power only when the ignition is on.
- Ground loops introduce engine noise into audio signals. Attach all ground leads to a single bare metal point on the chassis, sanded clean of paint.
- Skipping the installation of an inline fuse (10A–15A) near the battery terminal invites fire hazards. Modern amplifiers pull 8–12A under normal load.
Omitting the antenna trigger wire disables the electric mast. This thin blue wire in the factory loom must connect to the new unit’s “ANT CTL” terminal. Some installers confuse it with the illumination lead, a grey wire dimming dash lights during night driving. Double-check the harness color code against the sedan’s build date–late models (post-08/99) frequently use a pink-striped antenna control instead of solid blue.
- Taping splices instead of soldering and heat-shrinking creates intermittent connections. Even high-quality crimp connectors fail under vibration after 12–18 months.
- Ignoring factory theft-deterrent systems will lock the head unit permanently after 3 ignition cycles. Retrieve the security code from the glovebox sticker or GM dealership before cutting power.
- Routing signal wires parallel to vehicle harness bundles (especially near the ECU or ABS module) picks up transient voltage spikes. Separate audio cables by at least 4 inches or run them perpendicular to high-current lines.
