2000 Isuzu Rodeo Radio Wiring Guide and Electrical Connection Details
Locate the harness connector behind the dashboard center panel–marked by a 16-pin plug with yellow, black, and purple wires for power and ground. Verify voltage on pins 4 (constant 12V), 5 (switched ignition), and 8 (illumination) using a multimeter before proceeding. Failure here often stems from corroded terminals; clean with electrical contact spray or replace the fuse holder if resistance exceeds 0.3 ohms.

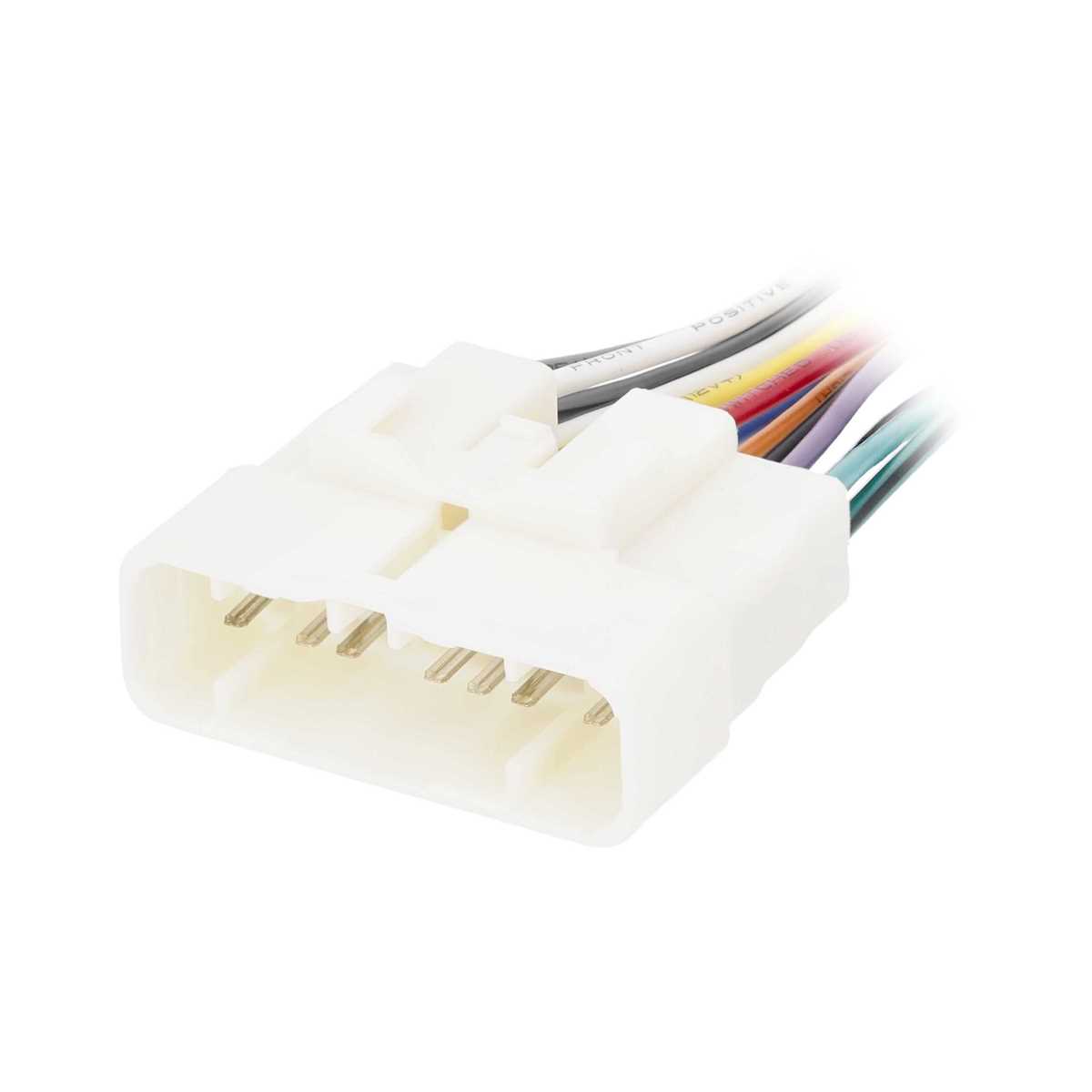

Trace the speaker outputs along the vehicle’s firewall grommet–left front connects via gray/light blue wires, right front via gray/light green. Rear channels exit near the hatch hinge: orange/black for left, orange/white for right. Use a wiring harness adapter (Metra 70-1761) to bypass factory looms if aftermarket units lack Isuzu-specific connectors. Tin all stripped wires with 60/40 rosin-core solder for corrosion resistance.
Ground the amplifier trigger wire (solid brown) directly to the chassis near the glove box, securing with a star washer to prevent rattling interference. For vehicles with premium audio, the factory amp resides under the driver’s seat; bypass it by splicing speaker wires at the head unit’s rear if installing a standalone system. Test each circuit with a 1kHz tone at 1W to confirm signal path integrity before final assembly.
Retain the original antenna motor control (blue/white stripe) for automatic retraction compatibility, or substitute a manual mast if the circuit shows voltage drop below 10V when activated. Document all modifications with labeled photos and a continuity map to streamline troubleshooting later.
Vehicle Audio System Connection Guide for the 2000 Isuzu Amigo Variant
Locate the harness behind the factory sound unit–it’s bundled with a 12-pin white connector. Pin 1 delivers switched 12V from the ignition circuit; verify voltage with a multimeter before attaching aftermarket components.
Ground wires (usually black or brown) must terminate within three inches of the original mounting bracket. Avoid daisy-chaining grounds or connecting them to painted surfaces; bare metal contact ensures stable signal flow.
Antenna triggers (pink or violet) activate power antennas or amplified systems. Confirm compatibility with aftermarket head units–some models require a 12V relay to bridge factory and third-party interfaces.
Speaker outputs are color-coded: front left positive (gray), front right positive (white), rear left positive (green), rear right positive (purple). Negative leads run parallel but striped; mismatching phases causes audio cancellation.
Dimmer controls (orange with white stripe) sync display brightness with dashboard lights. Failure to connect this lead results in screen glare during night driving.
Factory amplifiers (if equipped) often use a six-pin harness beneath the driver’s seat. Bypass them only if replacing with a standalone amplifier–retaining them prevents audio distortion in stock configurations.

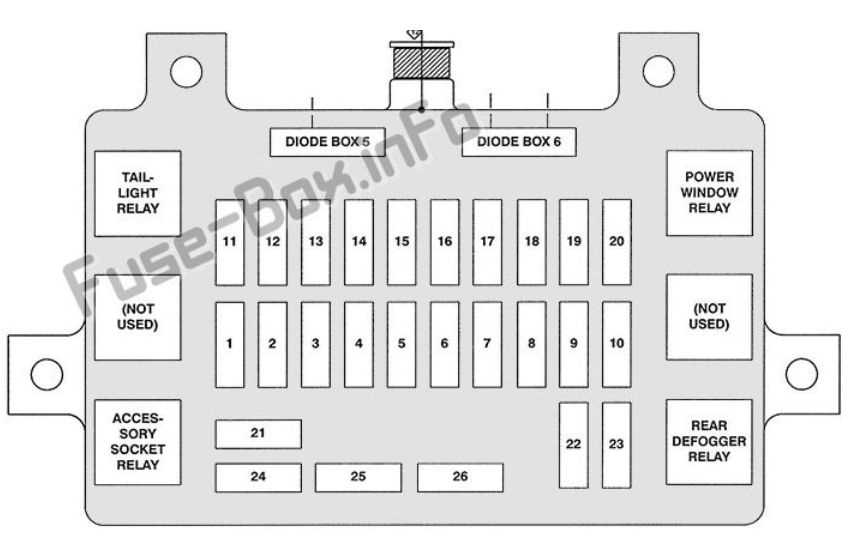

Fuse ratings for accessory circuits typically range from 10A to 15A. Replace blown fuses with identical amperage; over-specifying risks overheating the harness.
Forvehicles with premium audio (Bose), note the separate amplifier harness–it includes a data bus wire (light blue) incompatible with standard head units. Adapter kits (Metra 70-7552) resolve this, but expect slight signal delay.
Finding the OEM Audio Connector Behind the Instrument Panel
Begin by lowering the driver-side knee bolster panel secured by two 10mm bolts beneath the steering column. The bolts are recessed but accessible without removing the steering wheel. Once detached, pull the panel downward and outward–plastic clips along the upper edge will release with minimal force, so avoid prying with metal tools to prevent cracking.
The factory harness is typically tucked behind the climate control assembly, slightly left of the vehicle’s centerline. Look for a rectangular, black plastic plug with 12–16 pins arranged in two rows–this is the direct interface for the original sound system. If obscured, gently move the HVAC ductwork aside; it’s fixed with clips, not screws, and can be repositioned without disassembly.
Key Identification Markers
- Color coding: The plug features a mix of solid and striped wires–solid orange (constant 12V), red with a white stripe (switched power), blue with a white stripe (antenna trigger), and several solid-color speaker leads (gray/front left, green/front right, violet/rear left, light green/rear right).
- Connector shape: The male plug has a slightly tapered top edge; female terminals on the backside may include a small notch near pin 6 (ground) for alignment.
- Adjacent components: The harness sits adjacent to the vehicle’s diagnostic port (OBD-II) but is larger and lacks the iconic trapezoidal shape.
If the connector isn’t immediately visible, trace the speaker wires from the door pillars toward the dash. They converge at this plug, often bundled with a thin white harness tied to the door chime module. Avoid tugging on wires; instead, follow the bundle manually to its termination point.
For access from the passenger side, remove the glove compartment by squeezing its sides inward to release the hinge stops. The right-side airbag module (if equipped) covers the area but can be temporarily moved by disconnecting its 2-pin yellow plug–ensure the ignition is off and the battery is disconnected before doing so. Behind this lies the same harness, though routed differently through the dashboard’s structural crossmember.
Troubleshooting Hidden Connections
- Use a flashlight to inspect behind the instrument cluster; the plug may be tucked behind a support bracket held by one 8mm bolt.
- Check for a secondary smaller harness (4–6 pins) nearby–this often links to the amplifier or security module and merges with the main plug.
- If the plug appears cut or modified, probe the wires with a multimeter: speaker leads should show
Power Supply Wire Connections: Decoding Colors and Purposes
Locate the constant 12V supply first–this wire typically uses yellow insulation and must connect directly to the battery’s positive terminal or an ignition-switched source with permanent power. Verify voltage with a multimeter before attaching; any reading below 12V suggests corrosion, a blown fuse, or a faulty relay upstream. Secure this line with crimp connectors and solder for durability, then wrap the joint in electrical tape or heat-shrink tubing to prevent shorts.
Find the ignition-switched power lead–commonly red or pink–which activates only when the vehicle’s key turns to the accessory or run position. Connect this to a fuse-protected circuit within the dash harness, avoiding high-current accessories like headlights or cooling fans. Test continuity while cycling the ignition to confirm the wire energizes only in the intended key positions. If the device powers down unexpectedly, trace this line back to the fuse box for intermittent faults.
| Wire Color | Typical Function | Test Condition | Failure Sign |
|---|---|---|---|
| Yellow | Permanent 12V | Key off, battery connected | No power retention |
| Red/Pink | Switched 12V | Key to ACC/RUN | Intermittent power loss |
| Black/White | Chassis ground | Continuity to metal frame | Hum, distortion, erratic behavior |
| Orange | Illumination feed | Headlights on | Display dimming issues |
| Blue/White stripe | Antenna motor control | Tuner engaged | Antenna不动 or stuck |
Attach the ground–black or white with black stripe–directly to a bare metal point on the vehicle’s chassis, ensuring no paint or corrosion interrupts conductivity. Sand the contact area down to bright metal, then fasten with a star washer to bite through surface oxidation. A poor ground manifests as weak audio, interference, or random device resets; if symptoms persist, relocate the connection to a different chassis point or add a secondary ground wire.
Use orange for illumination circuits, linking this wire to the vehicle’s dash lighting dimmer circuit to sync brightness with other instruments. Confirm proper function by adjusting the dimmer switch while monitoring the display–flickering or uneven dimming indicates a loose connection or incompatible voltage. For antenna motor control–usually blue with a white stripe–connect only after testing the motor’s end-of-travel limits; reversing polarity can damage the mechanism.

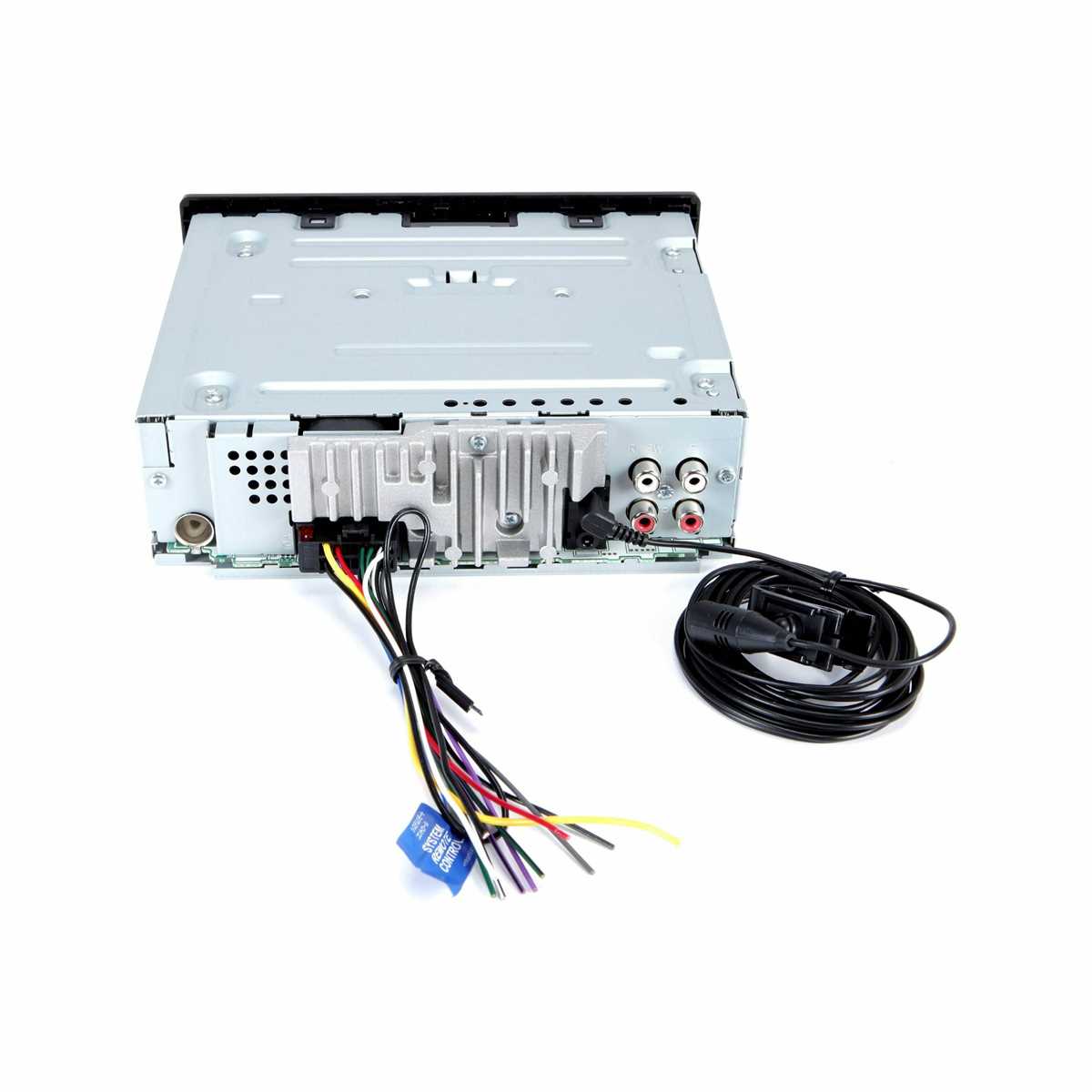

Step-by-Step Guide to Connecting Aftermarket Receiver to Factory Cable Assembly
Begin by identifying the color-coded terminals on the original plug matching the new stereo’s harness. Use a multimeter to verify power (yellow or red), ground (black), and speaker outputs (typically gray/white, green/white, purple/white, and brown/white). Disconnect the battery’s negative terminal before handling exposed wires to prevent short circuits. Strip 5mm of insulation from each connector, twist strands tightly, and apply solder for secure connections–heat-shrink tubing or electrical tape afterward ensures durability.
Match the aftermarket head unit’s wiring schematic to the vehicle’s factory colors:
- Constant 12V (Memory): Yellow → Yellow/black (OEM)
- Switched 12V (Accessory): Red → Red/white
- Ground: Black → Black
- Front Left (+/-): Gray/white → Gray/white
- Front Right (+/-): Green/white → Green/white
- Rear Left (+/-): Purple/white → Purple/white
- Rear Right (+/-): Brown/white → Brown/white
- Illumination (Dimmer): Orange → Orange/white
- Power Antenna: Blue → Blue/white
Verify signal direction–positive wires are solid colors; negatives include a stripe. If the vehicle’s harness lacks an antenna trigger (common in base models), bypass it by connecting the stereo’s blue wire directly to a 12V source via an inline fuse (1A).
Finalizing and Testing
Secure connections with a double-layer of adhesive-lined heat shrink or high-grade electrical tape. Reattach the battery, then power on the system. Adjust balance/fader settings to confirm all speakers function. If static persists, recheck grounds–most issues trace to loose soldering or incorrect polarity. For amplified systems, ensure the remote turn-on wire (blue) aligns with the vehicle’s factory amp trigger to avoid electrical overload.
