Complete Wiring Diagram Guide for 2001 Chevy Venture Electrical System

If your vehicle’s power windows, dashboard gauges, or interior lights are acting erratically, start by examining connectors C1 and C2 on the instrument panel harness–these are hotspots for oxidation and intermittent breaks. Replace any frayed wires with 16-gauge stranded copper (GPT or STS-1 rated) within the first 6 inches of the connector, securing soldered joints with adhesive-lined heat shrink tubing (3:1 ratio). Avoid twisting or taping repairs; soldered splices last 10x longer.

For the rear sliding door and liftgate circuits, isolate the ground connection at G301 (mounted beneath the driver’s seat). Corrosion here mimics battery draw issues–clean the mounting surface with a wire brush, then apply dielectric grease before reattaching the 10mm bolt. Missing ground paths trigger false fault codes in the BCM, specifically DTC B1405 or U1000. Swap the failing module only after verifying zero ohms between pin 5 of the BCM and chassis ground using a digital multimeter on continuity mode.

Accessory circuits–such as the rear HVAC unit–derive power from fuse #15 (20A mini) in the underhood box. Trace this line through the firewall grommet via a dedicated 14-gauge red wire terminating at the climate control relay (RPO CJ2). If rear blowers operate only at high speeds, replace the relay first; if symptoms persist, probe the purple/white wire at pin 8 of the module for ~12V during activation. No voltage signals a broken wire inside the door jamb harness, typically detectable with a tone generator tracing from the right kick panel.

Central locking issues often stem from the passenger-side door lock actuator, which shares a 4-wire harness (colors brown/white, tan/black, light blue/black, and dark blue). Test actuator resistance (~80-120Ω); values outside this range confirm internal coil failure. Replacement units must match the OEM 12V DC motor specs–aftermarket alternatives may overheat. During reinstallation, secure the actuator linkage arm with a new clip (part #15703833) to prevent misalignment that mimics electrical faults.

Radio interference or erratic wiper behavior indicates a compromised noise suppression capacitor (located near the wiper motor). Replace the 0.47µF X2-rated capacitor with a fresh unit, soldering leads directly to the motor housing terminals. For stereo power issues, verify the yellow/black wire at fuse #33 (10A) carries constant 12V–not just when the ignition is on. Absent voltage requires inspecting the ignition switch’s purple wire output or bypassing the switch with a temporary jumper to isolate the failure point.

Electrical Schematics for the Pre-2002 General Motors Minivan: Hands-On Solutions

Locate the under-dash fuse block on the driver’s side–remove the lower trim panel with a 7mm socket to expose the wiring harness connections. Label each connector with masking tape before detachment; the BCM (Body Control Module) harness uses a 12-pin plug (black housing, inset locking tab) while the instrument cluster taps into a separate 16-pin white connector. Cross-reference pin positions against the factory service manual’s schematics section 8B-12 for continuity testing–ignore aftermarket guides that omit the ground distribution tree on pin 8.

Use a multimeter set to 200Ω resistance mode to verify the ignition feed circuits. Probe the pink wire (terminal A7) at the ignition switch harness–voltage should toggle between 0.3V (OFF) and 12.6V (RUN/START). If readings fluctuate, trace the wire back to the under-hood junction block (silver box near the brake master cylinder); corrosion at the 60A mega fuse (position F5) often causes intermittent faults. Replace the fuse holder if melted plastic is visible–aftermarket units labeled “Hella” hold tighter tolerances than OEM equivalents.

For headlight circuit diagnostics, focus on the left-hand relay cluster behind the glovebox. The DRL (Daytime Running Lamp) module splices into the dark blue wire (pin C3) via a fusible link–bypass this link with 14-gauge jumper wire only if the module fails factory reset (hold hazard button for 10 seconds while turning ignition ON). Rear defroster elements demand direct testing: the grid’s resistance should read 0.5Ω per segment; deviations indicate broken filaments–repair with conductive silver paint (part #8876), not generic copper epoxy.

Access the sliding door motor assembly by dropping the interior trim panel (two T20 Torx screws beneath the armrest). The motor’s 6-wire harness (yellow/light blue stripe) carries PWM signals–check for 5V pulses on the yellow wire (pin 4) during door activation. Common failures stem from chafed wires near the door hinge; route replacements through spiral wrap (DNZ p/n 5140) and secure with nylon zip ties to the body rail every 6 inches. Avoid splicing into the existing loom–use butt connectors crimped with a ratcheting tool, then seal with adhesive-lined heat shrink.

Power window circuits rely on a concealed inline fuse (10A) behind each switch–pry up the door panel using a trim tool at the lower front corner. The driver-side master switch controls all passenger windows via the orange wire (pin 3)–if one window fails, swap the suspect switch with a known-good unit before replacing motors. Note the feed polarity reverses for express-up functionality; reverse-engineer this by observing voltage swings (±12V) during switch depression.

HVAC blower motor resistances reside beneath the passenger-side footwell–remove two 8mm bolts to expose the module. Expected ohm readings across each resistor tap: Low = 2.2Ω, Med1 = 1.3Ω, Med2 = 0.7Ω, High = direct grounding. Bypass the entire resistor pack only if Med2 speed operates sporadically–use a 30A relay activated by the existing Med1 wire (tan/white stripe) to simulate High speed, but add a 1N4004 diode across the relay coil to suppress inductive spikes.

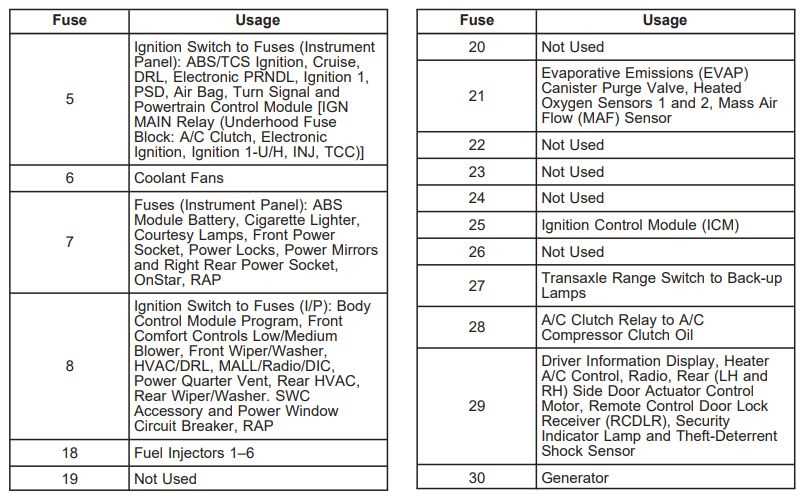

Finding the Fuse Panel and Electrical Layout Maps

Begin by lifting the instrument panel cover beneath the driver’s side dash. The primary fuse block sits directly behind, secured by two plastic clips. Press inward on both clips simultaneously while pulling the panel downward to release it. Avoid forcing the tabs–excessive pressure may crack the housing.

The block contains two rows of blade-style fuses labeled A through S (upper) and T through W (lower). Use the legend etched on the underside of the panel door for quick reference. For delayed circuits–such as the back-up lamps or fuel pump–trace the connecting wires rearward to relay R3, positioned adjacent to fuse U. Relay pin assignments are molded onto the plastic casing.

Access the under-hood distribution center by releasing the three J-hooks at the front edge of the cowl cover. The secondary power distribution module resides behind the battery tray. Disconnect the negative terminal before removing the cover to prevent accidental shorts. This module houses maxi-fuses rated 30–80 amperes, protected by color-coded caps: red (battery feed), yellow (main ignition), blue (accessory circuits).

Position	Circuit	Fuse Rating	Wire Color
A	Headlamp (low beam)	15 A	Dark Green/Black
D	Fuel Injector	10 A	Pink
G	A/C Clutch	25 A	Light Green
J	Instrument Panel	10 A	Orange/Black
R3	Fuel Pump Relay	30 A (circuit breaker)	Gray

Ground points critical for module operation cluster near the strut tower on the left frame rail. Clean all corroded terminals using a wire brush and apply dielectric grease before reattaching. Trace ground wires from the transmission control module (TCM) and powertrain control module (PCM) backward to verify continuity–these often share a single stud marked G101.

For rear power feeds, remove the left rear quarter trim panel by unsnapping six plastic retainers. The tail lamp harness connects through a thirty-six pin connector; pins 1–6 supply brake lights, 7–12 control turn signals. Voltage drops exceeding 0.2 V between connector and bulb socket indicate resistance at the splice joint behind the bumper reinforcement.

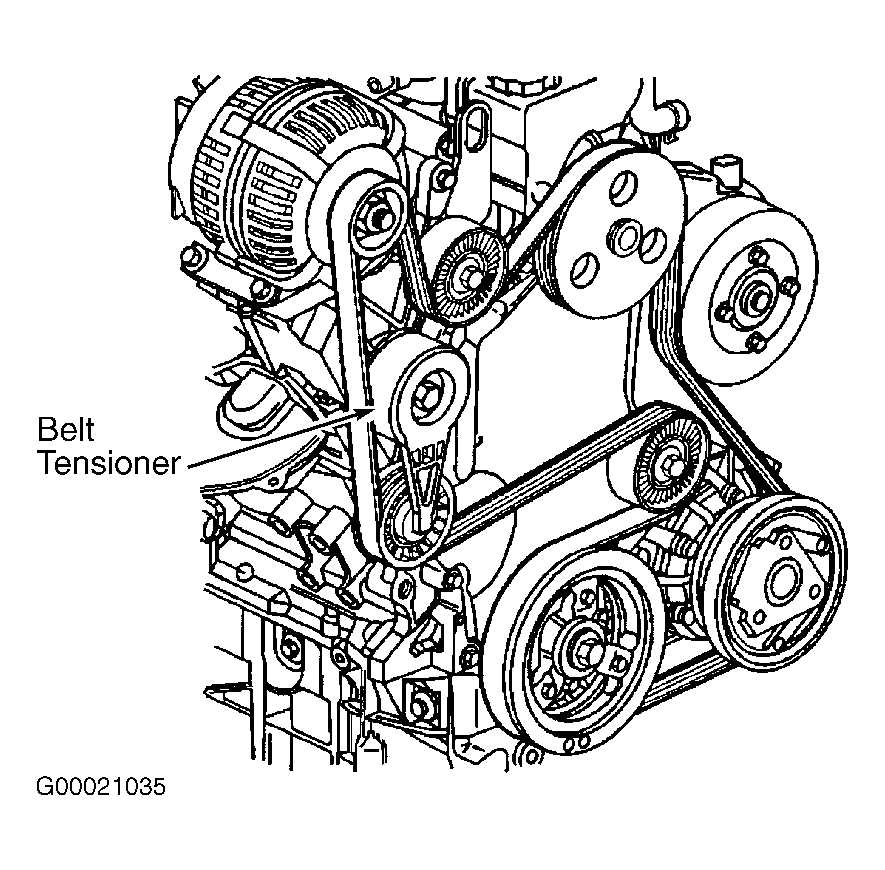

When verifying high-current circuits–starter solenoid or alternator output–probe directly at the component terminals rather than relying on the fusebox legend. The starter solenoid wire (purple) carries 12 V continuous; the alternator output (orange) should read battery voltage only when the engine runs. Deviations suggest faulty isolation diodes within the rectifier assembly.

Pinpointing Critical Electrical Linkage Junctions and Terminal Layouts

Start by locating the main engine control module (ECM) harness plug beneath the dashboard on the driver’s side–typically a 120-position Delphi connector. Probe terminals 64 (switched ignition feed) and 87 (ground reference) with a multimeter set to 20VDC; voltages below 10.5V indicate corroded pins or frayed strands requiring immediate retermination. Use a pinout map specifying AWG 18-20 tin-plated copper for replacements to prevent voltage drop.

• Instrument cluster connector: 24-pin rectangular white plug behind the gauge bezel, terminals 16 (LCD backlight) and 22 (fuel level sender) frequently develop intermittent contact–apply dielectric grease after cleaning.
• BCM (Body Control Module) junction: 48-pin black connector under the glove box, terminals 3 (door ajar signal) and 42 (courtesy lamp feed) often suffer from oxidation–solder and heat-shrink repair joints rather than crimping.
• HVAC actuator plugs: 6-position mini-connectors near the blower motor, terminals 2 (mode door) and 5 (temp door) demand DBV-rated terminals to resist thermal cycling.

Verifying Signal Integrity in Transmission and Safety Circuits

Access the transmission control module (TCM) under the center console–a 32-pin terminal block where pins 19 (VSS) and 28 (TCC solenoid) must register 5V square-wave signals on an oscilloscope. Replace the harness if pulse width varies beyond 0.3ms; pre-twist replacement wires to 6 twists per inch to reject EMI. Airbag slip ring connector in the steering column uses unique gold-plated lamellae; misalignment causes DTC B0083–clean with isopropyl alcohol above 95% purity without scrubbing.

1. Disconnect battery negative terminal before probing airbag circuits.
2. Label each removed connector with painter’s tape.
3. Inspect harness retaining clips every 8 inches–fractured clips chafe insulation against metal edges.
4. Replace cracked connectors with OE Delphi equivalents; aftermarket units lack proper current derating.
