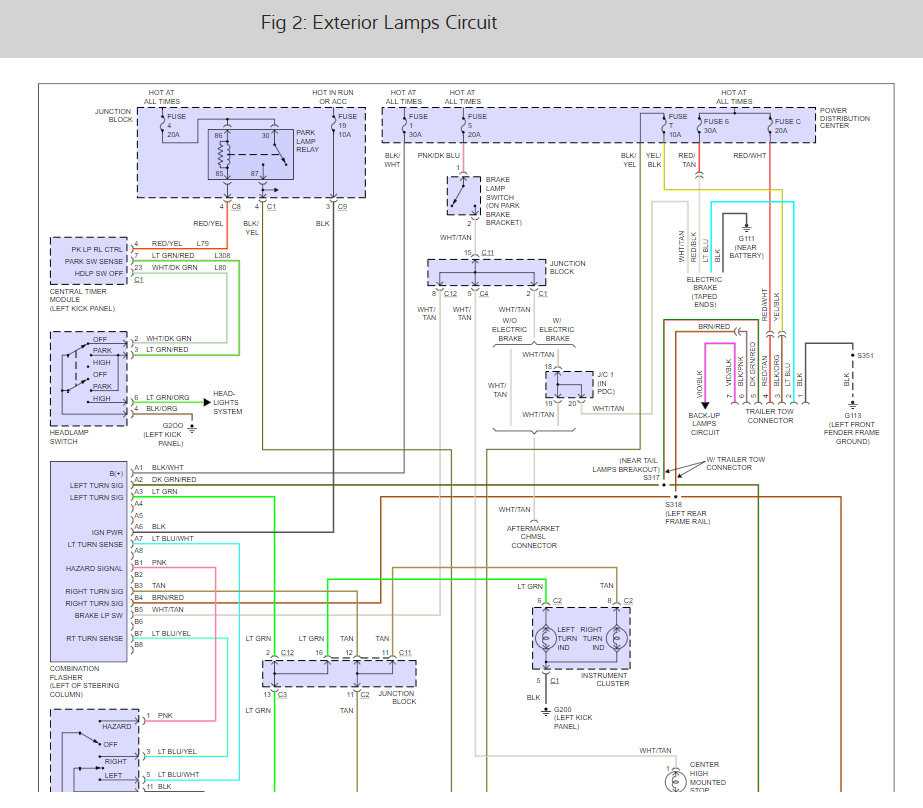

Complete 2001 Dodge Dakota Trailer Wiring Diagram and Installation Guide
If your vehicle’s rear harness shows signs of corrosion or inconsistent voltage readings, replace the entire 7-way connector assembly before troubleshooting individual circuits. Factory standard for models of this year specifies a 12-gauge wire for the brake and tail light outputs, colored dark green with a white stripe (left stop) and brown (marker), while the yellow with black stripe powers the right stop and turn signal. Confirm these colors match the existing harness before splicing.
Connect the ground terminal (typically white) directly to a bare metal frame point using a 10-gauge wire; avoid relying on the factory ground splice located behind the driver-side rear panel–oxidation here is common after 15 years of use. For auxiliary power to trailer-mounted accessories, tap into the black with red stripe circuit at the under-dash fuse block, rated at 20 amps; this circuit is protected by fuse #34 in the cabin fuse panel.
Test each function with a multimeter set to 12V DC: activate the vehicle ignition, then cycle through turn signals, brake lights, and hazard flashers while monitoring voltage at the connector. Expect 11.5–12.5V on all outputs; readings below 11V indicate resistance in the circuit, often caused by loose terminals or frayed wiring near the rear axle. If the reverse light circuit (light blue) fails, inspect the back-up lamp relay behind the instrument cluster–replace if clicking is absent when engaging reverse gear.
For persistent issues, trace the wiring loom along the driver-side frame rail. The harness splits near the spare tire well; secure any exposed sections with non-conductive loom tape and route away from rotating components or sharp edges. If retrofitting a brake controller, use the purple wire (brake switch) at the master cylinder and connect to the controller’s input via a dedicated 4-pin relay to prevent voltage drop during heavy braking.
Electrical Harness Layout for Mid-Size Pickup Towing Connection
Locate the factory-installed seven-way connector beneath the rear bumper, driver-side, near the frame rail. The pinout follows this sequence: center pin handles electric brake output (blue wire), top-left is left turn/brake light (yellow), top-right controls right turn/brake light (green), middle-left supplies 12V auxiliary power (red), middle-right is reverse light function (brown), bottom-left is ground (white), and bottom-right is unused on standard packages but reserved for future circuits. Verify each wire gauge–12 AWG for lighting circuits, 10 AWG for brake and power leads–to prevent voltage drop during heavy load.
Troubleshooting Signal Failures
| Symptom | Root Cause | Correction Method |
|---|---|---|
| No left turn signal | Corroded terminal at connector or blown 10A fuse #14 | Clean terminals with contact cleaner, replace fuse with identical rating |
| Flickering brake lights | Insufficient ground connection to chassis | Remove paint from grounding point, secure with star washer, apply dielectric grease |
| Auxiliary power drops under load | Undersized power wire or loose connection at fuse block | Upgrade wire to 8 AWG, tighten terminal screws to 12 in-lbs torque |
Inspect the vehicle’s side marker lights and license plate illumination–they share the same brown wire circuit as the towing harness reverse lights. A single failed bulb can disrupt the entire signal chain due to the vehicle’s shared load sensing system.
Finding the Towing Harness Connection on Your Early Model Pickup
Check directly behind the rear bumper, slightly to the driver’s side. The factory-installed plug is a rectangular, seven-pin connector encased in a black plastic housing, secured with two small tabs. Slide your fingers along the frame rail if you don’t see it immediately–the harness is often tucked just out of sight near the spare tire mount.
- Locate the rear license plate–remove its bracket if the connector isn’t visible.
- Follow the taillight wiring harness downward; the towing plug branches off near the junction point.
- Inspect for debris: dirt or road grime frequently covers the plug, obscuring the connection ports.
If the OEM socket is missing or damaged, aftermarket replacements clip into the same position–use a nine-pin adapter if the original wiring has been modified for expanded lighting or brake signals.
How to Link Your Tow Vehicle’s Electrical System to a Lighting Harness
Locate the factory connector behind the rear bumper near the driver’s side. This plug, typically a 4-pin oval or 7-way round, contains color-coded terminals for all required circuits. Examine the rear of this port before proceeding–match each pin slot to the corresponding color on the auxiliary cable bundle.
Separate the harness wires by function: running lamps (brown), left/right turn and brake signals (yellow and green), and ground (white). If the vehicle includes a charging circuit (red), it may require splicing into the fuse box under the dash–verify voltage with a multimeter before connecting.
Use dielectric grease on each terminal to prevent corrosion, even if weatherproof connectors are present. Insert each wire into its designated slot until a positive click confirms full seating. Tug gently to ensure retention–loose connections cause intermittent failures under load.
- Brown: attaches to the marker and tail lamp circuit.
- Yellow: handles the driver-side brake and turn signals.
- Green: serves the passenger-side brake and turn signals.
- White: must connect to a clean, unpainted metal ground.
After attaching all wires, test each circuit with a handheld tester or accessory bulb. Activate brake lights, turn signals, and running lamps sequentially–observe both the truck’s lights and the tester for proper illumination. If any signal fails, recheck the terminal connection or splice integrity.
Route excess cabling around suspension components, securing it with zip ties every 6–8 inches to prevent abrasion. Avoid sharp edges and heat sources like exhaust pipes. If the harness includes a converter box (typically near the taillight housing), mount it using a bracket or double-sided tape.
Once testing confirms functionality, wrap exposed splices with self-fusing silicone tape. This layer prevents moisture ingress and maintains conductivity. Avoid electrical tape–it degrades under UV exposure. Seal the connection box with a rubber gasket if enclosed in a non-waterproof housing.
- Verify all connections with a voltage meter before finalizing.
- Secure loose wires away from moving parts.
- Document wire colors and functions for future troubleshooting.
- Retest after driving 5–10 miles–vibration can dislodge improperly seated terminals.
Pinpointing Connector Lead Hues and Roles in the Mid-Size Truck’s Towing Setup
Begin by locating the seven-pin round connector beneath the rear bumper–standard for factory-installed harnesses. The dark green lead carries the left turn and braking signal (5A max), while the yellow circuit handles the right turn and stoplight duty (same load rating). Brown terminates at the tail lamps (tail, license plate, and clearance lights), drawing up to 7.5A; splice corrosion here causes intermittent dimming, so probe with a test lamp before assuming bulb failure. White grounds the entire system through a dedicated frame bolt, typically marked with green paint or a star washer–loose or oxidized attachment triggers erratic behavior across all channels. Blue activates the electric brake output (rated 20A), but verify its standalone fuse (position 23 on the under-dash panel); if absent, the harness may default to a four-pin variant, omitting this channel entirely.
Troubleshooting Color Deviations and Custom Adaptations
Aftermarket kits sometimes substitute violet for purple (auxiliary power, 12V constant) or omit orange (reverse lights) entirely–compare readings against the stock schematic before tapping additional circuits. Light green or pink leads often denote SRS or transmission taps in OEM harnesses; these must never be repurposed for towing signals. For models equipped with a fifth-wheel prep package, an auxiliary eight-pin plug (behind the cab) includes red (12V ignition-switched) and black (ground) leads–ensure these maintain isolation from the primary harness to prevent voltage drop during winch operation or high-draw accessories.
Verifying Electrical Connections for Towing Safety
Use a multimeter set to DC voltage to check each connector pin while activating the corresponding lighting function. The left turn/brake circuit should register 12.5–13.2 volts when engaged, while the right side must match within 0.3V; discrepancies here indicate corroded terminals or partial opens in the harness. Probe the ground contact separately–it must read under 0.1 ohm from chassis to avoid voltage drop under load.
Test every socket under simulated load with a 21W bulb or resistive module equivalent. The running lights should sustain not less than 12.0 volts during continuous operation; anything lower signals insufficient current capacity, often from undersized conductors or poor crimping. Reverse polarity detection is critical–swap probes to confirm that accidental battery voltage does not reach the lighting circuits, which could destroy LED modules.
Inspect the harness beneath the vehicle for chafed insulation or exposed copper where it passes over sharp edges or suspension components. Secure any loose sections with nylon ties spaced no more than six inches apart, ensuring clearance from moving parts. For connectors exposed to moisture, apply dielectric grease sparingly–over-application attracts dirt and can impede conductivity.
After verifying voltage, switch the multimeter to continuity mode to confirm that all circuits complete without resistance exceeding 2 ohms. Check backfeed between circuits; zero ohms between any unrelated pins mandates immediate harness replacement to prevent shorts that could drain the battery or damage the controller module.
Record measurements after each repair step. A baseline voltage map simplifies future diagnostics and ensures consistent illumination performance, particularly for auxiliary functions like reverse sensing or electric brake actuation.
