2001 Ford F150 Starter Solenoid Wiring Guide with Step-by-Step Diagram

To bypass common inoperative relay issues, trace the purple ignition wire from the ignition switch connector to the relay socket–pin S. This circuit must show 12V+ during cranking; any drop below 9.6V confirms a failed relay or corroded ground. Replace the relay first; if persistent, clean the ground strap securing the relay bracket to the chassis using a wire brush and dielectric grease.

The yellow solenoid wire connects directly to the motor terminal; verify continuity with a multimeter–0.2Ω or less is critical. Any resistance above indicates internal contact degradation requiring solenoid replacement. For temporary testing, bridge the S terminal to the motor terminal with a jumper; if the engine turns over, the relay contacts are faulty.

Check the red battery feed wire at the relay–12.6V must be present at rest and drop no more than 0.3V during cranking. Voltage drops often stem from undersized cables or oxidized connections; upgrade to 4 AWG copper if drops exceed 0.5V. Secure all connections with heat-shrink terminals and torque to 8-10 lb-ft.

Avoid splicing into the I circuit–this powers fuel injectors; interference here triggers random no-start conditions. Use relay pin I exclusively for ignition inputs. For long-term reliability, relocate the relay away from exhaust manifolds; excessive heat warps relay contacts.

Electrical Hookup Reference for Truck Ignition Relay

Locate the purple cable with a white stripe exiting the ignition switch–this powers the relay coil during cranking. Route it directly to the control terminal (often marked “S”) without splicing; corrosion here causes intermittent activation. If resistance exceeds 0.5 ohms, replace the entire harness segment between the switch and relay.

Battery positive connects to the relay’s main contact bolt via an 8 AWG red cable with a maximum length of 18 inches. Secure the lug with a 15-mm torque to 12 Nm; over-tightening warps the contact plate, leading to voltage drop. Install a 250-amp fuse within 4 inches of the battery post to prevent fire risk during short circuits.

Ground Path Integrity Check

Trace the engine block ground cable–typically 4 AWG black–to the relay mounting stud. Clean mating surfaces with a wire brush until bare metal shows; paint or oxidation increases resistance above 100 milliohms, causing slow engagement. Replace any frayed strands or brittle insulation; a compromised ground path draws excessive current through the starter motor windings.

For auxiliary circuits, such as a winch or auxiliary lights, tap into the relay’s input terminal only–never the output. Use a 6 AWG pigtail with a weatherproof connector crimped at 3,000 psi; soldered joints fail under vibration. Label each connection with heat-shrink tubing marked in permanent ink to prevent miswiring during future diagnostics.

Test relay function by measuring voltage drop across the control circuit: 12.6V at the switch should yield 12.4V at the “S” terminal during crank. A drop below 0.2V indicates loose connections or undersized wire. If the relay clicks but the motor doesn’t turn, jump the main contacts briefly with a screwdriver–if the motor spins, the relay contacts are pitted and require replacement.

Store spare relays upright in a moisture-proof container with silica gel packets; even minor humidity corrodes internal contacts within months. When reinstalling, align the relay so the “B” terminal faces downward to prevent water ingress from road spray. For models with automatic transmissions, ensure the neutral safety switch wiring (typically a yellow/light blue wire) is intact–failure here prevents cranking entirely.

Locating Critical Parts in the Pickup Truck’s Crank Relay Network

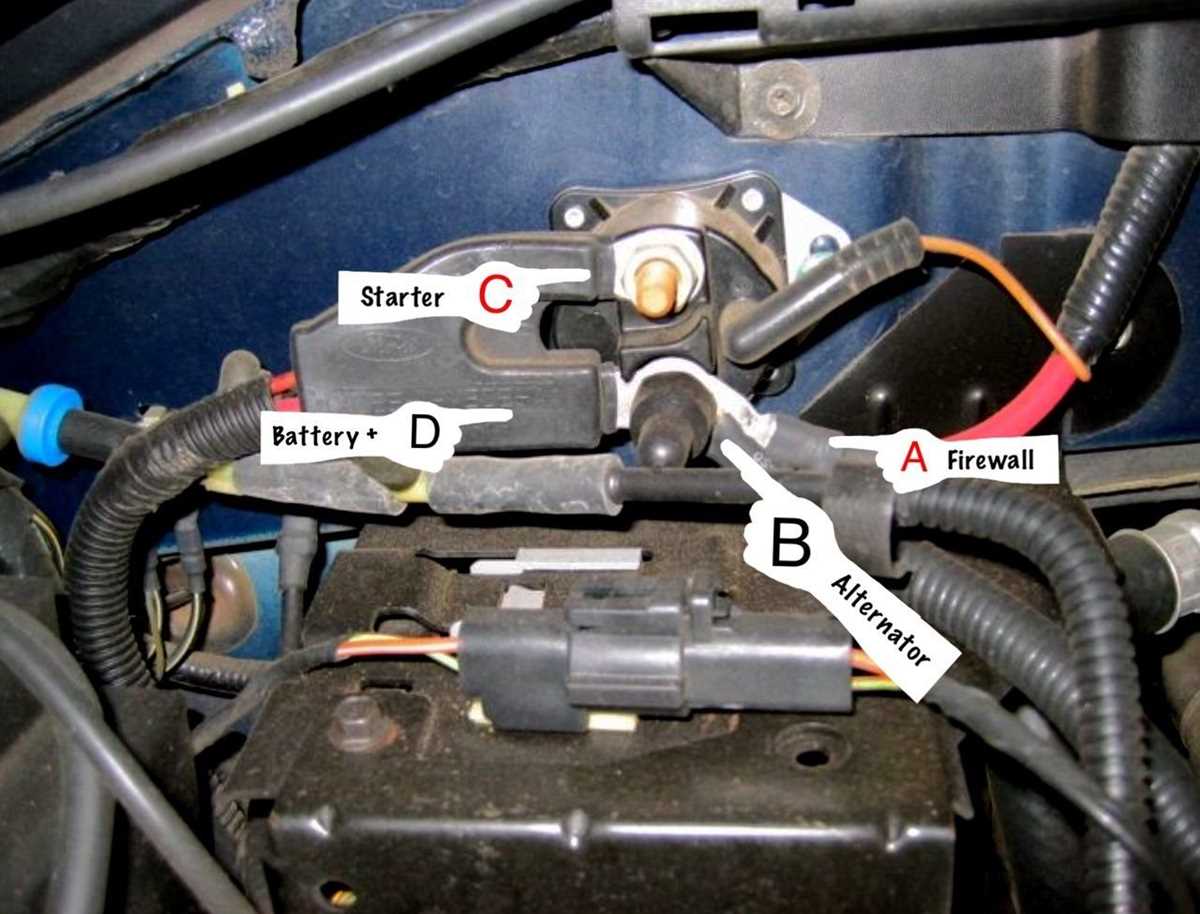

Begin by isolating the relay unit–the compact rectangular device bolted near the battery or mounted on the inner fender. Trace the heavy-gauge cable extending from the positive terminal directly to this component; this is the primary input line responsible for delivering high-current power. Use a multimeter set to continuity mode to verify contact between the relay’s input stud and the cable lug; resistance should read near zero ohms. If readings fluctuate or exceed 0.5 ohms, inspect crimp connections for corrosion or fraying.

Identify the control circuit terminals marked “S” and “I” on the relay housing. The “S” terminal receives voltage from the ignition switch during crank cycles, typically through a 14-16 AWG wire, while the “I” terminal engages the hold-in coil when the engine turns over. Disconnect the battery before probing these terminals to avoid accidental engagement. Test for proper signal routing by back-probing with a test light: turn the key to START–both terminals should momentarily illuminate. Absence of light on “S” suggests a faulty ignition switch or blown fuse (check under-dash fuse panel, slot #25 for 20A rating).

• Battery interconnect cable: 4-6 AWG, terminates at relay’s main stud.
• Starter motor connection: matching gauge cable from relay’s output stud.
• Ground strap: braided copper link bolted to chassis adjacent to relay.

Replace any cable showing green oxidation or brittleness at terminals–these disrupt current flow and create voltage drops above 0.2V during load testing.

Diagnosing Silent Relay Failure

When the relay emits no click sound during ignition activation, measure coil resistance between “S” and ground. Values should range 0.3-0.7 ohms; readings above 1.0 ohm indicate internal winding breakdown. Swap the relay with an identical auxiliary relay (e.g., horn or A/C) to confirm functionality–if the alternative operates, the original requires replacement. For intermittent failures, remove the relay and tap lightly against a workbench; consistent clicking upon impact signals internal contact welding. Clean relay socket terminals with electrical contact cleaner and reinsert tightly–loose connections cause overheating and premature failure.

Understanding Power Relay Connector Color Standards for the 2000s Pickup Model

Locate the relay housing beneath the hood near the battery tray; the large red cable connects directly to the battery terminal. Identify the smaller purple wire–this carries ignition switch voltage when cranking.

Trace the yellow-striped lead back to the S-terminal; this serves as the control signal, energizing the relay coil when the key turns. Confirm continuity between the relay’s I-terminal and ground using a multimeter set to resistance mode–readings should show less than 0.5 ohms.

The thick yellow cable from the relay’s M-terminal feeds the motor’s windings; ensure no fraying or corrosion interrupts this high-current path. Disconnect the negative battery clamp before probing to avoid accidental short circuits.

Check the neutral safety link–a thin dark blue wire–originating from the transmission range sensor; this prevents engagement unless the gear selector rests in Park or Neutral. If the relay clicks but the engine fails to spin, verify this circuit hasn’t been bypassed or damaged.

Examine the relay socket for melted insulation or overheated contacts; replace if signs of excessive resistance appear. Reassemble connections with dielectric grease to prevent future oxidation, particularly in humid climates.

Test operation by bridging the S-terminal to the I-terminal with a jumper wire–engine should crank immediately. If not, suspect a faulty relay, defective motor armature, or internal short in the battery cable run.

Identifying Power Relay Contact Problems and Repairs

Listen for a single click from the relay unit when turning the ignition key–this often signals corroded contacts or a poor ground connection. Start by disconnecting the battery, then remove the relay cover to inspect terminals for oxidation or pitting. Use a fine-grit sandpaper to clean contacts until they show bare metal, then apply a thin layer of dielectric grease to prevent future corrosion. If the issue persists, probe the relay’s trigger circuit with a multimeter set to continuity mode–absence of beep confirms an open coil, requiring replacement.

Intermittent engagement accompanied by a whirring sound under the dash usually traces back to loose or frayed input leads. Trace the relay’s heavy-gauge input cable back to its junction block; wiggle-test each connection while an assistant turns the key. Secure any loose spade connectors with crimp sleeves and heat shrink tubing, ensuring no exposed strands remain. For circuits showing voltage drop under load (over 0.2V), bypass the factory line with 4-gauge tinned copper wire, soldered at both ends and sealed with adhesive-lined shrink tube.

Dashboard lights flickering during crank attempts point to a compromised hold-in winding. Locate the relay’s smaller control wire, often purple or yellow, and back-probe it with a test light–if illumination is weak, the ECM isn’t supplying full 12V. Check the ignition switch output by probing the red/white wire at the fuse panel; voltage below 11V necessitates replacing the tumbler assembly. For models with anti-theft, verify the security module isn’t grounding the relay trigger–bypass it temporarily via a jumper wire from ignition switch output to relay coil terminal.

Chronic overheating at the relay housing demands a current draw test: clamp an inductive amp meter around the battery cable while cranking–readings above 250A indicate sapped contacts. Swap in a relay with higher contact rating (rated 60A minimum) and ensure it sits on a heat sink or remote mount away from exhaust components. If the original relay’s mounting bracket shows melted plastic, fabricate an aluminum bracket and relocate it to a cooler zone, using a 2-inch pigtail of 6-gauge wire for the heavy output lead.
