Ford F350 2001 Radio Wiring Diagram Color Codes and Installation Guide
For immediate results, locate the factory integration harness behind the dashboard’s lower trim panel–typically clipped near the OEM entertainment module. Pin assignments follow an 18-terminal layout: terminals 1–6 handle left/right front and rear speaker outputs (+/- polarity), while 7 delivers constant 12V power (verified via multimeter at 12.4–14.2V). Ground connects to 8, a bare-metal tab secured to the chassis’ steel frame adjacent to the kick panel. Use crimp connectors rated for 20 AWG minimum to avoid voltage drop under peak bass loads.
Aftermarket unit compatibility hinges on accurate splicing. Identify the factory amplifier trigger wire (terminal 12, violet stripe) to retain steering-wheel audio controls–interrupting this circuit disables volume knobs and voice commands. For vehicles equipped with trailer brake controllers, isolate terminal 15 (pink/black) to prevent signal interference during trailer plug-in. Replacement harnesses often omit the antenna motor lead (terminal 13, brown/black); solder this directly to the new stereo’s coax input to preserve automatic antenna functionality.
Verify wiring integrity with a continuity tester prior to power-up. Probe each speaker lead (1, 2, 3, 4) against chassis ground–no resistance indicates a broken circuit or corroded splice. Modern head units draw up to 10A during startup; upsize the inline fuse on the constant power line to 20A if dimming LEDs or sluggish response occurs. For vehicles with factory navigation, bypass the stock GPS module by connecting the aftermarket unit’s GPS antenna to terminal 9 (orange/light blue)–signal strength degrades if routed through the original splitter.
Document all splices with adhesive-lined heat shrink tubing (minimum 3:1 ratio) and secure bundles every 4″ along unused factory clips. Exposed copper corrodes rapidly in high-humidity climates; apply dielectric grease to each connection post-splice. Retain the original wiring loom’s plastic trays–these align harnesses away from sharp steering-column edges that risk insulation chafing over time.
Electrical Schematic for the 2001 Heavy-Duty Pickup Audio System
Locate the C250 (18-pin black) and C251 (12-pin grey) connectors behind the factory stereo unit–these handle all signal and power feeds. The solid yellow wire in C250 delivers a constant 12V, while the red wire (also in C250) supplies memory voltage only when the ignition is activated. For speaker outputs, the solid violet (+) and violet/black (-) pair drive the right rear door, while the solid brown (+) and brown/black (-) pair serve the right front location. Ground the black wire at pin 12 of C250 directly to the chassis, ensuring resistance under 0.5 ohms for optimal noise rejection.
Verifying Connections Without Removal
Use a multimeter to confirm rear amplifier activation: with the key on, probe the solid orange wire in C251–it should read 12V; if zero, check the 30A fuse in the under-dash panel labeled “AUDIO AMP.” Antenna control requires the solid pink wire in C250, which sends a 5V trigger upon key-on; bypass interference by routing this line clear of ignition coils and fuel pump relays. For aftermarket integration, splice RCA adapters directly into the speaker wires pre-amplifier, keeping runs twisted and shielded to prevent alternator whine. Always disconnect the battery’s negative terminal before probing or splicing to avoid airbag deployment risks.
Finding Harness Interfaces Behind the Dash Unit in Your Heavy-Duty Pickup
Start by disconnecting the vehicle’s battery terminal–negative first–to eliminate power surge risks before handling any connectors. The main harness cluster sits directly behind the entertainment system’s mounting bracket, secured by two 7mm bolts and a single Phillips screw near the climate control vents. Remove these fasteners carefully; the bracket often conceals a secondary grounding strap linked to the chassis.
Behind the factory stereo, three primary harnesses emerge: a 24-pin main plug, an 8-pin amplifier interface (if equipped), and a 4-pin illumination feed. The 24-pin connector splits into four functional groups–constant power, switched ignition, speaker outputs, and antenna control–each color-coded per OEM specifications. Refer to this breakdown:
| Pin Group | Wire Color | Function | Voltage (Key On) |
|---|---|---|---|
| Power | Yellow | Battery constant | 12.6–14.4V |
| Ignition | Red | Accessory | 0V (Off) / 12V (Run) |
| Speaker (+) | Varied (e.g., Purple/Light Green) | Front/rear outputs | 0.5–2V RMS (signal) |
| Illumination | Gray/Black | Dash lighting | 0–12V (dimmable) |
Trace the amplifier harness–distinct by its thin, twisted wires–if your vehicle features premium audio. This bundle terminates near the passenger-side kick panel, interfacing with a separate relay and fuse block under the glove compartment. Misrouted wires here can trigger erratic volume fluctuations or complete audio dropout; ensure each terminal sits flush in its housing.
Label each connector before detachment, especially the illumination feed–reverse polarity during reinstallation risks damaging the dash dimmer circuit. Use a multimeter to verify voltage at the yellow constant-power wire immediately after disconnecting; if readings fluctuate, inspect the fusible link near the under-hood junction box–corrosion here mimics harness failures.
When reassembling, torque the mounting bolts to 8–10 Nm to prevent rattling. The grounding strap must reconnect securely; poor contact introduces whine or static through stereo outputs. Reattach the battery last–positive terminal first–and test each audio channel individually to confirm correct phase and impedance matching.
Locating Key Electrical Connections in Factory Audio Harnesses
Trace the harness behind the head unit to the 12-pin connector–pin 4 (yellow) delivers constant 12V from the battery, confirmed by a multimeter reading steady voltage regardless of ignition state. Pin 6 (red) carries switched power, active only when the key is turned, typically linked to the fuse box via a 10A fuse. Isolate these leads early to prevent accidental shorts during subsequent steps.
Verifying Earth Points
Black wires (pins 5, 8, and 12) serve as ground references–test continuity to the chassis using a probe, ensuring resistance under 1 ohm. Corrosion on chassis bolts often disrupts this path; clean contact surfaces with a wire brush and apply dielectric grease after reconnection. Avoid relying on painted or coated grounding points–bare metal ensures reliable signal return.
If the system includes an amplifier, an additional brown wire (pin 10) may appear–this is a chassis return for amplified circuits, not a primary earth. Confirm its purpose by splicing a temporary 16-gauge jumper to the main ground; if audio distortion persists, inspect the amplifier’s dedicated ground strap.
Label each wire before cutting or splicing–factory harnesses use coded insulation (e.g., striped, solid, or ribbed textures) for identification. Substitute ambiguous colors with heat-shrink tubing or colored tape if original markings are faded, maintaining a reference chart for future diagnostics.
Integrating a Third-Party Head Unit with Your Heavy-Duty Pickup’s Factory Electrical Layout

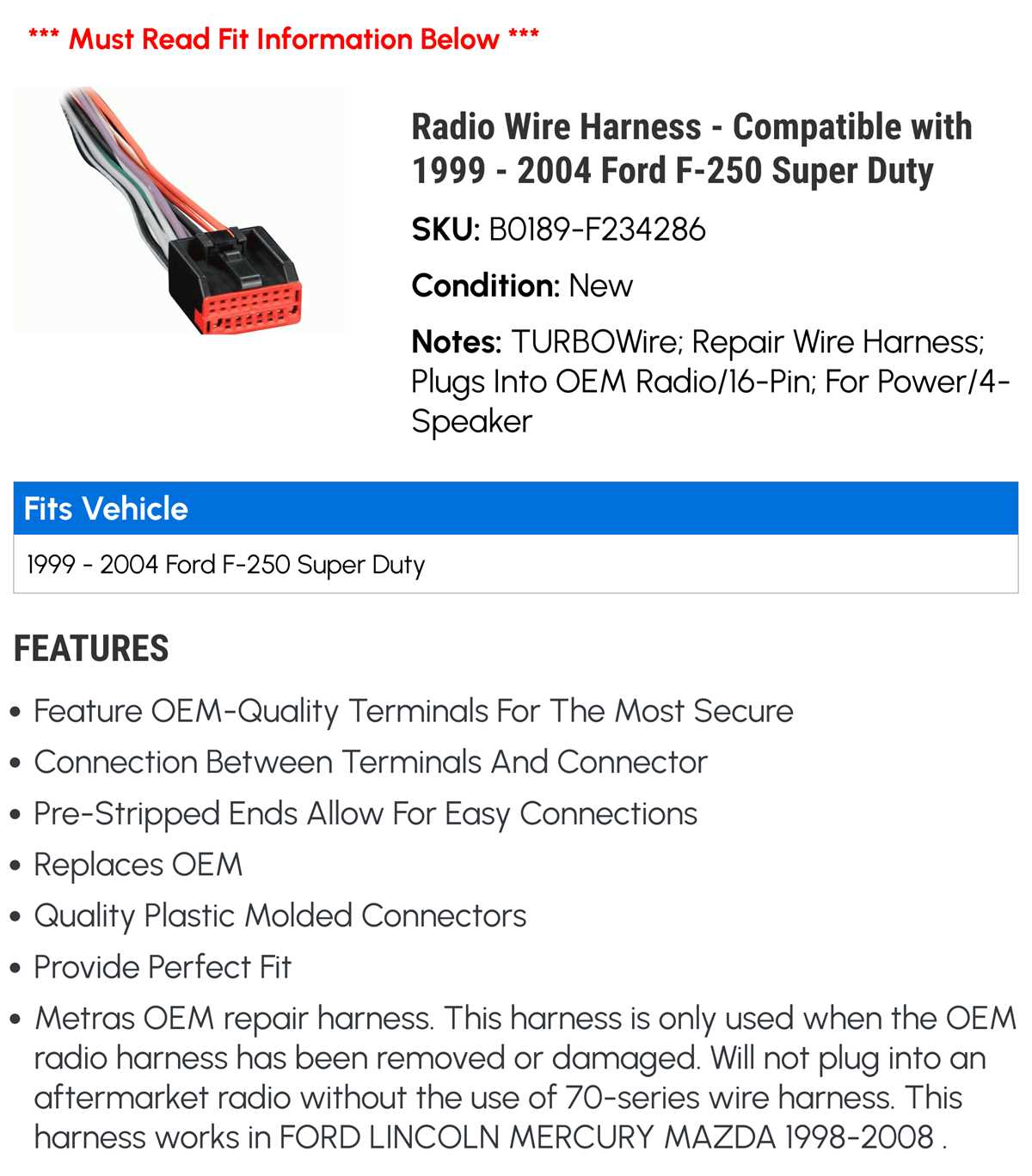

Locate the original harness adapter for the truck’s audio system–a Metra 70-1770 or equivalent–before cutting any wires. This adapter bridges the factory plug to aftermarket power, ground, speaker, and antenna leads without splicing. Verify compatibility with the specific trim package, as base models may omit the amplified audio output found in higher-end variants.
Identify the constant 12V power wire (typically yellow) and ignition-switched lead (red) in the factory harness. Splice these to the corresponding wires on the aftermarket harness using crimp connectors or solder with heat-shrink tubing. Avoid twisting wires; heat-induced oxidation can cause intermittent signal loss. Confirm amp ratings–factory systems often supply 10A continuous, while aftermarket units may demand up to 15A.
Critical Connection Checklist
- Ground: Bolt the new unit’s ground (black) directly to a bare metal chassis point near the original grounding location. Paint or corrosion will increase resistance, leading to engine noise in speakers.
- Speaker Wires: Match polarity precisely–reversing positive/negative connections cancels bass frequencies. Factory speaker impedance ranges from 2Ω to 4Ω; verify aftermarket unit compatibility to prevent amplifier overheating.
- Antenna Trigger: The factory harness includes a blue/white wire for power antennas. If the aftermarket unit lacks this feature, splice it to the accessory wire (blue) to maintain automatic antenna extension.
Test each connection with a multimeter before powering the system. Measure speaker output voltages–distorted audio often indicates incorrect impedance matching. If the amplifier protection circuit engages, check for shorted speaker wires or reversed polarity. Reinstall dashboard panels only after confirming all channels produce clear sound without radio frequency interference.
For vehicles equipped with premium sound systems (e.g., JBL), retain the factory amplifier–bypassing it degrades audio quality. Use a line-output converter to minimize signal loss when interfacing with external amplifiers. If the steering wheel retains audio controls, integrate a PAC RP4-FD31 interface module; manual programming ensures volume and track functions operate correctly.
