PT Cruiser 2001 Starter Wiring Schematic and Electrical Connections Guide
Locate the solenoid control cable–its insulation should be dark green with a thin yellow stripe, terminating at the transmission-side connector pin labeled “A4.” This wire carries the engage signal from the ignition switch, but resistance exceeding 0.3 ohms between the switch and solenoid indicates corrosion or a break that requires tracing with a multimeter before reassembly.

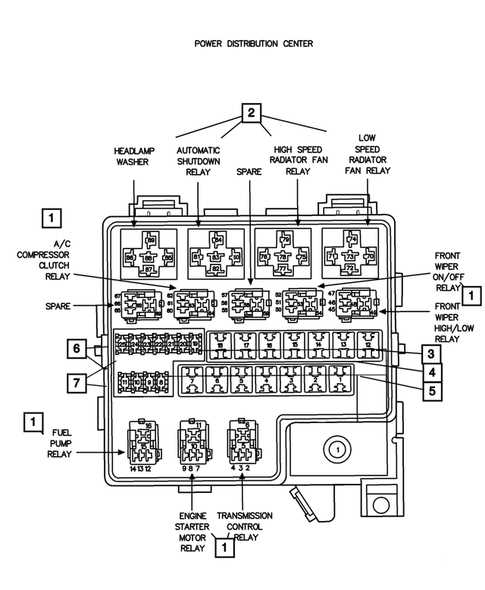

Identify the battery positive feed: a red cable with a fuse link, typically rated 40A, branching directly from the under-hood power distribution box. Verify continuity across the fusible link segment; any drop below 12.4V at the starter motor lug during cranking suggests a partial short or degraded connection at the junction block near the driver-side strut tower.
The neutral safety engagement pathway runs parallel to the air conditioning clutch relay harness–look for a black/light blue striped conductor spliced into the inhibitor switch circuit under the steering column. Probe this wire at the TCM pin labeled “C3” while cycling the ignition; voltage should toggle between less than 0.5V in Park/Neutral and full battery voltage (>12.2V) in Drive or Reverse to confirm proper inhibit functionality.
Inspect the ground strap–it connects the engine block to the firewall via a braided copper strap adjacent to the oil filter housing. A corroded or loose strap introduces intermittent voltage drops; retorque bolts to 25 ft-lb and apply dielectric grease to threads to prevent future oxidation-induced starter lag.
For signal confirmation during diagnostics, back-probe the ignition coil control module connector at pin “16” (gray/black wire) while monitoring the starter solenoid’s voltage waveform on an oscilloscope. A normal engagement pattern should register a clean square wave dipping from 12V to ground within 120-180 milliseconds; any oscillation or ripple points to a faulty relay or compromised engine control module output stage.
PT Model Ignition Circuit Reference for Early 2000s Variant
Locate the solenoid feed at the transmission bellhousing flange–pin 50 on the 6-pin connector (violet/orange stripe) carries ignition voltage directly from the ignition switch. Test continuity here while cycling the key; readings should jump from near zero to battery voltage without intermittent drops. Anything below 10.5V indicates corroded fuse #18 in the under-hood block or a failing ignition lock cylinder.
Trace the ground path: chassis ground G102 sits behind the left headlight, secured by an 8mm bolt. Verify resistance from the solenoid case to G102–max 0.2 ohms; exceeding this mandates cleaning or replacing the ground strap. Inspect the lower starter mounting bolt; unseen oxidation here mimics starter failure during cold cranks.
Neutral Safety Switch Verification
Jumper the neutral safety switch connector (gray 2-way plug near the shifter) with a 16-gauge wire–engine must crank in Park or Neutral only. If starter engages in Drive, replace the switch; symptoms mimic a bad relay but are often misdiagnosed. The switch also feeds the instrument cluster–dash lights dimming during crank attempts confirm faulty contacts inside the switch.
Examine the auxiliary relay (R5) behind the battery tray–terminal 87 delivers 12V after the neutral safety switch closes. Use a relay bypass tool for testing; consistent engagement here isolates intermittent failures between the ignition switch and starter solenoid. Replace relay if voltage drops below 11.8V during sustained cranking; original Siemens units are prone to internal pitting after 70k miles.
Voltage Drop Testing Protocol
Positive circuit: probe between battery positive and solenoid B+ terminal while cranking; anything above 0.3V exposes corroded cable connections at the junction block beneath the intake manifold. Negative circuit: measure across battery negative and the starter housing–readings exceeding 0.5V necessitate removing and cleaning the bellhousing bolt and chassis attachment points with a stainless wire brush. Always re-grease threads with dielectric compound to prevent repeat oxidation.
Identifying Key Electrical Connector Positions for the Powertrain Engagement System
Begin by raising the front of the vehicle securely on jack stands–never rely on a jack alone. Locate the transmission housing near the rear of the engine bay, where a cylindrical solenoid assembly attaches. The primary feed enters through a thick red cable clamped to the upper terminal; trace this cable downward to its forked joint with a smaller-gauge purple lead. This junction is critical–mark it with colored tape or a zip tie before proceeding.
Follow the two-wire harness along the bellhousing edge. Roughly 15 cm below the solenoid, a weatherproof connector joins the assembly to the vehicle’s main loom. Use a multimeter to confirm voltage: pin A (larger blade) should register 12V during ignition turn, while pin B (smaller blade) carries the trigger signal from the ignition switch. If readings deviate, inspect the inline fusible link located above the brake master cylinder.
| Connector | Wire Color | Function | Expected Voltage |
|---|---|---|---|
| Main Feed | Red (10 AWG) | Battery direct | 12.6V static |
| Trigger Return | Purple (18 AWG) | Ignition switch return | 12V during crank |
| Solenoid Ground | Black (16 AWG) | Chassis reference | 0.2V max drop |
Disconnect the battery negative terminal before handling any connectors. The secondary harness branches toward the intake manifold, securing with a single T20 Torx bolt behind the dipstick tube. Gently pry the clip apart–plastic tabs are brittle after years of heat cycles. Inside, a three-pin connector links auxiliary components; ignore this unless diagnosing parasitic draw, as it does not affect cranking.
Verify harness continuity with a tone generator. Attach the probe to the red lead at the solenoid and trace back toward the fuse panel, listening for consistent tone. Abrupt silence indicates a break–most failures occur at the firewall grommet where wires chafe against the metal edge. Use dielectric grease when reassembling connectors to prevent corrosion.
Locating the Positive Lead from the Power Source to the Ignition Relay
Begin by disconnecting the ground terminal from the battery to prevent accidental shorts. Use a multimeter set to continuity mode and probe the thick red cable attached to the battery’s positive post–this is your primary feed line. Follow it visually or by touch along the vehicle’s frame toward the front, noting any protective conduit or zip ties securing it in place.
Identify the first junction point where the cable splits–usually near the front driver-side fender. One branch routes to the fuse block under the hood, while the other continues to the next critical component. Trace the latter branch, which should lead directly to a cylindrical device mounted on the engine block or transmission housing.
Examine the solenoid (the smaller terminal on the device). The heavy-gauge cable from the battery connects here via a nut and washer. Confirm this connection by checking for:
- 10mm or 12mm hex bolt securing the cable
- No frayed strands or corrosion at the lug
- Proper torque (10-15 ft-lbs for secure contact)
If resistance readings exceed 0.5 ohms between the battery post and solenoid terminal, inspect for oxidization in these areas:
- Battery cable clamp
- Solenoid lug contact surface
- Inline connections at split points
Sand lightly with 120-grit emery cloth and apply dielectric grease before reassembly.
Troubleshooting Hidden Breaks
When the feed line passes through the firewall (near the brake master cylinder), check for chafing against metal edges. Use a flashlight to inspect the grommet–replace if brittle or cracked. For vehicles with automatic transmissions, locate the second solenoid on the torque converter housing; its feed comes from the same battery cable via a fusible link.
Measure voltage drop:
- Engine off: 12.4-12.6V at battery
- Key to “START” position: >10V at solenoid input
- If drop exceeds 0.3V, clean all intermediate connections
Reconnect the battery ground last. Test by bridging the solenoid’s small terminals with a screwdriver–if the engine cranks normally, the issue lies in the ignition circuit, not the power feed.
Identifying Ignition Switch Wire Colors and Pinouts
Locate the ignition switch connector under the steering column panel–typically a black rectangular plug with 4 to 6 terminals. Pull the retaining clip gently to release it without forcing the lock tabs. Use a multimeter set to continuity mode to probe each terminal while rotating the key through all positions (OFF, ACC, RUN, START). Note which pin shows voltage only in the RUN or START phases; this is the ignition feed wire, usually red or pink with a white stripe on Chrysler models.
Refer to the vehicle’s service manual for exact pin assignments, but common color codes hold across most variants: the battery input (constant 12V) is often yellow with a black tracer; accessory power (ACC) is dark blue; ignition (RUN) is red or pink; and the starter solenoid trigger is brown or tan. If manual confirmation isn’t available, test each wire individually–accidental grounding during testing can damage relays, so isolate the connector first.
For the Chrysler platform, pin 3 (front driver-side) is typically the starter trigger, while pin 5 (rear passenger-side) supplies constant power. Avoid relying solely on aftermarket guides–factory schematics label terminals numerically, whereas third-party diagrams may reverse numbering or omit critical splice points. Verify voltage readings with the key OFF to catch parasitic drains before proceeding.
Incorrect wiring often causes intermittent no-crank conditions. If the solenoid clicks but the engine doesn’t turnover, check the brown/tan wire for voltage drop–corrosion at the ignition switch or firewall grommet can silently degrade signal strength. Clean terminals with a wire brush and dielectric grease; replacing the connector entirely is advisable if pins show pitting or discoloration.
Aftermarket alarm systems frequently splice into the ignition harness, masking original wire colors under additional insulation. Trace each wire back to its origin at the fuse box or ignition switch to confirm identity–cross-wiring the starter trigger to accessory power can drain the battery overnight or prevent engine start entirely. Label each wire with masking tape immediately after verification to avoid confusion during reassembly.
Chrysler’s connector uses a unique locking mechanism–depress the white tab inside the plug while pulling wires out individually, never force them all at once. Reassembly requires aligning the tab with the groove; failure to do so results in intermittent contact. For vehicles with automatic transmissions, ensure the neutral safety switch wires (often purple and gray) are intact–these bypass the starter circuit entirely if damaged or misrouted.
Final verification involves cycling the key through all positions while monitoring the multimeter–voltages should appear sequentially, not simultaneously. Replace the ignition switch if any position fails to register voltage, as internal wear can mimic wiring faults. Secure all connections with crimp connectors and heat-shrink tubing to prevent moisture ingress; a single exposed splice can induce hours of diagnostic frustration.
