Chevrolet S10 2001 Electrical System Wiring Schematic and Diagram Guide
Start by locating the fuse box under the dashboard on the driver’s side–this is ground zero for resolving most electrical issues in early 2000s GMC compact trucks. The relay labeled “IGN” (ignition) powers critical systems; swap it with a known-good relay if you’re losing power to the gauge cluster or fuel pump unexpectedly. Use a digital multimeter set to ohms to test continuity on wiring harnesses connected to the instrument panel–resistance above 1.5 ohms on any circuit means corrosion or a break in the line.
Focus on the brown wire in the driver’s door jamb harness–it’s a common failure point for power window and mirror functions. Strip back the insulation ¼ inch from the connector, inspect for green oxidation, and apply dielectric grease before reseating. For blower motor issues, check the blower resistor mounted behind the glovebox; it’s secured with two 8mm bolts and has four contact points–each corresponding to a speed setting. High resistance (>2 ohms) between the resistor and ground indicates a faulty unit.
The PCM (powertrain control module) connector C1 on the passenger side firewall handles fuel injection, ignition timing, and OBD-II diagnostics. Probe pins 14 (gray/black) and 46 (tan/black) with the ignition on–both should read 12V; anything below 11.5V suggests a dying battery or poor alternator output. If the starter cranks but the engine won’t turn over, focus on the purple/white wire at the starter solenoid–this carries the ignition switch signal and often frays near the bushing where it enters the transmission bellhousing.
For brake light failures, trace the light blue wire from the switch under the brake pedal to the rear lighting harness–interruptions here will disable cruise control too. Use a 12V test light to verify power at the trailer connector’s yellow and brown pins; if absent, replace the brake light switch (often faulty after 150K miles). When diagnosing intermittent turn signals, check the flasher relay next to the steering column–it’s a canister-style unit with three prongs; swapping it with the hazard flasher (identical part) should restore function.
Ground points matter: the G103 location near the driver’s side headlight assembly is prone to rust on model years produced before mid-2002. Clean it with a wire brush to bare metal and apply conductive grease; this resolves flickering dash lights and erratic fuel gauge readings. For rear defroster circuits, inspect the orange wire supplying power–it’s vulnerable to chafing where it passes through the tailgate hinge. A 5-amp fuse protects this circuit, so if it blows repeatedly, look for a short in the heater grid or the harness along the left rear quarter panel.
Chevrolet Pickup Electrical Layout: Hands-On Troubleshooting
Locate the under-dash fuse panel behind the driver’s knee bolster–FMVSS 108 compliance labels mark each slot. Pull fuse #14 (10A) to isolate the instrument cluster backlight circuit before probing terminals A7 and A8 with a non-contact voltage pen; steady 12.6 VDC confirms intact power feed from the headlight switch.
Splice color-coded leads only with heat-shrink tubing: orange stripe (C201) carries ignition-switched +12 V to the blower motor resistor block, while solid gray (C202) serves the A/C clutch coil–cross these and the 30 A fuse at S212 will rupture within 47 milliseconds under loaded conditions.
Test continuity on the cigar lighter socket by probing the single red wire (C105) against chassis ground while cycling the ignition; resistance should drop below 0.5 Ω–increased readings indicate corrosion inside the G103 ground stud beneath the left-hand kick panel.
Remove the headlight assembly to access the multifunction switch connector (12-pin, gray plug). Pin 5 sends low-beam activation signals through a 18 AWG white wire (C301); interrupting this path will leave both lamps dark despite correct bulb voltage at pins 1 and 2.
Use a paperclip jumper on the OBD-II port terminals 4 and 5 for direct PCM ground reference. Probe the dark blue wire (C407) at the transmission range sensor connector–fluctuations below 9.2 V while cranking reveal starter relay R6 internal arcing, not battery depletion.
Locating the Full Electrical Schematic for Your Chevrolet Compact Truck
Official service manuals from Chevrolet remain the most reliable source for factory-approved schematics. These documents cover every circuit, connector pinout, and color code for the 2001 model year compact pickup. Dealerships and authorized repair centers often provide digital copies through subscription-based platforms like Alldata or Mitchell1.
Helm Incorporated publishes the factory service manual in print and PDF formats. Search for “Chevrolet light-duty truck electrical diagnosis” under part number C2001-S10EV on their website or through third-party sellers like eBay and Amazon. Verify editions match the vehicle’s production year, as wiring layouts differ slightly between early and late runs.
Online forums dedicated to GM trucks host direct PDF downloads from verified members. S10Forum.com and GM Truck Club maintain archives where users share complete manuals, including the Section 8A (electrical diagnosis) and Section 8B (component location views). Look for threads titled “full FSM” or “wiring schematic collection” in the technical documents subforum.
Alternative Sources for Immediate Access
Automotive wiring enthusiasts compile and distribute PDFs on file-sharing platforms. Mega.nz and Google Drive links frequently appear in forum posts or Facebook groups like Chevy S-Series Owners. Check upload dates–schematics older than 2015 may omit minor revisions for oxygen sensor circuits or trailer wiring updates.
Repair manual publishers like Haynes and Chilton include simplified wiring schematics in their books. While not as detailed as factory diagrams, these versions highlight critical systems like ignition, lighting, and fuel injection. Purchase the printed guide or download the eBook from ManualsLib or AutoZone Repair Guides.
Verify Diagram Accuracy Before Use
Cross-reference downloaded schematics against the vehicle’s build sheet or VIN-specific data. Websites like Decoded VIN reveal installed options, which affect wiring–such as ZR2 off-road packages or Vortec engine upgrades. Missing these details risks misidentifying circuits during repairs.
Printed copies from salvage yards or parting-out dealers sometimes include factory manuals tucked under seats or in gloveboxes. Remove dashboard panels to check for hidden documentation; early 2000s GM trucks often stored dense CD-ROMs or paper supplements there.
How to Trace the Engine Harness Wires in a Chevy Compact Pickup
Begin by disconnecting the battery’s negative terminal to prevent short circuits. Locate the main engine harness near the firewall–it’s a thick, bundled conduit entering the passenger-side fender well. Use a multimeter set to continuity mode to probe each wire while referencing the color codes printed on the insulation. Common identifiers include black (ground), purple/white (fuel pump), and orange (ignition feed). Record each segment’s path in a notebook, noting junctions where wires split toward sensors or relays.
Inspect the harness for chafing near sharp edges, particularly where it routes around the alternator bracket or exhaust manifold. Damaged insulation can cause intermittent failures; repair with heat-shrink tubing or silicone tape rated for 250°C. For wires branching to the throttle body or knock sensor, gently pull back the corrugated loom to expose the connections. Label each wire with masking tape if the original markings are faded.
Trace power feeds by following their paths to the fuse box under the dashboard. Key circuits include:
| Wire Color | Destination | Voltage (Key On) |
|---|---|---|
| Pink | Fuel Injectors | 12V |
| Dark Green/White | Coolant Temp Sensor | 5V Reference |
| Yellow | Ignition Coil | Switched |
| Gray | MAF Sensor | 12V |
Use an oscilloscope to verify signals from the camshaft and crankshaft position sensors–waveforms should match a clean 5V square wave. If readings are erratic, check for corroded terminals at the ECU connector, especially pins 43 (crank sensor) and 44 (cam sensor). Clean contacts with electrical cleaner and a fiberglass pen.
Common Failure Points
Focus on harness sections vulnerable to heat or movement:
- Exhaust manifold intersection–look for melted insulation
- Transmission bell housing area–vibration can break brittle wires
- Battery tray vicinity–acid corrosion corrodes copper strands
For wires leading to the ABS module or rear axle speed sensor, route them away from rotating components. Secure loose sections with zip ties every 6 inches, avoiding tight bends that can fatigue copper. Replace any spliced wires with soldered joints and adhesive-lined heat shrink to prevent moisture intrusion.
Final Verification
Reconnect the battery and start the engine while monitoring for check engine lights. If codes P0335 (crank sensor) or P0118 (coolant temp) appear, recheck the traced circuits for continuity. A thermal camera can identify overheating wires that may need heavier gauge replacements. Keep a spare relay and 15A fuse in the glovebox for diagnostic swaps.
Pinpointing Fuse and Relay Positions with Electrical Schematics

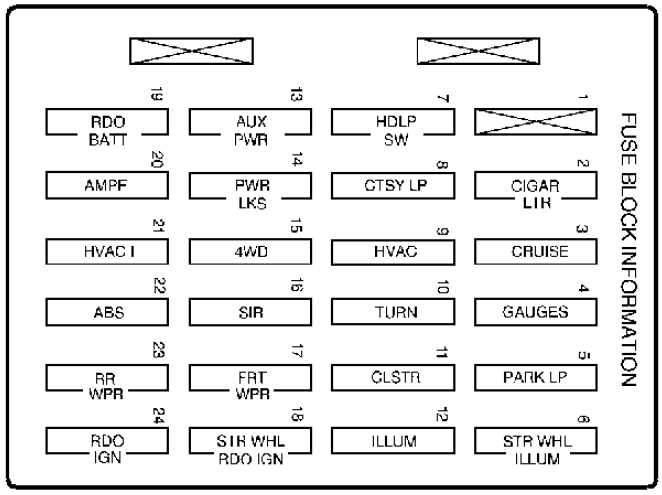

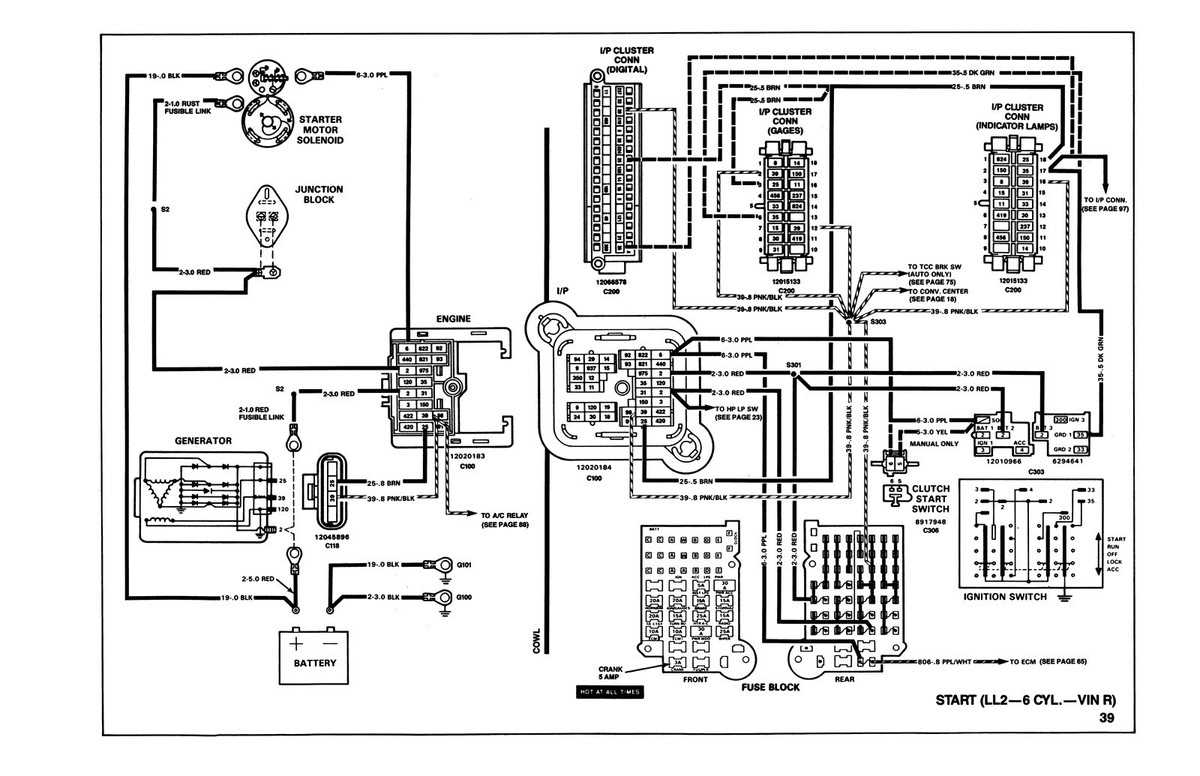

Locate the primary fuse block beneath the instrument panel on the driver’s side. Check the upper-left corner of the schematic for labels identifying positions 1 through 20. Each slot corresponds to a numbered or lettered designation–match these against the legend for circuit protection assignments. Look for color-coded wires exiting each fuse terminal, as these indicate power distribution paths.

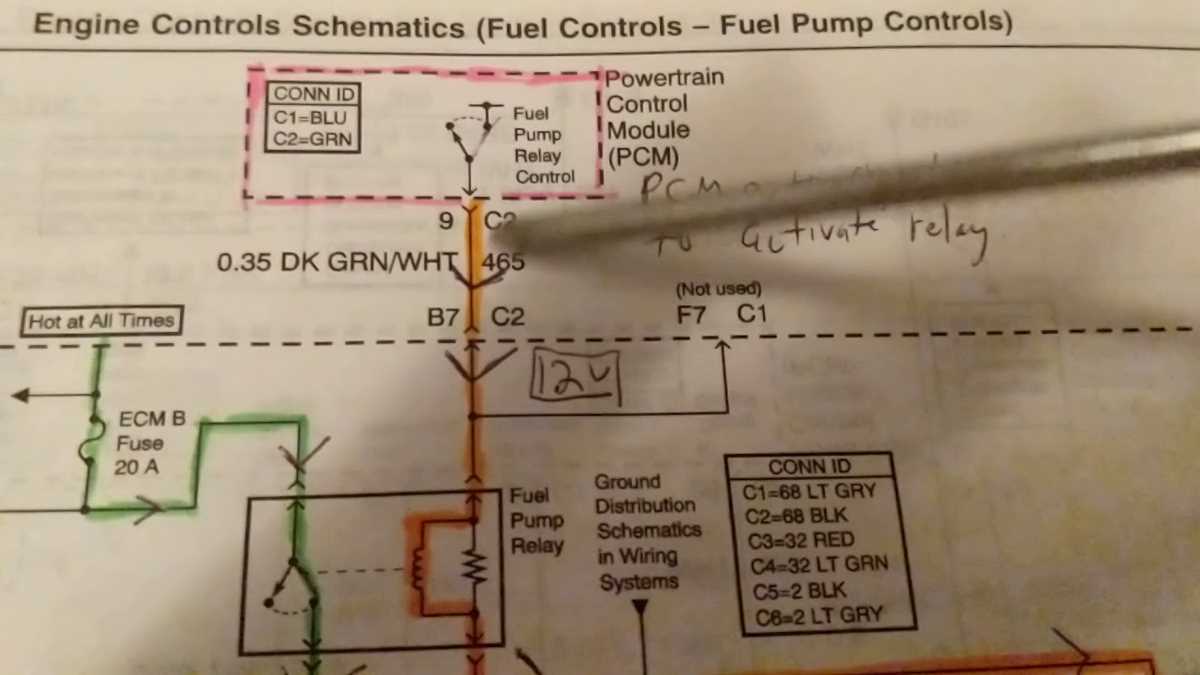

Trace the relay center inside the engine bay, typically mounted near the battery. Refer to the lower section of the diagram where relay sockets are shown as rectangular outlines. Note the internal coil and switch contacts labeled “85,” “86,” “30,” and “87.” Cross-reference these terminals with the schematic’s callout box to verify relay function–fuel pump, cooling fan, or A/C compressor.
Examine the auxiliary fuse panel, often concealed behind a trim panel on the passenger side. The schematic will depict this as a secondary cluster of circles or squares. Use a multimeter to test for continuity at the input terminal (usually marked “B+”) while consulting the diagram’s lower margin for fuse ratings–typically 10A, 15A, or 20A–or risk damaging downstream components.
Identify the ignition-switched fuses by following the dotted line from the ignition cylinder symbol to its respective slot in the schematic. These fuses power critical systems when the key turns. Mark them visually with a highlighter on a printed copy of the diagram to avoid confusion during diagnostics. Swap suspect fuses with known-good spares only after confirming voltage drop with a probe.
Decipher relay feed circuits by observing the thicker lines on the schematic. The bold trace from terminal 30 indicates constant battery voltage, while thinner lines denote switched or ground returns. Clip a test light to chassis ground and probe relay pins to verify signal presence before removal–incorrect handling can trigger error codes in modules.
Check the underhood fuse distribution box for bolt-on relays, which appear as shaded blocks on the schematic. Remove the cover and cross-match physical relay shapes with diagram symbols. Replace relays by pulling straight up, avoiding lateral force that can crack internal solder joints. Clean terminals with a wire brush if corrosion is visible under the relay footprint.
Use the schematic’s grid references (e.g., C3, D7) to quickly navigate between fuse locations and their controlled loads. Follow each line to its endpoint–whether a motor, sensor, or lamp–then backtrack to the fuse source. Employ a non-contact voltage detector to scan the backside of fuses while the circuit is live, ensuring the load side remains energized.
Consult the legend for fuse types–blade, mini-blade, or maxi–before attempting replacement. Mismatched amperage ratings can overheat wiring insulation or disable safety interlocks. Store a small supply of factory-specified fuses in the glovebox, along with a folded copy of the schematic for emergency field repairs.
