Complete Wiring Diagram Guide for 2002 GMC Sonoma Radio Installation
Locate the fuse box first. For the 2001–2003 model year compact pickup, the primary harness connects behind the left dashboard panel. Use a multimeter to verify power at terminals C1 (yellow, 12V constant) and C2 (pink, ignition-switched) before proceeding. Factory schematics show these circuits running alongside the vehicle’s chassis ground (black, G400).
Trace the antenna lead (coaxial, Fakra Z) from the head unit’s rear to the mast base. Resistance should read 5 ohms or less; anything higher indicates corrosion at the mount or a fractured core. Replace the cable if continuity fails between the shield and center conductor. Harness adapters for aftermarket decks require splicing only the red, yellow, and black wires–ignoring the orange illumination lead unless retaining dimming functionality.
Door speaker outputs split into front and rear pairs. Factory configurations use 4-ohm drivers; impedance mismatch will distort output. Left/right polarity follows the pattern: front doors (gray/light blue, light blue/gray) and rear panels (dark green/white, brown/white). Cross-check with a tone generator at 1 kHz before securing connections. Loose terminals create intermittent dropouts–crimp with insulated splices rated for 16 AWG.
For auxiliary inputs, identify the purple and light green wires behind the stock receiver. These correspond to left and right RCA-level signals. Direct soldering to these points avoids signal degradation found in FM modulators. Ground loop issues arise if the chassis connection shares a path with power cords–isolate using a ferrite bead near the dash cluster.
Manuals often omit the data bus link (gray/violet, pin 12 on harness). This line enables automatic volume adjustment and theft-deterrent features. Cutting it disables chime alerts but may also affect onboard diagnostics. If retaining factory functionality, bridge the circuit with a 1 kΩ resistor to prevent error codes.
How to Connect Aftermarket Audio in a Mid-Size Pickup
Disconnect the vehicle’s battery before handling harness connectors to prevent short circuits. The factory harness behind the dash uses color-coded wires; match these to the aftermarket unit’s pinout using a multimeter set to Ohm mode. This verifies continuity without relying on often-inaccurate online schematics.
Wire Color Reference and Function
| Factory Wire Color | Function | Aftermarket Connector Pin | Voltage (Key On) |
|---|---|---|---|
| Dark Green/White | Left Front Speaker (+) | LF+ | 4.8V |
| Gray/Black | Right Front Speaker (-) | RF- | 0V (Ground) |
| Yellow | Constant 12V Supply | B+ | 12.6V |
| Light Blue | Power Antenna Trigger | ANT | 12V (Key On) |
| Purple | Ignition-Switched 12V | ACC | 12V (Key On) |
Cutting into wires creates future failure points; instead, use crimp connectors or solder joins for permanent repairs. Heat-shrink tubing over soldered joints prevents corrosion from road salt and moisture. For amplifier installs, run RCA cables through the firewall using the existing grommet near the brake master cylinder.
Amplifier remote turn-on requires a 12V signal when the audio system powers on. Splice into the factory harness’s light blue wire for a clean signal, avoiding interference from other vehicle electronics. Grounding directly to the chassis near the installation site ensures stable connections, reducing noise.
Test each speaker independently using a 9V battery connected briefly to the speaker wires–confirm sound and polarity before finalizing connections. Recheck all crimps and solder joints with a continuity tester before reassembling the dash to avoid troubleshooting later.
Finding the Audio System Harness Connector Behind the Instrument Panel

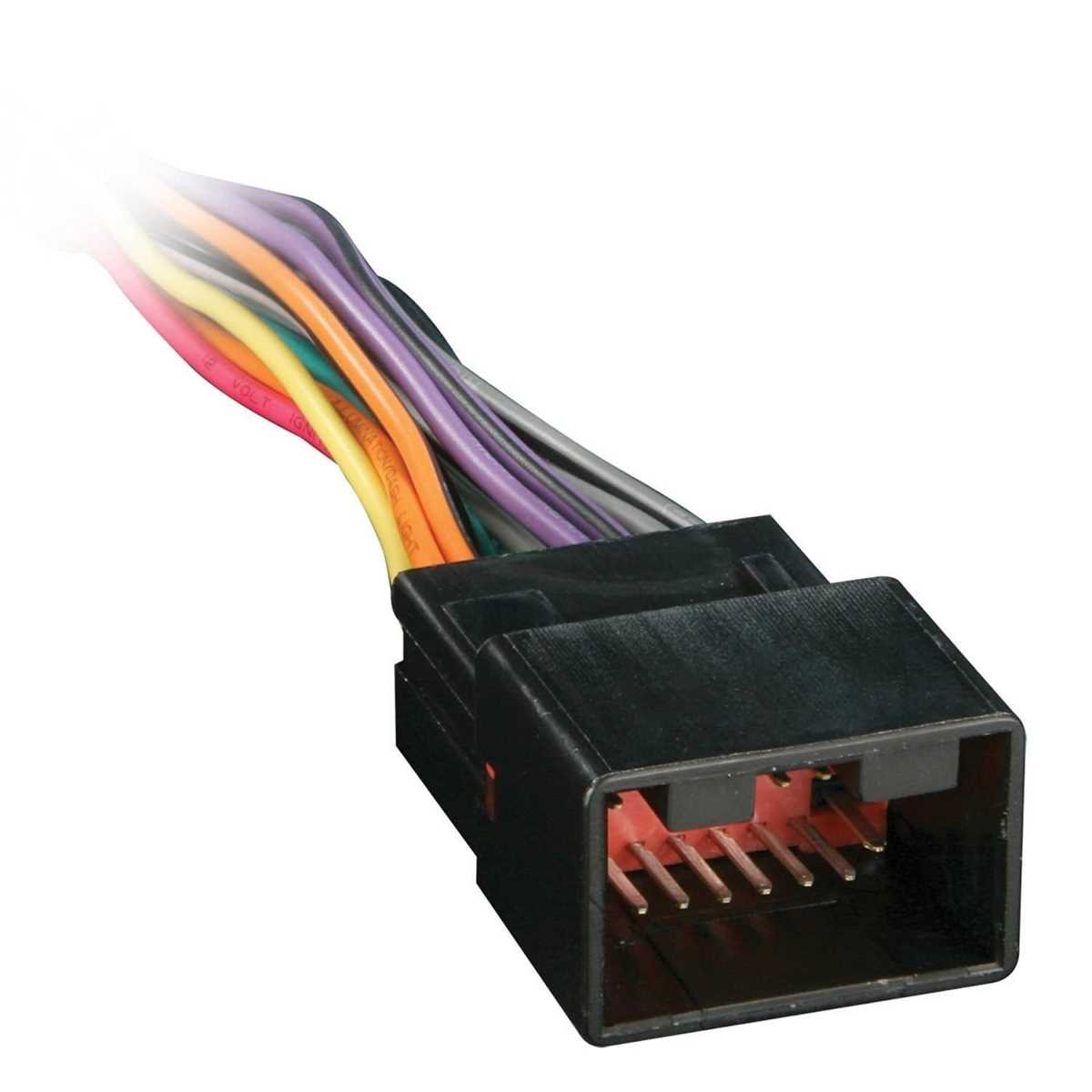

Start by disconnecting the negative terminal of the vehicle’s battery to prevent short circuits. The connector is typically positioned to the right of the steering column, slightly above knee level–use a flashlight to spot the bundled wires behind the lower dash cover. Look for a rectangular plug with 12–16 pins arranged in two rows; color-coding includes yellow (constant power), red (switched power), black (ground), and purple/white (illumination).
Remove the driver-side kick panel first–it’s secured by two 7mm screws and a plastic clip near the door hinge. Once exposed, gently pull the panel away to reveal the wiring loom; the harness connector may be clipped to a metal bracket or tucked behind a foam insulator. If obstructed, tilt the climate control module outward by releasing its two retaining tabs with a flathead screwdriver for better access.
Tools Needed for the Task
A magnetic-tip screwdriver speeds removal of the trim screws, while needle-nose pliers help release stubborn retaining clips. A trim removal tool prevents scratches, and a multimeter confirms pin functions–probe the yellow wire for 12V DC with the key off, the red wire for 12V only with the ignition on. Avoid forcing connectors apart; instead, depress the small release tab on the male side with a pick before separation.
The factory harness may include extra wires for optional amplifiers or CD changers–ignore gray (speaker ground) or orange/black (dimmer) unless integrating aftermarket components. Trace each wire back to its origin if splicing is required; insulation-stripping should expose no more than 5mm of copper to prevent shorting against adjacent circuits. Reattach all panels in reverse order, ensuring snap clips align before tightening screws.
For vehicles with theft-deterrent systems, reconnect the battery last; the original unit may require a security code after power loss. If the connector’s pins appear corroded, clean with electrical contact cleaner and a nylon brush–avoid abrasives that could damage plating. Verify all connections by turning the ignition to ACC and checking for illuminated dash indicators before final assembly.
Matching Factory Harness Color Codes to Audio System Terminals
Begin by locating the 12-pin connector behind the OEM head unit–yellow (constant 12V), red (switched ignition), and black (ground) must be identified first. Trace each wire to its termination point: solid orange carries illumination control, while orange with a white stripe delivers dimmer signaling. Purple (left front speaker +) and purple with black tracer (left front speaker –) form a twisted pair, mirrored on the right side by dark green (right front speaker +) and dark green with black tracer (right front speaker –).
Critical Wire Pairings for Seamless Integration
- Power leads: Yellow (battery) connects directly to the fuse box; red links to the ignition switch.
- Speaker outputs: Left rear uses light blue (+) and light blue with black stripe (–); right rear features gray (+) and gray with black stripe (–).
- Auxiliary functions: Brown (mute) disengages audio during phone calls; pink (antenna trigger) powers automatic amplifiers.
Verify polarity with a multimeter–DC voltage between positive and negative speaker wires should read 4–8 ohms. Swap connections if impedance deviates significantly, as reversed polarity distorts high-frequency response. Label each lead immediately to prevent misrouting during reinstallation; use heat-shrink tubing or liquid electrical tape to secure splices, avoiding standard vinyl tape which degrades under heat cycles.
How to Connect Aftermarket Audio System Cables Safely
Strip ¼ inch of insulation from each wire using precision strippers–avoid cutting strands. Twist exposed copper clockwise tightly to prevent fraying.
Match colors precisely: constant power (yellow) to battery, ground (black) to chassis, and speaker outputs (gray/white, purple/green, etc.) to corresponding harness terminals. Verify polarity before securing connections.
Use crimp connectors rated for 18–20 AWG. Insert stripped ends fully, compress with crimp tool once–no repeats. Heat-shrink tubing must overlap insulation by ⅛ inch; apply heat evenly until adhesive seals edges.
Test continuity with a multimeter after splicing. A reading of 0.5 ohms or less confirms solid contact; higher resistance indicates loosened strands. Recheck suspect joints before finalizing.
For speaker cables, pair positive (striped) to positive and negatives identically. Avoid mixing channels–distortion or backfeeding may damage amplifiers. Keep wire runs under 18 feet to maintain signal integrity.
Seal all splices with liquid electrical tape if working near moisture-prone areas. Wrap exposed segments in vinyl tape, not fabric-backed, as it degrades faster under heat and vibration.
Label each connection with masking tape and marker immediately after confirming function. Include date–corrosion begins within months if untreated, complicating future diagnostics.
Reinstall dash panels progressively, checking security clips before final torque. Loose components cause buzzing at varied engine RPMs. Power on system briefly to validate volume and balance before closing assembly.
Common Electrical Connection Errors and Preventing Circuit Overloads
Match wire gauges precisely to the device’s power demands. Undersized conductors overheat, melt insulation, and ignite nearby materials. The 1999 manual for the compact pickup specifies 18 AWG for accessory leads rated below 10 amps, while main feeds require 12 AWG minimum. Verify each conductor’s diameter with calipers before crimping; digital multimeters confirm continuity only after proper termination.
Avoid twisting bare strands together–always use solder-sealed butt connectors or heat-shrink sleeves. Exposed copper oxidizes within days, increasing resistance and causing intermittent failures. When routing bundles through firewall knockouts, pad sharp edges with split-loom tubing; a single nicked strand can arc at 12V under vibration. Label each connection with heat-resistant tags; misrouted ground leads often generate phantom current draw that drains batteries overnight.
- Correct polarity reversals immediately with a diode tester. Reversed constant power feeds backfeed through signal circuits, destroying amplifier chips and module firmware.
- Install a 20-amp fuse within 7 inches of the battery for every new circuit. Omitting this step risks melting entire harnesses if a short develops.
- Separate audio signal pairs from high-current lines by at least 3 inches. Induced noise produces audible buzz at volumes above 50%.
- Tape temporary splices with fiberglass cloth tape, not electrical tape–vinyl stretches and loosens under hood temperatures.
Test each connection with a non-contact voltage probe before buttoning up panels. A single loose ground stud can create a parallel path that energizes chassis components unexpectedly. After assembly, perform a thermal scan with an infrared camera; any connector registering over 140°F warrants immediate rework.
