Complete Alternator Wiring Guide for 2002 Nissan Maxima with Diagram
Locate the power source harness behind the fusible link near the left strut tower–it connects via thick orange wires (10-12 AWG) to the charging component’s B+ terminal. Confirm continuity using a multimeter: probe the battery-side end of the fusible link; readings should match 12.6V (±0.2V) when the ignition is off. If voltage drops below 11.8V, inspect the link for corrosion or overheating–replace it entirely if discolored or brittle.
Trace the excitation wire (light blue, 18 AWG) from the ECU pin #46 (A34) to the L terminal on the charging unit. This circuit must show 5-7V with the key in the “ON” position. A missing signal indicates a faulty ECU relay or open circuit in the instrument cluster harness–check fuses #18 (10A) and #30 (15A) under the dash first.
The sense wire (thin black/yellow stripe, 16 AWG) bridges the battery positive to the S terminal. Disconnect it before testing: probe the terminal side–expect 12.0-14.5V with the engine running. If readings exceed 15.2V, the voltage regulator is defective. For bench testing, apply 13.5V to the B+ terminal and a 3-5W bulb to the L terminal; revs should hold steady at 1,200 RPM with no flicker.
Ground paths converge at stud G101 beneath the air intake manifold. Scrape paint from the mounting surface; torque all connections to 12-15 ft-lb (16-20 Nm). Loose grounds cause erratic charging cycles–validate with a load test: attach a 30A draw to the battery; voltage should not dip below 11.2V during a 15-second crank.
Prevent overvoltage by splicing a 470Ω 1W resistor inline with the L terminal if installing an aftermarket ignition module. Never jumper the B+ terminal–this bypasses internal protection diodes, risking permanent damage to the onboard computer. For 1-wire conversions, remove the L terminal connection entirely; tie the S terminal directly to the battery via a 10A fuse.
Electrical Charging System Schematic for the 2002 Nissan Maxima
Locate the voltage regulator connector first–pin B (white/red stripe) delivers excitation current directly from the ignition switch. Measure 12V here with the key in the ON position; absence indicates a blown fuse or broken ignition feed wire. Pin A (black/white stripe) grounds the internal circuit; test continuity to chassis for corrosion resistance below 0.5 ohms.
- Harness colors decode as follows:
- Brown/black (L terminal) – links to charge indicator bulb.
- Yellow/white (S terminal) – battery voltage sense.
- Green/white (IG terminal) – ignition input.
Disconnect the B+ terminal before probing; arcing can damage the bridge rectifier. Expect 13.8–14.5V across the battery posts at 2,000 RPM with all accessories off–readings outside this range suggest regulator failure or slipping drive belt (spec: 110 lbs tension, Gates 7PK1885).
- Remove the serpentine belt and spin the pulley by hand. A grinding noise indicates worn bearings; a smooth spin rules out mechanical drag.
- Check stator winding resistance:
- Phase-to-phase: 0.2–0.5 ohms.
- Phase-to-ground: infinite (open circuit).
Replace the fusible link (10 AWG, red insulation) if melted–this bypass often trips before the main fuse. Crimp terminals must be soldered; mechanical connections corrode within 18 months in coastal climates. Use M4 ring terminals for the B+ stud; torque to 7 Nm.
Onboard diagnostics mode trigger: Ground pin F (black/red stripe) while cranking–if the voltage drops below 9V, suspect a weak battery or parasitic drain. Load test parameters: 200A for 15 seconds; voltage should not fall below 9.6V.
Rotating diode failure manifests as flickering headlights at idle. Swap the rectifier assembly rather than individual diodes–heat sinks are press-fit and require a 30-ton arbor press for removal. Post-replacement, flush the cooling system; ethylene glycol residue shorts stator laminations.
Every splice in the main harness must be sealed with adhesive-lined heat shrink; tape degrades within 3 years. Verify the PCM ground (GND7, blue/green stripe) at engine block near the starter–poor contact causes erratic idle and false MIL codes P0560–P0563.
Finding Power Unit Leads in a VQ35DE Sedan

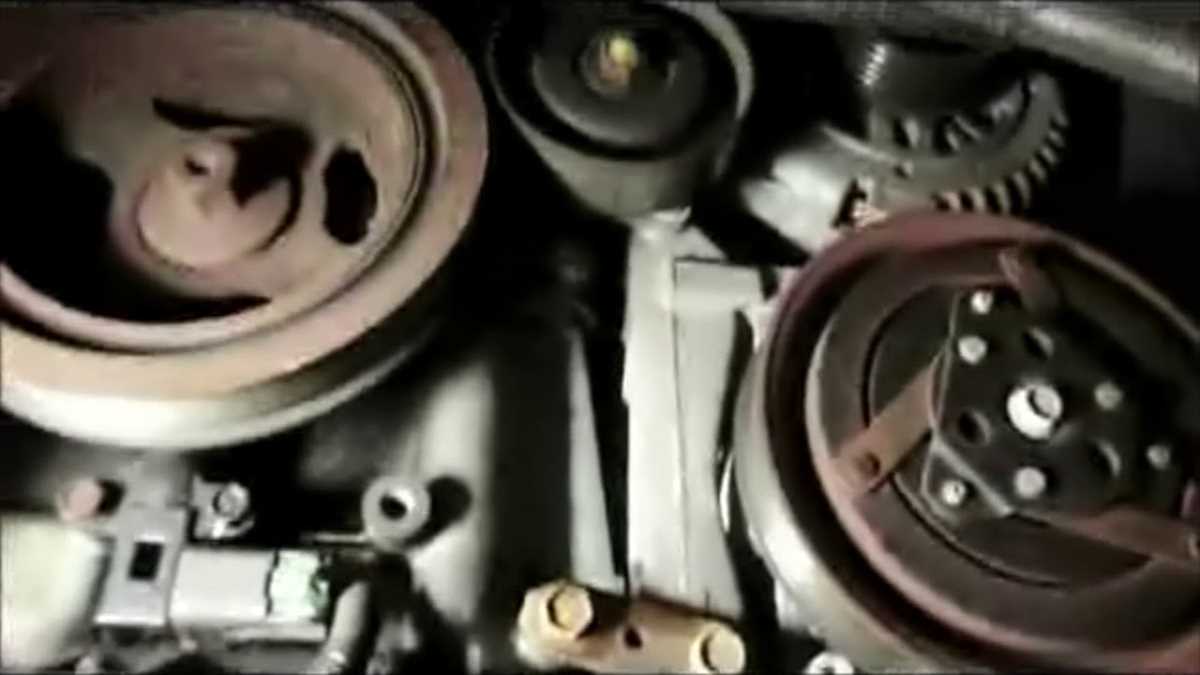

Begin under the hood near the serpentine belt on the driver side. The charging component sits frontmost on the engine block, recognizable by its pulley and three electrical posts. Trace the main output cable–thick and covered in black insulation–to the battery terminal. This connection carries generated current; handle with gloves to avoid shorting against metal surfaces.
Adjacent to the power output, locate the smaller regulator plug. This two-pin connector slides into a plastic socket marked “L” and “S.” Pin labels may fade over time; verify using a multimeter: “L” (blue wire) reads 12-14 volts when the engine runs, while “S” (black/yellow stripe) provides battery voltage readings even when the vehicle is off.
Behind the charging unit, inspect the ground strap bolted to the engine block. This braided copper lead ensures stable operation; corrosion here mimics failing components. Clean with a wire brush if discoloration appears. Failure to maintain this connection can cause intermittent power loss or erratic gauge readings.
For precise identification, use the table below to cross-reference wire colors and functions:
| Connector | Wire Color | Voltage (Engine Running) | Function |
|---|---|---|---|
| Output (B) | Black (thick) | 13.5–14.5 V | Delivers current to battery |
| Regulator (L) | Blue | 12–14 V | Excitation signal |
| Regulator (S) | Black/Yellow stripe | Battery voltage | Voltage sensing |
| Ignition Input | Brown | 12 V (key on) | Activates regulator |
Avoid tugging connector harnesses; internal pins bend easily. If disengaging the regulator plug, squeeze the release tab gently while pulling straight back. Wiggling can loosen terminals, creating future electrical gremlins.
Hidden Connection Points
Follow the brown ignition wire from the regulator plug toward the firewall. This lead merges into a harness running alongside the brake master cylinder reservoir. A secondary splice here (often overlooked) links to the fuse box–label SP1–carrying five amperes. Check continuity before assuming component failure.
Inspect the back of the fuse panel for a white plastic clip securing additional leads. These smaller wires split into three branches: one feeds the dashboard ammeter, another connects to the ECU, and the third loops to the under-hood fusible link. Misrouted wires here trigger false CEL codes or prevent engine starts.
When reassembling, ensure all protective boots fully cover terminal ends. Exposed copper attracts grime and moisture, accelerating corrosion. Apply dielectric grease sparingly to rubber seals; overapplication can cause connectors to slip loose under vibration.
Step-by-Step Guide to Locating Generator Output Cables to the Power Source
Begin by disconnecting the negative terminal of the battery using a 10mm wrench to prevent short circuits while inspecting connections. The primary feed cable from the charging system will be thick, typically 6-8 AWG, and covered in dark insulation–often black or dark red–indicating its high-current role.
Trace the heavy-gauge cable from the rear of the charging unit toward the positive battery post. It will connect to a fuse box or power distribution module first, so note any intermediate splices or junctions. If the path isn’t immediately visible, look for a protective conduit or loom securing the cable along the engine bay’s firewall or inner fender.
Identify the fusible link–usually a heat-shrunk section of the cable near the battery or distribution block–designed to melt under excessive current. Check for brittle insulation, discoloration, or swelling, as these indicate past overheating or failure. A multimeter set to continuity mode can confirm integrity if the link appears suspect.
Follow any secondary thinner wires (14-18 AWG) emerging from the charging device, which typically serve the voltage regulator or warning light circuit. These will route to the vehicle’s computer or instrument cluster. Use a wiring schematic if available, but if not, test each terminal with the multimeter to determine function–excitation wire will read 5-12V when ignition is on.
Examine connectors for corrosion, especially where cables meet terminals. Clean contacts with a wire brush and dielectric grease to ensure reliable conductivity. If the primary feed shows resistance above 0.2 ohms when tested, suspect internal fraying or oxidation and replace the entire cable rather than splicing.
Verify the grounding path by locating where the charging unit’s metal housing bolts to the engine block. Remove the bolt, clean both surfaces thoroughly, and reattach with thread locker to prevent loosening from vibration. A weak ground can mimic charging failures, so this step is critical.
Reconnect the battery and start the engine, then measure voltage across the power source’s terminals. Healthy systems should read 13.8-14.5V; deviations suggest issues in the feed path, regulator, or charging mechanism itself. Document each connection’s condition for future reference or diagnostics.
How to Pinpoint and Verify the Generator Control Module Connector
Locate the charging system control module’s pigtail near the rear of the power unit. The connector for a 3.0L or 3.5L V6 will have four pins–two main field terminals (usually labeled “L” and “S”) and two sensor leads (“F” and “IG”). Use a multimeter set to ohms and probe the “L” terminal while grounding the black lead to the engine block; resistance should read between 5 and 20 ohms. Anything outside this range signals a corroded or open circuit in the excitation path.
Disconnect the harness at the regulator first–failure to do so risks damaging the internal electronics during testing. Probe the mating connector side (vehicle harness) for 12V on the “IG” terminal with the ignition in the ON position. If voltage is absent, trace the red wire back to the ignition relay or fuse box–common failure points include a blown 10A fuse or cracked splice under the dash. The “S” terminal should show battery voltage regardless of engine state; if not, inspect the purple wire for continuity to the positive battery post, accounting for potential fusible link corrosion near the starter solenoid.
For dynamic testing, start the engine and measure voltage between the “F” terminal and ground while varying RPM. At idle, readings should sit between 2.5V and 5V, rising proportionally with throttle input. A flat 0V or 5V plateau indicates a defective regulator or shorted sensor wire–never assume the issue lies solely with the component without checking the harness, as chafed insulation behind the timing cover often mimics regulator failure.
Test the ground path by probing the regulator’s metal housing while the engine runs. Voltage here should be under 0.1V; anything higher points to a poor chassis ground. Clean the mounting surface if corroded–factory bolts often seize, and replacing them with stainless steel hardware prevents future oxidation. Check the braided ground strap from the engine to the firewall; many overlook this, attributing voltage drop issues to the harness when the true culprit is a frayed or disconnected strap.
If all terminals test correctly but charging issues persist, measure voltage drop across each pin under load. With the engine at 2,000 RPM, connect the multimeter between the “L” terminal and its mating point in the harness. Voltage drop exceeding 0.2V suggests a high-resistance connection–crimp splices poorly executed during aftermarket installations are a frequent cause. For precision, back-probe the connector with T-pins rather than piercing wires, as repeated testing can degrade insulation over time.
Replace the entire pigtail if repairs become necessary–partial fixes often lead to intermittent failures. When installing a new connector, match wire gauges: 14 AWG for field terminals, 16 AWG for sensor leads. Seal all splices with adhesive-lined heat shrink, then verify no moisture pathways exist near the connector–even minor condensation can cause erratic voltage readings or premature regulator failure.
