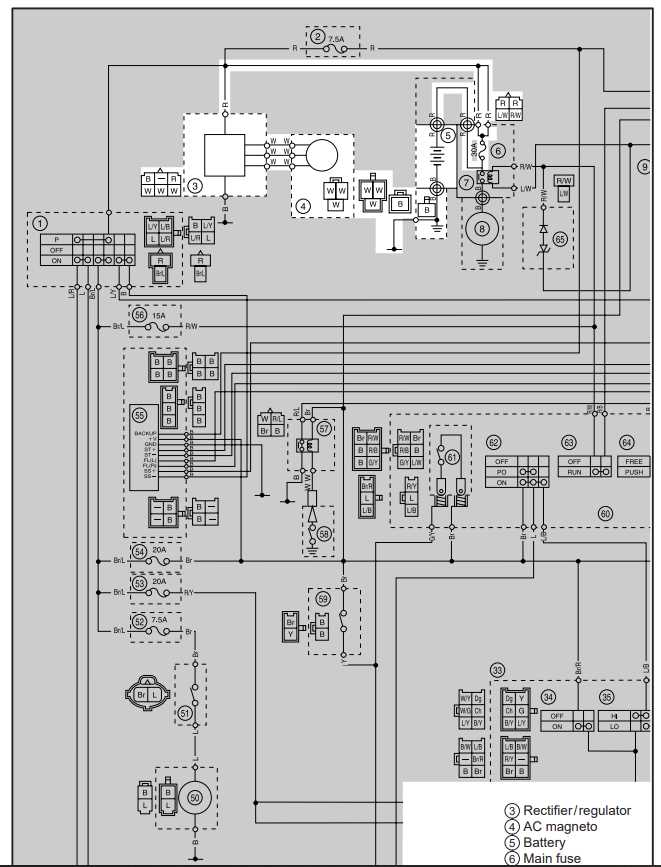

Complete 2002 Yamaha R6 Electrical Wiring Diagram and Schematic Guide

Begin by locating the main fuse block beneath the seat–its position is critical for diagnosing power distribution issues. Use a multimeter set to 20V DC to verify voltage at the red/white wire (terminal 1) of the 30A main fuse. A reading below 12.6V indicates a faulty battery or corroded connections at the positive terminal, often traced to the starter relay or solenoid.

Examine the ignition system circuit by probing the black/yellow wire (pin 12) at the ECU connector. Voltage should spike to 10-14V when the key is turned to “ON.” If readings fluctuate or drop, inspect the ignition switch wiring harness for frayed insulation or loose terminals. Replace the 7.5A ignition fuse if blown–commonly caused by a short in the sidestand sensor circuit.

Focus on the lighting subsystem next. The left-turn signal circuit uses a brown/white wire (pin 7) tied to the flasher relay. Test continuity between the relay and the handlebar switch; resistance above 0.5 ohms suggests a break in the wire or a faulty bulb socket. For the headlight, check the gray/red wire (pin 3) at the headlight connector–voltage should match battery levels. Dim output often stems from inadequate grounding at the chassis or a defective HID ballast.

Diagnose the charging system by monitoring the pink wire (pin 21) at the stator connector with the engine running. Voltage should stabilize between 13.8-14.5V at 5,000 RPM. Readings outside this range point to a failing regulator/rectifier or damaged stator windings. Replace the 30A main fuse if the bike fails to start–this is the primary safeguard against current surges.

For sensor troubleshooting, reference the ECU’s pinout layout. The throttle position sensor uses a blue/red wire (pin 6), requiring 5V input. Verify this voltage at the sensor connector; absence indicates a severed wire or ECU failure. The coolant temperature sensor (white/red wire, pin 24) should show decreasing resistance as temperature rises–erratic readings confirm a faulty sensor, impacting fuel injection timing.

Isolate fuel pump issues by listening for a 2-3 second prime cycle when turning the key to “ON.” If silent, test the green/white wire (pin 19) at the fuel pump relay for 12V. No voltage suggests a bad relay or an open circuit in the kill switch wiring. Confirm the pump’s ground (black wire) is securely fastened to the frame–poor grounding is a frequent cause of intermittent operation.

Yamaha R6 Electrical Blueprint: Full Breakdown

Locate the main harness connector behind the right fairing panel–it houses 16 pins split into two rows of eight. Pin 1 (red/white) carries ignition power; verify voltage at 12.6V key-on with a multimeter before probing deeper. A corroded Pin 7 (black/white) ground often mimics starter issues–clean with a brass brush and dielectric grease to prevent future resistance problems.

Follow the charging circuit from the stator (three yellow leads) to the regulator/rectifier: each lead must measure between 0.2–0.5 ohms to ground when the engine’s cold. Resistance outside this range signals a shorted coil, requiring stator replacement. Skip generic regulators; OEM Yamaha part 4X7-81960-00 ensures correct voltage cut-off at 14.7V ±0.2V to protect lithium-ion accessories.

Trace the turn-signal relay–mounted above the ECU–using a test lamp: jumper Pin 1 (yellow/red) to Pin 3 (blue/red) while key-on to force blinkers on; failure confirms relay swap needed. For smarter troubleshooting, plug a diagnostic adapter (Yamaha YDT-9100) into the diagnostic port under the seat to read fault codes; Code 12 indicates crank position sensor gap error–adjust to 0.3–0.5mm.

The fuel pump primes for exactly 2.3 seconds after key-on; silent operation despite 12V at the pump connector (purple/white lead) demands an inline ammeter test showing 5–7A draw. Anything lower suggests pump degradation–clean the sock strainer or replace the unit. Headlight alignment wires (high beam: yellow/red, low beam: yellow/black) should toggle instantaneously; lag reveals headlight relay corrosion–scrape terminals and re-tin with solder.

Disconnect the battery when servicing the instrument cluster: static discharge can erase odometer data on the gauge’s EEPROM. Aftermarket tachometers often misread pulses; ensure compatibility by verifying the tach signal wire (gray/red) outputs 4 pulses per revolution at idle (900–1100 RPM). A scope or frequency counter confirms signal integrity before reinstalling fairings.

For permanent modifications, bypass the sidestand switch circuit (brown/white and green leads) with a 1.5k-ohm resistor across its connector–this trick allows engine start without sidestand deployment, useful for dyno sessions. Keep the original switch intact and reconnect it before road use to comply with local regulations requiring operational safety interlocks.

Finding Key Electrical Connection Points on the Yamaha R6 (Model Year Preceding 2003)

Begin beneath the seat by locating the primary cluster of connectors–usually enclosed in a black plastic housing near the battery tray. This assembly contains the engine control module (ECM) link, ignition system ties, and sensor feeds for throttle position and coolant temperature. Disconnect the negative battery terminal first to prevent accidental shorts or voltage spikes during inspection. Use a flashlight to trace each harness section; the ECM connector is typically the largest, with 36 to 48 pins arranged in two rows.

On the right side of the frame, adjacent to the steering stem, you’ll find the turn signal and headlight harness junction. This area includes two critical plugs: a six-pin for the front lighting assembly and an eight-pin for the multifunction switch (horn, turn signals, high/low beam). The connectors here often have weatherproof seals–ensure they’re intact to prevent moisture ingress. For models with ABS, a separate three-wire harness splits off toward the front wheel sensor near the fork leg.

The left side fairing hides another cluster, including the alternator and stator connections. Remove the fairing panel by unscrewing three 5mm bolts and two plastic clips to access a circular two-pin connector (stator output) and a rectangular four-pin plug (regulator/rectifier input). Check for greenish corrosion on the stator pins–it indicates potential charging system failure. Nearby, the neutral switch wire (single-pin, white insulation) and side stand sensor (two-pin) join the main loom via small rubber-grommeted splits.

Behind the instrument cluster, accessible by removing the front fairing, lies the speedometer and tachometer harness interface. This consists of a 12-pin connector for gauge functions, including fuel level, check engine light, and odometer data. Label each wire with masking tape before disconnecting to avoid misreassembly. The fuel pump relay and injector wiring also converge here, identifiable by thicker gauge wires (16-18 AWG) colored red (power) and black/yellow (trigger).

Step-by-Step Color Coding for Ignition and Charging Systems

Start by locating the main ignition harness connector behind the instrument cluster. The black/white (B/W) wire is the ignition power feed–verify it carries 12V when the key is turned to “ON” with a multimeter. If voltage is absent, trace back to the ignition switch; common failure points include corroded terminals or a faulty fuse (typically 10A, labeled “IGN” in the fuse box).

Identify the charging system’s core components: the alternator output wire is always yellow (Y) on this model, delivering current to the battery. Check voltage at the battery with the engine running–readings should stabilize between 13.8V and 14.5V. Values below 13.5V indicate a weak alternator or a compromised yellow wire; values above 15V suggest a failing voltage regulator.

• Green/white (G/W) – Alternator excitation wire. This triggers the voltage regulator when the engine starts. Probe it at the alternator connector; it should show 5V with the key in “ON” position. If not, inspect the wiring for continuity from the ignition switch or ECU.
• Brown/white (Br/W) – Ground reference for the charging system. Ensure it terminates at a clean, unpainted chassis point. Resistance above 0.2 ohms between this wire and the negative battery terminal requires cleaning or re-crushing the connection.
• Blue/red (L/R) – Ignition coil primary circuit. Each cylinder’s coil pair shares this color code. Measure resistance between the coil terminals (primary side): specifications range from 0.4 to 1.0 ohms. Deviations point to faulty coils.

For the ignition coils, the secondary circuit wires follow this pattern: each cylinder pair uses a distinct color–cyan (C) for cylinders 1-4, orange (O) for 2-5, and gray (Gr) for 3-6. These wires carry high-voltage pulses to the spark plugs. If misfires occur, swap coils between cylinders to confirm whether the issue lies with the coil or the spark plug.

Test the stator’s phase wires–distinct three-color combinations (e.g., yellow/red, yellow/white, yellow/black). With the engine off, measure resistance between any two stator wires; readings should match the service manual’s range (typically 0.1–1.0 ohms). Variation suggests internal stator damage, requiring replacement.

Trace the brown/black (Br/B) wire from the ignition switch to the kill switch. This safety circuit must be continuous; any interruption cuts the ignition. Verify continuity with the kill switch in the “ON” position–resistance should be near zero. Corrosion or mechanical wear in the kill switch often causes false starts.

When diagnosing parasitic drain, disconnect the negative battery cable and insert a multimeter (set to 10A) in series. Start pulling fuses; a sudden drop below 50mA pinpoints the faulty circuit. Common culprits include the ignition relay or ECU retaining power post-shutdown, often tied to a red/white (R/W) or black/yellow (B/Y) wire.

1. Remove the seat and side panels to access the main harness.
2. Disconnect the battery before splicing or probing wires.
3. Use heat-shrink tubing for repairs–electrical tape degrades over time.
4. Label every connector before disassembly to avoid swaps during reassembly.
5. After repairs, recheck all connections with a torque wrench: loose terminals cause intermittent faults.
