Complete Radio Wiring Guide for the 2002 Toyota Tacoma Schematics Explained

Begin by locating the factory harness behind the aftermarket unit’s mounting bracket. The main power lead (solid red) connects to the ignition-switched 12V source–trace it to the fuse block under the left dash, specifically at slot 15A. Avoid splicing directly into the battery cable; a fused accessory circuit ensures cleaner voltage and prevents parasitic drain.

Ground the black wire to a bare metal point on the chassis, within 18 inches of the receiver. Sand the contact area to remove paint and oxide, then secure with a star washer. Poor grounding causes whining, popping, or intermittent power loss–verify continuity with a multimeter before finalizing.

The orange illumination wire (dotted) hooks to the dash lights circuit. On this specific chassis, it’s part of the white 10-pin connector near the climate controls. If the display doesn’t dim with the headlights, check for a blown fuse or misrouting into the wrong circuit.

For Speaker Outputs:

Front Left: gray (+) and gray/black (-) to the door tweeter; resistances should read 4 ohms.

Front Right: white (+) and white/black (-); polarity must match the factory harness to avoid phase cancellation.

Rear Left: green (+) and green/black (-); splices go to the cabin speaker, not the extended cab subwoofer.

Rear Right: purple (+) and purple/black (-). If using an amplifier, insert a high-pass filter at 80Hz to prevent distortion in the rear speakers.

When integrating a steering wheel control interface, the pink/yellow data wire taps into the CAN bus behind the lower dashboard panel. Use a resistor-adjustable adapter to match the vehicle’s protocol; incorrect settings often disable horn functions or trigger false engine codes.

Always disconnect the negative terminal before connecting any wires. After installation, power on the system and verify each function: power, volume, EQ, and all inputs without static. If issues persist, check for loose connectors or interference from aftermarket alarms.

Vehicle Audio System Electrical Layout for Early 2000s Pickup

Locate the aftermarket harness adapter designed for this model–part number METRA 70-8113 fits directly. Cutting factory wires risks cutting into circuits shared with the instrument cluster or onboard diagnostics, so verify each connection before soldering.

Color codes for speaker outputs follow this standard:

• Front left (+): Light green, 22 AWG
• Front left (-): Light green with black stripe, 22 AWG
• Front right (+): Pink, 22 AWG
• Front right (-): Pink with black stripe, 22 AWG
• Rear left (+): Purple, 20 AWG
• Rear left (-): Purple with black stripe, 20 AWG
• Rear right (+): Dark blue, 20 AWG
• Rear right (-): Dark blue with black stripe, 20 AWG

Power feeds split into constant 12V (yellow, 16 AWG) and switched ignition (red, 16 AWG). Ground returns through a black wire (14 AWG) terminating at chassis stud G103 behind the glovebox. Avoid tapping into rear defroster circuits–resistance exceeds 3 ohms, causing voltage drops during amplifier operation.

Illumination dims via a single gray (18 AWG) wire, integrating with dashboard rheostat. Factory mute interrupts on the gray wire–bridging it to ground 0.5 seconds before engine shutdown prevents thumps. Antenna motor control runs through a white (20 AWG) wire, requiring a 1A fuse within 12 inches of the passenger firewall grommet.

Steering-wheel controls operate on a dual-wire resistive network. Measure values at the back of the factory connector: Volume up 4.7kΩ, volume down 2.2kΩ, seek up 6.8kΩ, seek down 1.5kΩ. Aftermarket modules must calibrate within ±5% tolerance to avoid erratic behavior. Confirm ground reference at pin 11 before connecting any digital interface.

Remove factory harness by pressing release tabs on both sides of the plastic sleeve–prying risks breaking mounting lugs. Reinstallation sequence: speakers last, power first, antenna motor second, illumination third, controls fourth. Aftermarket units exceeding 21 watts RMS per channel require a dedicated ground plane; otherwise, alternator whine becomes audible at idle.

Finding the Original Audio System Connector

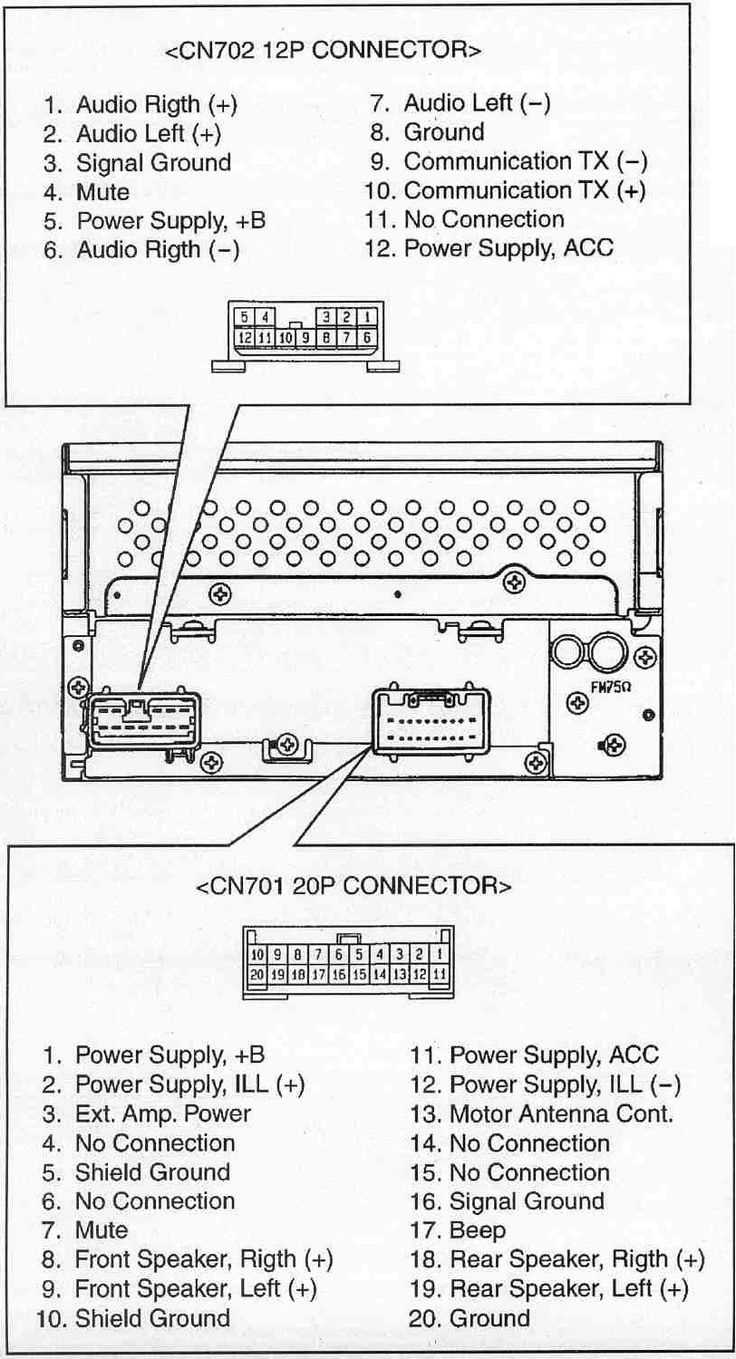

Trace the rear of the stock head unit to the 12-pin rectangular plug tucked behind the dashboard’s lower trim panel. The connector sits directly beneath the climate controls, offset to the driver’s side with its top edge angled downward; the harness emerges from a white plastic retainer clipped to the metal frame. Pin layout (front row, left to right): +12 V constant (yellow), ground (black/red stripe), illumination (red), ignition-switched +12 V (green). Second row: front left speaker (+, white; -, pink), front right speaker (+, gray; -, violet), rear left speaker (+, green; -, blue), rear right speaker (+, purple; -, brown).

Access Without Removing Components

Press the release tab on the left edge of the lower dash bezel, then pivot the entire panel outward–no screws required. Slide fingers behind the HVAC duct until they contact the connector’s latch; squeeze the tab and pull forward with steady force to disengage the harness. If resistance persists, check for a hidden screw beneath the hazard flasher button near the top of the bezel; remove it with a 7 mm socket before attempting another release.

Decoding Harness Colors for Audio System Integration

Start with the constant power lead–typically a solid yellow conductor–delivering uninterrupted 12V from the battery. Verify this first by probing with a multimeter set to DC volts; readings should remain steady whether the ignition is on or off. A voltage drop below 11.5V signals a weak connection, often traced to corroded terminals or undersized ground straps.

The red switched power cable activates only when the key is turned to ACC or ON. This line carries lower current but must be solid; splices here are common failure points. If the audio unit powers on but resets on engine start, suspect resistance in this circuit–test resistance across two points with the ignition off (should read

• Black: Dedicated chassis ground, usually bolted to bare metal near the stereo cage. Scrape paint at the mounting point to ensure direct contact; a bluish tint indicates oxidation requiring sanding.
• Blue/white stripe: Remote turn-on for amplifiers. Triggers with 12V when the head unit powers up; check for signal continuity with a test light before connecting aftermarket devices.
• Orange: Illumination wire, dimming proportional to dash lights. Tap this only if retaining factory dimming; miswiring here causes erratic brightness or backlight failure.

Speaker wires follow a consistent pattern: two per channel (one positive, one negative), twisted or striped to distinguish polarity. Front left positive is gray, front right positive light green, rear left positive purple, rear right positive dark blue. Negative leads run parallel in matching colors with black stripes. Test each pair with a 9V battery–cone movement confirms phase; popping noises signal a short or reversed polarity.

Data buses appear as solid brown or tan wires, often bundled with the ISO harness. These carry serial communication for steering wheel controls or vehicle settings; cutting them disables functions like automatic tone adjustment or speed-compensated volume. If integrating third-party interfaces, use bypass modules that emulate factory signals–direct splicing corrupts CAN messages.

Avoid assuming aftermarket harnesses match colors–always cross-reference with the unit’s service manual. Fuse taps for switched or constant power (typically 10A) should use mini blade fuses, not ATO, to prevent voltage spikes. When soldering, heat shrink joints immediately to prevent moisture ingress; exposed solder oxidizes within months in humid climates.

Step-by-Step Guide to Removing the Factory Audio Unit

Disconnect the negative battery terminal first to prevent electrical shorts. Use a 10mm socket to loosen the clamp on the post–this avoids accidental sparks during removal. Allow 10 minutes for residual power to dissipate from the vehicle’s electrical system before proceeding.

Pry off the dashboard trim surrounding the audio unit using a plastic trim removal tool. Insert the tool into the seam between the center console and the bezel, applying gentle upward pressure to release the clips. Work methodically around the perimeter to avoid snapping the plastic retainers, which are positioned at 3, 7, and 9 o’clock positions.

Remove the four securing screws–typically Phillips #2–located in the corners of the audio unit. Tilt the top of the unit forward and slide it out partially to access the wiring harness and antenna connector at the rear. Press the release tab on the harness while pulling it straight out to detach it without damaging the pins.

Set the audio unit aside on a non-conductive surface. If reinstalling an aftermarket system, label each connector immediately with masking tape to simplify reconnection. Inspect the mounting bracket for bent tabs or debris before seating the new component.

Matching Amplifier Cables to Factory Connector Colors

Begin by stripping 5mm of insulation from each aftermarket speaker cable, then insert into female bullet connectors before crimping. This ensures a gas-tight seal that prevents oxidation on the splice points. The factory harness uses stranded copper with a polyethylene jacket–mimic this with 18-gauge OFC wire for all high-current runs to avoid voltage drop.

Use the table below to align aftermarket harness pins with the factory color codes. Verify each connection with a multimeter set to continuity mode before soldering; a single misrouted yellow/black stripe feed can trip the factory anti-theft circuit and require a dealer reset.

Aftermarket Function	Factory Harness Color	Voltage (Key ON)
Battery Constant	Yellow	12.6–13.8 VDC
Ignition Switched	Red	12.0–13.5 VDC
Ground	Black	0 VDC
Illumination Dimmer	Light Green/Black stripe	0.5–11.5 VDC (variable)
Front Left Speaker (+)	Dark Blue/White stripe	Peak 2.8 VAC
Front Right Speaker (+)	Dark Green/Red stripe	Peak 2.8 VAC

Twist each pair of speaker leads tightly–six turns per inch–before soldering with rosin-core flux. Apply heat-shrink tubing rated for 125 °C over the joint; ordinary PVC will soften when the dash reaches 80 °C on summer afternoons.

Route the antenna trigger through a 1N4001 diode to prevent back-feed into the vehicle’s CAN bus. Connect the diode’s anode to the orange/blue factory antenna wire and the cathode to the aftermarket unit’s motor drive input. This isolates the head unit’s memory circuit from momentary spikes that can corrupt preset stations.

Test every lead with a 10-amp fuse in-line before securing the dash panel. A single short to the aluminum firewall can melt the harness in seconds, so use nylon loom over all exposed runs and secure with zip ties every 15 cm.
