Complete 2002 Yamaha R6 Rectifier Wiring Schematic Guide
Start by identifying the three-phase stator output leads–typically yellow wires–connected to the regulator’s input terminals. For this specific make, factory schematics show the leads routed directly from the alternator to the regulator’s AC input side, marked by three distinct yellow conductors. Confirm continuity between these wires and the stator windings using a multimeter set to ohms. Resistance readings should fall between 0.2–0.5 ohms; any deviation signals a compromised stator requiring replacement before proceeding.

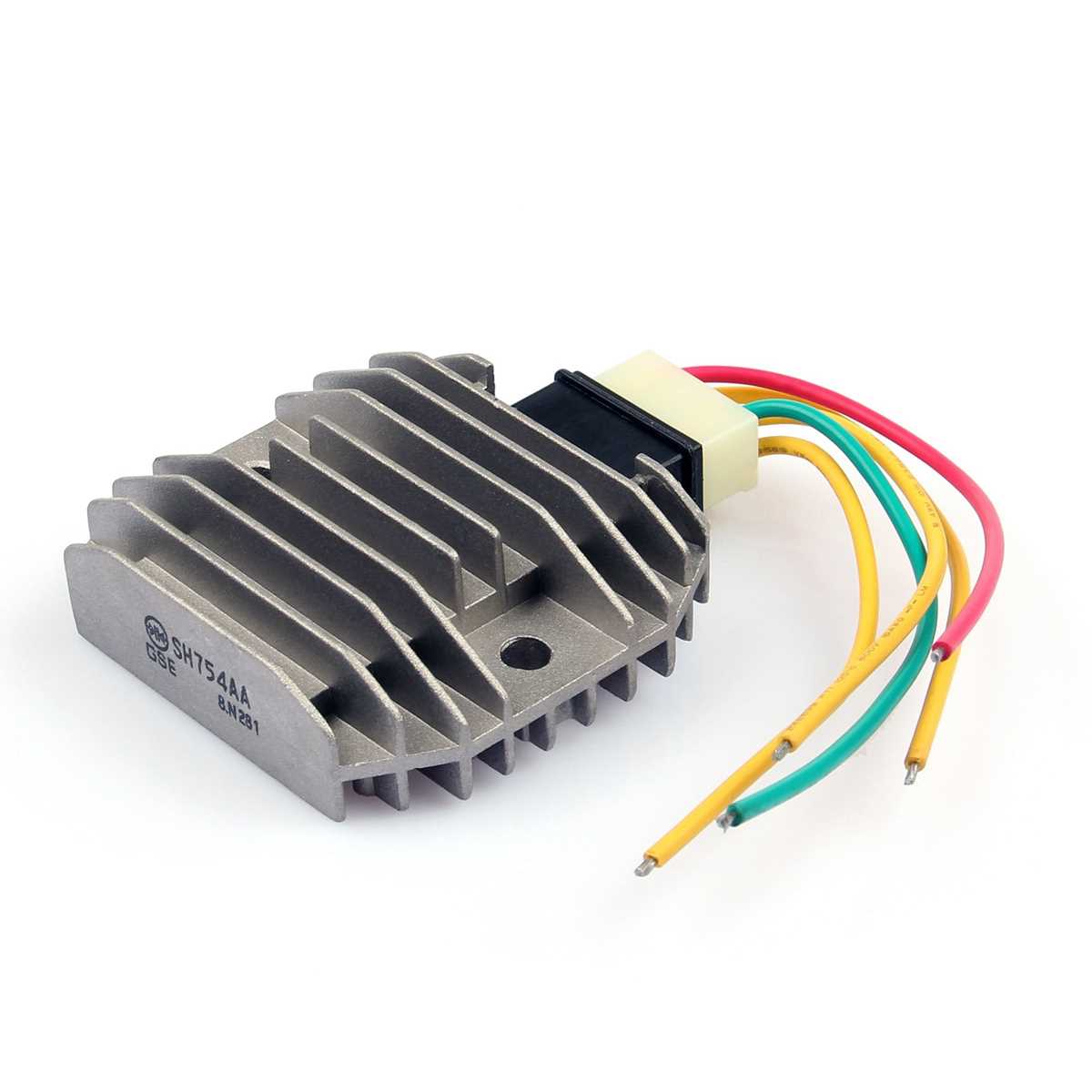

On the regulator’s output, locate the red (positive) and green (ground) wires. The red wire carries rectified voltage to the bike’s electrical system, while the green wire grounds the regulator to the frame. Trace these wires back to their connection points–red to the main fuse and green to the engine block or subframe. Corrosion at these junctions is common; clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
Inspect the white/pink wire–this delivers reference voltage to the regulator, enabling proper voltage control. It connects to the bike’s ignition switch output. If voltage drops below 13.8V at idle, test this wire’s integrity first. Replace any frayed or melted sections with 16-gauge automotive-grade wiring, ensuring soldered joints and heat-shrink insulation for durability.
Verify the regulator’s grounding path. The green wire must terminate at a bare metal surface with no paint or anodizing. Sand the contact point to shiny metal and secure with a #10 stainless steel screw. A weak ground causes irregular charging–symptoms include flickering headlights or a hard-to-start engine. If problems persist after these checks, swap the regulator for a direct-fit OEM replacement; aftermarket units often lack precision for this model’s high-revving engine.
Understanding the Electrical Charge System for Your 2001 R-Series Sport Bike
Start by locating the voltage stabilizer beneath the seat–it connects to the battery via a red wire (positive) and black wire (ground). Disconnect the battery first to avoid sparks during inspection. Use a multimeter set to 20V DC to test the output at the stabilizer’s three yellow input wires; readings should be 13.5–14.5V at 5,000 RPM. If voltages drop below 12.8V, inspect the stator’s white wiring harness for fraying or melted insulation near the engine output. Replace the unit if resistance across stator coils exceeds 0.5 ohms.
- Check connections with dielectric grease applied to terminals to prevent corrosion.
- Trace the blue/white wire from the stabilizer to the ignition switch–ensure continuity without shorts.
- If flickering lights occur, test the brown/white wire at the charging coil for inconsistent voltage.
- For aftermarket upgrades, pair a Mosfet-based regulator with a 3-phase 400W stator rated for 12V 32A output.
Locating Critical Parts in the Middleweight Sport Bike Electrical System
Begin by inspecting the stator–this coiled assembly bolts directly beneath the engine cover on the clutch side. Three yellow wires exit it, bundled in heat-resistant sleeve; any fraying here disrupts voltage output. Verify resistance across each pair using a multimeter: readings should fall between 0.2–0.5 ohms at room temperature. Values outside this range signal coil degradation.
Follow the yellow leads to the voltage regulating module, a finned aluminum block secured near the airbox. Two white connectors plug into its rear; the larger one carries AC from the stator while the smaller routes DC to the battery. Pull both connectors carefully–corrosion on the pin terminals mimics faulty components, yet costs nothing to clean with a brass brush.
The battery post connections must be bare metal tight. Loose connections introduce voltage drop, especially under load. Coat terminals with dielectric grease after securing the main positive and negative cables; oxidation here increases resistance faster than anticipated.
Trace the main harness along the frame downtube. Where wires twist around the steering head, check insulation; chafing against sharp edges causes sporadic cuts. Wrap vulnerable sections in high-temp loom tape for a quick, reliable fix.
A single brown wire loops from the regulator back to the stator ground bolt. Ensure this connection remains unpainted; even light paint film raises resistance enough to overheat the entire circuit.
The dash warning light wire splits off the main harness behind the instrument cluster. If voltage readings appear correct but the light stays on, examine the diode pack inside the regulator; failure here keeps the warning circuit energized without actual fault.
When testing, always connect the multimeter’s ground probe to the battery negative, not chassis metal. Stator ground and battery ground circuits differ slightly–mixing them skews readings by 0.3–0.7 volts, enough to misdiagnose.
Finally, after replacing components, recheck at 3,000 RPM. Output should stabilize between 14.1–14.6 volts across all loads; values under 13.8 volts confirm the charging system cannot sustain battery charge under nighttime riding conditions.
Step-by-Step Guide to Finding the Voltage Stabilizer on a 2002 R6
Begin by removing the left-side fairing panel. The stabilizer is mounted behind it, secured to the frame near the rear shock absorber. Use a T25 Torx driver to unfasten the three screws holding the panel–two at the bottom and one near the top. Set the panel aside carefully to avoid damaging the tabs.
Trace the battery cables downward. The voltage stabilizer is the rectangular aluminum component with cooling fins, directly connected to the main positive and negative leads from the battery. Look for a black plastic connector with three yellow wires and one red wire–this confirms its location.
Check for a second mounting bolt hidden behind the unit. On some models, a 10mm bolt secures it to the frame through a tab at the bottom rear. If obscured, gently tilt the stabilizer forward after loosening the main bolts to access it. Avoid forcing it–misalignment can damage the mounting bracket.
Identify the stator wires. The thick yellow wires from the engine case lead into the stabilizer’s connector. If testing is needed, disconnect the battery first, then unplug the connector and probe the pins with a multimeter–AC voltage should read between 18-25V at 5,000 RPM for proper function.
Inspect the cooling fins for debris. Dirt buildup reduces efficiency, causing overheating. Use compressed air to clean between the fins, holding the nozzle at a 45-degree angle to avoid bending them. Recheck the mounting surfaces for corrosion–clean with a wire brush if needed before reassembly.
Reinstallation tip: Apply dielectric grease to the electrical connector before reconnecting to prevent moisture ingress. Align the stabilizer’s mounting holes with the frame first, then secure it with the 10mm bolt before tightening the main bolts in a cross pattern to 12 Nm torque.
Final verification: Reconnect the battery and start the engine. Monitor the voltage at the battery terminals–it should stabilize between 13.8V and 14.5V at idle. If readings fluctuate outside this range, further diagnostics are required before reassembly.
Mapping the Electrical System Links for the Voltage Regulator
Locate the main harness connector on the bike’s electrical panel–typically a 4-pin or 5-pin plug with color-coded leads. Detach it carefully using needle-nose pliers to avoid damaging the terminal clips. The standard pin configuration for this component follows:
| Pin Color | Function | Connected To |
|---|---|---|
| Red | Battery +12V | Fusebox, starter relay |
| White/Red | AC input (stator) | Generator coil |
| Green | Ground | Frame/engine block |
| Yellow/Red | AC input (stator) | Generator coil |
Use a multimeter to verify continuity between the regulator’s output and the battery terminals. Set the meter to DC voltage (20V range) and probe the red lead while the engine runs at 3,000 RPM–readings should stabilize between 13.8V and 14.5V. If fluctuations exceed ±0.3V, inspect the AC input wires for fraying or corrosion near the stator connection.
Trace the ground cable (green) back to its mounting point on the frame, ensuring the contact surface is free of paint or oxidation. A poor ground can mimic regulator failure by causing erratic voltage output. Secure the connection with a serrated washer to prevent loosening from vibration.
For bikes with integrated lighting systems, the yellow/white lead often branches to the headlight circuit. Confirm this split with a wiring schematic specific to the model year–older variants may route this differently. If splicing is required, crimp connectors with heat shrink tubing provide the most reliable joint; solder alone is vulnerable to fatigue under stress.
Color-Coded Wire Guide for the 2002 R6 Charging System
Match the white/red stripe wire to the stator output–this carries alternating current to the voltage regulator. Verify tight connectivity at the three-pin connector; corrosion here mimics stator failure. The green wire grounds the regulator; ensure it terminates at the frame ground bolt near the battery box, not a painted surface. The red output wire delivers DC to the battery positive–use a multimeter (20V range) to confirm 14.2–14.8V with the engine at 5,000 RPM. If readings drop below 13.8V, suspect a faulty regulator or loose yellow/red stripe connection, which bridges the charging system to the ignition switch.
Inspect the blue/white stripe wire–it powers the voltage-sensing circuit. A break here triggers overcharging or no charging. Splice repairs must use heat-shrink tubing and solder; avoid crimp connectors for this 0.5mm² gauge wire. Replace any frayed or discolored leads with automotive-grade cross-linked polyethylene insulation–OEM-spec wire resists vibration-induced abrasion better than PVC alternatives.
