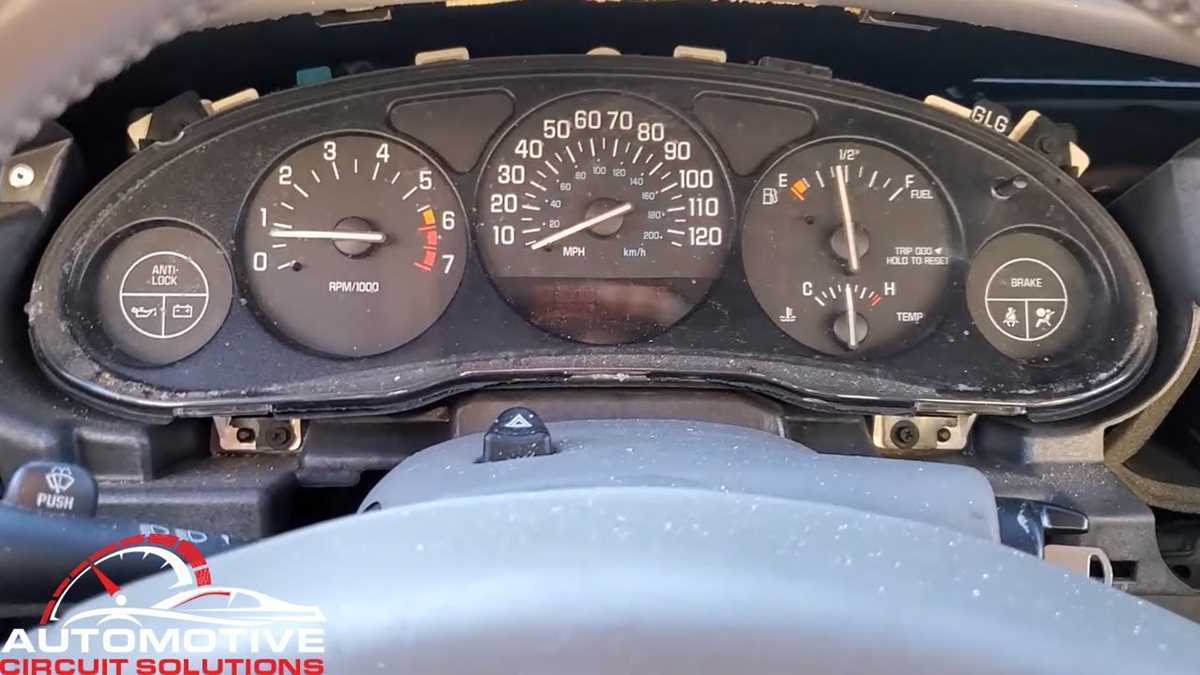

2003 Buick Century Instrument Cluster Wiring Guide and Diagram Explained
If you’re diagnosing intermittent backlight failures or erratic tachometer readings in your mid-size 3.1L V6 GM sedan, begin by isolating the white 18-gauge power feed wire (circuit 39) at the fuse block–this supplies constant voltage to the lower-left connector of the gauge assembly. Follow the harness through the firewall grommet (rubber boot between driver’s kick panel and bulkhead) and inspect for frayed insulation where the bundle bends at the steering column. Corrosion at connector C101 (gray 12-pin) is a recurring failure point; clean terminals with DeoxIT D5 and verify 12VDC across pins B, C, and H before reassembly.
Use a non-marring trim removal tool to detach the metal bezel–pry at the clips first (two upper, three lower) rather than pulling the lens. The printed circuit behind the speedometer is secured by three Phillips screws (#2) and two friction clips; lift it carefully to avoid tearing the polyimide flex. Trace the orange-striped 16-gauge ground return (circuit 51) from the cluster to engine ground G103–resistance above 0.3 ohms indicates a poor bonding strap or oxidized chassis ground near the left fender well.
For defective warning lamps (brake, ABS, airbag), test individual LEDs by bridging 3.3VDC through a 470-ohm resistor at the resistor pack–lamps should illuminate dimly; zero change confirms open circuit. The BCM communicates via Class 2 serial data (circuit 1450) through the pink connector (C201); probe with a high-impedance scan tool while cycling ignition to verify packet integrity at 50% duty cycle. Replace only OEM Delphi replacement clusters–aftermarket units often fail PWM dimming calibration and trigger P0651.
Reassembly sequence requires torquing the bezel clips to 4-5 in-lbs to prevent stress fractures on the lens. Route the harness away from the HVAC blend door actuator to avoid pinching the bundle when reinstalling the lower dash panel. Validate final operation by cycling through all warning lamps at start-up (bulb check mode) and confirming smooth sweep response across all analog gauges within 3 seconds of ignition-on.
Electrical Wiring Guide for GM Sedan Dash Panel
Locate the 12-pin connector labeled C1 on the vehicle’s wiring harness adjacent to the back of the gauge assembly–pin assignments follow this sequence from left to right: 1 (battery voltage), 3 (fuel level sender), 5 (engine coolant temperature), 7 (oil pressure warning), 9 (charging system indicator), 11 (brake warning), while even-numbered pins (2, 4, 6, 8, 10, 12) serve as ground returns for each circuit. Verify continuity with a multimeter between the corresponding sender and pin before replacing the entire unit; resistance values should read 40–150 ohms for the fuel sender, 220–450 ohms for the coolant sensor, and less than 1 ohm for warning light circuits.
- Trace the purple wire with white stripe (circuit 640) from the right turn signal bulb socket to pin 4 on connector C2–this path controls the odometer memory and must maintain uninterrupted connection to the vehicle’s data bus.
- Replace any corroded terminals at the 8-way gray connector near the steering column using TE/AMP terminals (part #12124024) and dielectric grease to prevent future oxidation.
- Disconnect the negative battery terminal before probing any circuit to avoid accidental shorting of the 850 mA fuse dedicated to the gauge cluster backlighting.
For intermittent illumination failures, check the foil-etched tracks beneath the needle sweep mechanism; cracked traces often develop between the voltage regulator (IC2) and the speedometer coil (L1). Repair with conductive ink (MG Chemicals 838AR) and seal with clear epoxy–alternatively, substitute the integrated regulator module (Delco part #12477011) if surface-mounted components show signs of overheating. Ensure the stepper motor for the fuel gauge (Mitsumi M3-5-12) receives a stable 5V reference signal from pin 3 on connector C1; voltage fluctuations above ±0.2V will cause erratic needle movement.
Finding Pinouts on the Dash Electronic Assembly
Remove the lower steering column trim panel first–three 7mm screws secure it beneath the dash, and two plastic clips near the ignition cylinder release with a flathead. Behind this panel, the primary harness connector (C1) appears as a grey 24-pin plug with locking tab; press the tab downward while pulling outward to disconnect. Pin 1 (red wire) delivers 12V ignition feed; measure voltage here before proceeding to avoid false diagnostics.
Identifying Ground and Signal Wires
Trace the harness upward behind the glovebox–two 10mm bolts hold the HVAC duct, exposing connector C2 (16-pin black plug). Pin 7 (black/white stripe) is chassis ground; continuity-test this point to the battery negative terminal. Pins 2-5 (yellow/orange bundle) carry PWM signals for gauges; scope these wires at 500ms/div to verify 0-5V square waves. If signals flatline, inspect the BCM output ports for corrosion.
Behind the fuse block (left of the brake pedal) lies connector C3–a blue 32-pin plug. Disengage by squeezing the retaining clip while wiggling the connector sideways. Pins 8-11 (white/blue wires) correspond to the odometer EEPROM data bus; tapping these with a logic analyzer requires a 10kΩ pull-up resistor to 5V to prevent signal degradation. Avoid probing with unshielded probes–static discharge risks erasing mileage.
For speed sensor input, locate the purple/white wire at pin 15 of connector C1–this links to the PCM via a single twisted pair. Backprobe with a T-pin at the harness side if the vehicle exhibits erratic gauge behavior; a proper signal should read 200-300Hz at 60mph. If frequency drops below 150Hz, check the VSS reluctor ring for missing teeth or the wiring harness for chafing near the transmission bellhousing.
Critical Failure Zones in Mid-Size Sedan Dash Panel Circuits
Begin by checking the printed circuit board (PCB) traces behind the speedometer and tachometer. Corrosion typically accumulates at solder joints near the lower edge of the board, especially under the fuel gauge where moisture from window seals or HVAC condensate pools. Use a 10x magnifier to inspect for hairline cracks or greenish oxidation; these disrupt voltage paths to the stepper motors. Replace the entire PCB if more than 15% of traces show damage–partial repairs often fail within 6 months.
| Component | Failure Sign | Voltage at Pin (V) | Resistance (kΩ) |
|---|---|---|---|
| Stepper Motor (RPM) | Needle jumps erratically | 4.8-5.2 | 3.5-4.1 |
| Fuel Sender Line | Gauge reads empty at full tank | 0.5-1.5 | 1.2-1.8 |
| Temperature Sensor Feed | Needle pegs high cold | 2.7-3.3 | 5.0-5.5 |
Test the 12-pin white connector at the rear of the panel assembly. Pins 3, 7, and 11 supply ground; pins 1, 5, and 9 carry 5 V reference from the body control module. A digital multimeter should read
Examine the ribbon cable linking the PCB to the odometer display. Flexing during glove-box slams stresses the cable at the strain-relief clip, causing intermittent segment failure. If segments flicker, replace the entire cable harness rather than attempting splice repairs–the thin Mylar coating fractures under thermal cycling, which is undetectable without a thermal camera.
Step-by-Step Guide to Testing Gauge Panel Voltage Signals
Disconnect the vehicle’s battery negative terminal before probing any circuits to prevent short circuits or damage to onboard electronics. Locate the wiring harness connector behind the gauge assembly–typically a 24-pin plug with color-coded wires. Refer to the wiring reference manual for pin assignments, as misidentification risks incorrect readings or component failure.
Set a digital multimeter to DC voltage mode (20V range). Probe the ground reference first by touching the black lead to the chassis or a known ground wire. For each signal wire (e.g., fuel level sender, temperature sensor, speedometer input):
- Back-probe the pin using a sharpened safety pin or fine wire insert–avoid piercing insulation.
- Touch the red multimeter lead to the exposed metal.
- Note the voltage reading while the ignition is in the RUN position (engine off).
Expected ranges:
- Fuel sender: 0.5–4.5V (varies with tank level).
- Coolant temp sender: 0.1–4.9V (varies with temperature).
- Tachometer signal: 0–12V (pulsed, use frequency mode if available).
- Speed sensor: 0–5V (square wave, verify with oscilloscope if possible).
Abnormal readings indicate open circuits, shorts, or faulty senders.
Verify intermittent faults by gently wiggling the harness while monitoring voltage. A fluctuating reading suggests a broken wire or loose connection. For digital outputs (e.g., odometer, trip computer), use a logic probe or oscilloscope to detect high/low pulses–multimeters may not capture rapid transitions. If voltage checks pass but displays remain erratic, test the stepper motors (if applicable) by applying 12V directly to their control pins with jumper wires, observing needle movement.
Reconnect the battery and cycle the ignition three times to reset any stored error codes. Clear diagnostic trouble codes (DTCs) using an OBD-II scanner to ensure the system recognizes corrected signal paths. If readings normalize but faults persist, inspect the circuit board for cold solder joints, burnt traces, or corroded vias–repair with rosin-core solder and conformal coating to prevent moisture ingress.
