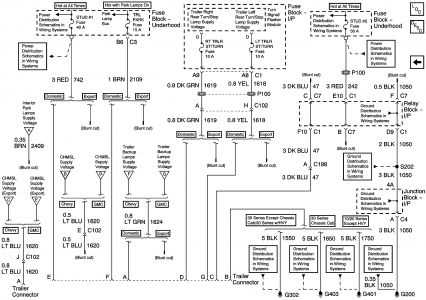

Complete 2003 GMC Sierra Trailer Wiring Diagram Guide with Color Codes
Begin by locating the factory tow plug beneath the rear bumper–four-pin configurations are standard, but seven-pin variants handle auxiliary brakes and charge lines. Identify pin assignments: yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), and white (ground). Verify ground integrity; corroded connections cause intermittent failures under load.
For extended setups, splice a relay into the brake controller circuit. Route the blue wire (brake output) from the controller directly to the trailer’s electric actuator–avoid daisy-chaining through the plug. Use 12-gauge wire for brake circuits; thinner wire overheats under sustained braking. Test continuity with a multimeter before securing connections.
Adapters exist for mixed plug types, but hardwiring ensures reliability. Match wire colors precisely–crossing turn signals and brake circuits risks activating trailer brakes unexpectedly. Seal all splices with heat-shrink tubing; road salt degrades exposed copper quickly. For diagnostics, probe the harness while toggling signals–no voltage at any pin indicates a blown fuse or faulty relay.
Upgrading to LED trailer lights reduces voltage drop over distance. Add a separate ground strap from the frame to the trailer–factory grounds often fail under heavy current draws. Document your scheme for future reference; even professional diagrams omit critical modifications.
Electrical Hookup Guide for Heavy-Duty Towing on Pickup Models
Begin by locating the factory connector behind the rear bumper cover–it’s a seven-pin round socket hidden beneath a plastic flap near the hitch receiver. Verify each pin’s function with a multimeter before connecting anything: pin one (typically white) carries ground, pin two (brown) powers running lights, pins three and four (yellow and green) handle left and right turn signals, pin five (blue) controls brakes, while pin six (red) delivers +12V for accessories and pin seven (black) may supply auxiliary power or reverse lights depending on configuration.
If the original harness is missing or damaged, replace it with a pre-assembled tow package kit matching OEM specifications–look for part numbers ending in “19326979” (factory harness) or “Curt 56170” (aftermarket equivalent). Avoid splicing wires directly to taillight circuits; use a dedicated module rated for at least 30 amps to prevent voltage drop and ensure brake controllers receive clean signals. Check the fuse block under the hood for a 30A trailer tow fuse–replace it if blown before diagnosing further.
For vehicles with integrated brake controllers, adjust gain settings on the dashboard menu: start with 5.0 and increase incrementally until trailer brakes engage smoothly without locking up during 20 mph panic stops. If turn signals blink erratically, install an electronic flasher relay (part “ACDelco 19255633”) to replace the thermal flasher–this corrects hyper-flashing caused by LED trailer lights drawing minimal current.
Inspect the ground connection where the white wire attaches to the frame; corrosion here mimics electrical faults. Clean the contact point with a wire brush, apply dielectric grease, and secure it tightly–use a star washer to bite through paint if necessary. For aftermarket brake controllers, mount the sensor within 12 inches of the master cylinder to minimize response latency, routing wires away from heat sources and sharp edges.
To test lighting circuits without a trailer, use a seven-pin tester or bridge each socket hole with a grounded jumper wire: turn signals should flash independently, and brake lights should illuminate brighter than running lights. If reverse lights don’t activate, check the purple wire at the rear connector–it may require a relay if the vehicle lacks a factory reverse light circuit, especially on base trim models.
Troubleshooting Common Electrical Faults
Dim or flickering lights often stem from a weak ground or voltage drop across connections. Measure voltage at the trailer plug with the engine running–it should read between 13.5V and 14.5V. If readings dip below 12V, trace the power source back to the fuse box, testing each splice for resistance. Replace any corroded terminals with crimped and soldered connectors, then heat-shrink for waterproofing.
Brake controllers failing to activate usually indicate an open circuit in the blue wire or a defective stop lamp switch. Locate the switch above the brake pedal, remove the plug, and jump the two pins with a paperclip–the trailer brakes should fully engage if the switch is faulty. For intermittent issues, monitor voltage on the blue wire while pressing the brake pedal; a stable 12V signal confirms the circuit is intact.
When upgrading to LED trailer lights, install a load-resistor kit (part “Hopkins 08530”) on each turn signal wire to prevent rapid blinking. Alternatively, replace the vehicle’s flasher unit with an electronic version designed for LEDs. Always confirm trailer plug compatibility before towing–some fifth-wheel configurations require an eight-pin adapter with additional circuits for stability control or auxiliary brakes.
Finding the Electrical Socket for Your Haul Connection on a 2003 Full-Size Pickup
Check behind the rear bumper on the driver’s side for a factory-installed plug. The connector is typically mounted inside a small black plastic housing, secured to the vehicle’s frame with a single 10mm bolt. Look for a 7-pin round socket–this is the standard OEM configuration for this model’s towing package.
If the plug isn’t visible, trace the harness forward from the tailgate. A thick gray or black conduit runs along the left frame rail; follow it toward the rear wheel well. The socket may be tucked under a protective rubber grommet or concealed behind a removable splash guard–remove any obstructions with a 7mm socket or flathead screwdriver.
- Locate the square plastic cover near the hitch receiver; pry it open to reveal a secondary access point.
- Inspect the area where the spare tire mounts–some builds route the harness adjacent to the tire carrier.
- For crew cab models, the connector might be positioned slightly higher, near the bed’s forward edge.
The factory harness often includes a fused link under the hood in the power distribution box. Verify the 30-amp fuse labeled “TRAILER” is intact before troubleshooting further. If the socket shows no power, follow the wires upstream to the junction box beneath the dashboard on the driver’s side–corrosion here is a common failure point.
Non-factory installations may use a 4-pin flat connector instead of the 7-pin round design. If modifying, ensure the replacement matches the vehicle’s existing harness color codes: red for brake lights, brown for tail lamps, yellow for left turn, green for right turn, white for ground, blue for brake controller, and black for auxiliary power.
For aftermarket upgrades, avoid splicing into the taillight wires directly. Instead, tap into the dedicated towing module near the rear axle–bypassing this circuit risks overloading the lighting system. Test each function with a multimeter before connecting any external load; voltages should read 12V across all active pins when the ignition is on.
- Clean oxidation from the socket with contact cleaner and a wire brush–poor connections cause intermittent failures.
- Replace the entire pigtail if pins are bent or melted; generic replacements are sold at automotive retailers.
- If installing a brake controller, route the power wire through the cabin firewall using an existing grommet behind the pedal cluster.
Pinpointing Connector Hues and Roles in Factory Towing Setups
Locate the factory-installed seven-way connector beneath the rear bumper to decode each lead’s purpose. Brown (tail/license illumination), yellow (left turn/brake), green (right turn/brake), and white (ground) follow SAE J560 standards–verify with a multi-meter set to 12V DC when active. Pale blue (electric brakes) and tan (reverse lights) are vehicle-specific: inspect the owner’s manual for circuit protectors (typically a 20A fuse), as corrosion or incorrect splicing here causes intermittent faults. For auxiliary circuits, red (12V constant power) often feeds breakaway switches–confirm by probing with ignition off.
Critical Troubleshooting Steps
- White (ground): Scrape paint at chassis attachment point; resistance should read <0.5 ohms.
- Corrosion check: Apply dielectric grease to terminals if oxidation is visible (flaky white/green deposits).
- Voltage drop test: Activate each function while measuring at connector; >0.5V loss indicates damaged wiring harness or poor connection.
- Adapter validation: For aftermarket units, match pinout to OEM specs–rear fog lights (if equipped) may repurpose the tan lead.
Step-by-Step Guide to Diagnosing Connector Circuits with a Multimeter
Locate the vehicle’s tow package plug beneath the rear bumper or behind a removable panel. Disconnect it from the harness to expose the male pins. Set the multimeter to DC voltage (20V range) and attach the black probe to a clean ground–either a bare chassis bolt or the white (ground) wire’s terminal. Touch the red probe to each pin while an assistant activates the corresponding function (turn signals, brake lights, or running lights). Record voltages: valid readings should match the table below.
| Function | Expected Voltage | Pin Color (Standard) |
|---|---|---|
| Left turn/brake | 12–14V pulsed/steady | Yellow |
| Right turn/brake | 12–14V pulsed/steady | Green |
| Running lamps | 12V steady | Brown |
| Ground | 0V (continuity to chassis) | White |
Switch the multimeter to resistance mode (200Ω range) to verify ground integrity. Probe between the white wire’s terminal and the chassis; resistance should read below 0.5Ω. Higher values indicate corrosion–clean the connection with a wire brush and dielectric grease.
Test continuity along each circuit by probing the connector’s pins against the bulb sockets at the rear of the tow vehicle. A 12V reading confirms an unbroken path; 0V suggests an open–trace the wire back to the fuse block (typically a 10A or 15A fuse) and replace if blown.
Isolating Power-Side Shorts
Disconnect the tow harness from the vehicle’s computer module. Set the multimeter to DC voltage again and probe between the positive battery terminal and each pin except ground. Any reading above 0V signals a short to power–inspect the wire’s entire run for chafed insulation near sharp edges or suspension components.
Check for shorts to ground by touching the red probe to each pin while the black probe remains on ground. A 0V reading is normal; 12V indicates the circuit is grounding prematurely–use a tone generator to pinpoint the fault.
Reconnect the harness and repeat the initial voltage tests. If readings remain inconsistent, swap the fuse with an identical rated spare–intermittent issues often stem from a weakened fuse that tests good but fails under load.
