Complete Electrical Wiring Guide for 2003 Hyundai Santa Fe Models

For a 2000s-era crossover with a 2.7L V6 engine, the under-hood fuse box cover displays a simplified wiring map–start there. Trace the thick red line running from the battery to fuse #15 (50A) in the primary power distribution center; this feeds the ignition switch (I30) via terminal 30. If parasitic drain exceeds 50mA, disconnect the negative terminal and insert a multimeter in series–look for excessive current draw through fuses #8 (radio memory) or #24 (ECM).

Critical connectors to probe: The 24-pin ECU harness (white, near firewall) and the 12-pin instrument cluster plug (behind glovebox). For intermittent stalling, focus on the 3-pin cam sensor (gray, near valve cover); resistance should read 500-1500 ohms cold. Faulty ground points–particularly G101 beneath the driver’s seat–cause erratic sensor readings; clean with 400-grit sandpaper and apply dielectric grease.

When tackling the rear defogger grid, locate relay K30 in the junction box under the dash. The heater element’s resistance should measure ~3 ohms per vertical segment; a variance indicates broken traces–repair with conductive silver epoxy. For ABS diagnostics, unplug the speed sensor at each wheel; AC voltage should spike to 300mV when spinning the hub by hand. If below 150mV, replace the sensor or check wiring for chafing near the strut tower.

Oxygen sensor heater circuits (fuse #19, 15A) frequently fail on high-mileage models. Test the downstream sensor by back-probing pin 2 (gray/black wire) with the engine running; voltage should toggle between 0.1-0.9V. A flat 0.45V reading confirms a dead sensor–replace with an OEM-equivalent (Denso 234-4330) for consistent response. For headlight upgrades, bypass the orange relay (H/LP) with a 30A fusible link–stock wiring often melts under HID loads.

Electrical Blueprint for the 2003 SUV: Hands-On Solutions

Start by locating fuse box B beneath the dashboard on the driver’s side–remove the lower cover plate by pressing the retaining clips inward. Pin #12 (yellow/black stripe) corresponds to the ignition feed for the radio memory, while pin #24 (white/red) supplies constant power to the instrument cluster. Verify continuity with a multimeter set to 200 ohms: probe the harness connector side while cycling the key to ACC to isolate intermittent opens.

For rear window defroster repairs, trace the brown/orange wire from relay K4 (integrated in the junction module under the left kick panel) to the heater grid terminals. Use a 10-amp fused jumper wire to bypass suspected breaks–apply 12V directly to each grid segment and observe uniform warmth within 30 seconds. If one segment remains cold, peel back the tint film to expose the broken filament and bridge the gap with conductive silver epoxy rated for 200°C, ensuring a 2mm overlap on intact traces.

Critical sensor paths: The upstream oxygen sensor (bank 1) shares a harness with the rear ABS wheel speed sensor–inspect the gray/black wire bundle where it emerges from the firewall grommet for chafing against the strut tower. Splice any damaged strands using military-grade heat-shrink tubing with adhesive liner; crimp connectors must exceed 14 AWG capacity. Reference pinout 62-2 (engine control module) for splice verification: expected resistance

Finding the Complete Electrical Schematic for Your 2003 SUV

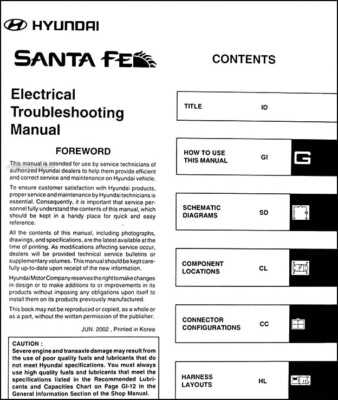

The most reliable source for factory-accurate schematics is the official service manual from the manufacturer. Hyundai’s technical publications department offers a dedicated volume covering electrical systems for this model year, typically labeled “Electrical Troubleshooting Guide” or “Wiring Harness & Circuit Diagrams”. Purchase directly from Hyundai’s corporate parts portal (hyundaidealernet.com) under section “Technical Manuals”, where the PDF version for this year’s crossover retails for approximately $25–$40. Third-party resellers like ALLDATA or Mitchell1 also stock the same material, but Hyundai’s own site ensures no edits or omissions.

Alternative Free and Paid Resources

• Repair forums: Santa Fe Owners Club (santafeowners.com/forum) hosts a pinned thread where members upload scanned pages from the same official manual. Search for “electrical diagrams” in the 2000–2006 sub-board.
• YouTube channels: channels like “Auto Repair Guys” occasionally post walkthroughs that reference diagram excerpts for common issues–check playlists titled “Engine Bay Wiring” or “Fuse Box Layout”.
• Local libraries: large municipal libraries often subscribe to ChiltonLibrary or EBSCO Auto Repair Source, both accessible with a free library card. These databases contain the identical schematic set.

For immediate access without waiting for shipping, two U.S.-based salvage yards–Car-Part.com and Pick-n-Pull–allow searching of their internal inventory systems for “electrical schematic” downloads associated with the vehicle’s VIN segment. Although designed for yard use, the diagrams are identical to the official prints and downloadable as high-resolution JPEGs once an inventory query is run.

Locating Key Conductors in Your Vehicle’s Powertrain Bundle Using Schematics

Begin by isolating the engine control module connector in the schematic, typically marked ECU or PCM. Pin assignments follow a numerical or alphanumeric system; verify the exact layout on your reference sheet–each slot corresponds to a specific function like sensor feeds, actuator controls, or power delivery. Trace the colored insulation codes next to each pin number: red (12V ignition-switched), black (ground), yellow (permanent power), and striped variants (signal returns).

Use a multimeter in continuity mode to match physical conductors in the harness with their schematic counterparts. Probe the actual connector while cross-referencing the documented pinout–avoid relying solely on color patterns, as aftermarket repairs or factory variations may alter them. For actuators like fuel injectors or ignition coils, identify the paired power and ground lines first; working voltages should measure near 12V on the power side and 0V when grounded.

Sensor circuits often include additional reference voltage wires (usually 5V) alongside signal conductors. Locate these by searching for labeled entries like TPS (throttle position), MAF (mass airflow), or CMP (camshaft position) on the blueprint. Each sensor typically requires three connections: signal (data output), reference (constant voltage), and low-reference (signal ground). Confirm operational status by checking for expected voltage drops or oscilloscope waveforms during engine operation.

Ground distribution points appear as thick bands or clusters in the schematic, often branching into multiple sub-circuits. Physically inspect the vehicle’s chassis mounts and engine block studs where these bundles terminate–corrosion or loose connections frequently disrupt electronic signals. For verification, measure potential differences between suspected grounds and battery negative; discrepancies above 0.2V indicate resistance issues requiring cleaning or re-termination.

Harness branch points and splice locations are critical junctures where wires divide into component-specific runs. Marker sleeves or heat-shrink labels usually denote junctions–compare these identifiers with entries on the electrical layout. If labels are missing, backtrack from known connectors (e.g., O2 sensors, solenoid valves) toward the main bundle, testing each segment for continuity. Document any deviations from standard practice in a separate log for future diagnostics.

Fuse boxes and relay centers serve as primary hubs for high-current conductors. Map each fuse number to its associated circuit on the reference sheet, noting wire gauge and ampacity ratings. Smaller-gauge wires (20-22 AWG) typically handle sensor signals, while thicker conductors (12-16 AWG) power actuators or essential modules. When verifying, disconnect the battery’s negative terminal first to prevent accidental shorts, then sequentially test each fuse slot’s voltage output during key-on and engine-running states.

Integrated connectors joining the engine bundle to the vehicle’s primary electrical system often contain proprietary configurations. Examine both sides of these disjoints–one half may terminate at the firewall bulkhead, the other extending to the dash or onboard computer. Use the schematic’s connector views (usually exploded diagrams) to align pins correctly during reassembly; misalignment commonly causes intermittent faults or complete system failures.

Step-by-Step Guide to Tracing Electrical Circuits for Common Issues

Begin by isolating the suspect circuit using the vehicle’s fuse box layout. Locate the fuse corresponding to the malfunctioning component–whether it’s the headlights, power windows, or dashboard indicators. Use a multimeter to test fuse continuity; if blown, replace it with an identical rating (typically marked in amperes). A fuse that blows repeatedly indicates a short downstream, requiring further tracing. Avoid bypassing fuses with improvised solutions like foil or higher-rated fuses, as this risks overheating and fire hazards.

Identify the Power Source and Ground Paths

Trace the power feed from the fuse to the component using the schematic’s color-coded lines. Attach the multimeter’s positive probe to the live wire and the negative probe to a known good ground (e.g., the vehicle’s chassis). A reading of 12V confirms power presence; absence suggests a break in the wire or corroded connection. Check ground wires by moving the negative probe to the component’s ground terminal–voltage near zero confirms a clean path. Corrosion, especially in connector pins or terminal blocks, often disrupts current flow; clean with a wire brush and dielectric grease to restore conductivity.

For intermittent faults, wiggle-test the wiring harness while monitoring the multimeter. Focus on areas where wires transition (door jambs, under seats) or attach to vibrating components (near the engine, suspension). Sharp bends or chafed insulation are common failure points. Use a non-contact voltage tester to detect stray current, which may indicate insulation breakdown. Repair damaged wires by splicing in new sections of the same gauge, soldering the joints, and sealing them with heat-shrink tubing.

Test relays and switches by swapping them with known-good units from non-critical systems (e.g., the AC relay for the cooling fan). Confirm switch functionality by operating it while probing its terminals–open circuits should show infinite resistance; closed circuits, near zero. If the component still fails after verifying power, ground, and relay integrity, inspect the device itself (e.g., motor brushes, bulb filaments) for internal faults. Document each step’s findings to avoid redundant checks and to expedite future diagnostics.
