Complete Electrical Wiring Guide for 2003 KTM 450 EXC Models

Start by locating the main wiring harness connector beneath the fuel tank–this is the primary junction where circuits split to the ignition coil, stator, and CDI unit. Disconnect the battery first to prevent accidental shorts while tracing or probing. Label each wire with its terminal destination before removing any connectors to avoid confusion during reassembly. The color-coding follows this pattern: red delivers power from the battery, black/yellow links to the ignition switch, white grounds the frame, and green carries sensor signals. Verify continuity with a multimeter set to ohms before assuming a wire is intact.

Key trouble spots include the regulator/rectifier, where voltage fluctuations often occur due to poor grounding. Test input voltage at the stator’s 3-phase output–expect 18-22V AC at 3,000 RPM when the engine is running. If readings are erratic, inspect the stator’s resistance: each phase should measure 0.1-0.3 ohms across its coils and 0.5-1.5 ohms to ground. Corrosion at the kill switch terminals is a frequent failure point; clean contacts with dielectric grease before reconnecting.

For precise circuit behavior, study the engine control module pinout. Pin 1 (usually blue/white) handles throttle position sensor input, while Pin 4 (yellow/black) triggers the fuel pump relay. If the bike cranks but won’t start, focus on the pickup coil signal wire–typically blue–which should pulse at 0.5-2.5V AC during rotation. Ignition timing issues often trace back to a defective CDI box; swap it with a known-good unit to confirm. Replace degraded wiring with 16-gauge silicone-coated strands, matching original color-coding exactly.

Document every modification in a notebook or schematic software. Photograph connectors before disassembly, noting wire orientation. Use heat-shrink tubing on all splices, and secure the harness away from exhaust pipes with zip ties rated for 125°C. After repairs, recheck system voltage at the battery–it should stabilize at 13.5-14.5V DC under load. Address flickering dash lights by tightening the negative terminal bolt at the frame ground point.

Electrical Schematic Reference for the 2003 Off-Road Enduro Model

Locate the main harness connector behind the steering head cover–pin configuration follows a five-wire cluster (red, green/red, black/white, yellow, and brown). Trace the red wire to the ignition coil primary lead; resistance should read 0.5-1.5 ohms at 20°C. If readings exceed 2 ohms, inspect for corrosion at the stator plate screws or replace the coil assembly.

Grounding points require star washers at the engine mounting tabs and subframe bolts. Test continuity between the battery negative terminal and each ground point using a multimeter–readings below 0.1 ohms indicate proper bonding. Loose connections at the subframe ground cause intermittent fuel pump priming failures.

The CDI unit mounts under the fuel tank, secured by a rubber grommet. Access requires removal of the left shroud and tank–disconnect the battery before servicing. The unit’s six-pin connector handles spark advance (white/blue wire), kill switch input (black/green), and stator reference (yellow/red). A failed CDI produces inconsistent spark timing; verify with an inductive timing light at 4,500 RPM.

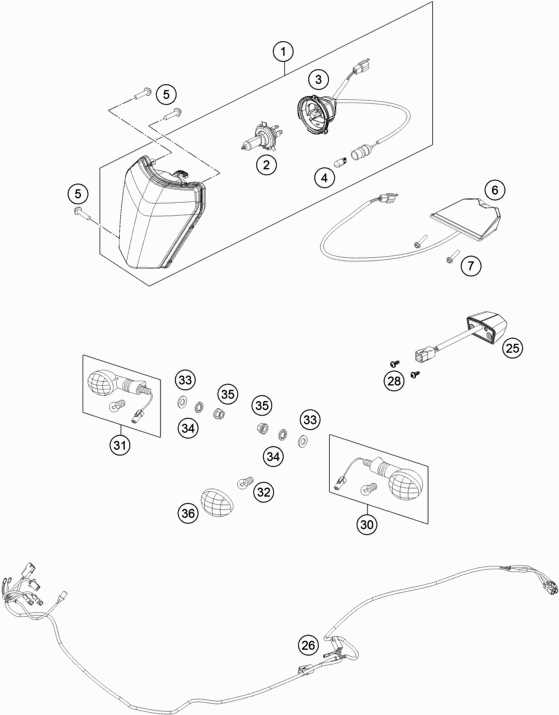

Headlight circuit runs through a 15-amp fuse (labelled “Licht” on the fuse block). Bulb type is H4 with 60/55W dual filaments–check for darkening at the filament base, indicating imminent failure. Low beam activation uses a single throw relay near the radiator; failed relays click audibly but deliver no voltage to the bulb socket.

Throttle position sensor (TPS) wires (gray/white, gray/red, and gray) terminate at the ECU under the seat. Rotate the throttle fully while monitoring voltage–gray/white should swing between 0.5V (closed) and 4.5V (wide open). Erratic readings necessitate sensor adjustment via the two philips screws on the throttle body or replacement of the sensor.

Battery charging system relies on a shunt-type regulator/rectifier bolted to the frame rail. Yellow stator output wires (thick gauge) carry AC voltage; the rectifier converts to 14.2-14.8V DC under load. If the battery drains overnight, probe the yellow wires at the rectifier–readings below 13.5V at 3,000 RPM indicate stator or rectifier failure.

Neutral indicator light draws power from the transmission switch (brown/white wire). Test continuity between the switch and the light bulb socket in neutral–open circuit suggests a faulty switch or broken wire inside the transmission cavity. The switch mounts on the right engine case; access requires draining the engine oil.

Instrument cluster connections include speedometer pulses (orange), tachometer signals (white/green), and warning light triggers (various colors). Speed pulses originate from a gear-driven sensor on the transmission output shaft–clean the magnetic pickup if the speedometer hesitates. Tach pulses come directly from the CDI unit–missing pulses often trace to a cracked flywheel magneto or damaged CDI connector pins.

Finding Key Electrical Bundles on the Off-Road Machine

Trace the primary harness along the frame’s left side beneath the fuel tank. The main cluster emerges near the steering head, secured by a black zip-tie and rubber grommet where it passes through the subframe. Three critical junctions branch here: a 6-pin connector for the ignition system, an 8-pin plug feeding the dashboard, and a 4-pin socket linking to the stator. Label each with masking tape before disconnecting to avoid misalignment during reassembly.

The right-side bundle runs parallel to the kickstand pivot, housing the three-phase AC leads–yellow, white, and black–threaded toward the rear shock tower. Here, a T-shaped connector splits power between the taillight and brake switch, with color-coded terminals: red (12V), brown (ground), and green/white (signal). Verify continuity with a multimeter; corrosion often hides beneath the protective sleeve at this junction, especially in humid climates.

Underneath the seat, a secondary harness snakes toward the rear fender. Locate the rectangular 5-pin plug–unique to this model year–connecting the turn signals and license plate illumination. The left-side signals use solid-colored wires (blue, orange), while the right employs striped variants (blue/white, orange/white). Note the polarity; reversing these will blow the flasher relay. Clean terminals with contact cleaner before reattaching to prevent voltage drops.

Near the airbox, a compact bundle carries throttle position and engine temperature sensors, terminating in two identical 3-pin connectors. Mistaking them risks damaging the ECU–label the upper plug (throttle) and lower (temp) before servicing the air filter. The upper bundle’s wires are thicker (18 AWG) due to higher current draw; the lower uses 22 AWG for sensor signals. If resistance exceeds 0.5 ohms on the temp circuit, inspect the connector for melted plastic–common aftermarket cooling fan failures.

Step-by-Step Trace for Off-Road Bike Ignition Circuit Mapping

Locate the CDI box under the left side panel–it’s a black rectangular module with six spade connectors labeled 1 through 6. Pin 1 connects to the stator’s trigger coil (green/yellow wire); trace this path back to the flywheel magneto using a multimeter in continuity mode to confirm no breaks. Pin 2 carries 12V from the battery via a red wire–verify voltage here holds steady at 12.6–13.2V with the key on and engine off. Pin 3 grounds to the frame through a black wire; ensure this terminates directly at the negative battery post or engine case without intermediate splices. Pins 4 and 5 link to the kill switch (yellow/red) and ignition coil primary (blue/red). Disconnect the coil first, then test for 0.5–1.5 ohms between these pins and ground; readings outside this range indicate a faulty CDI or coil.

Follow the blue/red wire from the CDI’s output to the coil’s primary terminal–it should measure 0.2–0.8 ohms to ground when cold. The secondary lead (yellow) runs to the spark plug cap; remove the cap and measure 5–15 kΩ between the wire end and ground. If resistance exceeds 20 kΩ, replace the cap or inspect the ignition lead for corrosion. Check the stator’s charging coil (white/red) output at the regulator/rectifier–expect 30–60V AC at 3,000 RPM; lower readings point to a weak stator or shorted winding. For intermittent spark, probe the trigger coil (green/yellow) while cranking–it must pulse 0.5–2V AC to signal the CDI.

Identifying and Testing the Stator and Voltage Regulator Wires

Locate the white stator output wires by tracing from the engine’s alternator housing–these connect directly to the regulator’s input terminals. Disconnect the regulator plug and probe the three white wires with a multimeter set to AC voltage: at idle (≈2000 RPM), readings should range between 20–40V AC; at 5000 RPM, expect 50–70V AC. If voltages fall below these thresholds, inspect the alternator windings for shorts or opens using resistance mode (≈0.2–1.0Ω between any two white wires). Replace the stator if resistance deviates significantly or readings show infinity.

• Regulator Testing: With the bike running, measure DC voltage at the battery terminals–consistent 13.8–14.5V indicates proper regulation. If voltage spikes (>15V) or drops (
• Ground Verification: Ensure the regulator’s black/green ground wire has a clean, tight connection to the frame–loose or oxidized grounds mimic stator failure by disrupting the voltage reference.
• Connector Integrity: Examine the stator-to-regulator plug for melted pins or green oxidation. Lightly tug each wire to confirm crimped terminals are secure; re-crimp or solder if necessary to prevent intermittent faults under vibration.
