Complete Wiring Diagram Guide for 2003 Lincoln Navigator Electrical Systems
Verify ground connections at G301 (driver-side kick panel) and G401 (passenger-side firewall). Corrosion here mimics parasitic draws or sensor malfunctions. Replace any 18-gauge fusible links in the under-hood fuse box if voltage drops exceed 0.2V across terminals–ignoring this accelerates wire insulation failure under sustained loads above 20A.
Locate the B+ feed from the alternator (yellow/orange stripe) and splice a 12-gauge inline fuse holder no farther than 6 inches from the battery terminal. Factory diagrams omit this secondary protection; neglecting it risks melting harnesses during aftermarket upgrades like LED pods or winches drawing 150W+ under idle conditions.
Trace the BCM-controlled circuits (dark blue/light green stripe) for dome lamps, keyless entry, and rear defrost relay. These branches share a 10A fuse yet rarely exceed 5A in normal operation–any deviation suggests shorted door jamb switches or a faulty retained accessory power module, often misdiagnosed as a battery drain. Use a non-contact thermometer to scan for hotspots: temperatures above 140°F indicate resistance buildup in splice clusters behind the instrument panel.
For powertrain integration, focus on the PCM connector C175 (gray 80-pin). Pin 71 (red/light blue) carries ignition-switched voltage to the MAF sensor; if readings fluctuate erratically, strip and resolder this joint with silver-bearing solder. Avoid twist-and-tape repairs–these junctions degrade within 18 months under vibration and thermal cycling, particularly in regions where ambient temps exceed 100°F.
When troubleshooting trailer wiring, bypass the factory TBC module. Directly wire the brake controller output (purple) to the rear frame plug using 14-gauge THHN copper, stripping insulation only 1/4 inch to reduce strand oxidation. Factory splices at the rear crossmember corrode first; inspect biannually if towing 7,000+ lbs annually. For auxiliary lighting, route all new circuits through a separate 30A relay, triggering it via the parking lamp feed (brown) to prevent backfeeding into the headlamp switch.
Electrical Blueprint for Full-Size Luxury SUVs: A Hands-On Reference

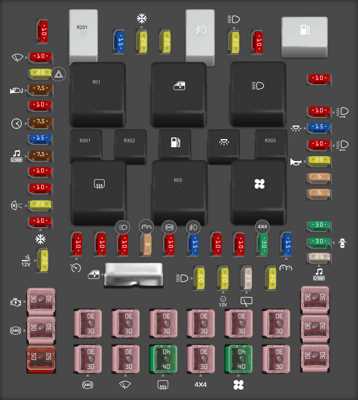

Begin by locating the fuse box under the dashboard on the driver’s side–this area consolidates critical power distribution points. Remove the protective cover using a flathead screwdriver to expose relay slots and fuse ratings; verify each fuse’s ampere label against the owner’s manual for accuracy before testing continuity with a multimeter.
Trace the main harness along the firewall where it enters the cabin. The 12-gauge pink wire delivers constant 12V power from the battery, while the red-black striped cable supplies ignition-switched voltage. Use a non-powered probe to confirm voltage presence without damaging insulation; frayed sections near the door jamb often require re-soldering with heat-shrink tubing for corrosion resistance.
Check the rear lighting circuit by removing the tailgate interior panel. The tan wire with a black stripe controls the brake light signal–activate the pedal and measure voltage at the bulb socket. If readings are inconsistent, inspect the ground connection (black wire) at the chassis attachment point; clean surface rust with a wire brush before re-securing the bolt.
- Instrument cluster wiring: Yellow-orange wire (10-gauge) delivers illumination power to the gauge lights; replace blown bulbs only with OEM-spec LEDs to avoid voltage feedback.
- Power window motor lead: Light blue wire (18-gauge) carries 12V to the driver-side window switch–test for voltage drop (>0.5V) after simulating window operation.
- HVAC blower relay: Dark blue wire (14-gauge) feeds high-current power–verify relay coil resistance (80-120 ohms) before replacing the unit.
For trailer wiring, follow the green wire from the rear bumper connector to the underbody harness splice. The factory diagram labels this as “Trailer Right Turn/Brake”; splice repairs demand military-grade crimps and dielectric grease to prevent moisture intrusion. Test circuits sequentially using a trailer light simulator before real-world operation.
When diagnosing intermittent electrical faults, focus on common failure points:
- Door hinge wiring harness–flex cycles cause wire breakage inside the rubber grommet; replace the entire pigtail assembly if gaps exceed 2mm.
- Battery-to-starter cable–inspect for heat damage at the solenoid connection; corrosion here mimics starter failure.
- ECU ground strap–located beneath the air filter housing; clean mating surfaces with 80-grit sandpaper if voltage drops >0.2V.
For printed schematics, cross-reference OEM document A-3080 (electrical distribution) against aftermarket manual sections on grounds and sensor loops. Keep a notebook detailing observed voltage levels across nodes during dynamic testing–patterns often reveal root causes faster than static checks. Always disconnect the battery’s negative terminal before probing airbag circuits (light green wire).
Finding Key Electrical Bundle Junctions in the Full-Size Luxury SUV
Begin beneath the dashboard on the driver side–directly behind the fuse block. The primary loom, wrapped in black corrugated sleeving, splits into three major trunks: instrument cluster feed, body control module input, and powertrain interface. Trace the 14-gauge yellow stripe wire; it terminates in a 32-pin connector labeled C1301, secured with a single T20 torx screw at the kick panel.
Move to the passenger-side footwell. Behind the glovebox hinge, a secondary bundle emerges from a snap-lock grommet; squeeze the tabs to free the 18-pin white connector C1407. This junction supplies the climate control actuators and front park lamp circuit. Pull the harness downward; resistance signals trapped clips under the carpet near the A-pillar.
Underhood Connector Clusters
The engine bay holds the most critical links. Raise the coolant reservoir; beneath it lies a waterproof junction encased in blue silicone boots. Disconnect the red latch to reveal C1008, a 48-pin female plug feeding the ABS module and transmission control. Rotate the harness clockwise to release it from the bulkhead stud–don’t force it; molded grooves dictate alignment.
At the right strut tower, a cylindrical aluminum canister houses the air ride sensor loom. Twist counterclockwise to detach the two-wire purple connector; beneath it, a smaller 9-pin orange plug C1802 routes altitude signals to the PCM. Inspect for green corrosion; apply dielectric grease if terminals show pitting.
Load-Leveling Module and Rear Junction Access
In the cargo area, lift the spare tire cover. A rectangular steel cover protects the height sensor loom–remove four 10mm bolts to expose C2304, a 22-pin bundle split into trailer wiring and air spring solenoids. Follow the brown/tan stripe cable toward the frame rail; it merges into C2501, a sealed gray junction supplying the taillamp assembly. Wiggle connections while powered to verify intermittent faults.
Behind the left rear quarter panel, a snap-in plastic panel hides the fuel pump loom entry. Press inward to release it; the 12-pin black connector C2407 controls the auxiliary O2 heater and evaporative purge valve. Label each wire before separation–misalignment risks fuel pump prime failure.
For the 4WD models, crawl under the front skid plate. Two orange zip ties secure the transfer case harness to the frame; cut them to access C1703, a 16-pin oval plug feeding the actuator motor. Route your meter probes along the light blue stripe; voltage should read 5.0V key-on. If absent, suspect a break in the body harness tunnel pass-through near the transmission tunnel.

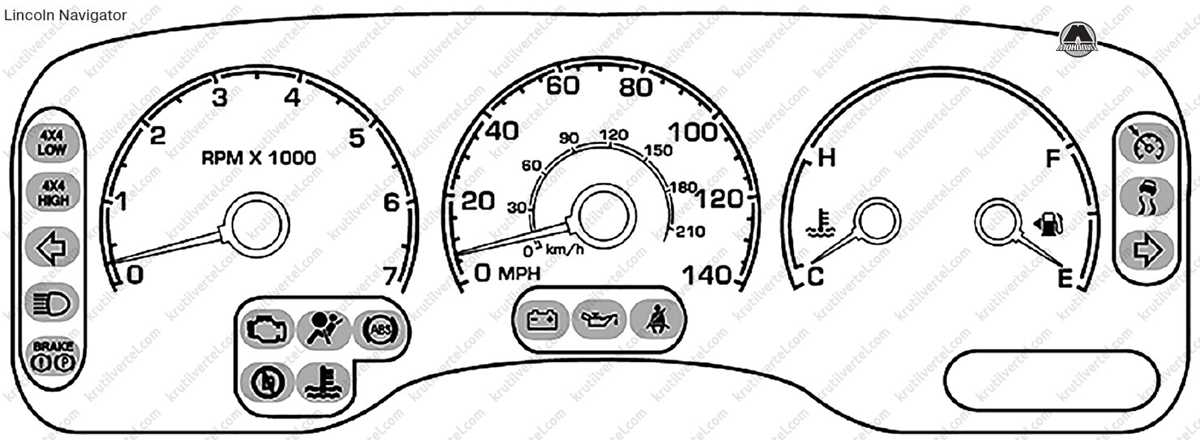

Step-by-Step Method to Trace Dashboard Gauge Circuit Pathways
Locate the fuse panel beneath the driver-side dash. Identify the cluster’s dedicated fuse using the owner’s manual–common amperage ratings for gauge circuits range between 7.5A and 15A. Remove the fuse and verify continuity with a multimeter set to the 200-ohm range. Absence of resistance confirms an intact circuit path to the instrument pod.
Disconnect the battery’s negative terminal to prevent voltage feedback. Remove the trim bezel surrounding the gauges by prying along the edges with a plastic trim tool–work from the lower corners upward. Two 7mm bolts secure the cluster assembly; detach them and gently pull the pod outward to access the rear harness connectors.
Trace the 16-pin OBD-II connector’s purple/white stripe wire–this carries the CAN bus signal to the speedometer. Probe the backside of the cluster’s 24-pin connector (terminal C2207, pin 8) with a test light while an assistant cycles the ignition. Illumination confirms the ignition feed circuit is active; no glow indicates a break between the ignition switch and the pod.
Inspect the printed circuit board (PCB) behind the gauges for discoloration or brittle traces–heat damage often appears near the odometer drive motor. Use a fine-tip soldering iron to reflow cracked joints if resistance readings across PCB tracks exceed 0.5 ohms. Replace bulbs rated at 1.4 watts for backlighting if flickering occurs; faulty bulbs disrupt data pulses on shared grounds.
Segment the harness into logical sections: ignition inputs, sensor feeds (coolant, fuel level), and illumination outputs. Label each wire using heat-shrink tubing and a fine-point marker–thickness (gauge) typically ranges from 18AWG for power to 22AWG for signal wires. Probe suspected faulty wires with a non-contact voltage detector while cycling relevant components (e.g., turn signals for the left turn indicator path).
Common Failure Points and Fixes
Corrosion on the dimmer control rheostat (resistance range 5–50 ohms) causes erratic gauge backlighting. Clean contacts with electrical contact cleaner or replace the dimmer module if scrubbing fails. The tachometer signal wire (yellow/black stripe, terminal C2207, pin 1) often fractures near the firewall grommet–strip insulation, solder, and seal with adhesive-lined heat shrink. For intermittent fuel level readings, resolder the sender wire connector at the tank; loose connections mimic a faulty pump.
