Complete Wiring Diagram Guide for 2003 Mercury Mountaineer Radio System

To resolve connection issues in a 2002–2004 model-year vehicle’s entertainment setup, start by disconnecting the battery negative terminal for five minutes to reset the system. Locate the factory harness behind the dashboard on the passenger side–it consists of a 12-pin plug with color-coded wires: solid yellow (constant 12V), red stripe (switched 12V), brown/white (ground), dark green (speakers front left), gray (speakers front right), purple (speakers rear left), and light blue (speakers rear right). Use a multimeter to verify each wire’s voltage before splicing–readings should stabilize at 11.8V or higher for power leads and near 0 ohms for grounds. Avoid twisting wires directly; instead, solder connections with 60/40 rosin-core solder and wrap each joint in adhesive-lined heat shrink tubing to prevent corrosion. If the antenna lead (blue/white) shows no 5V signal when the ignition is on, inspect the fuse panel–label F-19 (15A) protects the entertainment module.

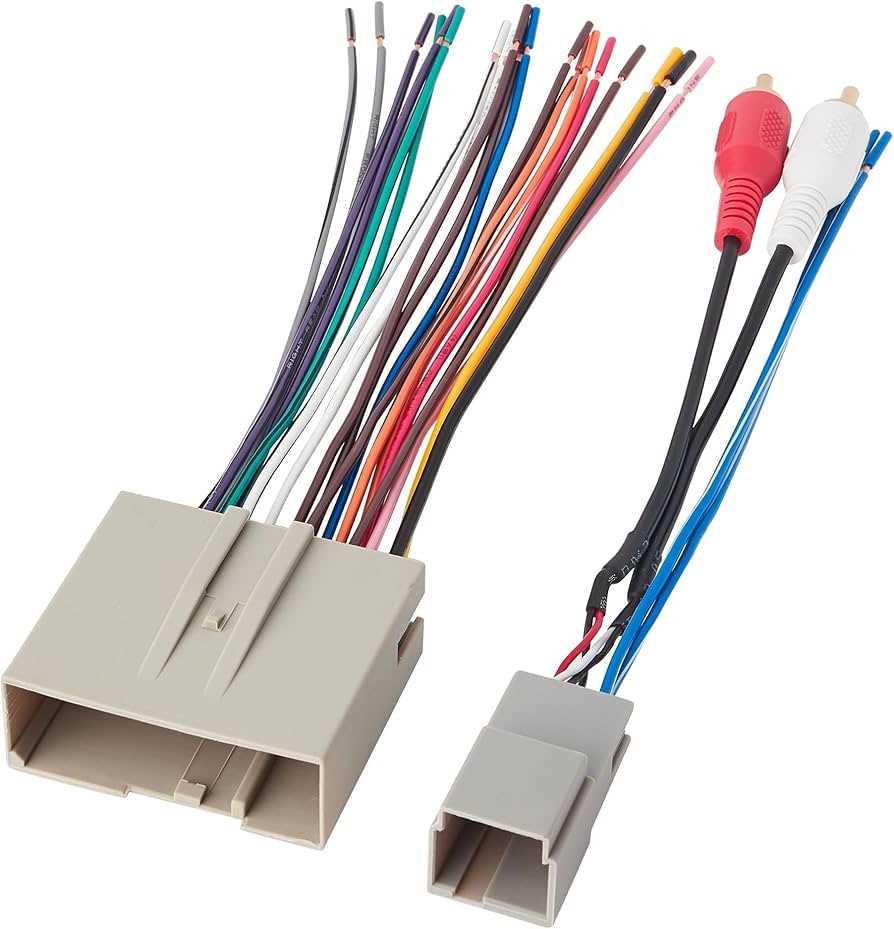

For aftermarket upgrades, match the OEM harness to the new unit’s ISO adapter. Brands like Metra or Scosche offer pre-terminated adapters for this chassis, but verify compatibility with the specific vehicle trim. If retaining the factory amplifier, connect the orange/white wire (illumination dimmer) to maintain dash light sync–failure here causes backlighting issues. For rear-seat audio controls, tap into the tan/yellow wire at the main plug; it carries a 0–5V signal that syncs with steering-wheel-mounted switches. If static persists, check for loose grounds behind the glove box–unbolted grounding points are common in vehicles with moisture ingress in door seals.

Upgrading speakers requires removing the door panels. The front doors use 6×9-inch woofers secured by Torx T-25 screws; rear quarter panels conceal 6.5-inch coaxial units accessible via trim clips. Replace factory foam surrounds with butyl rubber to prevent moisture damage–polypropylene surrounds degrade within 36 months in humid climates. For subwoofer integration, the factory wiring lacks preamp outputs; install a line-out converter (LOC) between the amplifier input (violet/white wires) and the sub’s RCA inputs. Set the LOC gain to 0.5V–exceeding this causes signal clipping. If the amplifier overheats, relocate it from under the driver’s seat to the cargo area using a 4-gauge power kit with fused distribution blocks.

To diagnose display errors, access the self-test menu by pressing and holding the AM/FM and CD buttons during startup. Error code U1811 indicates a communication fault with the audio control module; check the gray 2-pin connector at the back of the unit. For navigation units, ensure the GPS antenna (small magnetic puck) has an unobstructed view of the sky–mount it on the rear parcel shelf, not under metallic surfaces. If the clock resets after battery disconnects, reprogram the system using the dealer scan tool; the body control module stores default settings in volatile memory.

Ford SUV Audio Circuit Schematics for Model Year Pre-Update

Locate the factory harness connector behind the dashboard center stack–pin assignments follow this pattern: A4 (yellow) supplies constant 12V power, C3 (red) delivers switched ignition voltage, while B1 (black/white) grounds the chassis. Antenna lead (D2, blue/white) requires a minimum 5-ohm impedance to prevent signal degradation. Factory amplifiers (if equipped) tap into A6 (purple) and C1 (gray) for front/rear speaker outputs; bypass resistors (220Ω) may be needed if replacing with aftermarket units lacking pre-amp outputs. Verify connections with a multimeter–voltage drop across A4 should not exceed 0.2V during cranking.

• Aftermarket integration: Splice A4 and C3 using soldered 18-gauge wire (not butt connectors) to prevent oxidation in high-humidity climates.
• Illumination wire: B5 (orange/black) adjusts dimming; pair with a 500Ω potentiometer if retrofitting LED displays.
• Data bus: D3 (tan/yellow) carries CAN signals–avoid grounding, as this triggers error codes in the IPC module.
• Subwoofer output: Factory sub wiring (A7, dark green) is filtered; remove 10μF capacitor if upgrading to a raw signal.
• Steering controls: Resistance values: Vol+ 150Ω, Vol- 330Ω, Seek 820Ω–match these precisely for OEM switch compatibility.

For vehicles with rear-seat entertainment, the auxiliary harness (J110 plug) splits into left/right RCA (white/brown) and video (yellow). Note: The factory navigation/video module draws 1.8A from A4–upgrade fuse to 20A if adding power-hungry components. If static persists after installation, inspect ground point G303 (driver-side kick panel) for corrosion–clean with 400-grit sandpaper and apply dielectric grease.

Finding the Original Audio System Connector in Your Vehicle

Start by removing the center console trim panel. The harness interface is typically hidden behind the lower dash cover near the climate controls. Use a plastic trim tool to pry off the panel carefully, avoiding damage to the retaining clips. The connector will be secured with a white or gray locking tab–press it to release the plug.

Check behind the ashtray assembly if the main interface isn’t visible. Some models place the connection point in this secondary location, requiring partial disassembly of the ash receptacle housing. A 10mm socket may be needed to remove bolts securing the unit in place.

• The plug contains 12–16 colored wires, grouped as follows:
• Power/ground: Yellow (constant 12V), red (switched 12V), black (ground)
• Speaker outputs: Gray (+), gray/black (-) front right; white (+), white/black (-) front left; purple (+), purple/black (-) rear right; green (+), green/black (-) rear left
• Additional leads: Orange (illumination dimmer), blue/white (remote amp turn-on), pink (memory keep-alive)

Trace the harness path upward–it may route behind the glovebox or through a firewall grommet if an aftermarket amplifier is installed. Label each wire with masking tape before disconnecting to prevent mismatches during reinstallation. For vehicles with premium sound systems, an extra connector (often black) handles amplifier signals–do not confuse it with the main harness.

If corrosion is present, apply electrical contact cleaner to the pins before reconnecting. Replace damaged terminals using a repair kit (part #14706 for most variants). Always verify connections with a multimeter before powering up the new unit–yellow should show 12V at all times, red only with ignition on.

Refer to the service manual’s section 412-13 for exact pinout diagrams if colors deviate from standard configurations. Third-party adapters (Metra 70-1761) simplify direct plug-and-play installations, but manual splicing may be required for OEM navigation or satellite interfaces.

Decoding Harness Hues for Audio System Integration

Locate the yellow bundle first–this twelve-gauge strand supplies continuous twelve-volt power straight from the battery terminal, ensuring memory retention for presets and clock settings even when the ignition is off. Verify voltage with a multimeter before connecting; fluctuations above fourteen or below eleven volts indicate fuse or ground issues requiring immediate attention.

Pair the solid red lead with the ignition-switched twelve-volt source, typically drawn from the fuse block or accessory relay. This wire activates the head unit only when the key is turned, preventing parasitic drain. Use a crimp connector with heat-shrink tubing to secure the join, then wrap the splice in electrical tape rated for at least 150°C to resist engine bay temperatures.

Ground connections demand meticulous selection: attach the black cable to a bare metal chassis point free of paint, rust, or corrosion inhibitors. Bolts securing the instrument cluster brace or firewall panel often serve well–scrub the contact surface with sandpaper before tightening to at least twelve inch-pounds. A faulty ground manifests as distorted sound, erratic backlighting, or failed power-up sequences.

Speaker outputs follow a consistent pattern: white and white-orange for the front left, gray and gray-orange for the front right, green and green-orange for the rear right, and purple and purple-orange for the rear left. Solid colors carry the positive signal; striped variants ground the circuit. Reversing polarity causes phase cancellation, resulting in muffled bass and reduced channel separation–test with a 1 kHz tone at moderate volume to confirm clarity.

For steering-wheel control interfaces, trace the blue-white remote turn-on wire to the amplifier trigger output. Connect this lead to an aftermarket adapter only after confirming it supports resistance-based or CAN bus protocols, as mismatched signals can lock the vehicle’s computer into failsafe mode. Keep splice junctions under sixteen inches from the head-unit connector to avoid signal degradation.

Step-by-Step Guide to Removing the Factory Audio Unit

Disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts or accidental airbag deployment. Wait at least 10 minutes before proceeding–this allows residual power in the system to dissipate. Failure to do this risks damaging sensitive onboard electronics or triggering diagnostic fault codes.

Pry off the trim panel surrounding the head unit using a plastic trim removal tool. Insert the tool into the seam at the top-left corner and gently twist; work counterclockwise around the edges. Avoid metal tools–they can scratch dashboard surfaces. If resistance is felt, check for hidden clips (typically 4–6 per model) before applying additional force. Store removed clips in a labeled container to prevent misplacement.

Disconnecting Electrical Connectors and Antenna

Connector Type	Location	Release Method
Power harness	Rear left	Press tabs inward, pull straight out
Speaker harness	Rear center	Squeeze sides, wiggle free
Antenna lead	Rear right	Rotate locking collar counterclockwise, then pull
Ground wire	Bottom left	Loosen 10mm bolt with socket wrench

Slide the factory unit forward once all connections are detached. If stuck, check for secondary mounting brackets secured with 8mm bolts behind the unit–remove these first. Tilt the lower edge outward before lifting fully to avoid snagging dashboard vents or climate controls.

Final Checks Before Reinstallation

Inspect the mounting cage for bent tabs or debris; straighten bent metal with needlenose pliers and vacuum loose particles. Test-fit the replacement unit–it should drop into place without force. Reattach all harnesses in reverse order, ensuring audible clicks confirm secure connections. Reconnect the battery terminal last, then power on the system to verify functionality before reassembling trim panels.
