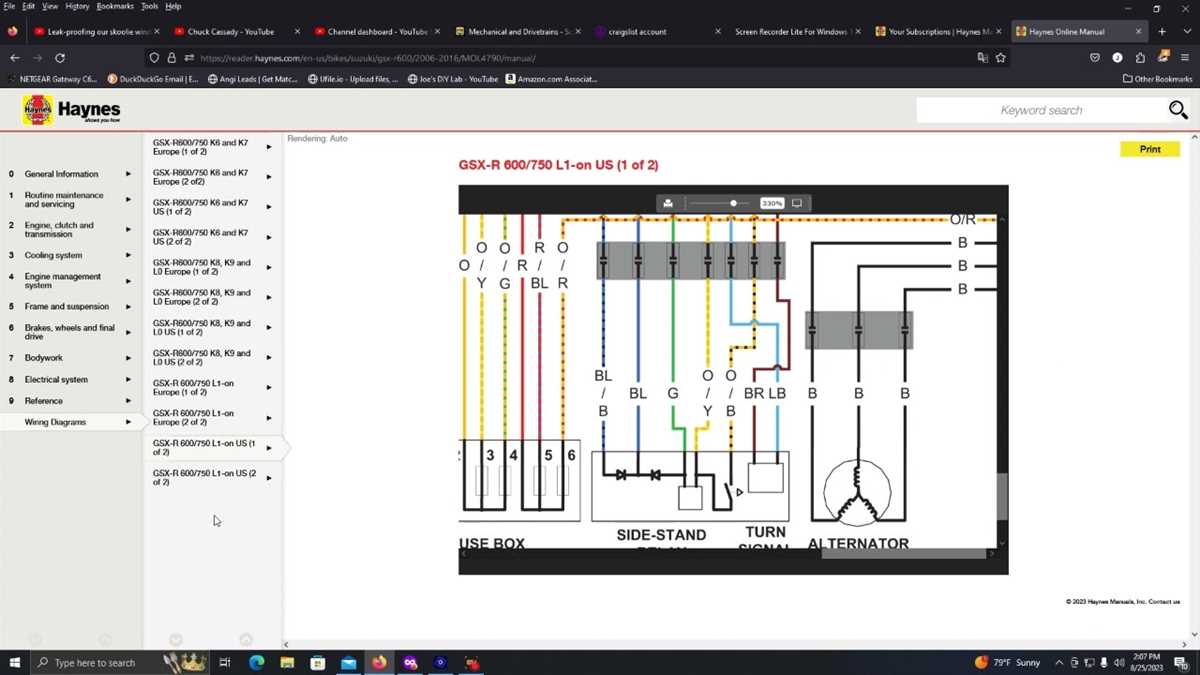

Complete Suzuki GSXR 750 2003 Wiring Diagram Schematic Guide

Start by locating the main harness connector beneath the fuel tank–pinout labels differ slightly between service manual revisions, but terminals G/W (ground/white) and B/Y (black/yellow) are universally shared for ignition power. Verify continuity with a multimeter before assuming the fuse block is fault-free; corroded sockets in the 30A main fuse are frequent culprits behind silent no-start conditions on models with high odometer readings.

Disconnect the battery negative terminal first. Trace the thick R/B (red/black) lead from the starter solenoid to the alternator stator–resistance should read between 0.2–0.5 ohms at 20 °C. Anything outside this range indicates either a shorted stator winding or degraded brushes on the voltage regulator/rectifier assembly. Replace both units simultaneously to prevent cascading failures.

Inspect the ECU connector (16-pin white plug) for bent or pushed-out pins, especially terminals 1 (sensor ground), 4 (TPS input), and 14 (injector #1). A single compromised pin will trigger random fueling errors, often misdiagnosed as clogged injectors or faulty MAP sensors. Reseat the connector with dielectric grease to prevent moisture ingress.

The neutral switch wiring (G/Y) runs underneath the left fairing stay–look for chafed insulation where the harness rubs against the frame gusset. A false neutral signal will inhibit cold starts; splice in a temporary jumper to confirm before rewiring the entire segment with marine-grade heat-shrink tubing.

Document each connection with labeled photos before removing any harness clips. The sidestand interlock wires (G/B and Y/W) share a split loom with the clutch switch; mix-ups here lead to sudden engine cutouts mid-ride. Keep the two systems on separate zip-ties for easier troubleshooting later.

For ABS-equipped variants, check the wheel-speed sensors for metallic debris–clean the reluctor rings with brake cleaner and a lint-free cloth only. The ABS pump motor draws directly from the 30A pink fuse; if voltage drops below 11.8 V during cranking, expect intermittent braking system faults codes to store in the ECM memory.

Electrical Schematic for the 2003 GSX-R 600cc Sportbike Variant

Locate the main fuse box beneath the seat–remove the left side panel for access. The primary relay (12V) sits adjacent to the ECU, distinguishable by its square shape and labeled “IG” terminal. Use a multimeter set to 20VDC; probe the yellow/red wire at pin 15 while cranking–readings below 9V indicate failing stator coils or corroded ground paths. Replace the stator if output drops below 110W under load, verified via oscilloscope at 5000 RPM with lights on.

Trace the ignition system’s orange/white wire from the crank position sensor to the ECU connector (C34). Inspect for chafing near the frame’s steering head joint; damaged insulation here mimics sensor failure but actually stems from intermittent shorting. Splice repairs require soldering with 60/40 rosin-core wire, followed by heat-shrink tubing–electrical tape degrades within 18 months and invites moisture intrusion. Verify correct polarity at the sensor; reversed leads burn out the ECU’s input stage, a $380 mistake rectified only by full module replacement.

For headlight upgrades, bypass the stock switch with a direct relay harness triggered by the high-beam blue/white wire. The OEM connector (2-pin, Molex 0.63mm) under the fairing snaps onto aftermarket HID kits but overheats at 35W; relocate the ballast to the tail cowl using thermal adhesive. Check the alternator’s charge rate at the battery–14.2V ±0.3V at 3000 RPM confirms proper voltage regulation; deviations point to failed rectifiers needing replacement in matched pairs.

Finding Critical Electrical Link Points on the Fireblade-Class Sportbike

Begin by removing the pillion seat and side fairings to expose the central fuse box and main harness trunk. The primary 14-pin coupler sits directly beneath the rear cowl, just forward of the tail section–identify the black/white tracer wire (ignition feed) and red/black tracer (main power) as anchor points for voltage checks. Trace the 6-pin connector leading to the ECU, located left of the fuel tank; this houses throttle position, intake air temp, and gear position signals. For sensor diagnostics, probe the 3-pin yaw rate connector near the steering stem, marked by a yellow/black wire (ground reference) and pink/blue (signal return).

• Front brake light switch: Follow the single green/yellow wire from the handlebar to its 2-pin plug behind the headlight assembly–test continuity when lever is depressed.
• Stator output: Locate the 3 thick yellow wires exiting the engine cover, terminate at a 3-pin rectangular connector below the airbox–measure AC voltage (50-70V at 5k RPM).
• Fuel pump relay: Remove the right frame panel to access the 5-pin relay socket–jump terminals 85 (blue/red) to 86 (black/white) to prime without ignition.
• Turn signal module: Behind the instrument cluster, find the 8-pin gray connector; pin 5 (orange/blue) carries the flasher output–temporary grounding revives unresponsive signals.
• Neutral switch: Under the transmission, spot the 2-pin plug with a light green wire–voltage present = in gear, 0V = neutral.

Step-by-Step Guide to Tracing Ignition System Wires

Locate the motorcycle’s service manual and identify the ignition coil connectors. These are typically two-pin plugs with thick-gauge cables–one brown with a yellow stripe (power) and one solid black (ground). Disconnect the battery first to prevent accidental shorts. Use a multimeter set to continuity mode to confirm each wire’s path from the coil to the Engine Control Module (ECM). Probe the female terminals of the disconnected coil plugs; the brown/yellow should register direct resistance to the ECM’s ignition output, while the black should trace to a common ground point on the frame or engine block.

Trace the trigger wires next. On the right-side crankshaft sensor, two thinner wires (one white/red, one white/blue) carry pulse signals to the ECM. Backprobe these with the multimeter set to DC voltage while cranking the engine–expect 0.5–2.5V AC fluctuations. If readings are absent, inspect the sensor’s 1.5mm air gap and check for broken wires near the stator cover; vibration often frays insulation at stress points. For the camshaft position sensor, the single blue/white wire should show similar voltage patterns–failure here will prevent spark.

Isolating Faults in Secondary Circuits

Remove the spark plugs and insert them into their boots, grounding the threads to the cylinder head. Reconnect the coils and crank the engine while observing for a blue spark–no spark indicates a primary circuit issue (coil, ECM, or power delivery). Swap coils between cylinders to test for weak output; a consistent misfire on one cylinder points to its coil pack. If all coils fire but engine still won’t start, check the kill switch harness for pinched pink wires–a common failure after handlebar replacements. Splice repairs require military-grade heat-shrink tubing to prevent moisture ingress.

How to Identify and Test Charging Circuit Components

Locate the stator by removing the left side cover–it’s a circular assembly with coil windings beneath the flywheel. Disconnect the three-phase output wires (typically yellow) from the regulator-rectifier and probe each phase-to-ground with a multimeter set to AC volts at 5,000 RPM. Expected readings: 40–60V AC per phase; identical values (±5%) confirm balanced coils, while discrepancies indicate shorted windings or open circuits.

Component	Test Method	Expected Result	Diagnosis if Failed
Stator (Phase-to-Phase)	Multimeter Ω, 200-range	0.1–1.0Ω between phases	>1.5Ω (open circuit);
Flywheel Magnets	Magnetic force check	Strong attraction to steel	Weak/no attraction (demagnetized)
Rectifier Diodes	Multimeter diode test	0.4–0.6V forward bias; OL reverse	OL both ways (open);

Test the regulator-rectifier by applying 12V DC to the B+ terminal while probing each stator phase wire in diode mode. Reverse the probes–forward voltage should drop to ~0.5V; reverse bias should read OL. Connect a 12V bulb between B+ and ground, rev the engine, and monitor voltage: a healthy unit maintains 13.8–14.5V at 3,000 RPM. Voltages outside this range indicate regulator failure or excessive resistance in the ground path, typically caused by corroded frame grounds (clean with 80-grit sandpaper and contact enhancer).

Understanding Wire Color Codes for Your High-Performance Sport Bike

Start troubleshooting electrical issues by identifying the black/white stripe lead–this is your primary ground return for most circuits. On this model, it connects directly to the frame near the battery tray, ensuring a stable reference point for voltage measurements. Verify continuity here first before probing other wires, as a poor ground can mimic failures in unrelated systems.

The red cable delivers unregulated +12V from the battery to the main fuse, acting as the backbone for power distribution. Trace this line to confirm no corrosion exists at the fuse holder or connectors, as voltage drops here will affect fuel injection, lighting, and ignition. A multimeter reading below 12.4V at the fuse indicates parasitic draw or battery degradation.

Locate the blue/white stripe wire–this carries switched ignition input to the ECU and fuel pump relay. When the key turns to “ON,” expect 12V here; absence suggests a faulty ignition switch or blown fuse (typically a 10A in the main harness). Test this with the key in both “ON” and “OFF” positions to isolate switch wear versus relay issues.

Sensor and Actuator Signal Wires

The green/yellow stripe line links the throttle position sensor (TPS) to the engine control module. This signal should sweep smoothly from ~0.5V (closed throttle) to ~4.5V (wide open). Clean the TPS connector with contact cleaner if readings plateau or jump erratically–corrosion here causes hesitation or stalling.

A yellow/black stripe wire connects the crankshaft position sensor, pulsing AC voltage when the engine spins. Healthy signal amplitude ranges 1-3V AC at idle; below 0.5V indicates sensor gap adjustment or magnet wear. Compare readings at 2,000 RPM to baseline specs to distinguish sensor failure from wiring faults.

The white/red stripe lead supplies +12V to the fuel injectors via the fuel pump relay. Triggered by the ECU at startup, this wire should show battery voltage only when the engine cranks. If voltage persists with the key “OFF,” suspect a stuck relay or short to power, risking fuel pump burnout.

Lighting and Ancillary Circuits

For headlight diagnostics, focus on the gray wire–this powers the low-beam filament. A 7.5A fuse protects it; frequent blows suggest filament-to-ground shorts. Swap bulbs if the new fuse blows immediately, as aged filaments often weld themselves to the socket housing.

The brown/white stripe line controls the turn signal flasher unit, toggling 12V between left and right outputs. If turn signals flash rapidly or not at all, test this wire for 12V during activation. A missing signal here directs attention to the flasher relay or stalk switch rather than bulb issues.
