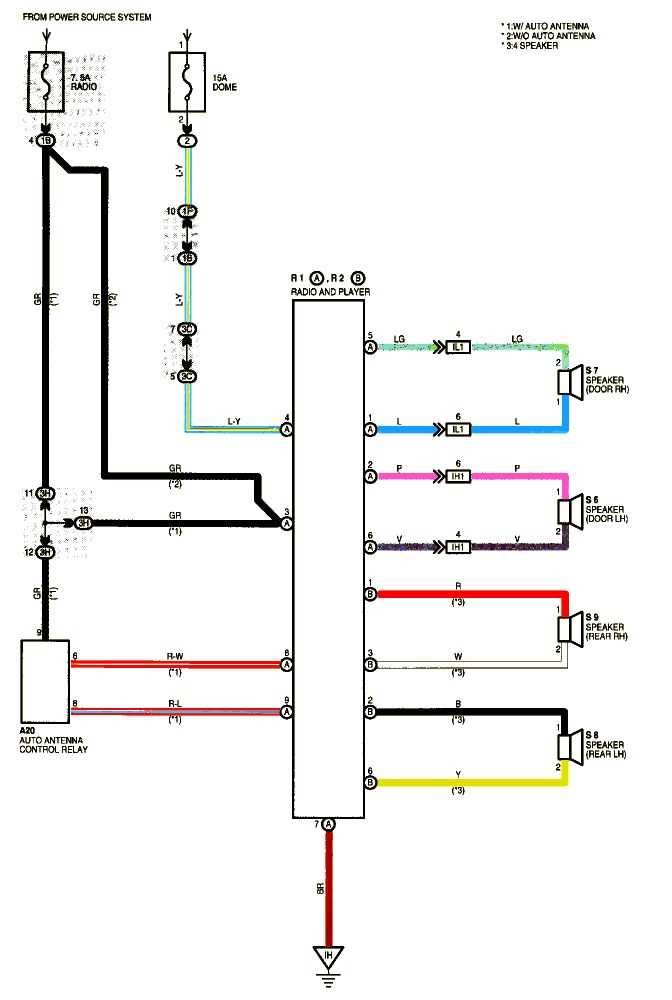

Complete 2003 Toyota Tacoma Radio Wiring Diagram and Color Codes Guide

Begin by locating the main harness connector behind the dashboard on the driver’s side–it’s a 20-pin rectangular plug with color-coded wires. The light green and dark green leads are your constant 12V and ground, respectively, while the brown wire delivers switched power when the ignition is turned to ACC. Mistakes here cause silent speakers or a dead display, so verify continuity with a multimeter before proceeding.

For aftermarket amplifiers or subwoofers, tap into the gray/black speaker output wires–front right and left–and avoid the stock pink illumination wire, as it only controls the radio’s dimming function. If you’re splicing in a new unit, use crimp connectors or solder joints with heat shrink tubing to prevent corrosion. Never rely on twist-and-tape methods; exposed copper oxidizes within months, leading to intermittent static or complete signal loss.

If the factory security feature engages–flashing dash lights and no power–disconnect the vehicle’s battery for 30 seconds to reset the anti-theft module. Reattaching without this step risks frying the new head unit. Always cross-reference the pinout sequence with a verified repair manual; even seemingly identical plugs can reverse polarity on specific runs, frying circuits in under 10 seconds.

For rear-seat entertainment or auxiliary inputs, identify the purple and violet lines–these carry left and right audio from the CD changer port. If bypassing the stock changer, terminate both wires with RCA jacks or a 3.5mm adapter, but ensure the head unit’s settings toggle from “CD” to “AUX” mode. Failure to do so leaves audio bleeding between sources, creating an unintelligible mix.

Test each connection with the ignition off, then on, and finally with the engine running. Voltage fluctuations during cranking can drop below 9V, causing navigation systems or touchscreens to reboot mid-use. If dimming persists, check the alternator’s output–older models often overcharge, which manifests as flickering screens or blown fuses, typically 10A in the interior fuse box.

Electrical Harness Guide for Pickup Audio System Integration

Locate the 12-pin connector behind the factory head unit; pins 1 (red), 2 (black), and 3 (yellow) supply constant 12V, chassis ground, and ignition-switched power, respectively. Match these leads to the aftermarket harness using a multimeter–verify continuity before connecting to avoid damaging the amplifier or memory settings.

Pinout Verification Steps

Examine the remaining connections: pins 4–6 (blue/white, green, blue) handle amplifier turn-on, rear left speaker (+), and rear right speaker (+); pins 7–9 (violet, grey, light green) manage rear left speaker (–), rear right speaker (–), and front right speaker (+); pins 10–12 (purple, white, brown) correspond to front left speaker (+), front right speaker (–), and illumination dimming. Secure each wire with heat-shrink tubing to prevent short circuits–errant contacts can trip the vehicle’s fuse box or corrupt ECU data. For OEM steering controls, splice the light blue wire (pin 1 on the 8-pin accessory plug) into the aftermarket interface module, ensuring signal compatibility with resistive-circuit buttons.

Finding the Original Audio System Connector Behind the Instrument Panel

Disconnect the negative terminal from the battery before touching any connectors to prevent short circuits or system resets. The factory audio harness on this pickup model is situated directly behind the climate control cluster, secured by a plastic snap-in bracket. Remove the two Phillips-head screws on the lower trim panel beneath the steering column, then pull the panel downward to expose the mounting bolts for the center dashboard section–these bolts are 10mm and require a deep socket due to limited clearance.

Connector Pinout for Quick Identification

Color Code	Function	Wire Gauge	Connector Type
Light Green/Black	Front Left Speaker (+)	18 AWG	Female spade
Dark Blue/Yellow	Rear Right Speaker (+)	16 AWG	Male spade
Brown/White	Illumination (12V)	20 AWG	Pin
Pink/Black	Ignition Switched Power	18 AWG	Pin

Gently wiggle the harness free from the bracket–avoid prying with tools to prevent damaging the plastic guides. If resistance is felt, check for hidden screws or clips near the fuse box cover, which may hold the harness in place. Tape unused wires immediately after disconnecting to prevent accidental grounding.

Identifying Wire Colors and Corresponding Speaker Outputs

Start by locating the harness connector behind the audio head unit–the factory color-coding follows a predictable pattern. Front left speaker (+) uses a light green wire, while its (-) counterpart is dark green with a white stripe. For the front right, the positive lead is gray, and the negative is gray with a black stripe. Rear outputs diverge slightly: left rear (+) is purple, with (-) as purple/black stripe; right rear (+) taps into light blue, paired with a light blue/white stripe for the return.

Ground connections are non-negotiable–verify the black wire terminates at chassis metal, stripped of paint and secured with a star washer. Power feeds split into two: the yellow constant 12V (memory retention) and red switched 12V (key-on access). Swap these at your own risk; reversed polarity bricks integrated amplifiers or erases preset stations. Add an inline fuse (10A) if extending leads beyond 18 inches to prevent fire hazards.

Troubleshooting Mismatched Colors

• Use a multimeter set to 200Ω to confirm speaker impedance–4Ω indicates a valid circuit.
• If colors deviate, trace wires back to the first splice or bundle–aftermarket adapters often repurpose factory harnesses.
• Left/right polarity reversal flips stereo imaging; swap leads if vocals sound anchored to one side.

Subwoofer outputs, if present, typically hijack the rear left/right (-) wires, combining them into a single brown or dark blue lead. Confirm with a tone generator–white noise at 100Hz should emanate from the sub, not door speakers. For amplified systems, dedicate an orange/white wire (illumination control) to dim nighttime displays; omitting this causes glare.

Anti-theft systems may use a pink or violet wire as a security trigger–disconnecting it without bypassing renders the unit inoperable. Check the manual for a detachable faceplate; some models require a green/black wire (ground when removed) to mute audio. If static persists, strip ¼” of insulation from speaker wires, twist copper strands tightly, and solder before crimping connectors.

Quick Reference for Aftermarket Integration

1. Match wire gauge: 18AWG for front/rear, 16AWG for subwoofers.
2. Heat-shrink tubing prevents short circuits–apply before soldering.
3. Label every wire with masking tape during testing; transposition errors are costly.
4. For premium sound, upgrade RCA interconnects to oxygen-free copper (OFC) before touching speaker wires.

Factory harnesses sometimes include a tan wire (speed sensor input)–repurposing this for auxiliary inputs requires a voltage divider to avoid damaging the amp. Always test with a 1kHz sine wave at low volume; distortion at this stage indicates poor grounds or impedance mismatches. Keep a wiring schematic printed and plastic-laminated in the glove box for future repairs.

Installing Factory-Matched Audio Interface Without Splicing Original Harness

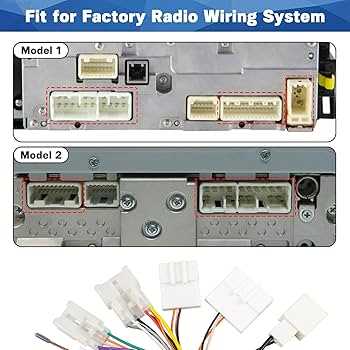

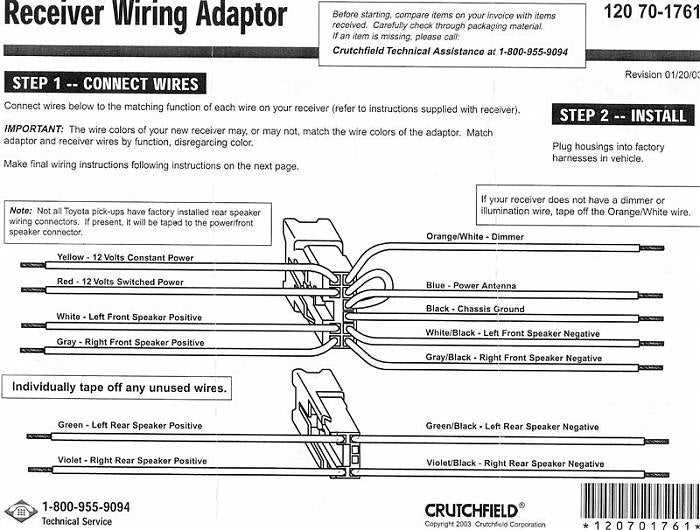

Acquire a pre-wired adapter harness matching the vehicle’s OEM connector pinout. For this specific pickup’s sound system, Metra 70-8114 or Scosche TA03B interfaces provide direct plug-in compatibility without soldering. Verify the harness includes color-coded leads for constant 12V (yellow), ignition-switched 12V (red), ground (black), speaker outputs (grey/white, grey, purple/white, purple, green/white, green, brown/white, brown), and illumination dimmer (orange).

Identify the OEM connector behind the dashboard cavity–typically a 14-pin rectangular plug with a single-row layout. Confirm pin assignments using a multimeter: probe each terminal while cycling the ignition and headlight switch to detect voltage fluctuations on the dimmer wire (expect ~0-12V). Label wires with masking tape to prevent misrouting during connection.

Match the aftermarket head unit’s harness to the adapter using crimp connectors–avoid solder for temporary flexibility. Secure each joint with heat-shrink tubing to prevent corrosion. For speaker wires, preserve polarity by pairing solid colors (positive) with striped mates (negative). Dedicated circuits like memory keep-alive (yellow) and antenna trigger (blue/white) must link directly to maintain factory functions.

Ground the adapter harness to a bare metal chassis point near the mounting location. Scrape paint and rust from attachment surfaces to ensure conductivity. Use a star washer between the ring terminal and vehicle frame to prevent loosening from vibration. Avoid grounding through bolt threads, as this can create intermittent faults.

Test the setup before final installation:

• Engage ignition–head unit should power on.
• Toggle headlights–display brightness should adjust.
• Verify all speakers produce sound without distortion by playing a balanced audio source (e.g., pink noise track).
• Check antenna functionality with a strong FM signal.

Route excess wiring away from moving components (steering column, heater controls) and secure with zip ties. Bundle wires in a spiral wrap for a factory-like appearance. Use foam-backed retaining clips to prevent rattles against metal dash supports. If the OEM harness includes chimes or vehicle data links, ensure no interference with the new connections by monitoring warning systems during test drives.

For vehicles equipped with rear seat audio controls or steering wheel interfaces, integrate a PAC RP4-TY11 adapter. This device translates OEM button signals into analog voltage pulses readable by aftermarket stereos. Connect its output to the head unit’s remote turn-on lead (typically blue) and ground wire, then program functions via the unit’s setup menu.

Document all connections in a sketch or photo for future reference. Store the OEM plug in a labeled bag inside the glovebox–preserving factory wiring allows seamless reversion if needed. Periodically inspect crimp joints for oxidation, especially in humid climates, and re-secure any loosened terminals.
