Complete Wiring Diagram Guide for 2004 Arctic Cat 400 ATV Electrical System

Start by locating the main harness connections under the seat–these include power distribution, ignition, and sensor feeds. The 12V ignition relay often fails; check resistance across terminals 85 and 86 (should read 50–150 ohms). If values exceed, replace the relay or trace corroded contacts back to the battery terminal.

Color-coded wires simplify troubleshooting: red delivers 12V constant, yellow activates ignition-switched circuits, green grounds components. A break between the starter solenoid (black/white) and engine control module disrupts cranking–test continuity with a multimeter set to 200 ohms.

For lighting systems, the headlight circuit (blue) shares a fuse with the taillight (brown). Blown fuses indicate shorted bulbs or chafed wires near the front rack; peel back protective loom sleeves to inspect. Regulator-rectifier failures cause erratic voltage–probe DC output at connector C1 (pins 1–3: ~13.8V loaded).

Oxygen sensor wires (white/green) require shielded pairing to prevent EM interference. Apply dielectric grease to connectors after cleaning oxidation with contact cleaner. Download factory schematics as PDF–search by chassis VIN prefix (440) to confirm pinouts.

ATV Electrical Schematic Reference for 2003–2005 Models

Begin by locating the main harness connector near the battery–its 12-pin plug carries critical circuits. Pin 1 handles ignition power, delivering 12V when the key is on; verify continuity using a multimeter. Pins 4 and 5 control the starter solenoid; corrosion here often causes no-crank issues. Replace the connector if terminals show green oxidation.

Check the CDI box connections for spark delivery. The black/yellow wire (pin A) links to the pickup coil, generating 1–5V AC at 1,000 RPM. Pin D (white/red) connects to the ignition coil primary, pulsing 200V transient; probe with an oscilloscope for clean waveforms. If spark fails, swap the CDI with a known-good unit before diagnosing deeper.

Component	Wire Color	Test Voltage (Key ON)	Failure Symptom
Alternator (Stator)	Yellow (3 wires)	13.5–14.8V AC	Dim lights, erratic idle
Regulator/Rectifier	Red (input), Black/White (ground)	12.6–14.2V DC	Burnt smell, overcharging
Fuel Injector	Pink/Black	12V pulse (verify with noid light)	Hesitation, misfire
TPS Sensor	Brown/White	0.5–4.5V (varies with throttle)	Poor acceleration, stalling

Solenoid and Ground Faults

Ground paths cover three primary points: engine block, frame rail near the battery, and the ECU mounting plate. Resistance between any ground and the negative battery post should read under 0.5 ohms. A loose frame ground often mimics fuel injector failure–inspect mounting bolts for paint interference. The starter solenoid’s small trigger wire (blue) requires 8+ volts to engage; voltages below 7V suggest a weak battery or parasitic drain.

For turn signal irregularities, examine the flasher relay’s 5-pin plug. Pins 1/3 receive 12V constant, while 2 controls left circuits (green) and 4 manages right (blue). Rapid flashing indicates a bulb failure or short–replace bulbs first, then test relay resistance (60–80 ohms across pins 1/3). Blown fuses in the auxiliary panel often trace back to worn spark plug boots; check continuity between the boot and plug wire.

Finding Key Electrical Harness Link Points

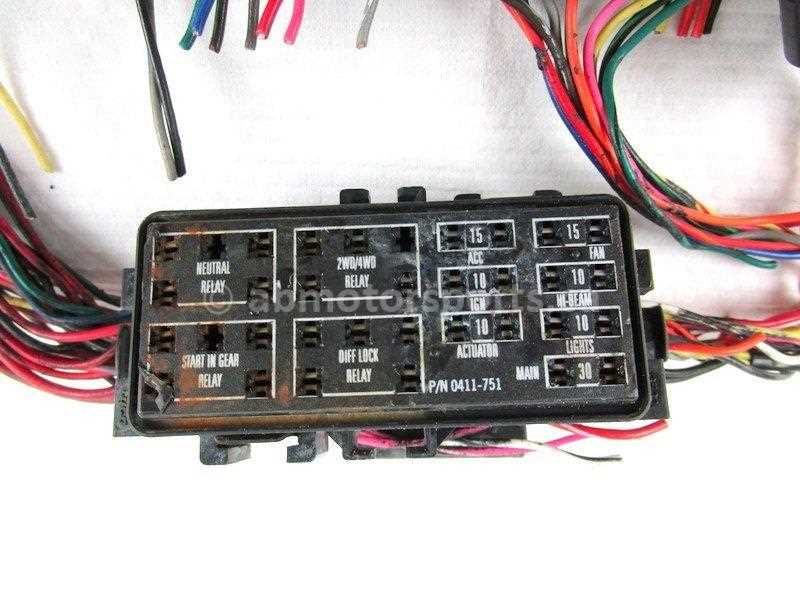

Start beneath the seat: the primary junction block hides behind the storage compartment on the left frame rail. Label each connector before disassembly–plastic clips often break when prying apart aged connections. Use a multimeter to verify continuity on pins numbered per the service manual (typically 1-6 for ignition, 7-12 for lighting circuits).

Trace the harness forward along the steering column–look for a tight-bundled cluster near the headlight switch. The throttle position sensor wires (orange stripe/green) split here; follow them downward to the engine-side connector, secured by a single 10mm bolt. Check for corrosion at the mounting point, especially if starting issues occur.

Inspect the rear section where the harness meets the taillight assembly. Two 8-pin connectors handle brake and running lights–press firmly until audible click confirms full engagement. If flickering persists, bypass with jumper wires to isolate faulty terminals.

Identifying Ignition Switch Circuit Wire Coding

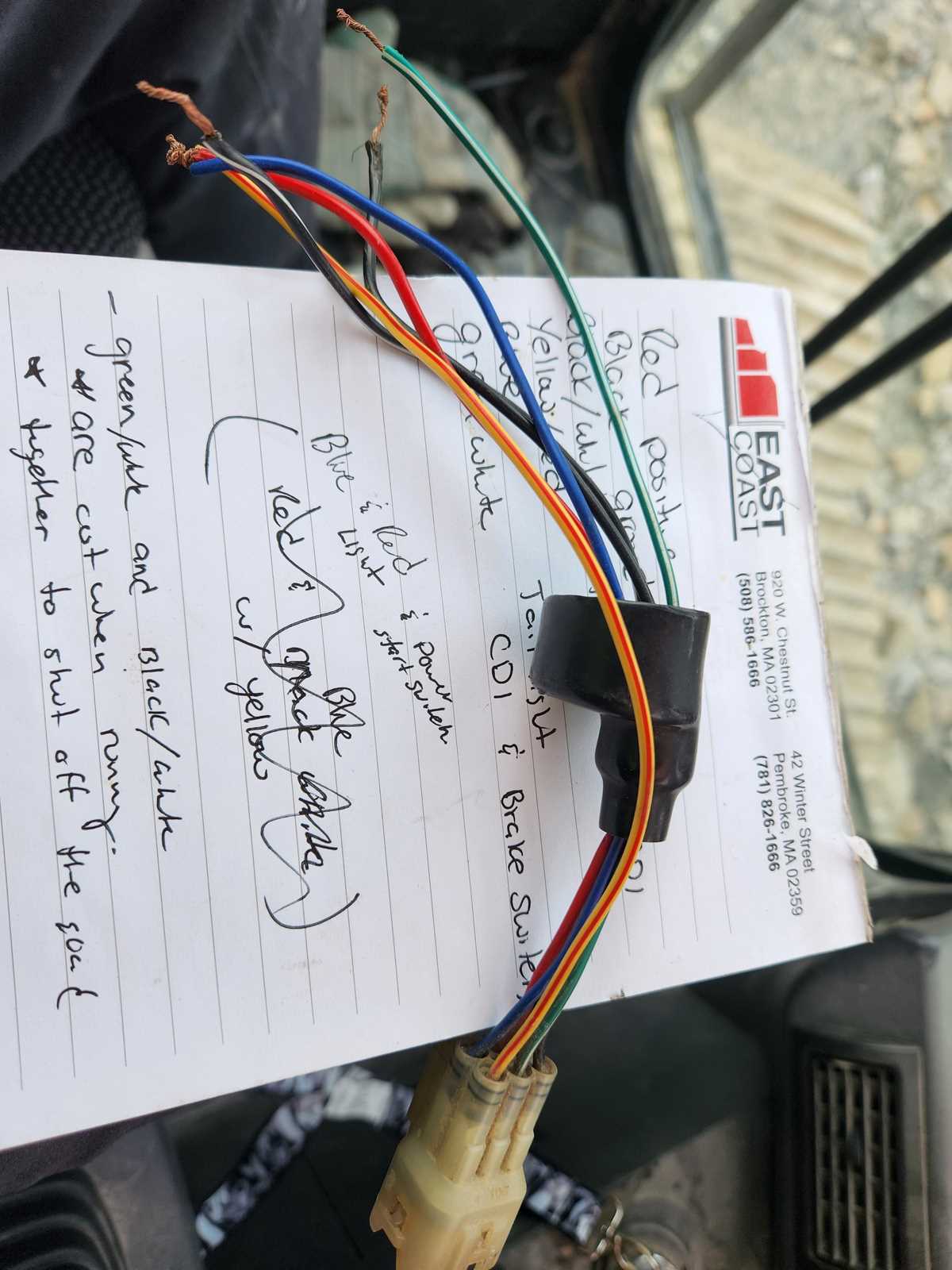

Locate the 5-pin connector behind the ignition barrel; the pins are labeled A through E. Pin A (black) is the ground return, Pin B (red) delivers 12 V from the battery when the key is turned to “ON,” Pin C (yellow) carries the start solenoid trigger pulse, Pin D (green) is the accessory feed, and Pin E (purple) supplies power to the ignition coil and fuel pump relay when the engine is cranking or running.

Test each conductor with a multimeter while cycling the key:

• Red wire: 12.6 V steady in “ON” or “START” positions, 0 V in “OFF.”
• Yellow wire: 12 V only during cranking, 0 V otherwise.
• Green wire: 12 V only in “ACC” or “ON,” 0 V in “START” or “OFF.”
• Purple wire: 12 V in “ON” and “START,” 0 V in “ACC” or “OFF.”

Quick Cross-Check

Clip a fused jumper between the red and purple wires; if the coil and pump activate without cranking, the ignition cylinder switch is faulty. Never bridge the red and yellow wires–this energizes the starter motor directly.

Mapping the Stator and Charging System Circuits

Begin by locating the stator’s three yellow output wires at the engine’s alternator cover–these carry AC voltage before conversion. Follow them to the regulator/rectifier unit, typically mounted near the battery or under the seat, where the harness enters a 4-pin connector. Verify continuity between each stator wire and its corresponding terminal on the device using a multimeter; resistance should read between 0.2–0.5 ohms for healthy windings. If readings exceed 1 ohm, inspect for corroded terminals or frayed insulation along the path.

The regulator/rectifier’s DC output (red wire) splits into two paths: one feeds the battery directly via a fuse, while the second branches to the ignition switch. Trace the red wire from the device to the main fuse block–often a 30A fuse–then to the battery’s positive terminal. Check for voltage drop under load (engine running); a drop below 13.5V indicates a failing rectifier or poor ground connection. The ground wire (black or green) must terminate to the frame or engine block with zero resistance; clean the mounting point if corrosion is present.

Test the stator’s unloaded output by disconnecting its connector and measuring AC voltage between pairs of yellow wires at 3,000 RPM–expect 35–50V AC per coil. If voltage is low, rotate the flywheel manually while observing for magnetic interference or debris obstructing the stator. Replace the stator if readings are inconsistent or below 25V AC, as weak coils cause chronic battery drain. For the rectifier, use a diode test function on your multimeter; reading should show low resistance in one direction and infinite in the reverse.

Identify the charging system’s sensor wire (usually white with a stripe) that links the regulator to the ECU. This wire provides voltage feedback to regulate output–if damaged, the system may overcharge. Probe the wire at the ECU connector while the engine runs; voltage should match the battery’s (14.2–14.8V). A deviation signals a faulty regulator or ECU relay. Ensure the wire’s insulation is intact, as chafing against metal parts causes intermittent failures.

Inspect the connector plugs for melted plastic or bent pins–common failure points. Apply dielectric grease to prevent moisture ingress, and secure the harness away from moving parts or exhaust components. Replace any connectors showing heat damage, as poor contact increases resistance and reduces charging efficiency. For persistent issues, isolate the problem by swapping the rectifier with a known-good unit before condemning the stator or battery.

Understanding the CDI Unit Pinout and Wire Functions

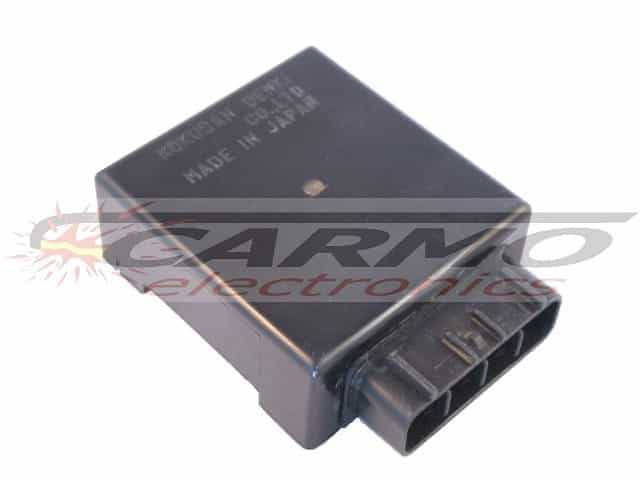

Locate the CDI module near the engine’s ignition coil–it’s typically a small rectangular box with multiple terminals. The pinout for most ATV systems follows a standard pattern: black-white (ground), blue (ignition pulse), green (sensor ground), yellow (charging coil), and red-white (power). Verify these colors against your specific model’s service manual, as variations exist even within similar engine layouts.

Ground wires (black-white) must connect directly to the chassis or engine block–never splice them into other circuits. A poor ground causes erratic firing, misfires, or complete ignition failure. Use a multimeter to test continuity between the ground terminal and the battery’s negative post; resistance should be under 0.5 ohms.

The blue ignition pulse wire carries the signal from the stator to the CDI, triggering spark at the correct moment. If this wire is damaged or improperly connected, the engine may run roughly or fail to start. Probe this wire while cranking the engine; it should show a brief voltage spike (typically 5–12V AC) with each rotation.

Green wires serve as sensor grounds, isolating signal circuits from power circuits to reduce interference. Make sure these remain separate from power grounds–mixing them can introduce noise, causing false triggers or sensor errors. If the engine stumbles at high RPMs, inspect the green wire’s connection first.

The yellow charging coil wire provides AC power to the CDI, often generating 50–150V AC at idle. Low voltage here results in weak sparks or no spark at all. Test this wire with the engine running; if readings drop below 30V AC, check the stator’s resistance (usually 0.2–1.0 ohms between yellow and green wires).

Red-white wires deliver battery voltage (12V DC) to the CDI, ensuring consistent power for ignition timing. If this wire is loose or corroded, the system may cut out under load. Confirm voltage with the ignition on–it should match battery voltage (12.5–14.5V). A drop below 11V indicates a bad connection or failing charging system.

If the engine backfires or runs on after shutdown, inspect the CDI’s kill switch circuit (often black or black-yellow). This wire grounds the ignition signal when activated, immediately stopping spark. A faulty kill switch or broken wire can leave the system partially energized, leading to irregular shutdowns or unintended starts.

For intermittent issues, swap the CDI with a known-good unit before tearing into wiring. Many problems are internal, such as failed capacitors or corroded solder joints. If the replacement resolves the issue, replace the original CDI–never attempt DIY repairs, as improper reassembly can cause catastrophic failure or safety hazards.
