Ford F350 2004 Radio Wire Colors and Connection Guide for DIY Installation

Locate the aftermarket stereo harness adapter labeled Metra 70-1771 for seamless integration without cutting factory cables. Match wire colors precisely: the light blue/yellow stripe supplies constant 12V memory retention, while dark green/violet stripe carries amplified audio signals to rear speakers. Avoid guessing–cross-reference with a vehicle-specific pinout chart before soldering connections.

Identify the radio chassis grounding point beneath the dashboard–use a 14-gauge twisted wire for the black lead instead of relying on factory screws. Install an inline fuse (15A) within 10 inches of the battery on the positive wire (yellow) to prevent electrical hazards. Remove the OEM amplifier behind the glove compartment if upgrading to a high-output head unit; bypassing it requires connecting the four speaker wires directly to the new stereo.

Test continuity with a multimeter before reassembling the dash–resistance values should measure 4Ω (±10%) for stock speakers. Replace blown fuses under the hood (blade-style, 20A max) if the display fails to illuminate. Use heat-shrink tubing on spliced wires instead of electrical tape for long-term durability.

Guide to Electrical Connections for Factory Sound System Upgrades

Locate the vehicle’s harness behind the dashboard cluster–color-coded leads simplify splicing without cutting original wires. The 12-pin connector includes:

• Yellow (B+) – 12V constant for memory retention.
• Red (ACC) – Switched power from ignition.
• Black (Ground) – Secure to chassis or factory bolt nearby.
• Dark green/violet (Front speakers) – Positive/negative polarity.
• Gray/white (Rear speakers) – Same polarity rules apply.
• Blue/white (Antenna remote) – Activates external tuner.

Use a multimeter to verify voltage before connecting aftermarket units–ghost currents in unused circuits often exceed 10V, risking component damage.

Troubleshooting Common Installation Issues

Static or no sound? Check fuse #25 (15A) beneath the instrument panel–corrosion here mimics wiring faults. If speakers distort:

1. Disconnect battery terminal for 5+ minutes to reset digital amplifiers.
2. Inspect speaker terminals for stray strands bridging +/– connections.
3. Swap left/right channels–if distortion follows, the issue originates from the receiver’s output stage.

Amplifier hum typically stems from ground loops; isolate chassis grounds by 6+ inches or use a noise suppressor inline with RCA cables.

Factory mute circuits rely on pin #8’s orange/black wire–connecting directly to accessories without a relay can trigger false securilock alerts. Bypass by splicing into a switched 12V source instead. For steering wheel controls, proprietary adapters (Ford-specific) decode resistance values sent by the stalk; generic solutions often misread commands.

Harness adapters marketed for “plug-and-play” compatibility frequently omit the brown/white illumination lead–this deactivates dash backlighting when aftermarket displays are installed. Solder and heat-shrink this wire directly to the new unit’s dimmer input to maintain factory appearance.

Finding the OEM Audio System Plug-in Connector

Begin by removing the trim panel directly beneath the climate controls or media interface. Use a trim removal tool–preferably plastic–to avoid scratching the dashboard surfaces. The panel secures with hidden clips positioned at 3, 7, and 10 o’clock if viewing the dash as a clock face. Work methodically; forcing the panel risks snapping retention tabs. Once detached, set the panel aside without disconnecting attached cables.

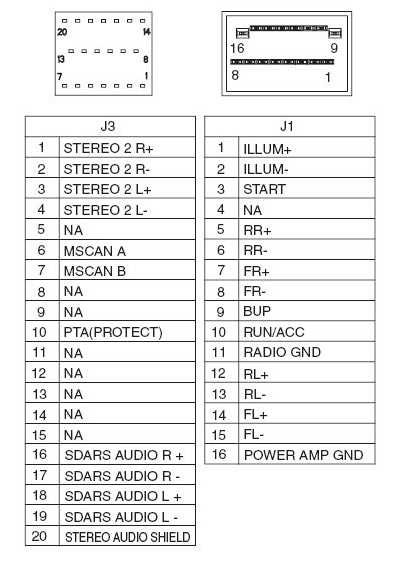

The harness plug typically resides behind the lower dash bezel, slightly left of center. Locate a rectangular, 16-pin connector with two locking tabs–one on each side–colored black, gray, or beige. Confirm the correct port by matching the pin count and shape from the vehicle’s service manual (reference section 415-01). Avoid tampering with nearby single-wire terminals or small auxiliary plugs; these belong to HVAC actuators.

If the plug remains elusive, follow these steps:

• Disconnect the negative battery terminal first to prevent short circuits.
• Trace wires from the rear of the head unit downward; they converge into the primary harness bundle.
• Inspect for zip ties securing wires to the steel dash frame–cut these carefully if obstructing access.
• Check behind the glove compartment release lever; manufacturers often route cabling here due to available space.

Color-coding simplifies identification. Standard factory connections include:

1. Solid yellow: constant 12V power
2. Red with black stripe: switched power
3. Purple with white stripe: right rear speaker (positive)
4. Gray: left front speaker (positive)
5. Brown with yellow stripe: illumination/dash lights
6. Dark green with orange stripe: antenna trigger

Variations exist for luxury packages–verify with a multimeter before splicing. Probe each terminal with the ignition in accessory mode, ensuring no parasitic draws exceed 50 milliamps.

Custom aftermarket adapters (e.g., Metra 70-1773 or Axxess AX-FD84) streamline installation but may require additional grounding. If using such adapters, align the adapter’s 16-pin male end with the vehicle’s female port. Secure connections with dielectric grease to prevent corrosion, especially in humid climates. Reinstall the trim panel only after confirming all signal paths via a test tone sequence.

For vehicles equipped with premium audio (e.g., Sony or Shaker), an amplifier harness hides beneath the rear seat or behind the center console extension. Remove the rear seat bottom cushion by pulling upward from the front edge–no bolts hold it in place. The amplifier typically sits adjacent to the fuel pump control module; its harness includes thicker gauge wires (14-16 AWG) compared to standard speaker leads (18-22 AWG).

Identifying Wire Colors and Their Corresponding Functions

Begin by locating the harness behind the entertainment system’s mounting bracket–yellow (constant 12V) and red (switched 12V) leads supply power regardless of ignition state, but red requires the key in the ACC or ON position to activate. Black serves as ground; ensure it connects directly to chassis metal with a resistance under 0.5 ohms. Illumination circuits (orange with a white stripe) adjust display brightness in sync with exterior lights, while the light green antenna trigger boosts signal strength when the system powers on. Pink (left rear speaker +) and purple (right rear speaker +) must pair with their brown and dark blue (+) counterparts at the amplifier if equipped; swap polarity risks phase cancellation at low frequencies.

Color	Function	Voltage/Resistance	Testing Method
Green/Yellow	Vehicle speed signal	0-5V pulse	Backprobe with oscilloscope at 2ms/div while rolling
Gray/Red	Mute control	Ground to mute	Multimeter continuity test when parking brake engaged
White/Black stripe	Front left speaker (-)	4-6 ohms	1kHz sine wave at 1V RMS, verify 180° phase shift from (+) lead

Step-by-Step Guide to Installing a New Audio Head Unit

Disconnect the vehicle’s battery before handling any electrical connections to prevent short circuits or damage to the new equipment. Locate the negative terminal–typically marked with a minus symbol–and remove the clamp using an 8mm or 10mm wrench, depending on the truck’s configuration.

Remove the factory dashboard panel by prying it loose with a plastic trim tool. Start at the bottom corners, work upward, and detach any clips securing it. Set the panel aside in a safe location to avoid scratching or cracking the plastic.

Identify the existing harness behind the stock system. Match the color codes of the wires to the new unit’s adapter harness, which simplifies integration. Use a multimeter to confirm voltage on the constant power (yellow), ignition-switched power (red), and ground (black) leads before making final connections.

Connect the new harness by splicing or using crimp connectors, ensuring each joint is secure. Twist exposed wires, apply solder if available for longevity, then insulate with electrical tape or heat-shrink tubing. Avoid relying solely on friction connectors, as vibrations can loosen them over time.

Mount the aftermarket device into the dashboard using the provided cage or adaptor kit. Secure it firmly to prevent movement while driving. Reconnect the battery and test the system for power, illumination, and audio output before reassembling the trim panel.

Adjust the antenna lead to the new unit, which may require an adapter if the factory setup uses a motorized or amplified system. Check AM/FM reception before finalizing the installation, as poor signal strength often indicates a loose or incorrect connection.

Reinstall the dashboard trim, pressing firmly until all clips snap into place. Power on the vehicle and verify all functions–volume, station presets, auxiliary inputs, and steering wheel controls if retained. Troubleshoot any issues immediately by rechecking connections before reassembly is complete.

Resolving Electrical Faults in the Heavy-Duty Pickup Audio System

Start by verifying the fuse corresponding to the entertainment module–locate slot 28 in the central power distribution box under the dash. A blown fuse often mimics speaker failure or intermittent power loss, yet testing with a multimeter confirms continuity without assumptions. If intact, probe the ignition-switched purple wire at connector C301B, pin 12; voltage should read 12V when the key is in the RUN position. Absence here suggests a break between the ignition relay and the harness–trace backward using a wiring schematic to isolate the fault.

Ground and Speaker Circuit Checks

Inspect the ground connection at G402, typically bolted near the driver-side kick panel. Corrosion or loose mounting can disrupt audio clarity, causing static or intermittent operation. For speaker issues, unplug the door tweeter and test resistance across the gray/light-blue (LF+) and gray/light-green (LF-) wires at the amplifier connector–values should range between 3.5-4.5 ohms. Deviations indicate either a faulty speaker or damaged harness; splice into the circuit at the amplifier to rule out wiring defects before replacing components.
