Step-by-Step 2004 Jeep Grand Cherokee Radio Harness Wiring Guide
Start by locating the central integration panel behind the dashboard on the driver’s side. The connectors for the sound system are grouped into three primary clusters: power feed, speaker outputs, and antenna control. The main power connector (usually a 16-pin rectangular plug) delivers 12V constant, accessory-switched, and ground lines–verify these with a multimeter before proceeding.
For speaker wiring, identify the left-hand and right-hand pairs for front and rear channels. Each pair is color-coded: gray/light gray (front left), green/light green (front right), purple/light purple (rear left), and tan/light tan (rear right). Failure to match polarity (+ to +, – to –) will result in phase cancellation and muffled audio.
If retrofitting an aftermarket unit, splice into the existing loom at the C101 connector (behind the glovebox). Use crimp connectors or solder joints–never twist-and-tape. The illumination wire (dark blue with white stripe) must be connected to activate the display dimming function. Disconnect the battery’s negative terminal before handling any electrical components to prevent shorts or airbag deployment.
For troubleshooting, check the fuse box under the hood–look for the 15A fuse labeled “Radio”. If the system remains dead, inspect the ground point near the brake pedal; corrosion here disrupts signal flow. Retrieve the factory service manual’s Section 8W-60 for a detailed pinout–aftermarket diagrams often omit critical details like the data bus connection (orange/black wire) required for steering wheel controls.
Electrical Connector Guide for 2003-2005 SUV Audio Systems
Begin by locating the main 16-pin connector behind the factory stereo unit. Pin assignments follow a standardized color-coding system: yellow (constant 12V), red (switched power), black (ground), and orange (illumination). Verify each wire with a multimeter before splicing to prevent electrical shorts.
The aftermarket integration often requires an adapter harness matching the vehicle’s OEM layout. For instance, Metra 70-1768 or Scosche SU03B interfaces directly with the stock wiring without cutting. Avoid universal harnesses lacking labeled connectors–mismatched pins cause dashboard warning lights or blown fuses.

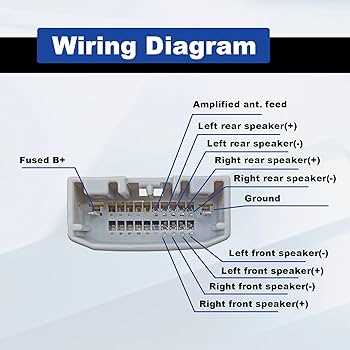

Connector Pinout Reference
| Pin Number | Wire Color | Function | Voltage (Key On) |
|---|---|---|---|
| 1 | Yellow | Battery + | 12V |
| 3 | Red | Ignition + | 12V |
| 4 | Black | Ground | 0V |
| 5 | Orange | Dimmer | 0-12V variable |
| 10 | Gray | Left Front Speaker + | 4V peak |
| 11 | Gray/Black | Left Front Speaker – | 4V peak |
For vehicles equipped with a factory amplifier, additional wiring exists behind the kick panel. Gray (data bus) and tan (speed sensor) wires must remain intact–disconnecting them triggers antitheft errors. If bypassing the amp, splice green/violet and brown/violet to rear speaker outputs.
Resistance checks between speaker wires should read 2-4Ω. Deviations indicate damaged voice coils or incorrect polarity. Use heat-shrink tubing instead of electrical tape for splices–moisture penetration causes intermittent failures within 6-12 months.
Common Pitfalls
False ground points (e.g., painted chassis) introduce noise. Secure connections to bare metal using star washers. Antistatic precautions apply–touch the chassis before handling circuit boards to prevent ESD damage to memory presets.
Finding the OEM Audio System Plug Behind the Dashboard
Begin by removing the center console trim panel beneath the climate controls. Use a plastic pry tool to detach the clips securing the bezel–apply steady pressure at the lower edge to avoid cracking the fascia. Behind the lower left corner of the HVAC vents, you’ll find a white rectangular connector tucked behind a black plastic retaining clip. This is the main integration point for aftermarket audio upgrades.
The factory plug’s color-coded wires correspond to specific functions: constant 12V (yellow), switched (red), ground (black), front right/left speaker leads (gray and white with purple stripes), and rear channels (green and violet with stripes). Label each wire with masking tape before disconnecting–this prevents signal crossfire when testing new components.
Trace the bundle toward the firewall to locate the subwoofer output wires (brown pairs) and amplifier trigger (blue). These feeds are often overlooked during retrofits but are critical for preserving stock bass management. If the vehicle has premium sound, check for an additional inline fuse near the glovebox–this protects the amplifier’s remote turn-on circuit.

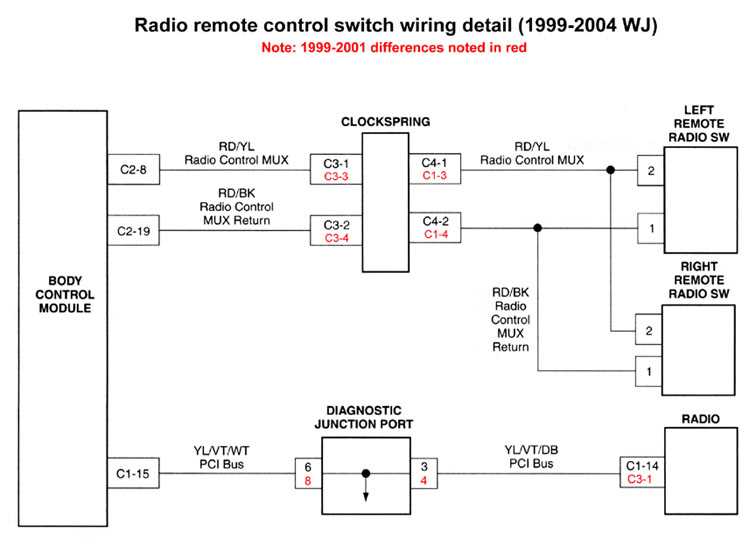

Shift the driver’s seat fully backward to access the kick panel. A secondary harness stash often holds CAN bus wires (tan/purple leads) for steering wheel controls–these require an interface module for aftermarket units. Verify pinouts with a multimeter; mismatched voltages can fry onboard electronics.
Standard Wire Color Coding and Connector Layout for Factory Audio Integration
Locate the 18-pin aftermarket connector behind the dashboard unit–match the primary power lead to the dark green/red-striped cable (constant 12V). This wire must connect to a fused 20A line for stable operation. Ground attachment requires the black/light-blue stripe; ensure direct chassis bonding with a 10-gauge ring terminal to prevent voltage drop.
- Speaker outputs:
- Front left (+): gray/black stripe
- Front left (-): gray/orange stripe
- Front right (+): violet/black stripe
- Front right (-): violet/brown stripe
- Rear left (+): white/light blue stripe
- Rear left (-): tan/yellow stripe
- Rear right (+): dark blue/orange stripe
- Rear right (-): dark green/white stripe
Accessory ignition wire (pink/white stripe) activates the head unit when the ignition switch moves to “ON” or “ACC.” Verify this connection with a multimeter–voltage should read 12V only during these positions. Incorrect tap-in here causes parasitic battery drain. For vehicles equipped with memory retention features, attach the yellow/black stripe (switched 12V) to maintain presets and clock settings.
- Disconnect the battery negative terminal before handling loom connectors to eliminate short-circuit risk.
- Use crimp splices or solder joints–never twist-and-tape for long-term reliability.
- Label each connection with heat-shrink tubing matching the original color code for future diagnostics.
- Test all speaker outputs with a 1 kHz sine wave at 1W to confirm polarity before finalizing connections.
Antenna trigger (light blue stripe) enables automatic power antenna deployment–connect to a dedicated 12V source if aftermarket equipment lacks this feature. For vehicles with factory amplified systems, preserve the dark blue/white stripe (amplifier remote turn-on) to engage external signal processing. Failure to retain this link results in muted or distorted audio output.

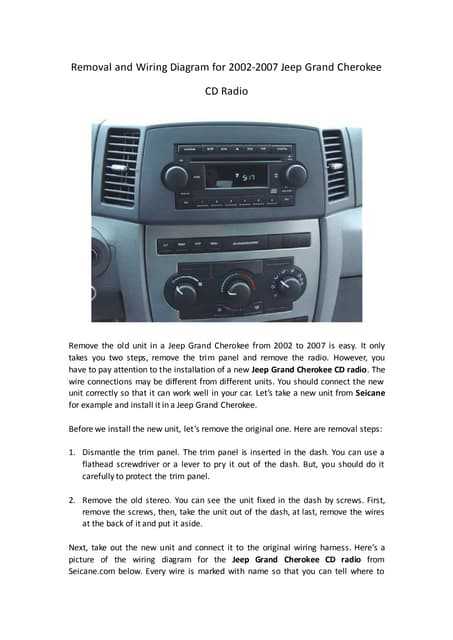

Step-by-Step Guide to Disconnecting the Factory Audio System and Reaching the Electrical Connector
Start by prying off the trim panel surrounding the stereo unit using a plastic trim removal tool. Work carefully along the edges to avoid snapping the clips–four are located on the top, three on each side, and two at the bottom. The panel’s lower section often hides a screw securing the climate controls; remove it with a T20 Torx driver.
Next, slide the dashboard bezels away from the unit. These snap-in covers conceal two screws (7mm) holding the head unit in place. Use a socket wrench to loosen them completely–partial removal risks stripping the threads. Once freed, grip the stereo firmly and pull it straight out to expose the rear electrical interface.
Identify the main connector block at the back of the system. A secondary harness (often orange) may attach to the climate controls–press the release tab before gently tugging it free. The primary plug typically locks with a single clip; depress it with a small flathead screwdriver while pulling the connector apart. Avoid yanking wires to prevent damage to the terminals.
Handling Hidden Screws and Obstructions
Check for an additional grounding screw behind the stereo’s mounting bracket. This 10mm bolt secures a thin metal strap to the chassis–remove it only if necessary, as corrosion can complicate reassembly. Some models include a support bracket spanning the unit’s width; unbolt it (12mm) if obstructing full removal.
For vehicles with factory navigation, detach the GPS antenna cable by rotating its collar counterclockwise. The coaxial connector requires precise alignment during reinstallation–mark its position with tape to avoid signal issues later. Label all disconnected plugs with numbered tape to simplify the upgrade process.
Accessing the full wiring setup may require removing the center console’s rear storage compartment. Two Phillips screws fasten its base; lift it to reveal bundled cables running to the rear speakers and amplifier. Use cable ties to organize loose wires before proceeding, ensuring none interfere with the new installation.
Reassembly follows these steps in reverse, but verify all connections before securing the trim. Test power windows and climate functions after replacing the dashboard bezels–misaligned clips can prevent proper engagement, leaving gaps. The stereo’s mounting sleeve should click audibly when pushed back into position.

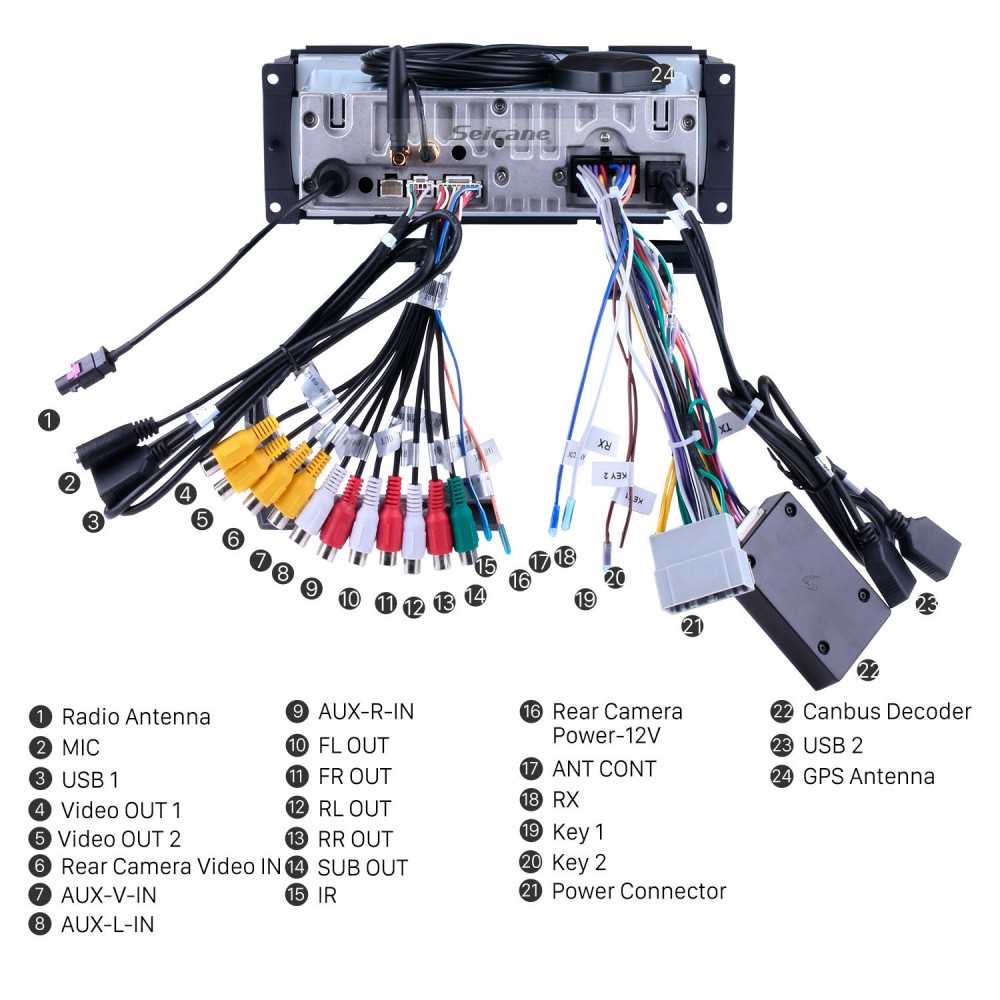

Connecting Third-Party Audio Interfaces to the WK Series SUV Electrical Layout
Select a Metra 70-1817 or Axxess AX-ADIO-04 adapter to ensure direct compatibility with the vehicle’s 10-pin OEM plug without splicing. These pre-assembled connectors align with the SUV’s factory color codes and pin assignments, reducing installation errors.
Verify the factory connector’s pinout before purchasing an aftermarket interface:
- Pin 1 (Yellow): 12V constant power (max 10A fuse)
- Pin 2 (Red): Switched ignition (hot in RUN/ACC)
- Pin 4 (Black): Chassis ground (min 16 AWG, twisted pair)
- Pin 6 (Gray/White): Left front speaker (+)
- Pin 7 (Gray/Black): Left front speaker (–)
- Pin 8 (Dark Green/White): Right front speaker (+)
- Pin 9 (Dark Green/Black): Right front speaker (–)
- Pin 10 (Purple/White): Left rear speaker (+)
- Pin 12 (Purple/Black): Left rear speaker (–)
- Pin 13 (Light Green/White): Right rear speaker (+)
- Pin 14 (Light Green/Black): Right rear speaker (–)
If the aftermarket unit includes Bluetooth or navigation, add a Scosche GMOSLIN2 or PAC RP4-CH11 retention module to maintain vehicle functions like steering wheel controls and chimes. These modules intercept CAN bus signals and convert them to analog outputs compatible with standard head units.
Match wire gauges precisely:
- Power leads (12V/ignition): 18 AWG minimum, 16 AWG recommended for high-current amplifiers
- Ground wire: 14 AWG, soldered and heat-shrunk to chassis point near original mounting location
- Speaker wires: 20 AWG for short runs, 18 AWG for rear doors exceeding 12 ft
Test continuity between the interface and factory plug using a multimeter set to ohms (Ω) before securing connections. A reading above 0.5 Ω on any speaker wire indicates corrosion or loose crimps–redress or solder immediately.
Secure the interface to the vehicle’s metal frame with a grounding clamp if the aftermarket unit lacks a dedicated ground wire. Avoid relying on painted surfaces; sand to bare metal for reliable conductivity.
Troubleshooting Common Issues
- No power: Confirm the 10A fuse is intact on the yellow lead and ignition is in ACC or RUN
- Distorted audio: Check for stray strands bridging adjacent pins in the OEM connector
- Intermittent controls: Inspect the CAN bus module’s red wire–it must be spliced into the vehicle’s ignition line, not the accessory line
- Speaker imbalance: Swap left/right channels at the interface to isolate whether the issue is in the vehicle wiring or aftermarket unit
Recommended Tools and Supplies
- Wire strippers (18–14 AWG)
- Crimp connectors (blue for 18–16 AWG, yellow for 14–12 AWG)
- Heat shrink tubing (⅜” diameter, polyolefin)
- Multimeter (auto-ranging, min 400 Ω resolution)
- Torx T20 driver (for dashboard trim removal)
- Zip ties (6″ UV-resistant)
Always route interface cables away from HVAC ducts and moving components. Secure with zip ties every 12 inches, using grommets when passing through firewalls to prevent chafing.
