Complete 2004 Mazda 3 Stereo Wiring Color Code Diagram Guide
Locate the vehicle’s factory harness directly behind the dashboard’s lower trim panel on the driver’s side. Identify the pinned connectors–typically an 8-pin white plug for power, ground, and antenna, paired with a 12-pin gray or black harness for speaker outputs. Use a multimeter set to continuity mode to verify each wire’s function before cutting or splicing.
Trace the red lead (constant 12V) to the fuse box–it should connect to fuse #24 (10A) on most variants. The yellow wire (switched 12V) runs from the ignition switch; splice it only if retaining memory settings. Ground (black) attaches to a chassis stud near the pedal assembly–ensure no corrosion exists at the connection point.
Speaker wires follow a consistent pattern: front left (+) light green, (-) dark blue; front right (+) light blue, (-) pink; rear left (+) dark green, (-) gray; rear right (+) violet, (-) black/red stripe. Confirm impedance with a resistance test–each pair should read 4 ohms ± 0.5 ohms. If values deviate, inspect door jamb connectors for frayed or shorted cables.

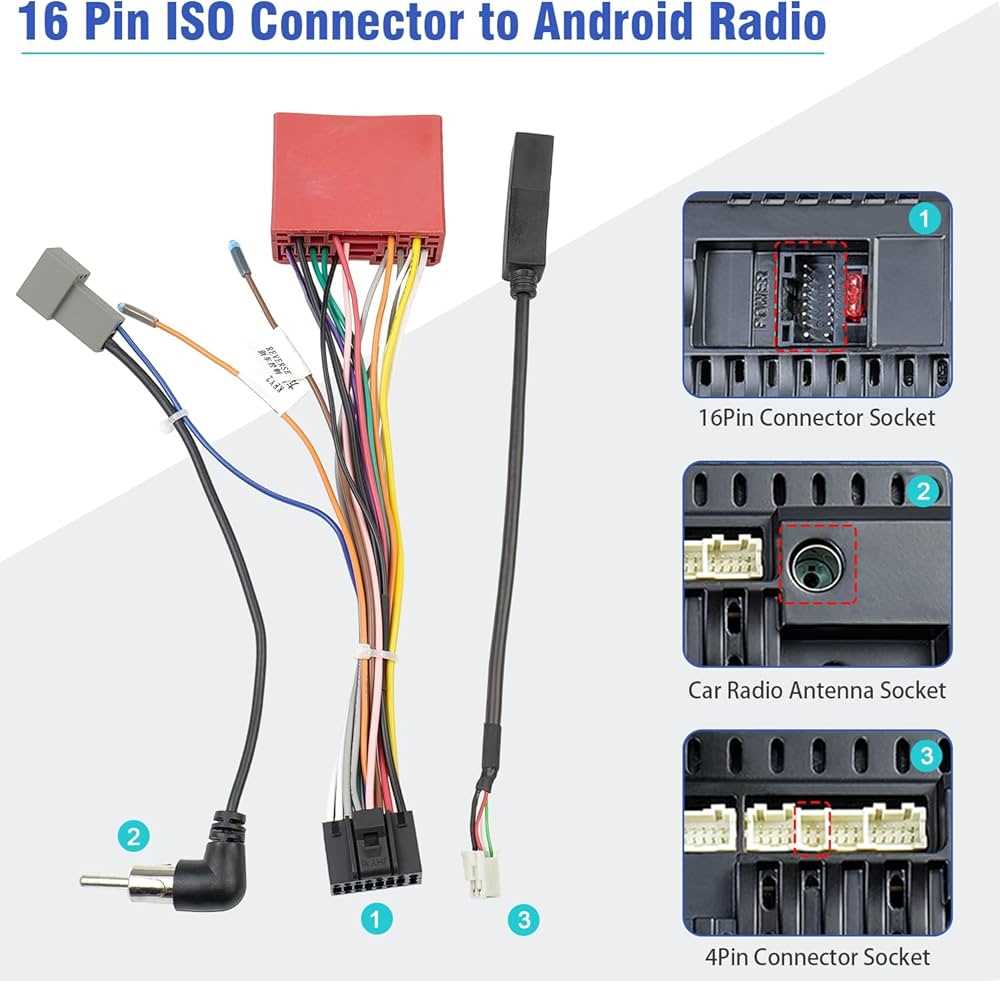

For aftermarket integration, bypass the factory amplifier by tapping into the pre-amp outputs located at pins 11-14 of the gray harness. These carry line-level signals; connect them directly to an external amplifier using RCA adapters. Avoid soldering if crimps are available–heat shrink tubing prevents moisture ingress better than electrical tape.
When retrofitting Bluetooth or USB, use the gray harness’s purple (ILL+) and white/black (ILL-) wires for illumination sync. If retaining steering wheel controls, procure a resistor-based interface module–OE modules often require a 2.2kΩ resistor across the clock (green/white) and data (blue) wires.
Guide to Aftermarket Stereo Installation for a Compact Hatchback
Locate the original harness behind the factory head unit–it’s a 20-pin connector labeled “A” (power, ground) and “B” (speaker outputs). Pin 1 (solid red) carries constant 12V; pin 4 (solid yellow) is ignition-switched 12V; pin 5 (black/yellow stripe) is chassis ground. Use a multimeter to verify each wire’s voltage before splicing; incorrect connections risk blowing the fuse or damaging the vehicle’s electrical system.
Speaker wires follow a consistent pattern: front-left positive is white with a violet stripe (pin 11), front-right positive is gray with a red stripe (pin 12), rear-left positive is green with a blue stripe (pin 14), and rear-right positive is violet with a green stripe (pin 16). Corresponding negative leads share the same base color with an additional black stripe. Crimp connectors or solder joints should be insulated with heat-shrink tubing to prevent short circuits.
For steering-wheel audio controls, the data bus wire (light green with a red stripe, pin 20) must be retained and connected to an ASWC-1 adapter or equivalent interface. Skipping this step will disable volume adjustments, track skipping, and mode selection via the multifunction stalk. If the new stereo lacks a built-in amplifier, bridge the factory amp turn-on wire (brown with a white stripe, pin 7) to the accessory wire to activate the external amp.
Test the installation with the key in “ACC” position before reassembling the dash. Check each speaker for sound clarity and balance; a distorted output usually indicates reversed polarity or a loose connection. If the display dims when headlights are on, splice the illumination wire (orange with a black stripe, pin 10) to the dash-light circuit to maintain consistent brightness.
Finding the Audio System Harness Connection in Your Vehicle
Start by removing the trim panel around the infotainment unit. It’s held by plastic clips–use a trim tool or flathead screwdriver to gently pry it loose, beginning at the bottom edge. Work your way upward to avoid breaking the clips. The panel covers the rear of the head unit, where the main connector block is located.
Once the panel is off, locate the multi-pin harness plug at the back of the stereo. It’s a rectangular, 24-pin connector in a gray or black housing, typically positioned on the left side when viewed from behind. If it’s not immediately visible, check for a secondary harness–some models include an additional 8-pin connector for amplifier control.
Trace the harness wires to confirm they lead to the vehicle’s harness, not just the stereo side. The car-side connector often has a matching 24-pin layout but may include slight variations in pin arrangement. Compare the two to ensure correct alignment before separation or testing.
Harness Pinout Reference
| Pin Number | Wire Color | Function |
|---|---|---|
| 1 | Red/Black | Constant Power (12V) |
| 3 | Yellow/Black | Illumination Control |
| 5 | White | Front Left Speaker (+) |
| 6 | White/Black | Front Left Speaker (–) |
| 9 | Gray | Front Right Speaker (+) |
| 10 | Gray/Black | Front Right Speaker (–) |
| 12 | Black | Ground |
| 14 | Blue/White | Remote Turn-On |
If the connector doesn’t detach easily, press the release tab on the top or side–it’s a small plastic lever designed to secure the plug. Avoid pulling on the wires; grip the plastic housing instead. For stability, label both sides of the connection before unplugging to assist reassembly.
Alternative Access Points
If the rear of the unit is inaccessible, check beneath the center console or behind the glovebox. Some models route the harness through these areas for integration with climate controls or auxiliary components. Look for a secondary branch–often a smaller 6- or 12-pin plug–that splits off from the main harness.
For verification, use a multimeter to test voltage on the constant power wire (pin 1) and ground (pin 12) while the ignition is off. A reading of 12V confirms correct identification. If troubleshooting speaker outputs, set the multimeter to AC voltage mode and probe the speaker pins while playing audio–distortion-free tones indicate proper connection.
Pinpointing Vehicle Audio System Connector Wire Functions for Upgraded Setups
Begin by locating the constant 12V power feed–typically a yellow or orange with a stripe lead on this model year’s harness. Verify with a multimeter; it should maintain voltage even when the ignition is off. Connect this directly to the aftermarket head unit’s corresponding power input to preserve memory settings.
Identify the switched power source, usually a red or red/yellow wire, which only energizes when the key is turned. This prevents battery drain when the system isn’t in use. Match it to the accessory power terminal on the new unit to ensure proper on/off synchronization with the vehicle’s ignition.
The ground connection is almost always a black or brown wire, often with a bare-eye copper strand visible. Secure this to a solid chassis point near the installation site–sand off paint if necessary–using a proper crimp connector, not just twisted strands, to prevent intermittent signal loss or electrical noise.
Speaker outputs follow a consistent but not universal color scheme: front left positive is light green, front right positive gray, rear left positive violet, and rear right positive white/black stripe. Negative leads mirror these with a stripe–light green/black, gray/black, etc. Confirm polarity with a 9V battery test; the speaker cone should push outward when connected correctly.
Avoid relying solely on color matching–the original harness may include solid blue (antenna power), blue/white stripe (amplifier trigger), or pink (illumination) leads. These serve auxiliary functions and should be capped if not utilized in the new setup to prevent shorts or unintended circuit activation.
For vehicles equipped with factory amplification, the speaker wires may be low-level preamp signals rather than high-power outputs. In such cases, tap into the existing amp harness or bypass it entirely by running new leads directly to the speakers, ensuring proper gauge thickness to handle increased current.
When splicing into existing wires, use solder and heat-shrink tubing rather than crimp connectors for long-term reliability. Twist strands tightly before soldering, then cover with adhesive-lined shrink tube to prevent moisture ingress, which is a common cause of gradual signal degradation.
Label every connection immediately after testing–masking tape works in a pinch, but dedicated wire markers are more legible and durable. Keep a written record of which wire corresponds to each function, including spare leads left disconnected, to simplify future troubleshooting or upgrades.
How to Safely Remove the Original Audio System Harness
Unplug the negative battery terminal first to prevent shorts or accidental airbag deployment. Use a 10mm wrench to loosen the clamp; tape the cable to the side of the battery tray to keep it clear of metal surfaces.
Locate the dash trim surrounding the head unit. Start at the lower edge near the climate controls–press firmly outward to release the clips. Work upward along both sides, then gently pull the trim away without forcing it. Store it upside down on a soft surface to avoid scratching.
Remove the four screws securing the unit–two at the top corners and two at the bottom. Use a 7mm socket or a precision screwdriver; the screws are often recessed. Set them aside in a magnetic tray or small container to prevent loss.
Pull the device straight out until the harness connectors are accessible. Squeeze the release tabs on each plug–one will be a larger rectangular connector for power and speakers, the other a smaller square for data or illumination. Avoid yanking; press the plastic latch firmly while wiggling the plug.
- Label each harness segment with masking tape: “Main”, “Illumination”, “Antenna”.
- Wrap exposed terminals with electrical tape to prevent corrosion or accidental contact.
- If keeping the factory harness, bundle it with a zip tie and tuck it behind the dash cavity.
Reconnect the battery once installation of the new system is complete. Test all speakers, lighting, and vehicle functions (odometer, warning chimes) before reassembling the dash trim. Any unresponsive gauges indicate a misconnected harness wire.
If retaining the climate controls in the aftermarket setup, ensure the small illumination plug matches the original pinout. Most adapters will include a 12V+ (typically orange), ground (black), and dimmer (gray). Cross-check with a multimeter set to DC voltage–illumination should adjust when headlights are toggled.
For persistent issues, inspect the fuse box for blown 10A or 15A fuses linked to the audio circuit. Replace with the same rating; higher amperage risks damaging the new interface.
