2004 Chevrolet Monte Carlo Stereo System Wiring Guide and Color Codes

Begin by locating the factory harness behind the head unit slot–typically positioned to the left of the climate controls. Pinout assignments for this model follow a standardized GM color-coding scheme, though variations exist between base trims and performance packages. The pink wire (accessory power) must connect to a fused 12V source, while the yellow (battery constant) requires direct routing to the vehicle’s main power lead, bypassing ignition-controlled circuits to maintain memory functions. Ground the black wire to a bare metal chassis point, ensuring a secure connection with dielectric grease to prevent corrosion.

For speaker outputs, observe the polarity marked on the harness: dark green/white (front left positive), dark green (front left negative), gray/black (front right negative), and gray/white (front right positive). Rear channels use light blue/white (rear left positive) and light blue (rear left negative), paired with violet/white (rear right positive) and violet (rear right negative). Avoid tapping into the orange illumination wire unless integrating dimming features, as incorrect splicing can trigger dashboard warning lights.

Amplifier turn-on signals are relayed via the brown/white wire, which should link to the head unit’s remote lead. If retaining the factory amplifier, retain the tan (left rear low) and tan/white (right rear low) connections–these carry pre-amp outputs for subwoofer functionality. For aftermarket installations, disconnect the dark blue/white (data bus) line to prevent error codes; failure to do so may disable OnStar or automatic climate adjustments.

Verify all connections with a multimeter before powering up: resistance between speaker terminals should register 4Ω, and voltage at the accessory lead must match the battery’s 12.6V (±0.2V). Use heat-shrink tubing on splices and secure wires with zip ties to prevent rattling near the firewall. If retrofitting a double-DIN unit, modify the dash kit’s mounting brackets to accommodate the new form factor–factory screws may not align without slight trimming.

Factory Audio System Electrical Guide for GM Mid-Size Coupe

Locate the radio harness behind the center dashboard panel–remove the ashtray assembly first for unobstructed access. Pin assignments for the 12-pin white connector (A) and 8-pin gray connector (B) are critical:

Connector A (White)	Wire Color	Function
Pin 1	Pink	Constant 12V+
Pin 2	Black/White	Chassis Ground
Pin 3	Light Blue/White	LF Speaker (+)
Pin 6	Gray	RF Speaker (+)
Pin 10	Dark Blue/White	LR Speaker (+)
Pin 12	Dark Green/White	RR Speaker (+)

Negative speaker leads share the same color sans white stripe; verify with a multimeter to avoid phase issues–readings should be 3.8–4.2 ohms. Disconnect the battery before splicing any wires to prevent airbag deployment codes. For OEM amplifier integration (RPO UQ3), tap into the purple/white data bus wire at pin 5 of connector A–this enables premium sound retention without aftermarket adapters.

Troubleshooting Non-Retained Power and Dimmed Display

If the head unit loses settings after key-off, inspect the orange illumination wire (pin 7, connector B) for continuity–it must be solid to the fuse block. Replace fuse F14 (10A) if corroded; this supplies memory power separate from the ignition feed. Dimmed or flickering display often stems from a faulty ground–scrape paint off the chassis at G302 (behind glove box) and re-secure the black/white ground strap with star washers for better conductivity. Antenna trimmer signal (coax center conductor) requires proper shielding–use heat-shrink tubing over splices to avoid FM interference.

Step-by-Step Wire Color Codes for Factory Audio System Connections

Locate the constant 12V power lead first–typically yellow–to maintain memory presets. Secure it directly to the battery positive terminal or an ignition-switched circuit with a 10A fuse within 18 inches of the connection point. Avoid splicing into accessory circuits, as voltage drops during cranking will reset settings.

Identify the ground wire (black or black with a thin stripe) next. Scrape away paint or corrosion at the chassis attachment point for a zero-resistance connection. Use a #10 or larger ring terminal crimped and soldered, then secured with a stainless-steel screw to bare metal. Inadequate grounding causes intermittent functionality and audio distortion.

Match the speaker outputs using the following color codes (front/rear channels):

• Front left (+): Light green
• Front left (-): Light green with black stripe
• Front right (+): Gray
• Front right (-): Gray with black stripe
• Rear left (+): White
• Rear left (-): White with black stripe
• Rear right (+): Purple
• Rear right (-): Purple with black stripe

Ensure polarity alignment with the aftermarket unit’s harness. Reversed polarity reduces bass response and can damage older amplifiers.

The illumination wire (orange or orange with white stripe) controls dash dimming. Connect it to the vehicle’s lighting circuit–not a constant 12V source–to sync brightness with headlights. Disconnecting this wire often triggers dashboard warning lights in newer models.

For steering wheel controls, use a dedicated adapter harness or a resistor-based interface. The data bus wire (pink or pink with black stripe) carries multiplexed signals; direct splicing will disable related functions (cruise control, HVAC). Verify compatibility with the replacement unit’s protocol–CAN bus, GMLAN, or resistive networks require specific decoders.

If retaining the amplifier (located behind the rear seats), confirm the remote turn-on wire (blue or blue with white stripe). Route it through a relay if the new head unit lacks sufficient current capacity; factory amplifiers draw 300mA+ and may overload standard connections.

Use heat-shrink tubing and solder on all splices to prevent oxidation. Avoid electrical tape–it degrades within 12–18 months, exposing connections to moisture. For trouble-prone installations, add a diode (1N4001) on accessory circuits to prevent back-feeding voltage into the OEM system.

Troubleshooting Guide

If static or weak output occurs, verify speaker impedance–match 4-ohm loads with the new unit. Test each wire with a multimeter before finalizing connections:

• Constant 12V: 12.6V+ (engine off) or 13.8V+ (engine on)
• Switched 12V: 0V (ignition off), 12V+ (accessory/on)
• Ground: 0.2V or less when connected

Short circuits between speaker wires typically melt fuses instantly; check for pinched harnesses near door hinges or seat tracks.

Finding the Head Unit Harness Behind the Center Console

Begin by removing the lower dashboard trim panel directly beneath the climate controls. Use a flat trim removal tool to pry the panel outward–start at the lower-left corner where the seam is least visible. Pop the retaining clips one at a time; forceful leverage risks cracking the plastic. Once detached, set the panel aside to expose the factory radio bracket and wiring harness.

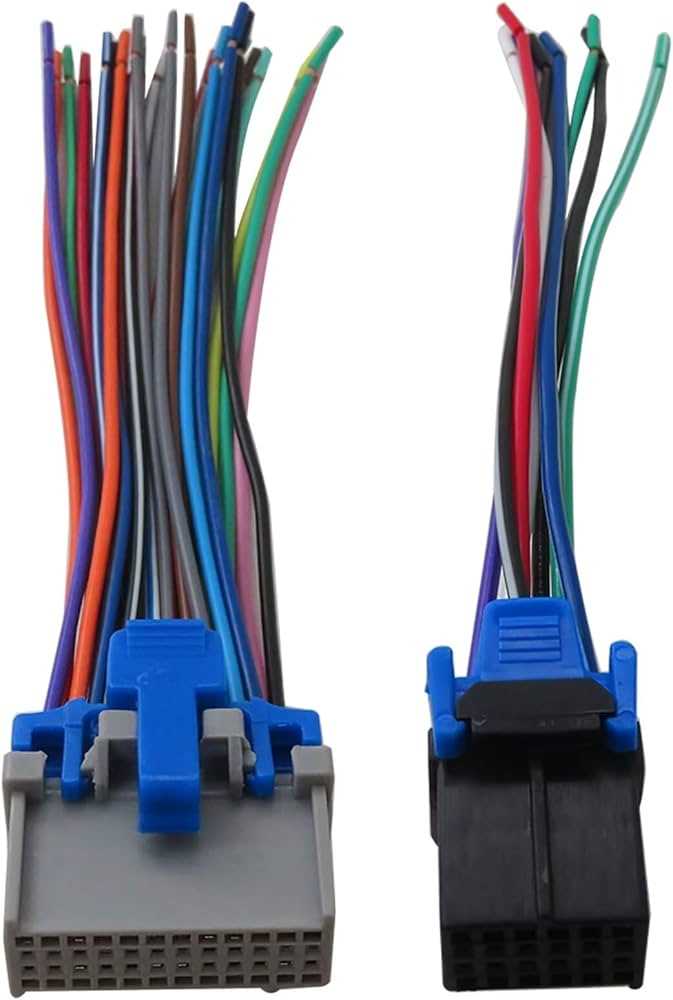

The harness connector sits tucked behind the head unit mounting cage, secured by a small retaining tab. Squeeze the top and bottom of the tab simultaneously while pulling the connector straight out; twisting or angling it may damage the pins. For verification, check the back of the harness–it should have 12–16 color-coded leads terminating in snap-lock terminals. If corrosion is present, clean each contact with 1200-grit sandpaper before reconnecting.

• Disconnect the vehicle’s negative battery terminal before handling any electrical connections to prevent shorts.
• Label each wire with masking tape at the harness side to simplify reinstallation–aftermarket adapters often require matching pinouts.
• For vehicles with OnStar or satellite modules, the secondary harness sits adjacent; avoid disturbing its alignment unless necessary.

If the harness is obstructed by the HVAC blend door actuator, remove the actuator first–it’s held by two Torx T20 screws. Store the actuator and its screws together to prevent misplacement. Once cleared, the full harness path becomes visible, including the antenna lead (typically a single thicker cable with a threaded collar).

Reassembling requires reversing steps precisely–ensure all retaining clips snap securely to avoid rattles. Test each function (AM/FM, volume, seek) before finalizing the trim reinstallation. If static or signal dropouts occur, inspect the antenna ground connection on the chassis near the windshield; a loose bolt here is a frequent culprit.

Pinout Guide for Aftermarket Head Unit Integration

Match the vehicle’s 12-pin harness adapter to the aftermarket receiver by verifying each connection pair:

• Yellow (B+) → Constant 12V (battery feed), minimum 20 AWG gauge wire.
• Red (ACC) → Switched ignition, confirmed with multimeter at 12V key-on.
• Black (GND) → Chassis ground, direct bolt-to-metal contact, no paint.
• Orange (ILL) → Dimmable lighting, PWM signal, 2 kΩ resistor inline if flickering occurs.
• Blue/White (AMP CTRL) → Remote turn-on, triggers external amplifier, 150 mA max load.
• Gray & Gray/Black → Front right speaker (+/-), 4-8 Ω impedance.
• White & White/Black → Front left speaker (+/-), polarity critical.
• Green & Green/Black → Rear right speaker (+/-), avoid twisting signal pairs.
• Purple & Purple/Black → Rear left speaker (+/-), heat-shrink all splices.

Use a multimeter to test continuity between the harness pins and the dash loom before finalizing connections. Insert the multimeter probe into each terminal socket–voltage should read 12V on B+ and ACC lines, 0V on all speaker leads when idle. If resistance exceeds 1 Ω on any speaker wire, inspect for shorts or corroded factory connectors.

For steering wheel control retention, integrate a PAC RP4-GM11 adapter module. Connect its 18-pin plug into the OEM harness port, then link the output harness to the aftermarket unit’s SWC input. Assign functions via the module’s dip switches–default settings align with most single-DIN receivers. Verify button presses register within 300 ms; slow response indicates reverse polarity on the data wires.

Secure power wires with distribution blocks rather than daisy-chaining. Route all cables away from pedals, HVAC ducts, and moving components. Label each wire with heat-shrink tubing before crimping terminals. Ground the receiver chassis separately from the audio ground to prevent alternator whine–a 10 AWG wire directly to the firewall yields optimal signal clarity.
