Chevrolet Silverado 2004 Headlight Switch Wiring Schematic Guide

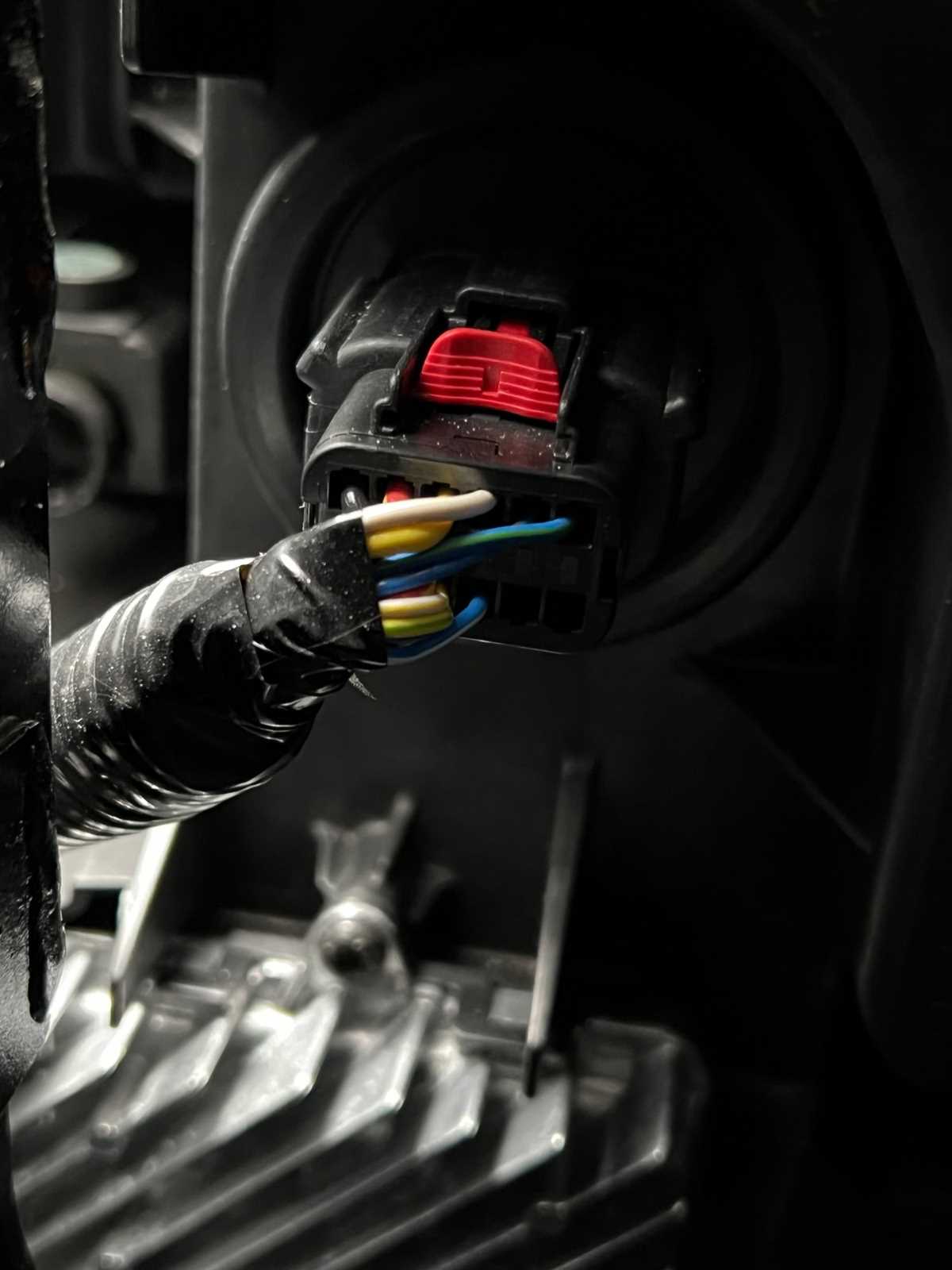

Start by locating the electrical connector behind the combination lever on the left side of the steering column. The plug on models equipped with automatic lamps uses six terminals; manual systems reduce this to four. Verify power at terminal C (light green wire) using a multimeter–it should read 12 volts with the key in the ON position. If voltage is absent, inspect the SJB fuse F2.14 (10A) and trace the feed back to the under-hood distribution box.
Signal continuity from the multi-function stalk to the central junction must be confirmed next. Probe terminal A (yellow/black stripe) while cycling the lever through each lighting mode. A steady 0–5 volt pulse indicates proper communication; erratic readings suggest a break in the CAN bus network or a faulty body control module. Replace the entire switch assembly if internal resistance exceeds 1.5 ohms–partial repairs rarely hold past 60,000 miles.
For low-beam circuits, follow the light blue/orange stripe from the switch to the front lamp socket. Resistance should not exceed 0.2 ohms; higher readings point to corroded splice points near the radiator support or damaged wiring harness sections exposed to wheel-well spray. Always splice with heat-shrink butt connectors–standard crimps fail in under two years of salt exposure. Ground straps attach at G201 behind the driver’s side fascia; sand paint and apply dielectric grease to prevent future oxidation.
Chevy Pickup Light Control Circuit Layout
Start by locating the C206 connector behind the instrument panel on the driver’s side. Pin 1 carries the battery feed from fuse 32 (25A), which energizes the daytime running lamp relay. Verify continuity between this pin and terminal 87 of the relay with a multimeter set to 20V DC scale–voltage should read within 0.2V of system voltage.
Wire 439 (light purple) exits the control module at pin 2, feeding the automatic lamp sensor. Splice a T-tap here only if adding aftermarket DRL modules; otherwise leave the circuit intact to prevent false sensor triggers. Corrosion on this wire often mimics intermittent lamp failures–clean with electrical contact cleaner and re-seal with dielectric grease.
For parking and marker lamps, trace wire 740 (dark blue) from pin 5. It carries a switched ground signal from the dimmer stalk, dropping to 0.5V or less when activated. If lamps stay on with ignition off, suspect a faulty tail lamp relay or short to chassis ground near the left kick panel.
High-beam activation runs through wire 43 (white/black) at pin 8. Test for a clean 12V pulse when toggling the multi-function lever–any deviation suggests a worn internals contact or broken ground at chassis point G101. Replace the harness pigtail if resistance exceeds 0.3 ohms between pin 8 and the lamp socket.
The fog lamp circuit uses wire 742 (yellow/orange) at pin 4, controlled by a separate 30A fuse. If factory fogs fail but front lamps work, probe the wire at the switch side of the fog lamp relay–voltage should toggle between 11.8V and 0.1V. A stuck relay will show continuous 12V; replace relay K16 before diagnosing wiring.
Instrument illumination depends on wire 140 (orange) from pin 3. This wire also feeds the HVAC control module–if dashboard lights flicker, inspect the splice near connector C103 for pinched insulation. Correct voltage is 5V during daylight and ramps to 12V when lamps are on; deviations indicate a faulty rheostat or corroded connector pins.
Faulty turn signal cancellation often stems from wire 741 (tan/black) at pin 6. It carries a steering column pulse signal–intermittent loss causes failure to auto-cancel. Check resistance across pin 6 and the cancellation cam sensor; values above 2 ohms require replacing the clockspring assembly or columna wiring pigtail.
For relay-controlled circuits, reference the relay block under the hood: F1 (left) handles low beams, F2 (right) high beams, and F3 fog lamps. Always swap relays with identical part numbers–interchanging them risks blowing fuses 15, 16, or 32. Replace any relay showing resistance above 60 ohms across coil terminals.
Locating the Vehicle Illumination Control Connector Pinout
Begin by removing the lower dashboard panel beneath the steering column; the electrical interface lies directly behind it. Disconnect the negative battery terminal first to prevent short circuits. The connector is a 14-pin plug with a black housing–identify it by matching the locking tab orientation shown in repair manuals. Use a multimeter to probe pins while cycling through the lighting modes (off, parking, low beam, high beam) to confirm voltage patterns. Pins 1, 4, 5, and 8 typically carry 12V in key-on states, while the ground reference is usually pin 14. Verify continuity between pin 6 (dimmer signal) and the instrument cluster connector C2, pin 30, using a continuity tester.
Pinout Verification Reference
| Pin | Function | Expected Voltage (Key On) |
|---|---|---|
| 1 | Battery feed (fused) | 12V |
| 2 | Parking lamp output | 12V when active |
| 3 | Left low beam control | ~0.5V pull-down |
| 4 | Ignition-switched feed | 12V |
| 5 | Right low beam control | ~0.5V pull-down |
| 6 | Dimmer input | Variable (0.5–4.5V) |
| 8 | High beam relay trigger | 12V when engaged |
| 14 | Ground | 0V |
Trace wires using the color codes: dark green/white (pin 3), light blue/black (pin 5), and orange (pins 1, 4, 8). If voltage readings deviate, inspect fuses 17, 20, and 22 in the underhood distribution block. Replace the control module if internal resistance exceeds 0.3 ohms on any active pin.
Decoding Circuit Colors and Roles in Vehicle Illumination Systems
Begin by locating the dark green wire–this carries the ground reference for the entire assembly. Verify continuity with a multimeter between this lead and the chassis; resistance should read below 0.5 ohms. A higher value signals corrosion at the connector or a broken strand.
Trace the orange stripe conductor next; it delivers 12V from the battery when the ignition is active. Insert the key, turn to “RUN,” and probe with a test light–bright illumination confirms power flow. If dim or off, inspect the fuse marked “HDLP” in the under-dash panel.
The light brown wire connects to the daytime running module, supplying a pulsed 6V signal. Use an oscilloscope to check for a square waveform; absence indicates a faulty module or open circuit in the harness. Replace the module if waveform peaks exceed ±0.8V or drop below 4V.
A gray wire with a black tracer handles the beam selector input. Activate high beams; voltage should toggle from 0V to 12V. If stuck at either state, clean the contacts on the stalk lever or replace the lever assembly–oxidation causes erratic readings.
Examine the yellow wire–this feeds the park lamp relay. Turn the knob to “PARK”; voltage should remain steady at 12V. Fluctuations suggest a failing relay–swap with a known-good unit from the horn circuit for a quick test.
Identify the purple stripe lead; it triggers the automatic lamp control. With the sensor unobstructed, voltage should drop to 0V at dusk. If readings persist above 5V, recalibrate the sensor or check for moisture infiltration in the lens.
Verifying Ground Loops and Hidden Shorts
Disconnect the white wire connector first–a separate ground return for the illumination circuit. Probe both sides: the vehicle-side should show 0V to ground, while the harness-side must mirror battery voltage. Any mismatch points to a short between wires or a burnt terminal.
Last, test the red wire with a blue stripe–it powers the dimmer function for instrument lighting. Rotate the knob; voltage should vary smoothly between 2V and 8V. Non-linear jumps indicate a worn rheostat–apply contact cleaner or replace the resistor assembly if irregularities persist.

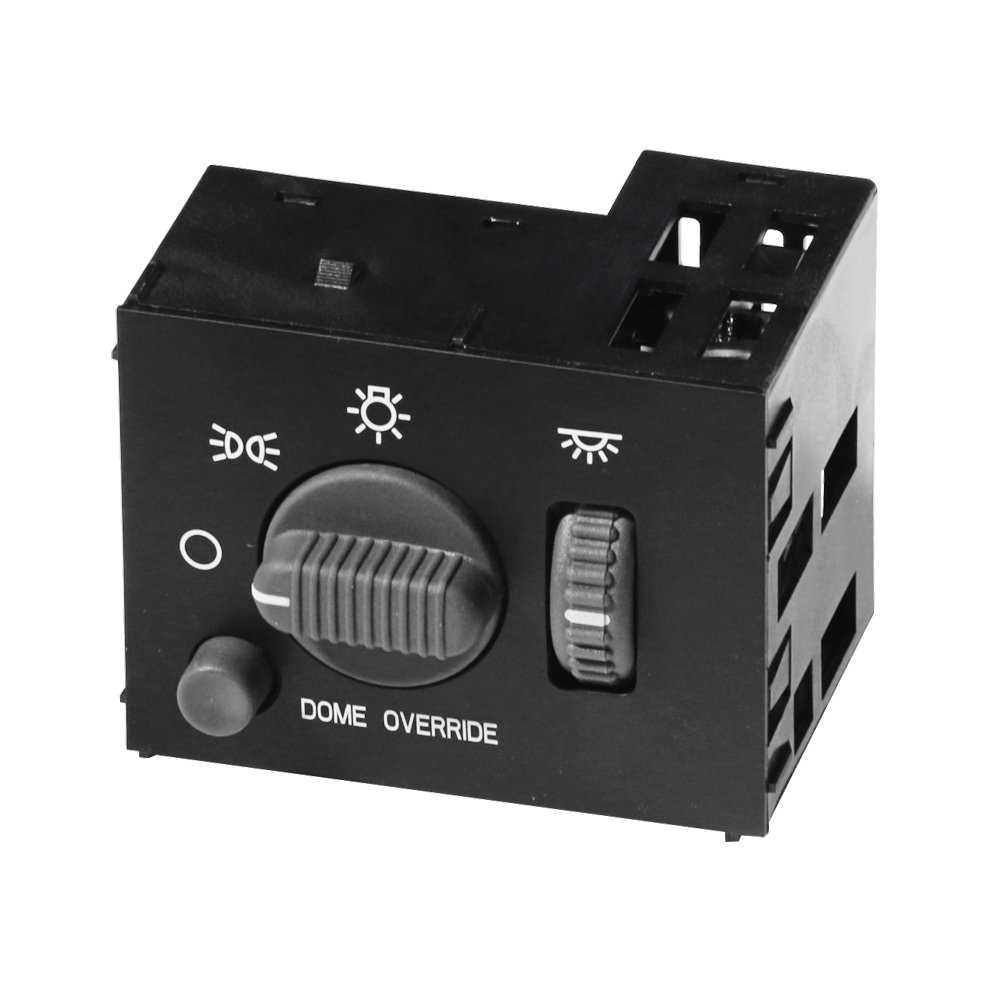

Direct Guide to Upgrading Front Lamp Control Module
Disconnect the battery’s negative terminal first–this prevents accidental shorts and protects the vehicle’s electrical system from voltage spikes. Use a 10mm socket to loosen the clamp securely; tugging the cable directly risks damaging the terminal post.
Locate the trim panel beneath the steering column. Remove the single Phillips screw securing it, then gently pry the panel away from the dash using a flat-head trim tool. Twist the bezel counterclockwise to release the existing control knob–avoid pulling forcefully, as the harness behind it is fragile.
Detach the electrical connector by pressing the release tab and pulling straight out. Label each wire with its corresponding terminal position (e.g., “B+,” “DRL,” “Ground”) using painter’s tape–this eliminates confusion during reassembly. Inspect the connector for corrosion; clean contacts with a wire brush or electrical cleaner if oxidation is present.
Align the new module with the dash aperture, ensuring the rotational axis matches the original position. Press firmly until it clicks into place. Reattach the bezel by twisting clockwise until it locks–verify engagement by tugging lightly on the knob.
Refer to the labeled wires and reconnect them to the new module’s terminals in the same sequence. Apply dielectric grease to the connector pins to prevent future moisture intrusion. For models with daytime running lights, confirm the correct wire (typically light blue or yellow) is connected to the designated terminal–mismatching risks inoperative circuits.
Reinstall the trim panel by snapping it back into position, then secure the Phillips screw. Reconnect the battery terminal, tightening the clamp with the 10mm socket. Turn on the ignition and test all functions: low/high beams, parking lamps, and fog lights. Check for flickering or dim lights, which indicate poor connections–retrace steps if issues persist.
If the instrument cluster dims abnormally when activating lamps, verify the ground wire (black) is properly secured to a metal chassis point. For vehicles with automatic headlamp systems, ensure the proper resistor value (typically 160 ohms) is used between the auto-sense wire and ground–incorrect resistance causes erratic behavior.
