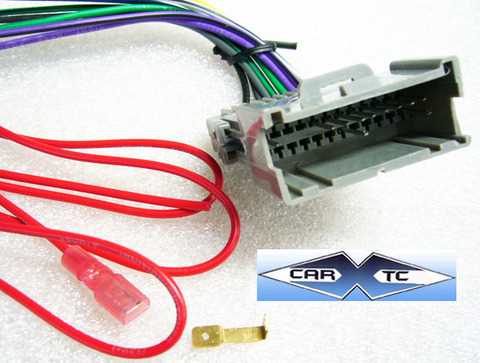

Complete 2005 Chevy Malibu Stereo Wiring Color Code Guide with Diagram
Locate the orange/black stripe wire behind the factory head unit–this carries the constant 12V power supply. Connect it directly to your aftermarket receiver’s yellow (battery) lead using a crimp connector or solder joint wrapped with electrical tape. Skip the fuse tap; this wire is already protected by a 20A fuse in the instrument panel fuse block, position 10 (check owner’s manual for verification).
For accessory power, trace the pink wire–it delivers 12V when the ignition is on. Attach it to the red (accessory) terminal on your new unit. Avoid splicing into the radio harness’s pink/black wire; it’s tied to a delayed accessory circuit that may cause random shutdowns. Use a multimeter in continuity mode to confirm the wire’s behavior before making permanent connections.
Ground the system via the black wire bundled with the speaker outputs–this is the chassis ground. Scrape off paint from the metal mounting bracket where it contacts the dash frame; a bare-metal connection prevents pops and ground loops. If noise persists, relocate the ground to a bolted chassis point under the dash, secured with a #8 self-tapping screw and star washer.
Speaker outputs follow a dual-wire color code: light green/gray (front left +), light green (front left –), tan/brown (front right +), tan (front right –). Rear channels use gray/light blue (+) and gray (–) for left, green/white (+) and green (–) for right. Match these to your aftermarket harness using the same polarity–reversing leads will invert the soundstage. Test each channel with a 1 kHz sine wave at low volume before finalizing connections.
If the factory OnStar or amplifier is present, the dark blue/white wire carries the data signal. Tap this only if your new unit supports steering wheel controls–otherwise, cap it with heat shrink tubing to prevent shorts. For amplified systems, remove the factory amp (typically behind the glove box) and wire speakers directly to the head unit outputs. Failure to bypass will result in distorted audio or no output at all.
Audio System Connection Guide for Mid-2000s GM Sedan
Locate the aftermarket harness adapter behind the factory radio slot–pinouts differ by model trim. Base trims use a 12-pin connector; LS/LT variants include an additional 4-pin amplified output. Cut the included wire harness 1 inch from the connector to preserve OEM clips. Match colors precisely:
- Solid yellow: constant 12V (battery)
- Red with white stripe: switched 12V (ignition)
- Solid orange: dimmer/illumination
- Purple/gray pairs: front/rear speaker positives
- White/black pairs: front/rear speaker grounds
- Solid gray: antenna trigger
For amplified systems, splice the blue wire from the new head unit to the vehicle’s existing amplifier lead–failure to connect this results in no bass response. Ground the black wire directly to chassis metal using a 10-gauge ring terminal, not the factory harness ground wire, to prevent alternator whine. Dual-mode radios require bridging the pink and brown wires for OnStar integration; disconnecting these causes microphone feedback loops.
Finding the Original Electrical Interface Assemblies Behind the Instrument Panel
Start by removing the driver-side lower dashboard trim panel–it’s secured with three 7mm screws and two plastic clips near the fuse box. Use a trim removal tool to gently pry the panel outward, working from the bottom edge upward to avoid snapping the clips. The factory harness connectors will be visible once the panel is free, clustered near the climate control module and flanked by a white rectangular relay block on the left. Label each connector with masking tape before detachment to prevent misalignment during reinstallation.
Identify the primary audio system connectors by their distinct shapes and pin counts:
- 16-pin rectangular (black) – connects to the head unit’s rear chassis;
- 12-pin trapezoidal (gray) – links to the amplifier or antenna module;
- 8-pin oval (tan) – supplies accessory power and ground;
- 6-pin mini rectangular (blue) – interfaces with steering wheel controls.
The tan and gray connectors often house constant 12V (yellow wire) and switched power (red wire) feeds–verify with a multimeter set to 20V DC before proceeding.
Trace the harness bundles upward behind the glove compartment area if the connectors aren’t immediately visible. A secondary harness junction may be tucked behind the HVAC vent actuator, requiring removal of the passenger-side knee bolster (four 10mm bolts). Look for a bundled loom secured by a single zip-tie to the vehicle’s crossbeam–this holds the ambient lighting, data bus, and spare speaker leads. Disconnect the battery before probing any connectors to prevent short circuits.
If resistance is encountered while separating connectors, apply dielectric grease to the mating surfaces and rock the plugs laterally–some OEM interfaces use tight-fitting anti-corrosion seals. Avoid pulling wires directly; instead, grip the connector housing or use needle-nose pliers on stubborn clips. For corroded terminals, clean with a brass wire brush and re-tension the contacts with a pick–never reuse damaged terminals, as signal degradation can cause intermittent faults.
Reassembly requires routing harnesses exactly as found. Secure loose bundles with OEM-style zip-ties (black, 3.6mm width) at original attachment points, typically spaced every 150mm along the firewall. Failure to restore proper strain relief can lead to rattles or chafing against sharp metal edges, particularly near the pedals. Test all functions–illumination, chimes, and accessory modes–before reattaching trim panels to confirm no circuits were crossed.
Pinpointing Power, Ground, and Audio Lead Colors for Head Unit Replacement
Start by locating the constant 12V supply–typically a yellow wire–before disconnecting the battery. This lead maintains memory for presets and should connect directly to the aftermarket radio’s matching terminal. Next, identify the red switched power cable, which activates only when the ignition is on. Confusing these two risks draining the battery if miswired. Ground connections usually rely on black or brown wires, often grouped with bare copper strands; verify continuity with the chassis using a multimeter to avoid intermittent interference.
Speaker outputs follow a standardized yet inconsistent color scheme: front left positive (+) is light green, front right positive (+) gray, rear left positive (+) white, and rear right positive (+) purple. Their corresponding negative (-) leads add a stripe–light green/black for front left, gray/black for front right, white/black for rear left, and purple/black for rear right. Mismatching these causes phase cancellation, resulting in weak or hollow sound. Use a test light or tone generator to confirm polarity before finalizing connections.
| Function | Primary Color | Stripe (if applicable) |
|---|---|---|
| Constant power | Yellow | – |
| Switched power | Red | – |
| Ground | Black/Brown | – |
| Front left (+) | Light green | – |
| Front left (-) | Light green | Black |
| Rear right (+) | Purple | – |
| Rear right (-) | Purple | Black |
Critical Pitfalls to Avoid
Never splice illumination wires (usually orange or orange/white) into power circuits–this causes dimming malfunctions. If the factory harness includes a pink antitheft lead, leave it disconnected unless the new unit requires it. Amplifier turn-on leads (typically blue or blue/white) must trigger external devices only when the radio powers on; incorrect routing can fry amplifier circuits. Always tape off unused wires to prevent shorting against the chassis.
Linking Power Booster Cables to Factory Audio Harness in the Mid-Size Sedan
Locate the rear speaker outputs behind the vehicle’s factory receiver–typically marked by gray and violet wires for right rear channels, green and purple for left rear. Splice these directly to the amplifier’s input terminals using 18-gauge oxygen-free copper wire to prevent signal degradation. Ensure the ground connection from the amp ties to a bare metal chassis point within 18 inches of the amplifier mounting location to eliminate hum.
Key Connections and Voltage Requirements
Identify the constant 12V supply (yellow wire) and accessory-triggered power (red wire) in the harness bundle behind the dash. The red wire should connect to the amp’s remote turn-on terminal, while the yellow provides uninterrupted power. Use a 10-gauge fuse within 18 inches of the battery for protection. For aftermarket amplifications exceeding 75 watts RMS per channel, upgrade to 8-gauge wire to handle increased current draw without voltage drop.
Bridge the vehicle’s existing antenna control (blue wire) to the amplifier’s antenna trigger if retaining factory radio functionality. This ensures the amp powers down when switching to auxiliary or navigation modes, preserving battery life. Avoid tapping into the dimmer wire (orange/white), as fluctuations in cabin lighting voltage can introduce noise into the audio signal path.
Isolate RCA inputs from power cables by routing them along the opposite side of the vehicle’s interior trim. Use shielded RCA cables with gold-plated connectors to minimize interference from the engine control module or onboard diagnostics. For installations with active crossovers, set the amp’s internal gain to 50% initially, then fine-tune based on input sensitivity from the head unit.
Test connections with a multimeter before securing the harness–verify 12V at the power and remote wires, and 0 ohms between the amplifier’s ground and chassis. If equipped with a subwoofer, confirm the line-level outputs (typically brown or black wires) carry a clean signal by playing a 50Hz test tone through the system. Secure all connections with solder and heat-shrink tubing to prevent corrosion or vibration-induced shorts.
For factory premium sound systems, bypass the built-in equalizer by tapping into the pre-amp outputs (usually gray/white and green/white wires). These deliver a cleaner signal to the amplifier, reducing phase distortion introduced by stock processing. If the harness lacks dedicated pre-outs, consider a line output converter to step down high-level speaker outputs to RCA-compatible levels.
Seal the harness splices with dielectric grease or corrosion-resistant tape, especially in under-dash areas prone to moisture. Label each connection with heat-resistant tags to simplify future troubleshooting. If pop noises occur during ignition cycles, add a 1000-microfarad capacitor between the amp’s power and ground to stabilize voltage spikes.
