Step-by-Step 2005 Dodge Durango Infinity Audio System Wiring Guide

Start by locating the amplifier harness behind the rear seat panel–pinout labels C100, C101, and C102 correspond to the left rear, right rear, and subwoofer channels respectively. Each connector uses a 18-gauge twisted pair for signal integrity, identifiable by their braided shielding; bypassing this will introduce ground loop interference. The 12V constant feed (orange/black stripe) originates from fuse F43 under the driver’s kick panel–verify continuity before connecting aftermarket units to avoid voltage drop.

Front speaker wiring follows a separate harness (C103) routed through the A-pillar; the driver’s door tweeter uses a 2-channel differential output to eliminate phase cancellation. Terminate connections with gold-plated crimp connectors–standard solder joints degrade under thermal cycling from the HVAC vents adjacent to the dash cluster. For vehicle-specific amplifiers, note the 4700μF capacitor bank on the chassis ground; improper grounding here generates a 60Hz buzz audibly distinct from alternator whine.

Refer to the vehicle service manual’s section 8W-61 for pinout deviations in late-production models–earlier builds integrate a dual-stage noise filter absent in post-September units. When retrofitting modern DSPs, preserve the CAN bus resistance network (120Ω termination resistor) between pins 6 and 14 of the OBD-II port to prevent ECU error codes U1131 or P1682.

Aftermarket upgrades must account for the self-diagnosing voice coil protection in the factory subwoofer–the impedance lockout (2.8Ω nominal) triggers at 150W RMS, requiring amplifiers with adjustable load handling. Disable the stereo mute relay (K72) only after confirming stable 13.8V supply; circumventing this step risks damaging the TDA7384 amplifier IC located beneath the center console.

Audio Harness Pinout for 2006 Model SUV Premium Audio Setup

Locate the 18-pin amplifier connector behind the left rear quarter panel trim–clip C305 on schematics. Pins 1-4 (gray/black, gray/light blue, gray/violet, gray/orange) carry rear door speaker signals; resistance between each pair should read 4Ω ±0.2Ω. If measurements exceed 6Ω, inspect the door jamb harness grommet for chafing; apply dielectric grease to восстановленные contacts.

• Pin 5 (black): Amplifier ground. Verify zero ohms to chassis ground at the driver-side rocker panel near the fuel filler neck–corrosion here mimics amplifier clipping.
• Pins 6-9 (pink/light blue, pink/black, pink/orange, pink/tan): Front door tweeter outputs. These are 10-watt bridge-tied loads; improper polarity swaps tweeters to midrange.
• Pins 10-12 (dark green/light green, dark green/orange, dark green/brown): Subwoofer feed. Subwoofer housing should float above 2.5 volts DC; readings below indicate head unit over-current shutdown.
• Pins 15-18 (light blue, tan, violet, dark blue): Remote turn-on, illumination +12 V, data bus, ignition sense. Illumination wire (tan) must toggle between 0 V and 12 V with parking brake toggle–otherwise, DVD playback locks.

Use a T-tap splice on the tan wire at the rear fuse block if retrofitting aftermarket navigation; crimp connectors will fracture under dashboard vibration. Avoid soldering speaker wires–the factory crimps are cold-welded and resist flex fatigue better than any solder joint. Keep wiring looms bundled in ½-inch spiral wrap to prevent rattling against the spare tire tub, which generates 80 Hz standing waves audible through the rear deck.

Finding the Premium Audio Connector in Your SUV

Begin by removing the lower dash panel on the driver’s side–three 7mm screws secure it beneath the steering column. Behind this panel, near the OBD-II port, you’ll spot a multi-pin harness with a distinctive purple and gray connector; this is the primary link for the factory amplifier. Disconnect the battery negative terminal first to prevent shorts, then squeeze the retaining clips to release the plug.

Connector Type	Wire Colors (Common)	Typical Location
Amplifier Input	Purple/white, Gray/light blue	Behind driver-side kick panel
Speaker Output	Dark green/white, Brown/yellow	Under rear seat, passenger side
Power Feed	Red/black, Orange/black	Adjacent to fuse box, lower dash

For rear channel connections, fold the passenger-side rear seat forward–access is gained through a small carpeted panel held by two Phillips screws. The harness here includes thicker gauge wires (usually 14-16 AWG) for subwoofer and door speakers, identifiable by their braided shielding. Use a non-contact voltage tester to confirm no residual current before probing or splicing.

Decoding Audio Circuit Color Codes for Each Audio Component

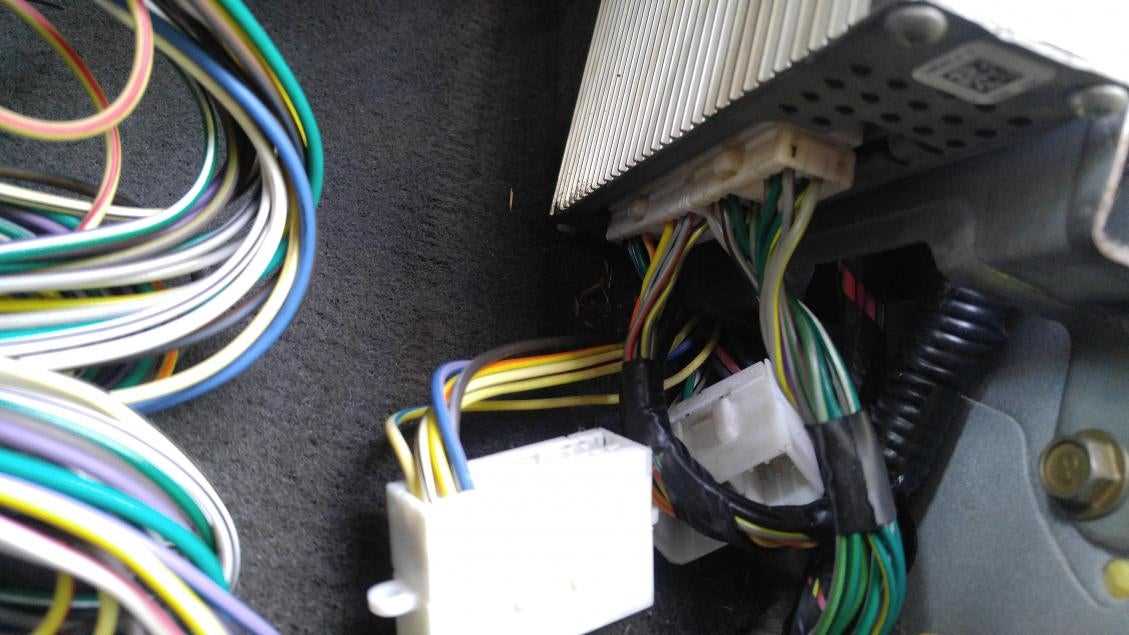

Begin by locating the main amplifier harness, typically found behind the vehicle’s rear seating or under the cargo area trim. The 12-pin connector carries all output channels, with each pin corresponding to a specific channel and polarity:

• Front Left (+): Light green stripe on solid gray
• Front Left (–): Solid brown with gray tracer
• Front Right (+): Dark violet stripe on solid orange
• Front Right (–): Solid tan with orange stripe
• Rear Left (+): White stripe on solid black
• Rear Left (–): Solid pink with black tracer
• Rear Right (+): Blue stripe on solid yellow
• Rear Right (–): Solid dark green with yellow stripe

Midrange and tweeter leads branch from the same harness but run separately to door panels. Check door jamb connectors–wires split into:

• Mid (+): Light blue stripe on solid red
• Mid (–): Solid purple with red tracer
• Tweeter (+): Gray stripe on solid dark blue
• Tweeter (–): Solid light green with dark blue stripe

Subwoofer wiring diverges at the trunk harness. Look for:

• Sub (+): Heavy-gauge dark red with black stripe
• Sub (–): Thick black with red stripe, routed directly to amplifier’s dedicated output

Verify each wire’s destination using a multimeter set to continuity mode. Touch the probe to the speaker terminal and trace back to the harness–eliminates guesswork from faded factory labels.

Ground connections cluster near the amplifier mounting point. They share:

• A single thick bare copper wire (main ground)
• Two smaller ground leads–tan for logic circuits, gray for power antenna relay

Retain original connectors whenever possible–splicing introduces resistance, degrading clarity. If splicing is unavoidable, solder joints and heat-shrink tubing maintain signal integrity better than crimp connectors.

Step-by-Step Guide to Testing Speaker Cables with a Multimeter

Set your multimeter to continuity mode or the lowest ohms setting (typically 200 ohms). Touch the probes together to verify the meter reads near zero–this confirms the tool is functional before proceeding.

Disconnect the amplifier’s RCA inputs or head unit harness to isolate the cables from the audio network. Locate the terminals for each channel, usually marked with (+) and (-) symbols on the factory harness or aftermarket connectors.

Attach the multimeter’s red probe to the positive terminal of a single channel and the black probe to the corresponding negative terminal. A reading between 2 and 8 ohms indicates a properly connected coil. Values outside this range suggest a short, open circuit, or incorrect wire routing.

Identifying Common Issues

If the meter displays infinite resistance (OL), the circuit is open–check for broken conductors, corroded connections, or disconnected terminals at the speaker or amp. Probe along the cable’s length to pinpoint the break, flexing sections gently while monitoring for a change in resistance.

Readings below 1 ohm often signal a short, either between wires or from a conductor touching ground. Separate the cable from the enclosure or adjacent wiring, then retest. Trace the affected channel back to the source component, inspecting for frayed insulation or pinched wires.

For intermittent failures, wobble the connectors while measuring; fluctuations in resistance reveal loose crimps or cold solder joints. Replace or re-solder connectors showing inconsistent readings. Document each channel’s impedance for reference during component matching or troubleshooting.

Final Verification Steps

Reconnect the head unit and amplifier, then power the setup. Play a full-range test tone through each channel, confirming the multimeter’s AC voltage mode reads proportional output (typically 0.5V–5V) for both polarity wires. Absent or mismatched voltage indicates transducer damage or phase inversion.

Connecting Third-Party Amps to OEM Audio Harnesses

Start by locating the factory line-level outputs behind the head unit. These outputs, typically RCA-compatible through an adapter, provide a clean signal without altering the existing harness. Use a digital multimeter to verify the voltage–expect 2-4V on all channels to confirm compatibility with most aftermarket amplifiers. Avoid tapping into speaker wires directly; this introduces noise and risks overloading the signal.

Route the remote turn-on wire from the amplifier to the factory radio’s accessory lead, found in the 12-pin connector (pin 8 on early model years). This ensures the amplifier powers on simultaneously with the head unit, eliminating the need for manual switches. Heat-shrink connections at this junction to prevent shorts from vibration or moisture intrusion.

Signal Conditioning and Ground Isolation

Insert a line output converter (LOC) if the factory source lacks dedicated RCA outputs. Properly match the LOC’s impedance to the vehicle’s wiring (4-8 ohms) to prevent signal degradation. Ground the amplifier’s chassis to a bare metal point near the battery; avoid using factory bolt locations shared with other modules, as this can cause alternator whine.

Set the amplifier’s gain using a test tone (50Hz for subwoofers, 1kHz for mids/highs) and an oscilloscope or distortion analyzer. Adjust until the waveform distorts at 80% of the amp’s rated power–this balances output without clipping. Verify with a voltmeter: input voltage multiplied by 1.414 should approximate the output voltage at full gain.

Use twisted pair wiring for RCA interconnects to minimize interference, especially near the vehicle’s CAN bus or ignition wiring. Secure cables with nylon ties every 12 inches to prevent rattling. If noise persists, relocate the amplifier away from the ECU or install a noise filter between the radio and amp with a cutoff frequency of 10Hz to block low-frequency hash.
