Ford F350 2005 Electrical System Wiring Schematic Guide
Locate the engine compartment fuse block diagram on the underside of the cover–label C977 identifies the power distribution module (PDM) wiring, critical for isolating parasitic draws. Verify connections at pin 30 (green/yellow stripe) for the upfitter relay; corrosion here mimics intermittent no-start conditions. Use a multimeter set to 200-ohm scale to confirm resistance under 5 ohms across chassis grounds G101 and G102.
For trailer brake controller integration, trace the dark blue/white stripe wire from the seven-pin connector back to the central junction box. A short-to-power here triggers false ABS activation codes; splice the wire 18 inches from the plug and bypass the factory harness if voltage exceeds 13.2V under load. Replace the connector entirely if pin 6 shows pitting–Ford service bulletin TSB-04-14-10 documents this as a common failure point.
Air suspension module errors often stem from the rear height sensor circuit (light green/black wire). Disconnect the sensor at the frame rail and measure 0.5V–4.5V with ignition ON; values outside this range indicate internal shorting. Clean ground G201 with a wire brush before reassembly–factory paint often inhibits conductivity here.
Identify aftermarket accessory conflicts by tearing down the instrument cluster wiring first: the brown/white stripe wire feeds the fuel gauge sender and can cause erratic readings if grounded improperly. Cross-reference modifications against the Ford Wiring Diagram Manual (Section 24–41)–third-party alarm systems frequently loop into unused pins, creating voltage spikes.
Ford Super Duty Electrical Blueprint: Hands-On Solutions
Locate the central junction box under the dashboard on the driver’s side–remove the kick panel to expose fuse and relay sockets. Terminals 30, 85, 86, and 87 on the starter and glow plug relays follow a standard DIN pinout; swap relays to isolate cold-start failures before inspecting connectors for corrosion. Use a multimeter with a 20 kΩ setting to verify circuit continuity–any resistance above 0.5 Ω between the battery’s negative post and the engine block indicates a faulty ground strap requiring immediate replacement.
For trailer brake controller connections, trace the blue wire from the brake output module to the seven-pin connector at the rear bumper. Splice testing requires a load resistor: 12 Ω at 20 W confirms controller output before attaching trailer harnesses. Avoid probing live circuits with a test light–use a high-impedance digital meter to prevent accidental activation of airbag or ABS modules, which can trigger false DTCs stored in the PCM.
Below is a pinout reference for the powertrain control module connector C175 (144-pin black socket):
| Pin | Function | Color Code | Key Voltage (KOEO) |
|---|---|---|---|
| 23 | Injector 1 Control | Light Blue/Orange | Battery |
| 52 | ECT Sensor Signal | Yellow/Red | 0.5-4.5 V |
| 71 | VSS Output | Orange/Brown | Pulse |
| 114 | Fuel Pump Relay Coil | Pink/Black | 12 V (momentary) |
Trace alternator output via the yellow wire from the B+ terminal to the starter solenoid–intermittent voltage drops here mimic battery drain symptoms. Install an inline fuse holder (40 A) during diagnostics to prevent accidental shorts when probing the charging circuit. Always disconnect both battery terminals before servicing the under-hood fuse box to avoid capacitor discharge in the premium audio amplifier, which retains voltage for up to 30 minutes.

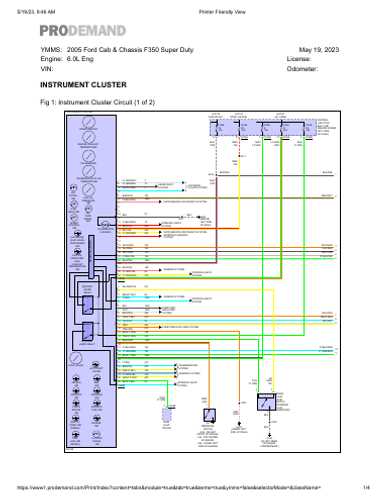

For instrument cluster backlighting failures, focus on the gray 18-gauge wire running from the headlight switch connector C215–pin 12 carries dimmer voltage directly to the cluster. Use a non-contact infrared thermometer to scan for overheating resistors on the cluster PCB; temperatures exceeding 60 °C indicate impending LED driver failure. Avoid applying heat during solder repairs–use a temperature-controlled iron set to 300 °C with rosin flux to prevent delamination of the flex circuit traces.
When repairing damaged wires in the main harness, avoid crimping–solder splices with heat-shrink tubing rated for automotive use (minimum 125 °C) prevent future corrosion. For circuits exposed to moisture (e.g., rear door switches), apply dielectric grease inside connectors before reseating; this displaces water and prevents oxidation without affecting signal integrity. Always verify splice integrity with a pull test of 5 lbs before securing harnesses with nylon ties spaced at 6-inch intervals.

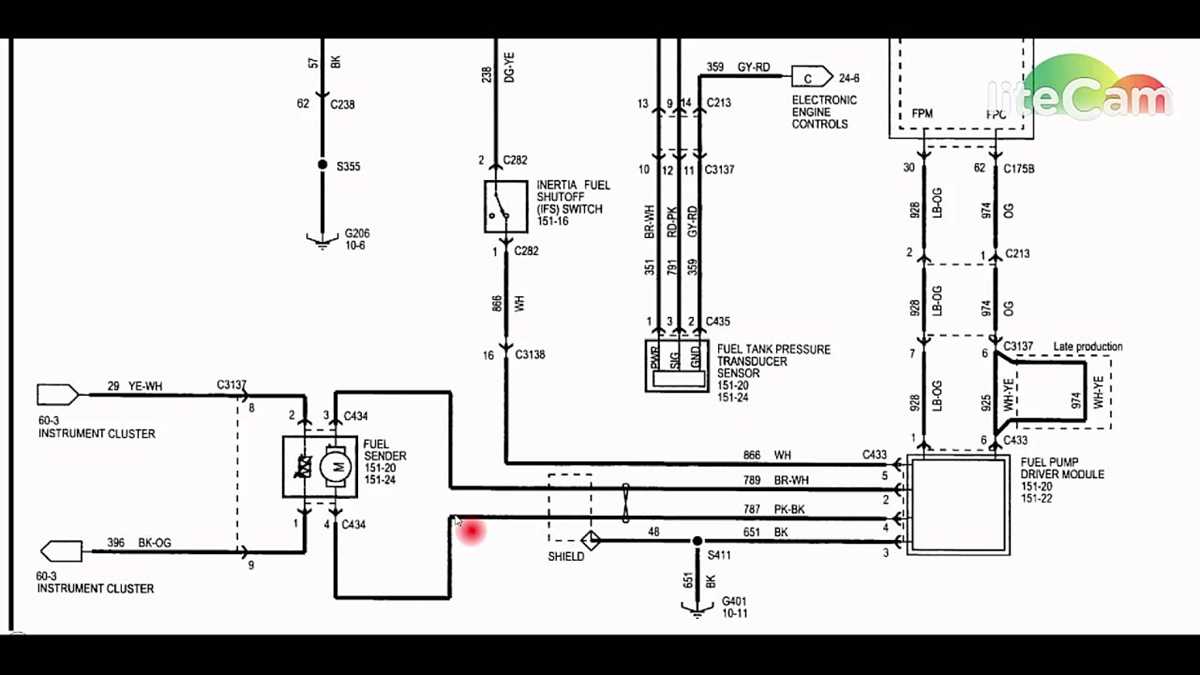

For intermittent fuel gauge inaccuracies, bypass the instrument cluster sender lead with a 33 Ω resistor between the tan/yellow wire and ground–if the gauge stabilizes, replace the fuel tank level sensor rather than the cluster. Avoid replacing OEM sensors with aftermarket units lacking the correct NTC thermistor rating; resistance at 25 °C must read between 100 Ω and 120 Ω for accurate PCM compensation in cold-start fuel calculations.
Finding Reliable Electrical Schematic Resources for the Super Duty Truck
Ford’s official service portal remains the primary source for authentic schematics. Access requires a subscription to Motorcraft Service, where the complete harness layout for the 6.0L diesel and V10 models is available under the “Electrical” section. Download speeds vary, so requesting PDFs during off-peak hours ensures faster retrieval.
Online enthusiast forums like Ford-Trucks.com and DieselStop host user-uploaded diagrams in dedicated threads. Search for “2004-2007 Super Duty electrical manual” to locate archives with color-coded pinouts for the fuse box, trailer connector, and aftermarket accessory integrations. Verify file integrity by cross-referencing post dates with forum moderator approval stamps.
Aftermarket Manual Publishers
Chilton and Haynes offer printed manuals, but their electrical sections often lack detail for complex systems like the power distribution module. Instead, opt for Mitchell1’s eAutoRepair, which includes interactive wiring views with component locators. Ensure the subscription covers heavy-duty trucks, as generic automotive packages omit Super Duty-specific content.
Local auto parts stores may stock paper schematics under the “Ford Heavy Duty” repair manual section. O’Reilly Auto Parts and NAPA typically carry the Motor Age truck guides, which include simplified circuit paths. Ask for the “chassis electrical” supplement–earlier editions might exclude optional equipment like upfitter switches.
DIY Scanning and OEM Alternatives
Obtain a factory scan tool (e.g., Ford VCM II) to export raw data from the vehicle’s PCM. The proprietary software generates live circuit diagrams based on active faults, though this requires technical familiarity with Ford’s IDS interface. For offline use, third-party adapters like Innova’s 3160 can capture snapshots of wiring states, but lack the depth of OEM tools.
University engineering libraries sometimes archive automotive technical bulletins. Search for Ford’s Electrical and Vacuum Troubleshooting Manual (EVTM), published annually. Request a microfiche copy through interlibrary loan if physical access isn’t available–certain editions include fold-outs for engine bay routing.
Salvage yards occasionally provide harnesses with attached schematics when purchasing used modules. Focus on high-mileage vehicles where wiring tags remain legible. Remove the plastic conduit covering critical branches (e.g., glow plug relay) to photograph factory labels–ensure images include connector IDs and wire gauge markings.
YouTube channels like RichPin and Cartoons Auto Repair upload step-by-step harness diagnoses. Filter videos by “2004 Ford excursion wiring” to find the most relevant breakdowns. Download playlists for offline reference, as connection longevity varies across uploaders.
Decoding Circuit Traces and Terminal Mappings for Vehicle Fixes
Begin by isolating the harness segment tied to the malfunctioning module. Match each color-coded lead against the schematic’s legend–solid hues denote primary feeds, stripes indicate secondary or grounding paths. Double-check polarity at the connector face: pin #1 (often a red or yellow line) carries power, while #8 (typically black or brown) routes ground. Testing with a multimeter in continuity mode confirms signal flow before disassembly.
Key Pinout Anomalies in Heavy-Duty Platforms
Locate the body control module harness–gray wires with violet stripes feed into pin A7 for dome lighting control, not A3 as in lighter-duty diagrams. For trailer brake circuits, verify the blue-striped orange lead at pin C12 carries a 12V switched signal; corrosion here mimics failures in the dash-mounted brake controller. Always probe terminals with the ignition off to avoid triggering false fault codes in the PCM.
Label connectors during disassembly using masking tape–note terminal orientation (rectangular slots face rearward) to prevent misalignment during reassembly. Replace damaged weatherproof boots immediately; a single compromised seal introduces moisture leading to resistance spikes or intermittent shorts. Keep a reference chart on-site: abbreviations like “LG/Y” (light green/yellow) simplify tracing, while factory service manuals often omit critical splice locations hidden behind fender liners.
Step-by-Step Guide to Tracing Engine Bay Electrical Paths
Locate the primary power distribution box under the hood–typically positioned near the battery or along the firewall. Use a multimeter to verify voltage at the main fuse terminals; expect 12-14V at the input side with the ignition off. Label each connection with colored tape as you work: red for constant power, yellow for switched, and green for ground circuits. This prevents confusion when reconnecting components.
- Disconnect the negative battery terminal to avoid short circuits before handling any connectors.
- Trace the thickest cables first–they lead to high-current devices like the starter solenoid or alternator.
- Check for brittle insulation or corrosion at each junction; splice repairs with heat-shrink tubing if wires show exposed copper.
- Follow the engine control module’s harness from the throttle body back to the computer–this bundle often contains sensors for oxygen, temperature, and mass airflow.
For complex branching, refer to the manufacturer’s schematic but cross-reference with physical markings on harnesses. Most Ford vehicles use standardized labels like “C150” for the engine loom’s main connector; these codes are etched on the plastic casing. If a wire disappears behind a grommet into the cabin, probe the other side with a non-contact voltage tester before drilling new entry points–many hidden pass-throughs exist for existing lines.
