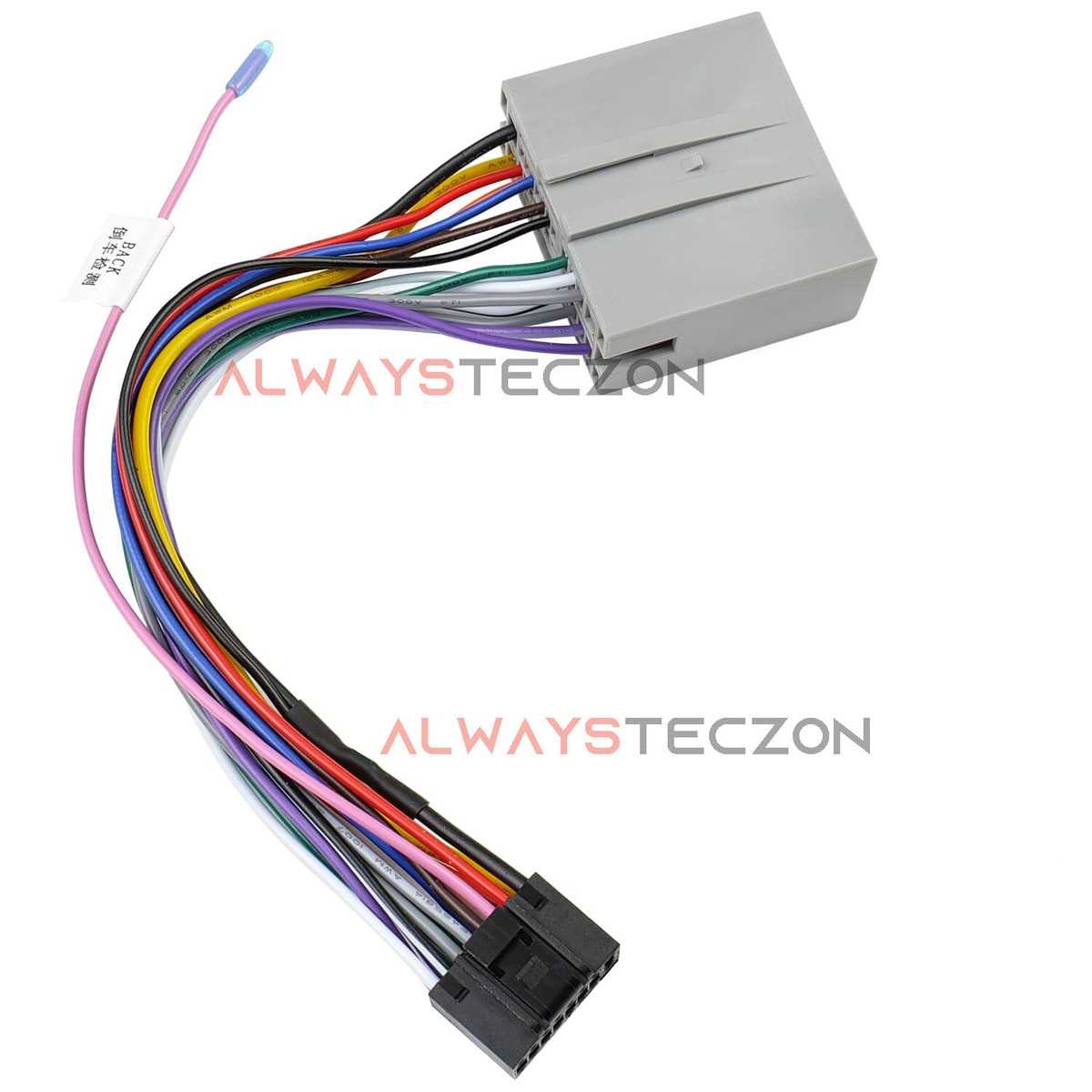

Complete 2005 Ford F150 Radio Wiring Harness Color Code Guide
For owners dealing with aftermarket stereo installations or OEM unit replacements, the factory connector pinout is critical–particularly on crew cab variations where the speaker impedance splits across separate door modules. Begin by disconnecting the negative battery terminal to prevent short circuits; this model’s memory retention system can sustain parasitic loads for up to ten minutes. Identify the C258 connector behind the dash panel on the driver’s side–this is the primary interface for both power distribution and signal routing.
Focus on pins A4 (yellow/black) for constant 12V, A10 (violet/yellow) for ignition-switched power, and B12 (brown/white) as the ground reference. Speaker outputs follow an eight-wire configuration: front left (+) on C6 (gray/light blue), front right (+) on C3 (dark green/red), rear left (+) on C5 (dark blue/white), and rear right (+) on C2 (gray/violet), with corresponding negative leads distinguished by tracer stripes. Adapters for JBL or Sony premium systems require additional wire taps at pins B1 (orange/white) for amplifier turn-on and B7 (pink/black) for antenna motor control.
Avoid relying on color codes alone–verify each pin using a multimeter set to 20V DC. Resistance checks across speaker terminals should read 4 ohms (±0.2); readings outside this range indicate wiring damage or factory amplifier bypass issues. For vehicles equipped with the 6-disc CD changer, data lines on pins A1 (gray/purple) and A3 (black/purple) must remain intact during any modification. If integrating GPS navigation or satellite modules, prioritize soldered connections over crimp-style splices to prevent signal degradation under vibration.
Pre-assembled harness kits from Metra or Scosche reduce wiring complexity but may omit critical OEM functions like chime module retention or steering wheel control compatibility. For full functionality, manually extend wires at pin B8 (white/red) for retained accessory power and pin A2 (light blue/red) for speed-sensitive volume adjustments. Secure all splices with heat-shrink tubing rated for 125°C; standard electrical tape fails within two years under dash-mounted heat stress.
Audio System Connector Pinout for 2004-2006 Super Duty Series
Begin by identifying the main plug colors on the vehicle’s factory interface: the larger 12-pin connector (C1) is typically black, while the smaller 8-pin (C2) is white. Locate these on the rear of the stock head unit or near the firewall’s passenger-side kick panel if the original assembly has been removed. Use a digital multimeter set to DC voltage (20V range) to verify power and ground connections before proceeding with any aftermarket integration.
Check the following table for confirmed pin assignments–these values are consistent across base, Lariat, and XLT trims with the premium sound package. Variations exist only for vehicles equipped with navigation or rear-seat entertainment, which require adapter modules not covered here.
| Connector | Pin | Function | Wire Color | Voltage (Key ON) |
|---|---|---|---|---|
| C1 | 1 | Battery Constant (+12V) | Yellow/Red | 12.6V |
| 2 | Ignition Switched (+12V) | Light Green/Orange | 12.0V | |
| 3 | Ground | Black | 0V | |
| C2 | 4 | Front Left Speaker (+) | Gray/Black | 4.8V (AC signal) |
| 5 | Front Left Speaker (-) | Gray/Light Blue | 0V (AC return) | |
| C1 | 7 | Illumination (+) | Orange/Black | Varies with dimmer |
| C2 | 8 | Remote Amp Turn-On | Dark Green/White | 12V (when active) |
For speaker outputs, confirm impedance compatibility–factory tweeters measure 2 ohms, while door-mounted woofers are 4 ohms. Mismatched loads may cause overheating in external amplifiers. If replacing the default receiver, retain the native data bus link (pin 12 on C1, violet wire) to preserve steering-wheel controls and SYNC functions. Disconnect the negative battery terminal before splicing to prevent short circuits or module resets.
Test each circuit with the engine off, then repeat with the ignition active–any voltage drop below 11.5V on constant power indicates corroded terminals or a weakened battery. Clean connections with electrical contact cleaner and a dedicated terminal brush; avoid sandpaper or steel wool, which can leave conductive debris. For systems with factory subwoofers, the dedicated harness (C3, gray 6-pin) carries low-level signals–isolate this from aftermarket RCA cables to prevent ground loops.
Troubleshooting Aftermarket Integration
If static persists during FM playback, examine the red/light blue (pin 6, C1) antenna lead–it carries both RF and remote-switching voltage. Substituting a thin coaxial cable can degrade reception range. For vehicles with satellite-ready hardware, the teal/white wire (pin 10, C1) must remain connected to the OEM tuner module; severing it disables signal decoding. When installing a navigation unit, verify the purple/white (pin 9, C2) GPS feed aligns with the aftermarket system’s baud rate–default rate is 4800 bps.
Ensure the vehicle’s electronic control module (ECM) completes a full power cycle–wait a minimum of 10 minutes after battery reconnection before testing accessory functions. Some third-party stereos require a separate memory saver plugged into the diagnostic port; failing to use one may erase stored PCM calibrations or trigger false trouble codes in the restraint system.
Identifying the Right Electrical Connector for Your Vehicle’s Audio System
Begin by verifying the exact model variant of your pickup, as connectors differ between base, Lariat, XLT, and King Ranch editions. Each trim features unique pin configurations, particularly at the rear of the stereo unit, where power, speaker, and antenna leads vary. Consult the factory service manual under section 8E–”Entertainment System”–to cross-reference part numbers.
Disconnect the negative battery terminal before handling any plug to prevent short circuits or accidental airbag deployment. Inspect the existing connection behind the dashboard: Lariat trims typically include a 24-pin plug with integrated amplifier wiring, while XL models often use a simpler 16-pin layout. Label each wire with masking tape to avoid misconnections during reinstallation.
Main harness suppliers like Metra, Scosche, and Axxess offer trim-specific adapters that match OEM specifications. Purchase an adapter kit based on the original connector’s shape–rectangular for luxury trims, trapezoidal for entry-level setups. Avoid universal kits unless they explicitly list compatibility with your vehicle’s exact trim and audio options, such as the optional Sony premium system.
For aftermarket installations, confirm whether the trim includes onboard messaging or voice control modules, as these require an additional data bus connection. King Ranch editions integrate a unique harness with extra leads for heated seat controls and navigation interfaces. Skip generic splices; use crimp connectors and heat shrink tubing to maintain signal integrity.
Online parts databases often mislabel connectors–filter results by trim-specific codes (e.g., “Lariat Premium” or “XLT Sport Package”) rather than the generic model identifier. Verify the harness’s pinout against the vehicle’s build sheet, available through a VIN decoder. Mismatched connections risk frying the audio processor or disabling onboard diagnostics.
If the original harness is damaged, salvage usable segments from a same-trim donor vehicle or replace it entirely with a factory-approved assembly. After installation, test all functions–including steering wheel controls, Bluetooth pairing, and auxiliary inputs–before reassembling the dashboard panels. A multimeter set to continuity mode helps identify broken or incorrectly routed wires.
Step-by-Step Disassembly of the Factory Audio Connector
Before handling any connectors, disconnect the vehicle’s negative battery terminal to prevent short circuits. Locate the dashboard’s trim panel securing the stereo unit–typically held by hidden clips or screws near the vents. Use a trim removal tool (plastic pry bar) to gently separate the panel from the dash, starting at the bottom corners to avoid damaging tabs. Work slowly, as some models integrate fragile wiring behind the trim. Once exposed, the stereo’s mounting screws (usually four, Torx T-15 or Phillips) will be visible.
Remove the screws and pull the unit forward enough to access the rear electrical plug. Press the release tab (varies by model–some use a spring-loaded button, others a sliding latch) while gently wiggling the connector free. If resistance persists, check for secondary locks or screws securing the plug. Store the unit upright to avoid damaging installed components. For aftermarket installations, label each wire’s origin with masking tape or a marker to simplify future reassembly.
Decoding Wire Colors and Purposes in the Pickup’s Audio Connector
Start inspection by locating the 12-pin plug behind the stereo unit–the orange cable marked with a white stripe delivers constant +12V power from the battery, independent of ignition status. This line feeds memory retention for presets and clock settings; verify it with a multimeter reading 12.5V or higher to confirm no parasitic drain.
The solid yellow lead carries switched +12V keyed through the ignition–measure 0V when the key is off, rising to 12-14V when turned to ACC or RUN. If voltage drops below 11V during engine crank, inspect the fuse link (20A, typically slot 28 in the under-dash panel) or corrosion at terminal 1F on the central junction block.
- Black with light blue stripe: amplifier remote turn-on–should spike to 12V when audio system initializes.
- Dark green with orange stripe: illumination dimmer control–voltage varies from 0V (headlights off) to ~9V (full brightness).
- Brown with white stripe: vehicle speed sensor input–audio speed-compensated volume adjusts when this signal exceeds 2.5V.
Ground connections cluster at pins 4, 5, and 12 using solid black wires–use a star washer and torque each eyelet to 8-10 in-lbs; resistance should read less than 0.5 ohms between any ground pin and chassis.
Left-front speaker wiring pairs purple (positive) with purple/black (negative)–signal polarity swaps if the tweeter emits only midrange frequencies. Right-front uses grey and grey/black; test with a 1 kHz sine wave–distortion below 1% indicates intact polarity.
Rear speaker circuits follow the same logic: light blue (positive) and light blue/black (negative) for left, white and white/black for right. If fade balance shifts toward one side, probe each wire with an oscilloscope; a 4 Vpp signal should appear on the positive terminal while negative reads
- Peel back silicone insulation 8 mm on antenna lead (dark blue with red stripe) and crimp a new terminal if reception cuts out above 50 MHz.
- Check pink wire with violet stripe–it carries the rear audio mute signal, grounding (
- Replace any cracked insulation sleeves; red with violet stripe carries navigation data–continuity to the GPS module must show
Atypical colors like solid tan indicate factory alarm interface–tape off rather than splice if bypassing premium sound systems to prevent theft-deterrent triggers.
