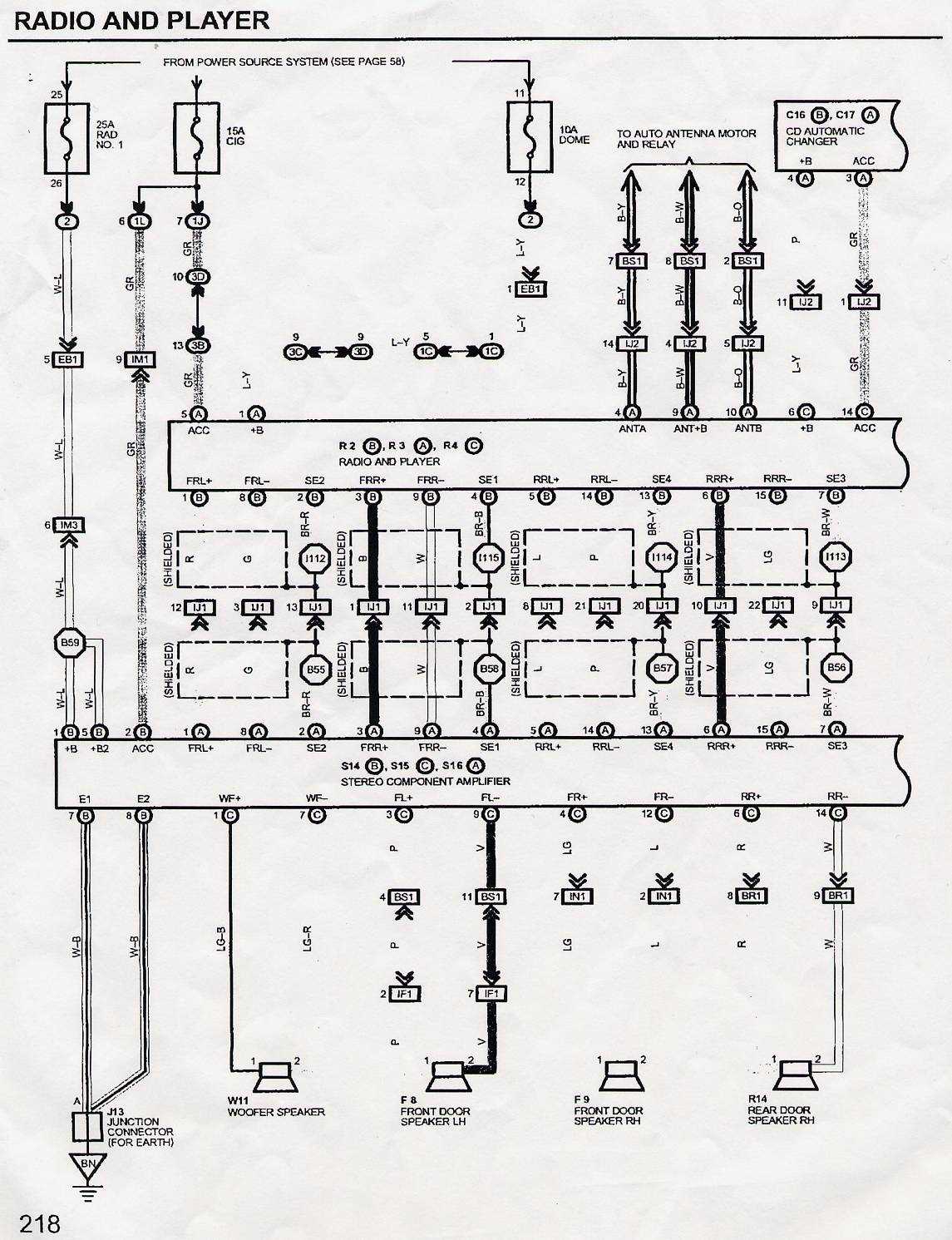

Complete Lexus RX330 Radio Wiring Diagram Guide for 2005 Model

Begin by locating the vehicle’s fuse box beneath the dashboard on the driver’s side–labeled with a clear schematic on its cover. The main power feed for the infotainment unit typically connects via a 10A fuse (marked IGN or ACC). Trace the red wire from this fuse to the harness connector behind the dashboard cluster, specifically pin 8B on the 24-pin plug. Verify continuity using a multimeter before proceeding to avoid damaging the head unit’s memory.

Disconnect the negative battery terminal to prevent short circuits. Remove the center console trim by releasing four clips–two near the gear selector, one behind the climate controls, and one beneath the cup holders. The antenna lead (coaxial cable) attaches to the rear of the receiver via a Motorola-style connector; ensure it’s snug to prevent signal loss. For speaker wiring, refer to the color-coded guide:

• Front Left (+): Gray/Black (pin C1)
• Front Right (+): Green/Black (pin C2)
• Rear Left (+): Pink/Black (pin C5)
• Rear Right (+): Purple/Black (pin C6)
• Ground: Black (pin A8)
• Illumination: White/Black (pin A6)

If integrating an aftermarket system, bypass the factory amplifier by splicing the speaker wires directly. The amplifier is housed under the passenger seat; its 12-pin connector carries high-level signals. Use 18-gauge wire for all splices and solder connections, then insulate with heat-shrink tubing. For steering wheel controls, retain the original interface by tapping into the CAN bus data lines (pins A12 and A13). Test all functions with the battery reconnected before reassembling the trim.

Electrical Connector Guide for Premium SUV Audio Systems

Locate the 16-pin harness behind the factory stereo unit by removing the trim panel using a plastic pry tool–metal tools risk damaging retention clips. Pin assignments follow this layout: A1 (constant 12V, yellow), A2 (ground, black), A3 (antenna trigger, blue/white), A4 (illumination, red), A5 (rear right speaker+, purple), A6 (rear right speaker-, purple/white), B1 (left front speaker+, gray), B2 (left front speaker-, gray/white), B3 (right front speaker+, green), B4 (right front speaker-, green/white), B5 (rear left speaker+, tan), B6 (rear left speaker-, tan/white). Verify voltages with a multimeter–yellow should read battery voltage even when ignition is off; red should drop to 0V.

Critical Installation Checks

• Insulate exposed connections with heat-shrink tubing–electrical tape degrades under dashboard temperatures.
• Connect aftermarket amplifier remote turn-on to pin A3 (blue/white) or tap into ignition-switched circuits–never use constant-power wires to avoid drain.
• Check speaker polarity by setting a 1 kHz test tone at low volume–positive leads should produce forward cone movement.
• For navigation retrofit, splice pink memory wire (pin A8) to a fused source–interrupting this circuit resets GPS calibration.
• Upgrade factory antenna cable if extending beyond 18 feet–RG58 coax loses signal strength at longer lengths.

Pinpointing the OEM Audio System Plugs in Your Vehicle

Locate the dashboard’s lower trim panel directly beneath the climate controls. A single Phillips screwdriver removes two screws, revealing the metal cage securing the head unit. Behind this cage, two gray rectangular plugs sit side-by-side; the left harness carries power, illumination, and amplifier triggers, while the right handles speaker outputs and ground.

Trace each harness tail to the vehicle’s bulkhead connector. The power plug–typically marked “A”–contains 16 pins arranged in two staggered rows; positions 1 (constant 12V), 4 (switched 12V), and 7 (ground) are thicker gauge and should be probed first. The speaker plug–marked “B”–has 12 pins, with front-left tweeter on pin 1, front-left woofer on pin 2, rear-left on 3/4, and so on clockwise. Verify continuity between pin 11 of plug B and chassis ground before proceeding.

Key Connector Pinouts

Harness	Pin	Wire Color	Function
A	1	White/Blue stripe	Battery (+)
A	4	Yellow/Red stripe	Accessory (+)
A	5	Pink	Illumination (-)
B	6	Gray/Black stripe	Front-right (+)
B	7	Gray/Red stripe	Front-right (-)

Ignore any smaller white four-pin connector emerging from the rear chassis; this is the factory antenna lead and carries no audio signal. When releasing the clips, pull the harness straight back–angled pressure risks bending the locking tabs. If reusing the OEM harness, terminate any exposed wires with solder and heat-shrink tubing rather than crimp connectors to prevent voltage drop.

Meter testing should confirm 12.6V at pin A1 with ignition off, dropping to 0V at pin A5 when headlights illuminate. Speaker wires should measure approximately 4 ohms between matched pairs; a reading below 2 ohms indicates a short, while open circuits exceed 10 ohms. Replace any corroded pins–common on the 10th position of plug B–using gold-plated terminals for reliable contact.

For aftermarket integration, purchase a wiring interface adapter pre-loaded with resistors matching the vehicle’s 10-kilohm steering-control voltage divider. If the meter reads 3.3V at pin A8 during a media-button press, retain the OEM stalk; absence of voltage requires sourcing a new switch assembly. Always disconnect the negative terminal before probing or soldering to avoid triggering the SRS diagnostic codes.

Step-by-Step Wire Color Codes for Aftermarket Head Unit Installation

Locate the factory harness behind the stock audio system and match these color codes to the replacement interface:

• Constant 12V power (red/yellow stripe) – Connects to the aftermarket harness’ yellow wire.
• Switched ignition (black/white stripe) – Links to the red ignition wire on the new unit.
• Ground (solid brown) – Attaches to the black ground lead.
• Front left speaker (+) (light blue) – Joins the gray wire on the aftermarket harness.
• Front left speaker (–) (light blue/black) – Connects to gray/black.
• Front right speaker (+) (green) – Ties to white.
• Front right speaker (–) (green/black) – Matches white/black.
• Rear left speaker (+) (red) – Goes to green.
• Rear left speaker (–) (red/black) – Links to green/black.
• Rear right speaker (+) (purple) – Connects to violet.
• Rear right speaker (–) (purple/black) – Joins violet/black.

Strip the factory leads ¼ inch, solder each joint, then insulate with heat-shrink tubing. Verify polarity with a 9V battery: positive wire should move the speaker cone outward.

Steering-wheel controls require an adapter harness–locate the purple connector behind the climate panel; the beige plug carries CAN bus signals. Use a PAC RP4-LX11 module; map buttons via the module’s universal app.

For amplifier retention, splice the solid pink (amp turn-on) wire to the new head unit’s blue/white remote lead. Test subwoofer output before securing the trim panel.

Secure loose wires with nylon ties every 4 inches; route audio cables away from power leads to prevent alternator whine. Recheck every connection with a multimeter before final assembly.

Tracing Power, Earth, and Audio Signal Leads in the Vehicle’s Entertainment Harness

Begin by extracting the center console trim panel covering the head unit’s rear connectors. Pry open retention clips using a plastic wedge tool–avoid metal to prevent cracking the fascia. The interface block, a rectangular black connector with 24 pins, sits directly behind the main display.

Pin 1 (top row, far right) carries constant 12V from the battery via a red sheath; test with a multimeter set to DC–proper voltage reads 12.4-13.2V. Adjacent pin 3 delivers ignition-switched 12V through a yellow jacket, essential for powering memory functions–verify by cycling the key between ACC and ON.

Ground feeds converge at pin 6 (bottom row, third from left), clad in black insulation. Use an ohmmeter connected to chassis metal or the bolt securing the HVAC vent bracket–zero resistance confirms integrity. Shorts here disrupt audio clarity and prevent booting.

Speaker Lead Identification

Front left positive (+) rests at pin 10 (top row, second from left), wrapped in violet. Its stereo partner, front right (+), occupies pin 8 (grey sheath). Rear channels follow: left (+) at pin 13 (purple), right (+) at pin 11 (green). Negative returns cluster at pins 12, 9, 14, and 7 respectively–all share a common white stripe.

Test each pair with a 9V battery; a faint pop confirms proper polarity before soldering connections. Crossed wires generate phase cancellation, muffling highs. Use crimp connectors rated for 22-18 AWG–solder risks melting adjacent plastic housings.

Illumination circuit control resides at pin 21 (orange), dimming the display when headlights activate. Tap this lead for aftermarket LEDs only if the dimmer rheostat maintains compatibility–PWM signals can fry incompatible drivers.

Backup reverse signal, pin 23 (pink), triggers external cameras–verify activation only when shifting into reverse gear. False triggers drain accessory power unnecessarily.

Final Validation Protocols

Re-seat the harness fully; partial engagement causes intermittent failures. Secure the interface block with the original locking tab to prevent vibration-induced disconnects. Apply dielectric grease sparingly to connectors–excess seeps into pin terminals, creating resistive barriers.

Common Installation Mistakes with Premium Audio System Retrofits

Avoid connecting the amplifier turn-on lead directly to the ignition wire without a relay or fuse-rated circuit. Factory harnesses often use 18-gauge pink wires running at 500mA–exceeding this current draws 3+ amperes during transient peaks, melting insulation within 12 inches of the splice point. Instead, splice into the brown accessory wire (terminal 11 on the OEM plug) through a 10-amp ATM mini fuse holder, positioning it 4 cm from the joint to prevent heat concentration.

Ground Loop Interference in Aftermarket Head Units

Shielded RCA cables draped over ungrounded metal chassis surfaces act as antennas, capturing 45Hz–3kHz noise from alternator whine or fuel pump oscillations. Secure signal returns at a single star-ground point–ideally the bolt behind the glove box mounting bracket–using 8-gauge tinned copper strands stripped 7 cm for maximum surface contact. Verify absence of oxide layer on mating surfaces with a multimeter set to diode-test mode; readings should show continuity below 0.3 ohms.

Skipping the confirmation of factory B+ retention relays invites parasitic battery drain exceeding 80mA after 48 hours of disuse, triggering “low voltage” warnings on instrument clusters. Test for residual current by inserting a 0.1-ohm shunt resistor between the red power input and fuse terminal, then measure voltage drop with a milliamp clamp. Readings above 30mV indicate faulty relay R9-1 within the integrated control module–replace with Panasonic AQV214S before proceeding.

Mismatched impedance between door tweeters (4 Ω) and newly installed component speakers (2 Ω nominal) causes midrange distortion peaks of +6dB at 2.8kHz, audible as metallic harshness during vocal passages. Insert a 1.5 Ω power resistor in series with each tweeter’s positive lead at the crossover input, secured with heat-shrink tubing above the kick panel to prevent vibration-induced fatigue.
