2005 Nissan Altima Bose Sound System Wiring Color Codes and Connection Guide

For seamless integration of a premium sound setup in a 2004–2006 model year vehicle, refer to the following wire color codes and connector pinouts. The factory amplifier harness uses a 10-pin plug with these assignments:

• Pin 1 (White/Violet): Front left (+) speaker output
• Pin 2 (White/Black): Front left (-) speaker output
• Pin 3 (Gray/Red): Front right (+) speaker output
• Pin 4 (Gray/Black): Front right (-) speaker output
• Pin 5 (Green/Violet): Rear left (+) speaker output
• Pin 6 (Green/Black): Rear left (-) speaker output
• Pin 7 (Blue/Red): Rear right (+) speaker output
• Pin 8 (Blue/Black): Rear right (-) speaker output
• Pin 9 (Yellow/Red): Constant 12V power (+)
• Pin 10 (Black): Ground (-)

Avoid bypassing the amplifier unless upgrading to an aftermarket unit with comparable impedance handling (4Ω nominal). The original system’s low-level outputs (pins 1–8) require shielded cables if extending beyond 18 inches to prevent interference. Verify fuse ratings before connecting: the Yellow/Red line typically pulls from a 10A circuit, shared with other accessories.

For signal verification, use a multimeter set to DC voltage (20V scale). Probe the Yellow/Red wire with the key off–expected reading: 12V. Turn the ignition to ACC; the voltage should remain stable. If absent, inspect the fuse box under the dash (fuse #32, 10A). Ground integrity (Black wire) can be tested by measuring continuity to chassis contact points–resistance should not exceed 0.5Ω.

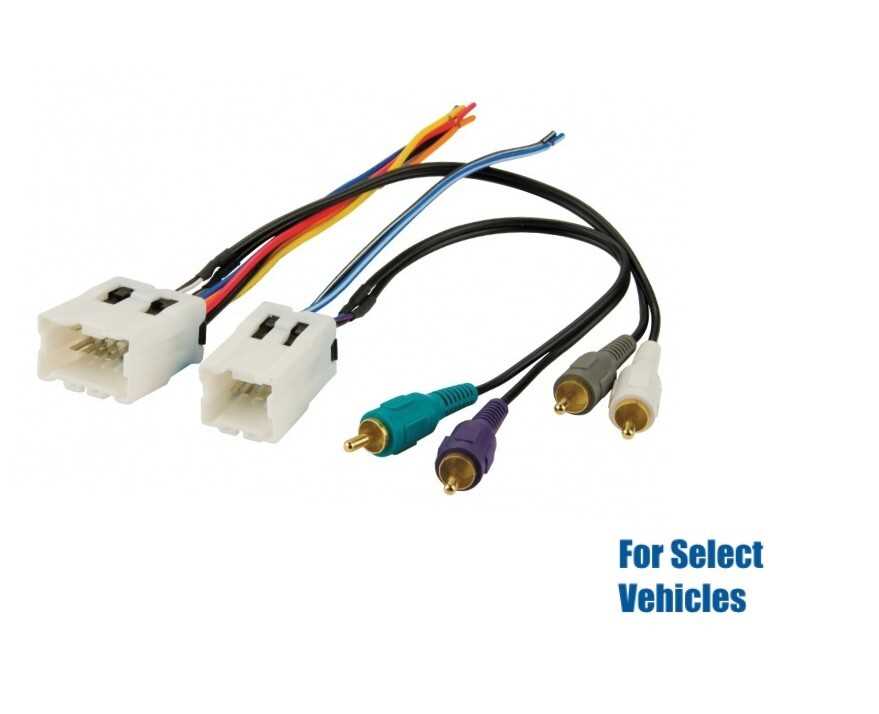

Adapter harnesses for aftermarket receivers often mislabel speaker wires. Cross-reference vendor documentation against these color standards to prevent phase cancellation or amp overload. The OEM amplifier’s RCA pre-outs (not present in base models) use a separate 8-pin harness–retroactively adding these requires splicing into the main loom or sourcing a vehicle-specific interface (e.g., PAC RP4-NI53).

Electrical Connections for Premium Audio Systems in Mid-2000s Sedans

Begin by locating the 12-pin harness behind the factory head unit–pin 1 supplies constant +12V from the ignition-switched circuit, while pin 4 delivers ground through a dedicated braided strap to the chassis rail behind the glovebox.

Connect the amplifier trigger wire (light blue with a white stripe, pin 7) directly to the aftermarket distribution block–this signal enables the power antenna relay in models equipped with satellite-ready tuners.

Left front speaker outputs appear on pins 2 (positive, dark green) and 3 (negative, gray); splice these leads using 18-gauge Teflon-insulated connectors rated for 10A continuous draw to prevent signal degradation at high volumes.

For the rear door units, pins 10 (purple) and 11 (light green) carry the right channel–verify impedance with a multimeter; a reading below 3.8 ohms indicates a possible short in the door jamb harness.

Avoid tapping into the orange illumination wire (pin 8) unless dimming control is required–this circuit shares voltage with the HVAC panel and can create interference during climate adjustments.

The subwoofer output (pin 9, dark blue) connects to the dedicated amplifier channel through an 80Hz low-pass filter–use oxygen-free copper cables with gold-plated terminals to maintain frequency response below +/- 0.5dB.

Check the in-line fuse holder between the battery and the main power lead–15A is standard, but replace with a 20A slow-blow fuse if upgrading to a high-output unit exceeding 50W RMS per channel.

After completing connections, power on the system and confirm absence of static by playing a 1kHz test tone at -10dB–any distortion suggests a misrouted ground or reversed polarity on one of the door speakers.

Locating the Premium Sound System Amplifier Plugs

Begin by accessing the vehicle’s lower dashboard panel on the driver’s side–this area conceals the factory-installed amplifier module. The connector cluster typically includes four distinct plugs: two power interfaces and two speaker outputs. Trace the main harness from the head unit downward; the amplifier’s harness will be a thicker, multi-colored bundle branching off midway.

Identify the primary power connector first–it’s a rectangular plug with either 8 or 12 pins, depending on the system variant. Pinout assignments follow this pattern:

• Pins 1-2: Constant 12V supply (red/yellow wires)
• Pin 3: Illumination signal (orange)
• Pins 4-5: Ground (black/brown)
• Pin 6: Remote turn-on (blue/white)
• Remaining pins: Factory diagnostics or unused

The second power plug, if present, handles amplified speaker feeds and is usually an 8-pin connector. Critical wires here include:

• Front left (+): Gray/blue
• Front left (-): Gray/black
• Front right (+): White/green
• Front right (-): White/black
• Rear channels follow a similar color-coding pattern with pink/purple variants

Distinguishing Speaker Outputs

Two additional plugs handle direct speaker connections–these are 6-pin connectors with thicker gauges (typically 16-18 AWG). The left-side plug serves front and subwoofer channels, while the right-side plug handles rears. Key indicators:

• Subwoofer (+): Light blue/black stripe
• Subwoofer (-): Light blue/pink stripe
• Tweeter outputs use thinner wires (20-22 AWG) for high-frequency signals

Verify connector polarities by matching wire colors to the amplifier’s label–most units print pin assignments on the casing. For aftermarket upgrades, note that the turn-on lead (blue/white) must trigger the new amplifier; bypassing this will disable the entire audio system. Use a multimeter to confirm voltage on the constant power pins before disconnecting any plugs to avoid resetting vehicle modules.

When reattaching plugs, ensure a firm click–many audio malfunctions stem from partial connections at these interfaces. The subwoofer connector is particularly prone to loosening due to vehicle vibrations. Apply dielectric grease to pins before reassembly to prevent corrosion, especially in older vehicles.

For troubleshooting, focus on the 12-pin main power plug first if experiencing no sound–this connector supplies the amplifier’s operating voltage. If certain channels are dead, inspect the corresponding 6-pin speaker plugs for bent pins or oxidation. Factory wiring rarely fails, but rodent damage or previous modifications can disrupt continuity.

Identifying Speaker Cable Shades for Each Vehicle Door Panel

Begin by locating the left-front door’s audio connections behind the factory-installed sound module near the kick panel. The positive lead typically uses a sky-blue wire with a stripe, while the ground is a pure sky-blue without markings. Verify polarity with a 9V battery–temporary distortion confirms correct pairing. If both wires produce sound, recheck the harness adapter for misaligned pins.

Door-Specific Wire Color Codes

• Right-Front Door: Positive – forest-green with white stripe; ground – solid forest-green.
• Left-Rear Door: Positive – violet with orange stripe; ground – plain violet.
• Right-Rear Door: Positive – tan with light-blue stripe; ground – unmarked tan.

Cross-reference these shades with the vehicle’s original harness–aftermarket adaptors often invert these colors. Use a multimeter to test resistance; anything above 4 ohms indicates a partial short or damaged cable.

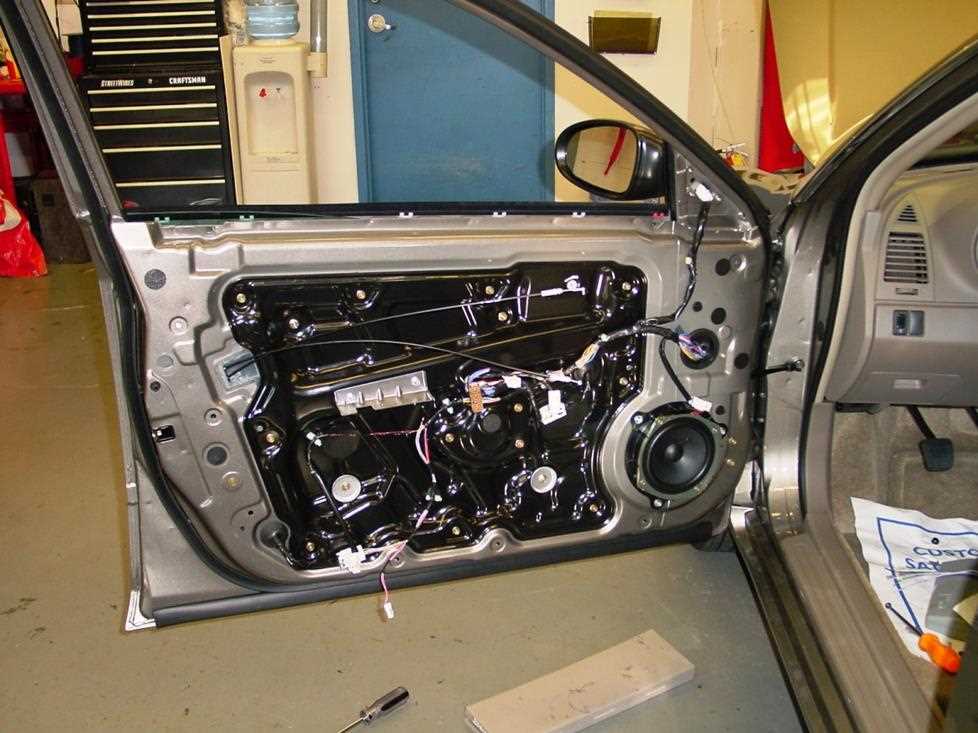

For doors with tweeters, trace the twist-lock connector near the window regulator. The tweeter’s positive wire is usually a thicker gauge with a gold or silver stripe, matched to the same color scheme as the woofer but with reduced thickness. Disconnect the battery before splicing–factory systems retain voltage in the capacitor network for up to 10 minutes.

1. Remove the door panel by prying the plastic retaining clips with a trim tool, starting at the bottom edge.
2. Unplug the speaker connector, noting the position of the indexing tab–incorrect reinsertion may damage the amplifier.
3. Solder extensions only if the original wires are too short–use heat-shrink tubing to prevent moisture ingress.

If wires appear corroded (visible green/white oxidation), replace the entire cable run. Factory speaker wires terminate at the central amplifier under the driver’s seat; splices here degrade sound quality. For reference, retain a sample of each wire color taped to a notecard–this simplifies future repairs or upgrades.

Power and Ground Connections for Secure Aftermarket Audio Upgrades

Locate the factory fusebox near the driver’s side kick panel–this is the primary access point for a clean 12V power tap. Use a fuse puller to remove a 10A or 15A fuse in a slot labeled for non-essential circuits (e.g., cigarette lighter, accessory port). Insert an add-a-circuit fuse holder into the empty slot, then reinsert the original fuse alongside it. This method prevents voltage drop by paralleling the circuit directly from the battery feed, not the switched ignition line.

Ground connections must bypass painted or coated metal. Scrape off surface material at the mounting point with a wire brush or sandpaper until bare metal is exposed. Use a #8 or #10 self-tapping screw with a ring terminal crimped to the ground wire (minimum 12-gauge). Tighten the screw securely to chassis metal near the stock audio harness or firewall–verify conductivity with a multimeter before finalizing the setup.

Avoid daisy-chaining power or ground wires to existing harnesses. Factory audio systems, especially premium setups, often use separate amplifier grounds and power feeds. Tap into the main battery cable (4-gauge or thicker) at the fuse box with an ANL fuse holder, placing it within 7 inches of the battery terminal to protect the new circuit. Use shrink tubing over connections to prevent corrosion.

Measure voltage at the proposed power tap with the engine running. A stable 13.8V–14.4V reading confirms a proper connection; anything below 13V suggests resistance in the circuit. Check ground voltage by placing the multimeter’s negative lead on a known chassis ground and the positive lead on the amplifier’s ground wire–ideal reading is 0.1V or less. Exceeding 0.3V indicates a poor connection.

Use distribution blocks when powering multiple components. Split a single 4-gauge input into dual 8-gauge outputs with a fused block, ensuring each output has its own fuse (e.g., 50A for amplifiers, 20A for signal processors). Mount the block within 18 inches of the battery to minimize voltage loss across the length of the run.

Test ground continuity by connecting the multimeter in continuity mode between the grounding screw and the negative battery terminal. An audible beep confirms a solid path; silence or high resistance (>0.5 ohms) requires repositioning. Avoid grounding to bolted sub-assemblies (e.g., seat rails, seatbelt anchors) as vibrations can loosen connections over time.

Route power cables away from signal wires and ignition coils to prevent noise interference. Cross power and RCA cables at 90-degree angles where unavoidable, keeping a minimum 6-inch separation. Secure cables with zip ties every 12 inches to prevent sagging or short circuits against sharp edges.

Upgrade the alternator if adding high-wattage components (e.g., >500W RMS). Stock charging systems may struggle to maintain voltage under load, causing dimming headlights or audio clipping. A 120A–150A alternator provides sufficient headroom for aftermarket amplifiers while maintaining stable power delivery to the vehicle’s ECU.
