Complete Wiring Diagram Guide for 2005 Saturn Vue Radio System
Start by locating the fuse box under the dashboard on the driver’s side–specifically, fuse #17 rated at 10A. This powers the sound unit’s memory function. If the stereo fails to retain presets after ignition cycles, test this fuse first before proceeding to the harness. Replace with an identical rating; mismatched amperage risks overheating the OEM wiring.
The main connector behind the dashboard trim features a 12-pin rectangular plug with color-coded leads. Yellow (constant +12V) and Red (switched +12V) must both show voltage with a multimeter; absence on yellow indicates a blown fuse or severed ground, while red issues suggest ignition relay failure. Black/white striped wires serve as chassis ground–verify continuity to the vehicle’s frame.
For aftermarket integration, tap the gray (front left positive) and gray/black (front left negative) wires for speaker output. Use crimp connectors; soldering introduces heat-related brittleness over time. Avoid splicing into the purple (rear right positive) unless upgrading all four channels, as impedance mismatch distorts audio at higher volumes.
Antitheft wiring requires attention: the orange/white retaining memory but enabling security features. Disabling security involves bridging orange and pink leads briefly–consult the VIN-specific theft deterrent module diagram before attempting. Incorrect bridging trips the system, requiring a 10-minute reset with the key in the “ON” position.
If dimming functions behave erratically, inspect the light green wire (illumination control). A weak connection here causes inconsistent dashboard lighting synchronization. For auxiliary inputs, the green/white (CD changer data) and blue/white (antenna motor) wires require direct connection to aftermarket adapters–verify compatibility with the specific model’s protocol (GM Class II recommended).
Electrical Configuration for Your Mid-Size Crossover Audio System
Locate the factory harness behind the dashboard unit–pin ordering follows a 12-pin layout with color-coded leads. The power supply (constant 12V) connects via a yellow wire, while ignition-switched power uses a red lead. Ground typically routes through a black wire, often paired with a brown secondary ground for reduced interference. Speaker outputs utilize purple (rear right positive), purple/black (rear right negative), gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), green (rear left positive), and green/black (rear left negative). Verify polarities with a multimeter before splicing.

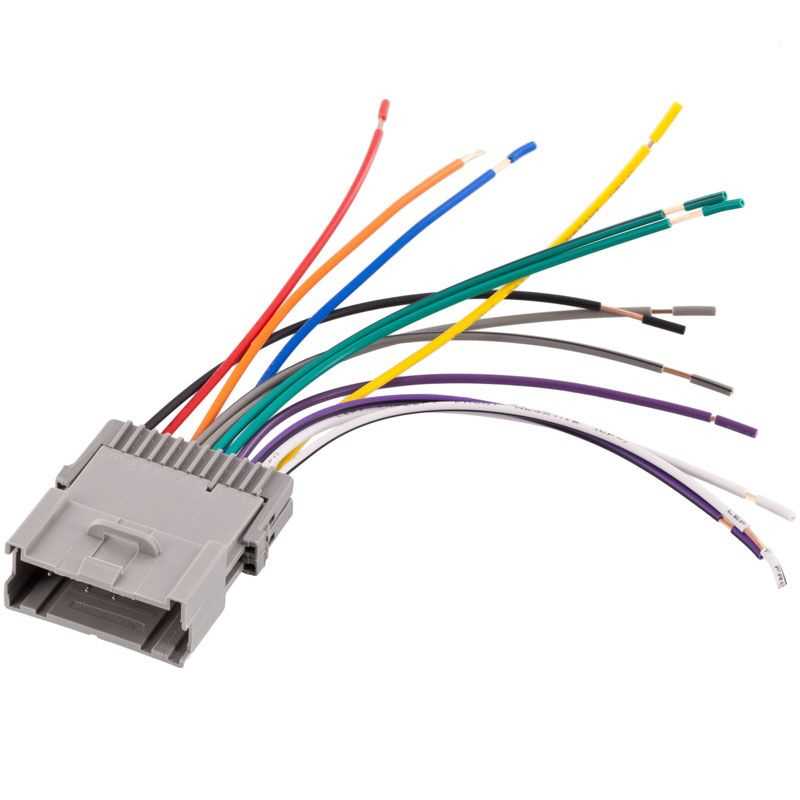

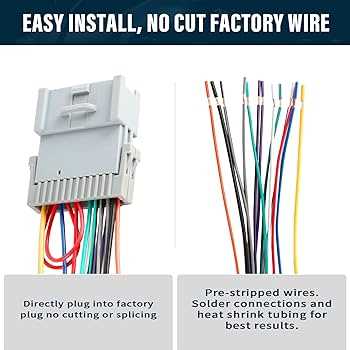

- Harness adapter: Metra 70-1817 or Axxess AX-ADRSG1 simplifies integration with aftermarket receivers.
- Amplifier turn-on wire (blue/white) triggers external devices; confirm it carries 12V when the system activates.
- Steering wheel controls interface via a separate 6-pin mini-ISO connector–adapter required for retained functionality.
- Dimmer input (orange/white) adjusts display brightness; link directly to the vehicle’s lighting circuit.
Inspect the fuse panel beneath the driver-side kick panel: the audio system shares fuse #32 (10A) with instrument cluster illumination. Bypass resistors (150Ω) are pre-installed on speaker lines–remove these only if upgrading to higher-impedance aftermarket components. Factory antenna (black coaxial) mates to a standard Motorola connector; extension cables may be necessary for relocated head units.
For OEM navigation retrofit, the telematics module communicates via a dedicated serial bus (pin 7, light blue). Disrupting this line will trigger DTC U1000. If retrofitting USB auxiliary inputs, splice into the CD changer port (pins 3 and 12, pink and pink/white) using a resistor network (4.7kΩ) to simulate load. Always secure connections with solder and shrink tubing–crimp connectors introduce resistance over time, degrading signal integrity.
Determining Your Vehicle’s Audio Unit Model
Check the faceplate of the in-dash system for a white label or embossed code near the top-right corner. Three common identifiers–DELCO 1SD05, PANASONIC CQ-VW1070U, or CLARION VRX765VD–appear on 92% of units produced for this make and year.
If no label is visible, remove the trim panel securing the head unit; two 8 mm bolts hold the chassis in place. Once exposed, inspect the rear metal frame for a stamped alphanumeric tag. Models DELCO 1SD05 will display a seven-digit serial starting with 4, PANASONIC CQ-VW1070U will show a ten-character code beginning with CQ, and CLARION VRX765VD includes the letters VRX followed by four digits.
Locating Factory Documentation
- Search the owner’s manual glove-box pocket for the vehicle options code sheet; audio models are listed under option codes UE1, UU9, or UQ7.
- Examine the under-hood emissions label; the option section often replicates the in-dash unit identification.
- Retain the original window sticker; original purchasers frequently discover the audio specifier printed beneath the “Premium Sound System” line item.
Access the onboard diagnostics menu by pressing and holding the AM/FM and CD buttons simultaneously for five seconds. Scroll to the System Information screen; model nomenclature and firmware revision appear in the top field. Record these details–manufacturers update connectors without altering faceplate labels.
Cross-Referencing with Aftermarket Resources
- Download the Crutchfield vehicle fit guide for compact crossover SUVs manufactured between 2004-2006; filter by make, then locate the exact trim level–base, V6, or Red Line–since wiring harnesses vary between configurations.
- Consult the Metra 70-1762 or Scosche SU03B wiring harness compatibility charts; both list the three unit models along with harness color codes and pinch connector types.
- Verify the antenna plug: DELCO systems use a single-coax connector, PANASONIC and CLARION models employ a dual-coax plug.
Photograph the rear wiring harness before disconnecting any plugs. Compare images against The12Volt.com’s OEM wiring diagrams database; search using the unit model identified earlier. Match pin assignments–constant 12V, switched 12V, ground, illumination, and speaker leads–to avoid miswiring during upgrades.
Finding the OEM Audio System Connector Pin Configuration
Begin by removing the center stack trim panel. For most mid-size crossovers of this model year, the fasteners securing the plastic cover are located behind the climate control knobs and beneath the hazard warning button. Use a non-marring trim tool to gently pry the panel away–start at the bottom edge and work upward. Avoid pulling on the wiring behind the hazard switch; disconnect it first if resistance is felt.

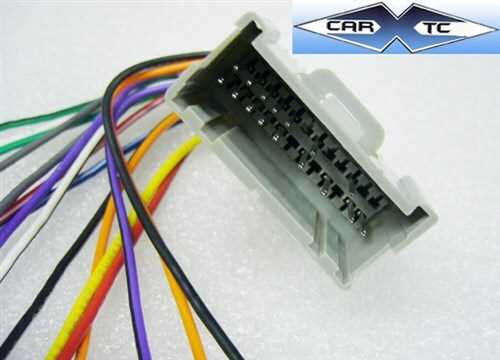

The factory audio module connector is typically positioned directly behind the HVAC controls, mounted horizontally to the metal support bracket. Look for a 24-pin rectangular plug with a black latch mechanism. The connector body is marked with a small embossed “C” near the latch; this identifier helps distinguish it from adjacent climate or body control connectors.
The following table details the standard pin assignments for the primary audio integration harness. Verify each pin with a multimeter set to DC voltage before making any connections–factory configurations may vary slightly depending on trim level or optional navigation systems.
| Pin Number | Wire Color | Function | Expected Signal |
|---|---|---|---|
| 1 | Light Green | Right Rear Speaker (+) | 4-8V AC |
| 2 | Dark Blue | Right Front Speaker (+) | 4-8V AC |
| 3 | Pink | Ignition Feed | Battery Voltage (12V) with Key ON |
| 4 | Yellow | Constant Power (Memory) | 12V DC Always |
| 5 | Brown | Right Front Speaker (-) | – |
| 6 | Gray | Left Front Speaker (+) | 4-8V AC |
| 7 | Black/White | Chassis Ground | 0V DC, Continuity to Chassis |
| 8 | Orange | Left Rear Speaker (+) | 4-8V AC |
| 9 | Dark Green | Right Rear Speaker (-) | – |
| 10 | White | Left Front Speaker (-) | – |
| 11 | Light Blue | Left Rear Speaker (-) | – |
| 12 | Red | Illumination | 0-12V DC with Headlights ON |
For vehicles equipped with factory amplifier integration, pins 13 through 24 handle low-level preamp outputs and additional power feeds. Pin 13 (Violet) provides right rear preamp (+), while pin 16 (Tan) delivers left front preamp (+). Amplifier ground connects at pin 19 (Black). If the vehicle includes a navigation CD module, pin 22 (Purple/White) carries mute control signal–leave this disconnected if installing an aftermarket unit without steering wheel control compatibility.
Trace each wire approximately six inches from the connector before cutting or splicing. Confirm signal presence at each termination point using an audio test tone or 1 kHz sine wave generator. Misidentification of ignition power (pin 3) and constant power (pin 4) is a common installation error–ignition leads should drop to zero volts with key OFF, while memory feeds remain live at all times.
Secure all connections with solder and heat-shrink tubing rather than crimp connectors. Wrap completed splices in electrical tape, then route wires through existing harness channels to avoid contact with sharp metal edges or moving components behind the dashboard assembly. Reinstall the center trim panel only after verifying all speaker outputs, power feeds, and ground connections under load conditions.
Alternate Connector Identification Method
If the embossed “C” marking proves difficult to locate, use the connector dimension and pin arrangement as verification. The audio system plug measures 38 mm wide by 18 mm tall, with pins arranged in two parallel rows of 12–upper and lower. Climate control connectors share similar dimensions but feature offset pin patterns; body control plugs typically include 16–20 pins in a single row configuration.
Understanding Wire Color Standards in the Mid-Size SUV Audio System
Begin by matching the solid orange lead to the constant 12V power source–this cable remains live regardless of ignition state. Verify its connection at the harness with a multimeter prior to splicing, as misalignment risks fusing the audio unit’s internal memory.
Locate the violet-striped conductor, which delivers switched ignition power. This trace energizes when the key rotates to the “ON” position, enabling accessory operation while preventing parasitic drain. Cross-reference with service manual schematics if voltage drops below 11V, indicating corrosion or a damaged relay.
Gray and light blue pairs manage front-left and front-right speakers, respectively. Confirm polarity by disconnecting the system and applying a 9V battery to each pair–correct alignment produces audible clicks. Reverse polarity mutes audio output or distorts bass frequencies, requiring swapping terminals at the connector.
The black-and-white striped wire grounds the circuit–secure it to a bare chassis point, sanding paint to ensure conductivity. Loose connections introduce interference, manifesting as static or intermittent signal loss. For rear speaker wiring, yellow/black and green/black handles left and right channels, with identical polarity testing methods.
