2005 Toyota Matrix Radio Wiring Harness Color Code and Pinout Guide
Begin by identifying the fuse box, typically positioned beneath the dashboard on the driver’s side or inside the engine compartment. Remove the cover to reveal the internal schematic–this often includes color-coded labels correlating to the audio head unit’s connectors. For models with standard six-disc changers or factory amplifiers, trace the red, yellow, and black wires first: red provides constant power (12V), yellow connects to the ignition switch, and black grounds the system.
Use a multimeter set to DC voltage to verify connections before disassembly. Probe the harness behind the dashboard panel–access requires removing the trim clips surrounding the climate controls. The rear of the head unit reveals a 16-pin connector; pins 1-4 handle power, 5-8 manage speaker outputs (front left, rear right, etc.), and 9-16 cover auxiliary inputs or amplifier triggers. Document each wire’s function–confusing yellow with green (left rear speaker) or blue (antenna power) risks shorting the circuit.
For non-factory installations, splice wires at the harness, not the unit, to preserve resale value. Crimp connectors degrade over time; solder and heat-shrink tubing offer longer durability. If replacing the audio system, bypass the internal amplifier by routing speaker wires directly to aftermarket components–this avoids signal distortion from mismatched impedance. Always disconnect the negative battery terminal before handling live circuits to prevent fuse blows or module damage.
Schematics vary by trim level–base models lack steering wheel controls, while XRS variants integrate redundant wiring for premium audio packages. Check the owner’s manual for rear-seat entertainment options; these share ground circuits with the main unit. If troubleshooting static or no sound, inspect the inline fuse near the antenna base–corrosion here disrupts signal clarity more often than speaker failure.
Electrical Pinout Guide for the 2005 Compact Wagon Audio System
Locate the factory harness behind the dashboard near the center console–it’s a 20-pin connector labeled “C” for power distribution and “A” for speaker outputs. The top row (pins 1-10) includes constant 12V (pin 1, red wire), accessory power (pin 2, yellow), and ground (pin 8, black). Misrouting these will trigger blown fuses or permanent damage to the head unit.
Speaker wires follow a distinct color code: front left (pin 12, light green), front right (pin 14, gray), rear left (pin 16, violet), and rear right (pin 18, blue). Verify continuity with a multimeter before connecting aftermarket amplifiers–weak signals often stem from oxidized pins or loose crimps in the original harness.
For steering wheel controls, splice into pins 3 (white/black) and 4 (white/blue) of the 10-pin secondary plug. Use a 680-ohm resistor in series to prevent phantom button presses. Third-party adapters typically fail here due to incorrect impedance matching.
Troubleshooting Common Issues
No power? Check fuse #20 (10A) in the under-dash panel–corrosion here mimics a dead battery. If the display dims but audio cuts out, inspect the dimmer wire (pin 7, brown/white) for shorts; it shares ground with the illumination circuit and often causes intermittent failures.
Static or low volume on specific channels usually indicates reversed polarity. Test each speaker with a 1.5V AA battery–proper wiring produces a clear pop. Factory tweeters (pins 11/17) use inline capacitors; bypassing these increases distortion at high frequencies.
When upgrading to a double-DIN unit, trim the climate control bracket using a Dremel–standard dash kits don’t account for the vertical heater vents. Secure the new harness with zip ties routed away from moving parts (e.g., gearshift) to avoid chafing.
For satellite radio or GPS integration, tap into the unprotected switched circuit (pin 6, pink) but add a 15A inline fuse. Many installers overlook this, risking fire hazards under sustained loads. Always strip wires with a proper crimper–scissors leave jagged edges that corrode within months.
Pinpointing the Original Sound System Plug Terminals
Locate the 12-pin rectangular harness connector behind the dashboard unit–commonly marked with alphanumeric codes on its plastic housing. Pins A, B, and C (clockwise from the upper-left corner) correspond to constant 12V power (typically red/yellow stripe), ignition-switched power (purple/white), and ground (black) respectively. Verify each terminal with a multimeter set to DC voltage: probe A should read 12-14V regardless of key position, B activates only when the ignition is in ACC or ON, and C registers 0V continuity to chassis. Mismatched readings indicate corrosion or a blown fuse (check slots 12 and 19 in the under-hood junction box).
Color-Coded Wire Assignments for Aftermarket Integration
Blue/white (pin F) carries amplified signals for antenna control–splice this only if retaining factory amplified systems. Pink/green (pin H) routes left front speaker output; blue (pin J) handles right front. Rear channels split into violet/red (left, pin K) and gray (right, pin L). Avoid tapping into solid green (pin D) or brown (pin E)–these carry CAN bus data and interference disrupts onboard diagnostics. For non-Bose systems, pins G and I remain unused; Bose-equipped variants repurpose them for subwoofer control.
Standard Harness Wire Colors and Their Purposes in the 2005 Compact Hatchback Audio Setup
Before splicing or replacing components, verify the harness with a multimeter. The factory stereo connector’s 14-pin plug follows this structure:
- Light Green (LG): 12V constant power (battery) – feeds memory for presets and clock.
- Yellow (Y): Switched 12V (ignition) – activates the head unit when the key is on.
- Black (BK): Ground – connects to chassis; resistance should measure ≤0.5 ohms to prevent noise.
- Gray (GY) / Gray-Black (GY-BK): Front right (+/−) speaker leads – impedance should stay between 2–8 ohms.
- White (W) / White-Black (W-BK): Front left (+/−) wires – polarity must match for proper stereo imaging.
- Green (GN) / Green-Black (GN-BK): Rear right (+/−) – often spliced incorrectly; trace back to the door tweeter if sound cuts out.
- Purple (P) / Purple-Black (P-BK): Rear left (+/−) – low-level signal; shield with twisted pair to reduce interference near power cables.
- Blue-White (BU-W): Amplifier turn-on – triggers external amps or powered antennas; voltage should pulse 12V when unit powers on.
- Orange (O): Illumination – dims display with headlights; wire runs to the dimmer circuit (typically 1–12V variable).
- Brown (BR): Mute – grounds momentarily during phone calls (if equipped) or navigation voice prompts.
Troubleshooting Common Miswires
If the display flickers or speakers emit static:
- Disconnect the ground (BK) last–loose grounds cause voltage spikes that can fry the tuner’s microprocessor.
- Route power (LG/Y) and speaker wires (±) in separate harness channels; coiling induces cross-talk.
- Test the illumination (O) wire with a 9V battery–if the display doesn’t dim, the dimmer relay may be faulty, not the stereo.
- Avoid twisting shielded wires (P/P-BK) around RCA cables–this introduces ground loops; use zip ties every 6 inches.
For aftermarket units, match the amplifier turn-on (BU-W) to the new device’s remote lead–mismatches prevent subwoofers from powering on.
Step-by-Step Guide to Removing the Factory Audio System for Harness Access
Begin by disconnecting the negative terminal of the vehicle’s battery to prevent short circuits or electrical damage. Use a 10mm socket to loosen the clamp, set the cable aside, and ensure it doesn’t touch metal. This step eliminates risks during the removal process, especially if the stereo has a memory-preservation feature.
Locate the trim panel surrounding the audio unit–it’s typically secured by plastic clips and may require a trim removal tool. Insert the tool into the seam near the bottom edge, apply gentle outward pressure, and work your way around the perimeter. Avoid forcing the clips; they snap easily. If resistance is felt, check for hidden screws (often behind small covers) before proceeding.
Once the trim is free, remove any screws holding the audio unit in place. These are usually Phillips-head bolts (size #2) located at the top and bottom of the chassis. Note their position–some models use varying lengths, so organize them to simplify reassembly. Slide the unit out partially, but don’t pull it fully; the back will still be connected by electrical connectors.
Press the release tabs on the harness connectors and antenna cable to detach them from the rear of the unit. For power harnesses, squeeze the plastic clip while wiggling the connector free–don’t yank the wires. Label each connector with masking tape if rewiring a replacement, as factory pins vary by function (e.g., constant power, ignition-switched power, speaker outputs).
Inspect the mounting cage or brackets left in the dashboard. Some vehicles require removal of these for aftermarket installations. Use needle-nose pliers to bend any metal tabs securing them, but avoid excessive force to prevent dashboard damage. If wiring repairs are needed, strip damaged wires back ¼ inch, twist new leads together, and apply solder or crimp connectors before heat-shrinking tubing for insulation.

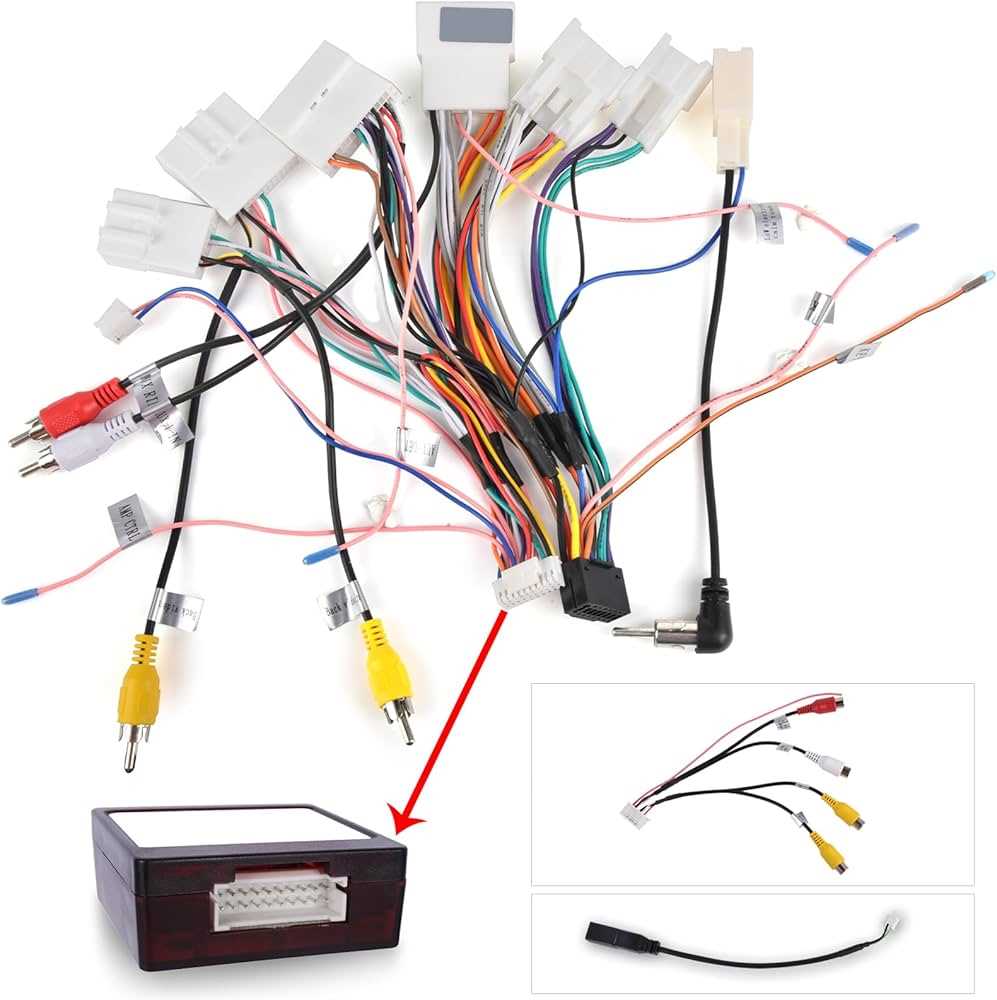

Integrating Factory Harness with Custom Audio Systems
Locate the original connector behind the factory stereo–it’s typically a 20-pin plug with color-coded leads. Match each wire to the aftermarket unit’s pinout using a multimeter set to DC voltage (2-12V range). Probe each terminal while the ignition is on to confirm function: constant 12V, switched 12V, ground, and speaker outputs.
Strip 1/4 inch of insulation from each factory wire, then crimp or solder corresponding leads from the new head unit. Use heat-shrink tubing over joints to prevent corrosion. Cross-reference wire colors against the decoder sheet–factory white/black may correspond to front right positive, while gray/red could be rear left negative.
| Factory Color | Aftermarket Function | Test Voltage |
|---|---|---|
| Yellow | Battery (constant) | ~12V |
| Red | Ignition (switched) | 12V when key ON |
| Black | Chassis ground | 0Ω to chassis |
| Pink/blue | Amplifier trigger | 12V with stereo ON |
Connect illumination wires (typically orange or orange/black) directly to the dimmer circuit to maintain dash light sync. If the factory harness lacks a dedicated amplifier turn-on lead, use a relay triggered by the head unit’s remote lead to prevent parasitic draw on the battery.
Verify speaker polarity by momentarily touching a 1.5V AA battery to each pair–positive leads should push the speaker cone outward. Reverse connections if cones retract. Secure all splices with dielectric grease and loom to prevent chafing against metal brackets.
Test all functions before final reassembly: power cycles, fade/balance adjustments, and auxiliary inputs. If static persists, check for proper ground–factory grounds often share screws with dash mounts or climate control brackets.
Program steering wheel controls using a custom interface module like Metra ASWC-1, matching button presses to resistor values via the module’s built-in calibration tool. Retain factory settings by connecting the data bus (usually green or white with stripe) to the new unit’s appropriate input only if specified by the harness adapter.
