Complete Wiring Diagram Guide for 2006 Chrysler Pacifica Electrical System

Start by obtaining the factory service manual for your vehicle–this is the most reliable source for verified schematics. Avoid third-party “universal” PDFs; they often omit critical details like fuse box pinouts, ground locations, or harness color codes specific to your model’s trim. If the official manual is unavailable, focus on OEM-partnered resources, such as the manufacturer’s authorized repair platform or subscription-based databases like Mitchell1 or AllDataDIY. These platforms include searchable, scalable diagrams with annotations for splice points and connector views.

Inspect the schematic’s legend before tracing circuits. Most mid-2000s crossover electrical layouts use standardized symbols, but variations exist–for example, dashed lines may denote shared grounds or multiplexed signals. If troubleshooting non-start conditions, prioritize the powertrain control module (PCM) diagram first; a corrupted circuit here often mimics dead-battery symptoms. For HVAC or lighting issues, isolate the relevant section by cross-referencing wire colors (e.g., dark blue/red stripe) with the component’s pinout list.

Use a multimeter to verify continuity before replacing components. Many schematics include expected resistance values for sensors and actuators–compare readings to confirm faults. If dealing with intermittent failures, check for chafed insulation near body seams or under seats; these are common failure points in models from this era. For complex systems like CAN bus networks, a scope meter can reveal voltage drop spikes invisible to standard probes.

When splicing into existing circuits, always refer to the harness routing diagram to avoid interfering with adjacent systems. For example, tapping into a power window circuit requires identifying a fuse-fed line with sufficient amperage; overloading a smaller gauge wire risks melting insulation. If adding aftermarket components, use a relay and inline fuse rated for the circuit’s load–this prevents voltage drops to safety-critical modules.

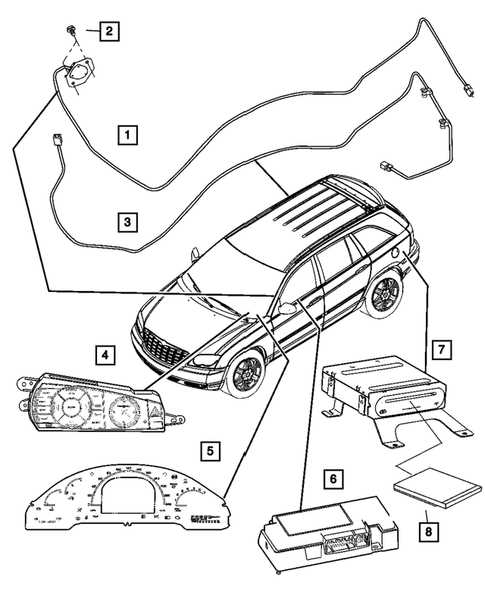

Electrical Blueprint for Mid-2000s SUV Cross-Reference

Locate the central junction block beneath the dashboard near the driver’s side kick panel–this hub consolidates power distribution for the ABS, instrument cluster, and interior lighting circuits. Pin assignments follow a consistent color-coded schema: red/orange stripes denote fused ignition feed, while dark green/white stripes carry ground returns; deviations typically indicate corroded terminals or misrouted harness sections.

Verifying the PCM connectors (C1 and C2) requires a multimeter set to 20V DC scale–probe the gray/black wire at pin 32 (C2) for a steady 5V reference signal during KOEO diagnostics; absence suggests a failed sensor ground or shorted MAP sensor circuit. For rear defogger grids, inspect the rear window harness where it exits the liftgate hinge, as chafing against the metal frame often severs the brown/light blue tracer wire.

Ground Point Diagnostics

Trace G103–a shared return for both the transmission control module and oxygen sensors–mounted adjacent to the battery tray; corrosion here manifests as intermittent stall conditions or erratic shift patterns. Use dielectric grease specifically rated for automotive temperatures when reseating connectors to prevent moisture ingress, particularly at the fuse block relay sockets where heat cycles degrade contact integrity faster.

For the sliding door mechanisms, focus on the door module’s 16-pin connector (black housing, top row positions 1–4) where the tan/yellow wire supplies constant power; intermittent activation failure often stems from broken strands within the door jamb grommet. Replace the entire harness segment if continuity tests confirm open circuits, as solder repairs compromise durability under flexing loads.

Locating the Manufacturer-Approved Electrical Schematic for Your Vehicle

Start with the official service portal at TechAuthority. Select “Passenger Vehicles” then navigate to “Model Year Documentation” for the exact trim. Authenticated downloads require a one-time purchase–prices range from $24.95 to $39.95 depending on the section, but the full electrical bundle typically unlocks with a single payment. Confirm the file size (average 15–22 MB) to avoid truncated schematics.

Alternative Sources with Verified Accuracy

Mopar’s Diesel Division archives retain legacy electrical layouts for hybrid and AWD systems–enter the VIN prefix (1C4GJXCD06W) to filter results. Automotive forums like WranglerForum host member-uploaded PDFs in the “Technical Service Bulletins” sub-section; cross-check SHA-256 hashes (published in pinned threads) to ensure file integrity. Avoid generic hosting sites–binary mismatches often indicate corrupted or incomplete scans.

Local libraries with ProQuest or ChiltonLibrary subscriptions grant free on-site access; request the “Complete Vehicle Wiring” segment under “Chrysler Pacifica 2006–2008” series. Dealership service departments may email the file if you provide proof of vehicle ownership and a $10 administrative fee–contact via the manufacturer’s customer service line (1-800-992-1997) and specify the instrument cluster, powertrain, or HVAC diagram needed to expedite retrieval.

How to Read and Interpret the Fuse Panel Schematic for Your Mid-Size SUV

Locate the fuse panel cover under the dashboard on the driver’s side–remove the retaining screw to access the layout. Each fuse slot is labeled with a number and corresponding function directly on the cover’s interior. Verify the amperage rating printed on the fuse itself against the diagram to confirm compatibility before replacement. Use a multimeter to test continuity if a fuse appears intact but the circuit remains dead.

Key Symbols and Labels to Recognize

Symbol	Component	Typical Location
⚡	Relay	Upper section, larger slots
⏚	Ground connection	Next to fusible links
A	Amperage value (e.g., 10A)	Below fuse number
━━▶	Power flow direction	Alongside wiring traces

Trace the color-coded wires from the fuse to their termination points by referencing the legend on the schematic. Red wires typically denote constant 12V power, while yellow often indicates switched circuits. Black wires are ground; blue, green, or pink usually serve accessory functions like lighting or sensors. Cross-check with a physical inspection to ensure no chafing or corrosion interrupts the path.

Identify shared circuits–multiple components often rely on the same fuse. For example, the audio system, power outlets, and seat heaters may be grouped under a 20A fuse. If multiple systems fail simultaneously, inspect this fuse first. Replace blown fuses only after resolving the root cause, such as a shorted motor or damaged wiring harness, to prevent repeat failures.

Step-by-Step Guide to Identifying Auto Glass Motor Circuit Colors on Schematics

Start at the vehicle’s fuse block layout–pinpoint the fuse labeled for the driver-side door actuator. Trace its output terminal to the harness connector, typically marked C101 or similar. The feed line from this point will split into two thick-gauge strands: dark blue with orange stripe (DB/O) for upward travel and dark green with white stripe (DG/W) for downward motion. Cross-reference these identifiers with the legend at the lower right corner of the schematic sheet.

Locate the passenger-side door actuator schematic next–often grouped separately near the rear quarter panel sections. The power feeds mirror the driver-side setup but switch colors: dark blue with yellow stripe (DB/Y) handles up, while dark brown with light blue stripe (BR/LB) manages down. Confirm continuity by matching the pin numbers on the door jamb plug with those on the diagram; mismatches usually indicate a splice point not shown in abbreviated versions.

Examine the ground returns carefully–these appear as black with pink stripe (BK/P) wires tied to chassis bolts behind the kick panels. Verify these lines terminate at the G102 or G103 nodes; corrosion here causes intermittent failures even if the rest of the circuit checks clean. Probe each ground with a multimeter set to resistance mode; readings above 0.5 ohms require cleaning or re-termination.

Check the window control module inputs if the motors remain unresponsive. Input signals default to light blue with red stripe (LB/R) for switch activation, but vary when connected to the BCM. Split the harness near the A-pillar and peel back loom tape to expose wiring; critical feedback lines gray with violet stripe (GY/V) carry position data and short circuits here mimic faulty regulators.

Use a highlighter to mark each confirmed path on paper diagrams before moving to the physical wiring. Label door harness connectors with masking tape–confusing C204 (driver door) with C205 (passenger door) leads to misdiagnosis. At splice points, strip insulation only 3 mm to avoid shorts; wrap repairs with adhesive-lined heat shrink tubing instead of electrical tape for durability.

Final step: energize the circuit with a 12V test lead, observing motor response. If the actuator hums but doesn’t move, the issue lies in the gears–replace the entire assembly. Silence indicates an open circuit; recheck highlighted schematic paths against actual wires, prioritizing DB/O and DB/Y first, as these carry the highest current and fail most frequently.

Frequent Electrical Problems and Circuit Repairs for the 2005-2007 Crossover SUV

Check theTotally Integrated Power Module (TIPM) first for intermittent failures. Corrosion on pins 30, 31, and 51 often causes dashboard warning lights to flicker or the power liftgate to operate erratically. Remove the module, clean contacts with electrical cleaner, and apply dielectric grease before reinstalling. If the issue persists, replace the TIPM entirely–aftermarket units cost approximately $180 versus $650 for OEM.

Faulty grounds under the rear cargo area lead to tail lights and backup sensors cutting out. Locate the black seven-way connector near the spare tire; disassemble and sand each terminal until bare metal shows. Reassemble with fresh solder and heat-shrink tubing. Verify voltage drop across the ground strap: readings above 0.1V indicate a high-resistance connection–trace back to the chassis and clean attachment points.

Power seats often stop adjusting due to broken wires inside the harness sleeve beneath the cushion. Strip the fabric covering to expose the flex circuit. Look for hairline fractures; splice in a new 18-gauge silicone-jacketed wire segment, matching original color coding. Secure splices with crimp connectors and waterproof heat shrink. Test each motor function before reassembling.

• Blower motor resistor failure: Replace with an updated part number 05081295AA–it includes an improved resistor pack that lasts three times longer than the original.
• Instrument cluster backlight flicker: Swap the dimmer control module behind the center stack; part number 05064483AB is a direct plug-and-play solution.
• Power window regulator gear breakage: Order regulator part number 04724810AE for driver-side windows–it features reinforced nylon gears.

Stalling or random cranking issues can stem from a bad camshaft position sensor connector. Unplug the sensor, inspect for green corrosion on pins 1 and 2, and coat with contact enhancer. If voltage fluctuates on pin 3 during cranking (should read 5V steady), replace the sensor–resistance should measure 600-800 ohms at room temperature.

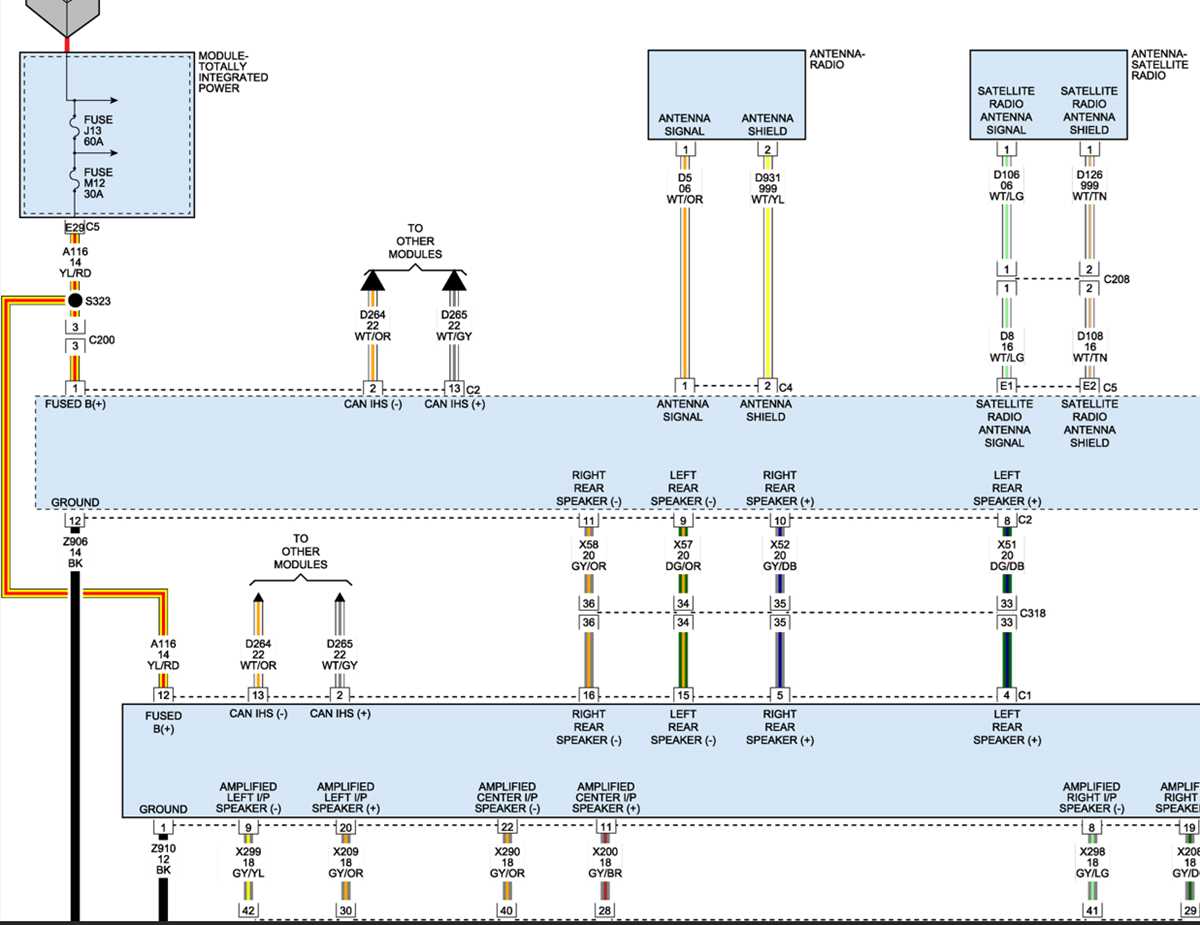

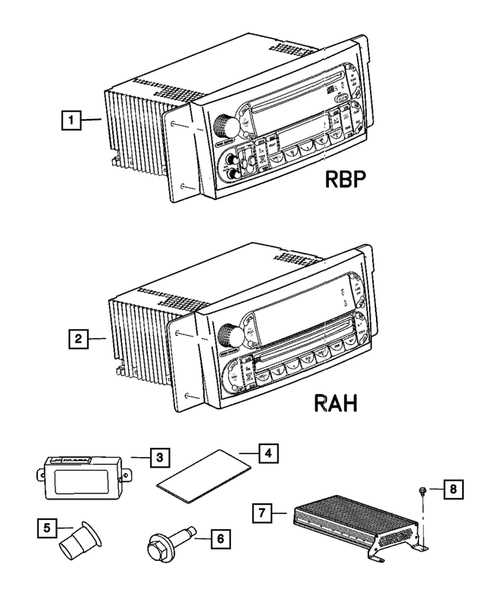

Audio system cutting out intermittently is usually traced to a failing amplifier located behind the right rear quarter panel. Remove the trim to access the eight-pin connector; reseat each pin while tugging gently to ensure proper engagement. If static persists, reroute the antenna cable away from the fuel filler neck–RF interference causes signal drops at specific frequencies.

HVAC actuator motors frequently strip plastic gears. For the blend door actuator, replace with part number 05094875AB–it comes pre-calibrated and avoids the need for manual initialization steps. For recirculation door actuators, use part number 05094876AA; both units bolt directly into place without additional wiring modifications.
