Full Guide to Ford F250 2006 Trailer Wiring Diagram and Connector Pinout
For precise connections, locate the factory-installed 7-way socket behind the rear bumper on the driver’s side. The color-coded wires inside this plug follow a strict standard: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (electric brake control), red (auxiliary power, typically 12V), and black (backup lights if equipped). Verify each wire with a multimeter set to continuity mode before splicing or attaching any aftermarket harness.
If the original harness shows signs of corrosion–common with aluminum wiring commonly used in this model–replace it entirely rather than attempting repairs. Use heat-shrink butt connectors for secure, weatherproof joints; crimp connectors alone will fail under vibration and moisture. For auxiliary circuits, such as a camper shell or winch, tap into the 20A fuse slot labeled “Trailer Tow” in the under-dash panel, using an add-a-circuit fuse adapter to avoid overloading factory circuits.

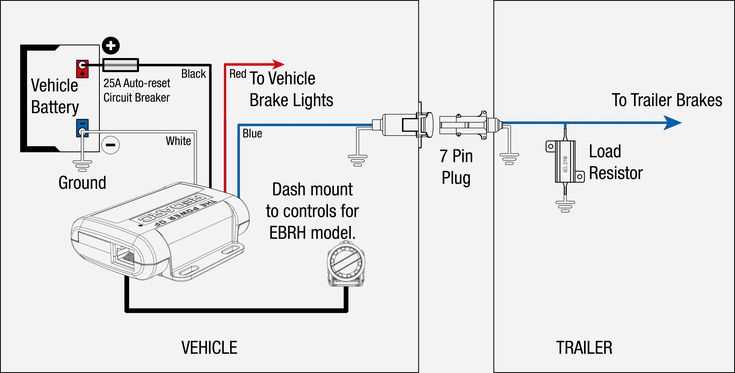

For vehicles equipped with a factory brake controller, the blue wire must be routed directly to the controller output without intermediate splices. If modifying a non-factory controller, ensure it’s compatible with PWM (pulse-width modulation) signals; aftermarket units lacking this feature will cause erratic brake engagement. Always ground the controller to a bare metal chassis point, never to a bolted-on component or painted surface.
When rewiring for heavier loads–such as a fifth-wheel or gooseneck hitch–upgrade the ground wire to 4 AWG and route it separately from the main harness to prevent voltage drop. Test trailer-side connections at the coupler with a 12V test light; a dim or flickering light indicates poor grounds or undersized wiring. Replace any factory wire gauges smaller than 12 AWG with thicker wire if extending circuits beyond the factory length.
Understanding Electrical Hookups for Heavy-Duty Pickup Towing Systems
Verify connector type first–7-pin round plugs dominate Ford’s heavy-duty lineup for this model year. Pin assignments follow a standard but differ slightly from Chevrolet or Dodge setups: pin 1 (white) grounds the circuit, pin 2 (brown) controls tail and marker lamps, pin 3 (yellow) handles left turn and brake signals, pin 4 (green) manages right turn and brake lights, pin 5 (blue) operates electric brakes, pin 6 (red) supplies auxiliary 12V power, and pin 7 (black) activates reverse lamps or additional accessories. Cross-check each wire’s gauge; blue and red wires typically demand 12-gauge minimum for safe current draw under load.
Install a relay-based converter between the truck’s lighting system and the plug if integrating LED add-ons. Factory incandescent circuits often lack sufficient current for modern LED arrays, leading to erratic flickering or premature failure. Locate the converter near the rear bumper–preferably inside a protective housing–to shield it from moisture and road debris. Secure ground connections directly to the chassis frame using a dedicated 10-gauge wire; avoid relying on sheet metal or painted surfaces, which offer poor conductivity and invite corrosion.
Testing and Troubleshooting Steps
Use a multimeter set to DC voltage mode. Probe each pin relative to ground while activating corresponding functions: tail lights (12V), turn signals (flashing 12V), brakes (12V steady), and auxiliary power (12V continuous). If readings drop below 10V during operation, inspect fuses (30A for brakes, 40A for power outlets) and wiring splices for oxidation or loose crimps. Replace any corroded connectors with gold-plated terminals to maintain signal integrity over extended towing distances.
Consider aftermarket harness upgrades if hauling trailers exceeding 10,000 lbs GVWR. Add a brake controller module compatible with Ford’s factory wiring–most models integrate seamlessly with the blue wire from the 7-pin plug. Ensure the device supports proportional braking, adjusting output based on deceleration rather than abrupt on/off switching. Route new wiring away from exhaust components and suspension travel paths; use split loom tubing to prevent chafing against sharp edges, and secure cables every 18 inches with nylon zip ties or rubber-coated clamps.
Matching the Right Electrical Connector for Your Heavy-Duty Pickup
Begin by checking the vehicle’s original harness configuration under the rear bumper–Ford equipped this model year with either a 4-pin flat or 7-pin round socket. The 4-pin connector handles basic lighting functions: brake, turn, and tail signals, while the 7-pin adds auxiliary circuits like reverse lamps, electric trailer brakes, and 12V power feeds for accessories. Look for factory labeling such as “TBC” (Trailer Brake Controller) or “CHMSL” (Center High Mount Stop Light) wires to confirm compatibility before purchasing replacements.
Aftermarket harnesses from CURT, Hopkins, or Bargman often bundle pigtail lengths between 24 and 36 inches, sufficient for most bumper-to-hitch setups without modification. Verify wire gauge: 12 AWG for brake circuits on heavy loads, 14 AWG for lighting-only tasks. Avoid generic connectors labeled “universal”–they frequently fail under vibration or corrosion typical in towing applications.
Locate the factory connector color codes in the owner’s supplement, typically distributed as follows:
| Pin | Color | Function | Gauge |
|---|---|---|---|
| 1 | White | Ground | 10 |
| 2 | Brown | Tail lights | 14 |
| 3 | Yellow | Left turn/brake | 14 |
| 4 | Green | Right turn/brake | 14 |
| 5 | Blue | Brake controller output | 12 |
| 6 | Red | Battery hot lead | 10 |
| 7 | Black | Reverse lights or aux | 14 |
Install dielectric grease on terminals before securing connections; this prevents moisture intrusion that leads to intermittent failures within the first 5,000 miles. If the pickup has aftermarket brake controllers or integrated factory towing packages, inspect for an additional inline fuse (typically 25–30 amps) mounted near the battery or distribution box under the hood.
Test continuity using a multimeter before attaching any load; set to DC voltage mode and probe each pin with the vehicle’s ignition switched to “on” and corresponding lights activated. Expect readings between 11.8–12.6 volts–anything below 11 volts indicates potential resistance issues in the chassis ground path, requiring direct-to-frame reattachment with a new ground strap.
Choose connectors with integrated dust caps for pins not in use; these prevent dirt accumulation that accelerates terminal corrosion in off-road or winter conditions. Replace any harness showing frayed insulation or brittle connectors–even minor abrasions can cause voltage drop under load, leading to brake system malfunctions or trailer light failures.
For pickups modified with exhaust systems or lift kits, ensure the replacement harness includes extended reach (up to 48 inches) to accommodate taller hitch heights without stretching wires. Clip-on retainers spaced every 8–10 inches prevent sagging, which can lead to wire chafing against the frame or driveshaft components over time.
Final validation involves a full system function check: engage turn signals, brakes, and auxiliary circuits simultaneously while observing voltage stability at the socket. Drop exceeding 0.3V indicates insufficient gauge or poor ground–address immediately to prevent controller module damage or bulb failure due to low power delivery.
Step-by-Step Guide to Locating the Towing Vehicle’s Electrical Socket
Begin beneath the rear bumper–most heavy-duty pickup models position the connector just left or right of the tailpipe. Follow the undercarriage rail until you spot a rectangular or round plug housed in a protective bracket. If obscured by dirt, use a flashlight to trace the harness from the rear lighting assembly to its termination point.
For variant configurations, check inside the rear wheel well or behind the rear fascia. Some assemblies integrate the socket within the bumper’s mounting plate, requiring removal of two or three T25 torx screws to access it. Label each wire before detachment if modifications are needed.
If the socket isn’t visible, locate the central junction box–often near the driver-side kick panel–to identify spliced leads. Probe connections with a multimeter, matching color codes against the service manual’s pinout table to confirm signal paths. Disconnect the negative battery terminal before testing.
Verify the socket’s retaining clip functions by inserting a test plug to ensure a secure latch. Replace corroded terminals with gold-plated equivalents to prevent voltage drop during towing operations.
Understanding Electrical Connector Hues in the Ford Heavy-Duty Series
Start by identifying the brown wire–this carries the running lights signal and must connect to the corresponding brown terminal on the plug to ensure side markers and taillights function correctly. Discrepancies here often cause visibility issues at night, so verify continuity with a multimeter before finalizing the connection.
The yellow cable handles the left turn signal and brake lights. Check for proper voltage (typically 12V) when activating the left turn lever or brake pedal. If the circuit shows inconsistent readings, inspect the vehicle’s harness for fraying near the rear axle or along the frame rail.
Locate the green wire, which manages the right turn signal and brake lights. Unlike the yellow, this circuit can sometimes interfere with aftermarket stereo systems due to shared grounding points. Separate these grounds if flickering occurs during signal operation.
White serves as the primary ground reference–anchor it to a clean, bare metal surface away from corrosion or paint. A weak ground causes erratic behavior across all circuits, including dim lights or intermittent failures. Sand down the attachment point for optimal conductivity.
The blue wire powers the auxiliary circuits, often used for electric brake controllers. Confirm voltage output matches the controller’s requirements (usually 10-12V) before splicing. Incorrect voltage here risks damaging the module or compromising braking performance.
Red supplies the hot lead for battery power, commonly utilized for charging circuits or high-demand accessories like winches. Use a relay if tapping into this line to prevent voltage drops that could degrade the vehicle’s battery over time. Fuse this connection near the source.
Black, when present, acts as an additional ground for specific aftermarket setups. Avoid mixing it with the white ground; instead, route it separately to the chassis if the manufacturer’s guidelines specify dual grounding. This prevents potential noise interference in sensitive components.
For circuits requiring higher amperage, such as backup cameras or LED clusters, splice a thicker gauge wire (12-10 AWG) directly to the fuse box. The stock harness may not support added load, so bypass it entirely to avoid overheating or blown fuses.
