Complete 2006 Honda CBR600RR Electrical Wiring Diagram and Guide
If you need the exact wire routing for this performance machine, locate the official service manual’s electrical section–page 147 details every connection from the ignition coils to the ECU. The 12-pin main harness connector under the fuel tank splits into three sub-harnesses: lighting (yellow wires), sensors (blue/white), and injectors (black/red). Cut past frustration by labeling each circuit with automotive-standard wire markers before disassembly.
Trace the starter relay circuit first–thick red wire from battery terminal to relay terminal 30, then 87 to starter motor. Use a multimeter set to 200 ohms to verify coil resistance: 1.0-4.0 ohms for primary, 10-13k ohms for secondary. The sidestand switch (grey/white wire) interrupts the ignition circuit when engaged; override this safety only with the correct jumper (documented in the OEM repair guide, chapter 6-2).
Ground points matter most–clean chassis contact points near the airbox (G102) and under the seat (G301) with 600-grit sandpaper before reattaching. The alternator outputs 14.5V AC at 5,000 RPM, regulated to 13.8V DC by the rectifier; test this with the engine running at 2,000 RPM. For hidden shorts, disconnect the battery, then systematically unplug each connector (starting with the CDI unit) while monitoring resistance between positive and ground. Faulty turn signals often stem from corroded bulb sockets at the rear sub-harness.
Keep a soldering iron (60W, rosin flux) and marine-grade heat shrink tubing on hand–quick splices with electrical tape degrade within 12 months. The coolant temperature sensor (white/black wire) should read 2.74k ohms at 20°C; deviations above 3.1k ohms indicate failure. When reassembling, route the main wiring loom exactly as shown in the exploded view diagrams–crossing wires near the radiator fan can melt insulation under sustained high temperatures.
Understanding the Electrical Blueprint for Your Mid-Sized Sport Bike
Locate the main harness connectors behind the right fairing panel–specifically, the 10-pin white plug (ECU) and the 6-pin grey plug (ignition). Cross-reference pin assignments with the factory service manual to verify continuity before disassembly. If resistance readings deviate by more than 5%, replace the affected sub-harness immediately. The stator output wires (yellow, yellow/white) should register 0.2-1.5 ohms; values outside this range indicate coil degradation or shorted windings. Always disconnect the battery negative terminal first to prevent accidental grounding.
Inspect the turn signal relay (mounted near the fuse box) for corrosion on terminals 1 (12V supply) and 4 (ground). A faulty relay often mimics bulb failure–swap with the spare (hazard) relay for confirmation. The fan circuit (black/white and green wires) demands attention: low-speed activation occurs at 102°C (±2°), high-speed at 112°C (±2°). Override the thermo-switch temporarily to test fan operation if overheating persists. For the fuel pump, probe the grey 2-pin connector–voltage should spike to 12V for 2 seconds upon ignition, then settle at 0V until engine crank. Persistent 12V indicates a stuck relay or ECM failure.
| Component | Wire Color Code | Pin/Port | Expected Value |
|---|---|---|---|
| Throttle Position Sensor | Red/Green | ECU Pin 22 | 0.5-4.5V (closed to WOT) |
| O2 Sensor Heater | Black/Yellow | ECU Pin 18 | 12V pulsed (engine running) |
| Neutral Switch | Light Green | ECU Pin 34 | 0V (neutral), 5V (gear engaged) |
| Starter Motor | Black/Yellow | Starter Solenoid | Battery voltage during crank |
Diagnosing Intermittent Power Loss
Check the ignition switch’s 4-pin connector for loose pins–especially the red wire (main power). A torque wrench set to 3Nm ensures proper terminal seating. The side stand switch (green/white wire) must ground when deployed; if voltage exceeds 0.5V, clean the switch contacts with emery cloth. Exhaust sensor heater circuits (black/yellow for front, yellow/white for rear) draw 3-5 amps–verify with a clamp meter. Parasitic draw above 50mA with all systems off points to a short in the instrument cluster or tail light circuit.
Finding the Primary Electrical Bundle Connectors on Your Sport Bike
Begin beneath the seat: disconnect the negative battery terminal first to prevent shorts. The central harness grouping for the 600cc model hides just under the tail cowl–slide it rearward after removing the two retaining screws near the rear fender. The connectors you need are wedged against the subframe, wrapped in a black corrugated sleeve secured with zip ties. Cut only the ties; avoid damaging the protective tube.
The first major junction sits three inches forward of the license plate bracket–a 16-pin rectangular block marked “A” in factory schematics. This is the main link to the ECU, ignition coils, and all sensor feeds (MAP, TP, IAT, CKP). Trace the white/red stripe wire backward to confirm; it powers both the fan relay and starter solenoid.
Below the fuel tank, tucked beside the steering stem, lies a smaller 8-pin connector labeled “B.” This handles turn signals, horn, and headlight feeds. Release it by pressing the retaining clip upward–never yank wires. A yellow/black stripe emerges here, supplying 12V to the instrument cluster.
For the starter circuit, follow the heavy-gauge red cable from the solenoid to a 2-pin bullet connector under the left side panel. It merges with the chassis ground strap near the kickstand sensor; corrosion here causes intermittent starting failures. Clean both terminals with a wire brush and apply dielectric grease.
The front harness splits at the triple clamp. A 12-pin connector behind the headlight housing carries signals for the high/low beams and running lights. Rotate the fairings outward to access it–no tools required. The green/red wire here triggers the sidestand relay; check continuity if the engine cuts out when downshifting.
Inside the fairing stay (left side), a 6-pin connector manages the fuel pump and rear O2 sensor. It’s often overlooked during diagnostics. Disconnect it only when the engine is cold to avoid fuel spray. A pink/white stripe wire delivers battery voltage; voltage drop here starves the pump at high RPM.
Behind the right side cover, a 4-pin connector links the cooling fan and engine temperature sensor. The fan should activate at 220°F (±5°F); if not, test the blue/white wire for 12V activation when hot. A faulty connection here overheats the engine within minutes.
Before reassembly, inspect each connector for bent pins, melted plastic, or greenish corrosion–common on bikes stored outdoors. Use contact cleaner on oxidized terminals, then reconnect while dry. Recheck all connections in reverse order of removal, ensuring the corrugated sleeve fully encloses the wires to prevent chafing against the subframe.
Step-by-Step Guide to Tracing the Ignition System Wires

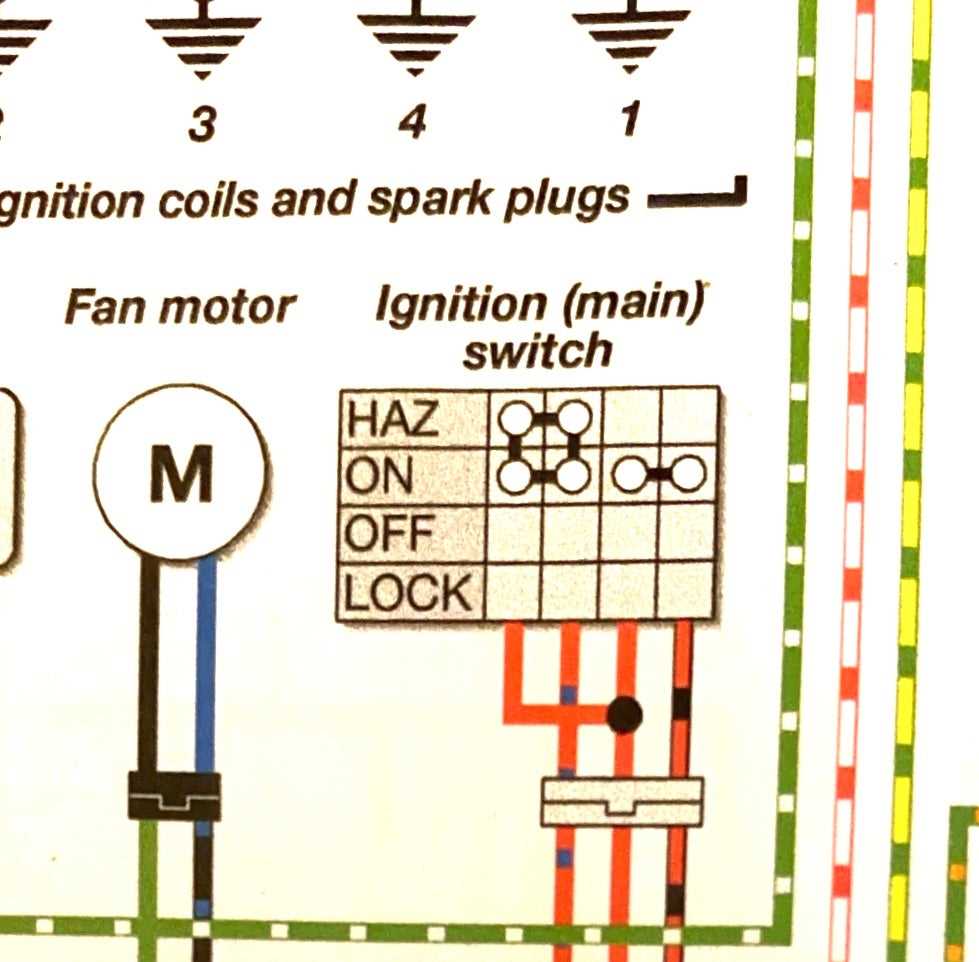

Locate the bike’s service manual and identify the ignition circuit schematic on the electrical layout page. Cross-reference the wire colors and terminal labels with the physical harness connections near the ignition coils and ECU. This prevents misidentification of similar-looking cables.
Disconnect the battery’s negative terminal before probing any wires. Use a multimeter set to continuity mode to verify connections between the ignition switch, kill switch, and ECU plug. Probe the pins directly–avoid back-probing connectors to prevent damage. Record all readings in a table with columns for wire color, terminal label, and measured resistance.
- Red/black (power input from ignition switch)
- Black/white (ground reference)
- Green/yellow (trigger signal to ignition coils)
- Blue/white (coil control output)
Trace the primary ignition wires from the ignition coil packs to their ECU connectors. Each coil pack has two wires: a power feed (typically 12V) and a control wire (pulsed signal). Follow the harness along the frame, checking for chafing or brittle insulation near sharp edges or heat sources like the exhaust.
Inspect the ignition switch connectors for corrosion or bent pins. Clean contacts with electrical cleaner and a fiberglass pen if oxidation is present. Reassemble the switch and test voltage drop across terminals while cycling the key from OFF to ON. A drop exceeding 0.2V indicates high resistance–replace the switch or repair the harness splice.
- Identify the ECU’s ignition output pins using the manufacturer’s pinout chart.
- Power up the system and measure voltage at each coil control wire while cranking the engine. A healthy signal should show 0V at rest and 5-7V peaks during cranking.
- If no signal is detected, backtrack to the ECU power supply wires. Verify 12V at the main relay and 5V at the sensor reference wires.
Check the sidestand and clutch switch circuits if the ignition signal is present but the engine won’t start. These safety interlocks often use the same ground path as the ignition system. Bypass each switch temporarily with a jumper wire to isolate the fault. Replace faulty switches or repair frayed wires in the harness.
Examine the ignition coils for internal shorts by swapping coils between cylinders. If a misfire follows the coil, the unit is defective. Test coil resistance–primary windings should read 0.2-0.5 ohms; secondary windings 8-15 kOhms. Replace coils showing out-of-spec readings without attempting repairs.
Reassemble all components and perform a final voltage check at the spark plugs. Use a spark tester to confirm consistent spark across all cylinders. Reconnect the battery last, ensuring all ground connections are tight and free of paint or corrosion. If issues persist, consult an oscilloscope trace of the ignition waveform for irregularities in pulse width or amplitude.
