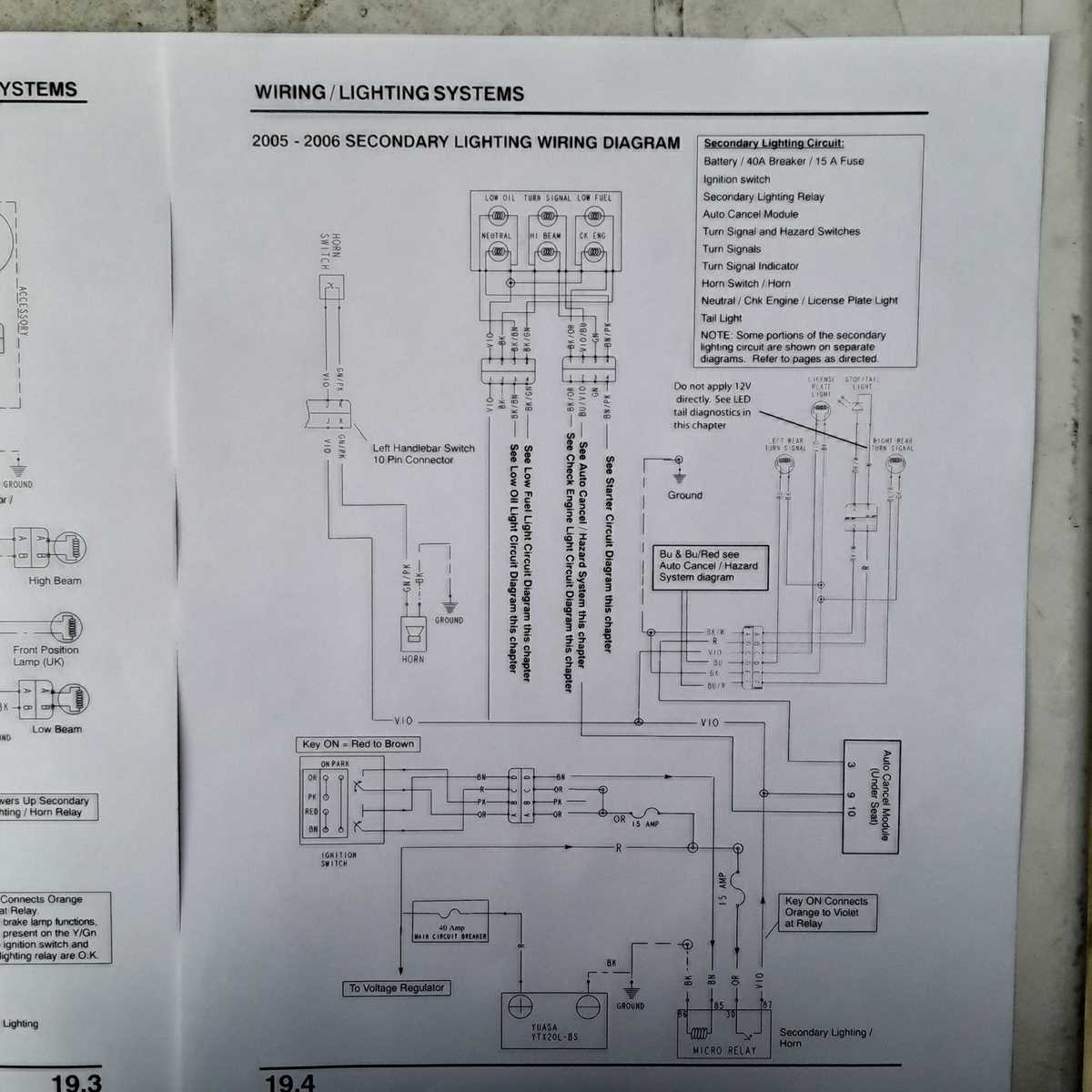

2006 Victory Vegas Complete Electrical Wiring Schematic Guide

Start troubleshooting or modifying your motorcycle’s electrical system by securing the official factory schematic. This document maps every connection, fuse rating, and wire gauge for the model in question–critical for avoiding shorts or overloads during custom work. Locate the diagram through authorized service manuals or verified aftermarket suppliers; third-party forums often host incomplete or incorrect versions.

Key components to verify include the ignition switch wiring (pinout variations exist between years), stator output (typically 14–18V AC), and regulator/rectifier connections (three-phase input, DC output). Failure here causes voltage leaks or battery drain. For color-coding, consult page 8-12 in the service manual–red/brown stripes denote power feeds, while black/white stripes ground circuits. Deviations may indicate aftermarket alterations.

When splicing into the harness, use heat-shrink butt connectors rated for 16–20 AWG wire (environmental resistance is mandatory). Avoid solder-only joints; vibration weakens them over time. For GPS or lighting additions, tap into the switched accessory circuit (white/orange wire, 10A max) at the fuse block–never the main battery feed. Confirm polarity with a multimeter before finalizing any connection.

Common failure points include corroded bullet connectors near the stator (clean with dielectric grease) and frayed grounds near the engine mount (re-terminate with ring terminals). If OEM switches (e.g., turn signal cancel) behave erratically, check the grey/black wire continuity to the speed sensor–intermittent breaks here disable automated features.

Electrical Blueprint for Classic Vegas Cruiser: Hands-On Troubleshooting

Locate the main harness connector beneath the seat–marked by a 24-pin Molex plug–to verify continuity before disassembling the fairings. Use a multimeter set to 200 ohms and probe pins 1 (red/white) and 12 (black/white); readings above 0.5 ohms indicate corrosion in the starter relay circuit. Clean terminals with contact cleaner and dielectric grease if resistance exceeds this threshold.

Inspect the ignition switch pigtail where it exits the headlight nacelle; chafing against the fork tubes causes intermittent loss of signal to the ECM. Remove the nacelle and wrap the harness section in split-loom tubing secured with zip ties at 3-inch intervals. Label each wire with colored tape matching the factory schematic–front-left blinker (pin 7, orange/white) and tail-light ground (pin 18, brown)–to prevent misrouting during reassembly.

• Fuse block reset: Remove cover plate retaining screw (Torx T20), then press each mini fuse inward while rocking side-to-side. The 15A ignition fuse (middle row, leftmost) is prone to fatigue; replace with identical amperage blade fuse, not a higher-rated substitute.
• Charging system test: Attach voltmeter probes to battery terminals while running at 2000 RPM; voltage should stabilize between 13.8–14.5V. Readings below 13.5V signal stator failure–remove primary cover to access the three-phase wires soldered to the voltage regulator.
• Turn signal flasher relay: Bypass unit by jumpering pins 49 and 49a (light green/green) at the handlebar switch plug; rapid clicking confirms relay failure–install a solid-state flasher rated for 2 ohm load.

The rear brake light switch circuit shares ground with the ABS module; an open circuit here triggers collateral ABS faults. Trace the violet/white wire from the switch to the 6-pin connector under the rear fender–disconnect and bridge pin 1 to pin 6 with a paperclip. If the ABS light extinguishes, replace the switch but first verify the pedal free-play (3–5mm) to prevent premature failure.

Crank position sensor wires (black/yellow and white) require shielding from magnetic interference; route them away from the spark plug leads by at least 2 inches. Secure ties every 2 inches using self-adhesive cable straps–neoprene sleeves over exposed wire ends prevent moisture ingress. Sensor resistance should read 500–550 ohms at room temperature; readings outside this range mandate sensor replacement, not ECM reset.

1. Remove fuel tank: Drain remaining fuel, disconnect the fuel line quick-release (press retaining ring while pulling), then unplug the fuel pump module (4-pin connector). Label vent hose (smallest diameter) versus return hose to avoid swapping during reinstallation.
2. ECM mounting: The control unit nests behind the right side cover; release two Phillips screws and pivot the cover downward. Unplug the 32-pin connector only after depressing the locking tab–failure to do so bends the pins, necessitating costly harness replacement.
3. Throttle position sensor: Twist the throttle open–sensor resistance should decrease smoothly from 4.7k ohms to 1.5k ohms. Irregular jumps indicate worn resistive carbon tracks; clean with contact cleaner sprayed through the wiring harness grommet.

When soldering repaired connections, use 60/40 rosin-core solder with a 60W iron–excess heat destroys PCB traces in the voltage regulator. Apply heat-shrink tubing (minimum 3:1 diameter ratio) and seal both ends with silicone paste to prevent capillary moisture entry. Store the revised printout under the seat in a ziplock bag coated with corrosion inhibitor.

Pinpointing Core Electrical Bundle Attachments on the Motorcycle

Begin beneath the fuel tank by removing the seat and side panels to expose the central electrical assembly. The primary harness splits near the frame downtube, with one branch leading to the ignition module and another connecting to the battery tray. Use a flashlight to trace the thickest bundle–typically encased in black or dark gray protective sheathing–as it houses critical power distribution lines.

Locate the 32-pin connector behind the instrument cluster. This junction aggregates signals from sensors, lighting, and onboard electronics. Gently pry apart the retaining clips to inspect the terminals; corrosion or bent pins here often disrupt speedometer, fuel gauge, and warning light functionality. A multimeter set to continuity mode verifies circuit integrity across terminals.

The rear harness exits near the tail section, branching toward the brake light and turn signals. Follow the bundle along the subframe to find the two-wire connector for the license plate illumination–common failure point due to vibration. Tighten any loose connections and apply dielectric grease to prevent moisture ingress.

Check the starter relay, mounted adjacent to the voltage regulator. The main power cable from the battery terminates here, featuring a red (positive) and black (ground) lead. Verify the relay’s 87/87a pins engage audibly when the ignition key is turned; if silent, test for 12V at the 30/86 terminals.

For the headlight circuit, identify the four-pin connector near the fork assembly. The outer pins carry high/low beam outputs, while the inner handles running lights. Replace any frayed wires–especially where they flex near the steering head–with heat-shrink tubing to prevent short circuits.

The engine control module (ECM) hides beneath the airbox. Disconnect the 60-pin connector after releasing the latch; each terminal maps to ignition coils, fuel injectors, and throttle position sensors. Label each wire before servicing to avoid misreconnection. Probe pin 15 for 5V reference voltage–a missing signal often triggers limp mode.

Finally, inspect the ground straps linking the frame to the engine case. Brush away corrosion at contact points and apply anti-seize compound. Poor grounding manifests as dim lights or erratic gauge readings. Secure all fasteners with thread locker to withstand vibration.

Identifying Color Codes for Key Electrical Components

Start by locating the main harness connector near the ignition switch–most cruiser models label the ignition feed wire orange with a white tracer. This stripe pattern is critical for distinguishing power sources during troubleshooting. Verify continuity with a multimeter before assuming functionality, as corroded terminals or splices often disrupt signals despite correct color coding.

Headlight systems typically use yellow (high beam) and brown (low beam) wires, but check the ground wire–it’s usually black but may split into black with a white stripe for auxiliary circuits. If dimming or flickering occurs, inspect the relay box; a failing relay can mimic wiring issues, and the color codes for relay inputs/outputs (dark green for output) rarely match the main harness.

Turn signals rely on light green (left) and dark green (right), but the flasher unit’s load wire (gray) is often overlooked. Trace this wire back to the flasher relay–if the signals flash too rapidly, the problem is usually a bad ground (bare copper or black) rather than the signal wires themselves. Avoid splicing these wires for aftermarket accessories; use the factory connector for reliability.

For the charging system, the stator’s phase wires (white, white/red stripe, white/blue stripe) terminate at the voltage regulator. If battery drain occurs, test these individually–stator failures often start with one faulty phase, detectable only by measuring each wire’s AC voltage while cranking. The regulator’s ground wire (black/white stripe) must be clean and securely fastened; even slight resistance here causes erratic charging.

Fuel injection wiring varies, but the throttle position sensor (TPS) typically connects via purple (signal), gray (+5V reference), and black (ground). If the bike hesitates or stalls, backprobe these wires while slowly opening the throttle–an unstable voltage reading confirms a faulty sensor or frayed connection. Avoid probing the injector wires (pink/black stripe per injector) directly; use a noid light to test pulse signals without risking short circuits.

Brake light circuits differ front to back: the rear brake switch wire is red/white stripe, while the front lever may use orange/green stripe. The stoplight relay (light blue input) activates both, but if one fails, check the corresponding switch first–corrosion here is common and mimics bulb burnout. For LED upgrades, retain the original load wire colors; non-resistive loads require inline resistors to prevent hyperflashing.

Auxiliary circuits, like heated grips, often borrow power from the red (+12V ignition-switched) or violet (fused accessory circuit) wires. Avoid tapping into high-draw components like the radiator fan (brown/white stripe); use a dedicated fuse block instead. For diagnostics, cross-reference wire colors with the official service manual–some models use two-tone stripes (e.g., blue/white and blue/yellow) that appear similar under poor lighting.
