Complete Ford Explorer Sport Trac 2007 Radio Wiring Diagram Guide
For immediate clarity, refer to the rear fuse box under the driver’s side dashboard–this is where the constant 12V power lead (red wire) connects to fuse #22 (10A). Ground the black wire to a clean, unpainted chassis point near the center console to prevent signal interference. The switched ignition (yellow wire) pulls power from fuse #19 (15A) in the same box, ensuring the stereo powers on only when the vehicle is active.
If you’re replacing the factory unit, use a harness adapter (Metra 70-1776 or equivalent) to avoid cutting original wires. The speaker outputs follow this configuration:
Front left/right (+): white (L+), gray (R+);
Front left/right (–): white/brown (L–), gray/red (R–);
Rear left/right (+): green (L+), purple (R+);
Rear left/right (–): green/orange (L–), purple/brown (R–).
For amplifier setups, tap into the blue/white remote turn-on wire at the harness’s 8-pin connector. Verify connections with a multimeter–4-6 ohms across speaker leads confirms correct pairing. If static persists, inspect the antenna lead (pink wire) for proper grounding at the chassis.
Store the original retaining brackets–they secure aftermarket units in the dash. If installing a navigation system, the pink/light blue GPS antenna wire requires an unobstructed path to the roof for satellite signal. For steering wheel controls, integrate a Pac SWI-RU module, mapping inputs via the light green/violet wire (data bus).
Always disconnect the negative battery terminal before splicing wires to prevent short circuits. Seal connections with heat-shrink tubing or electrical tape–exposed copper corrodes within months, causing sporadic audio failures.
Wiring Layout for the 2006–2008 Mid-Size Adventure Vehicle Audio System
Connect the aftermarket receiver’s constant power wire (yellow) to pin 4 on the factory harness, located behind the dash panel. This terminal delivers 12V regardless of ignition state. Verify the connection with a multimeter before securing the splice; erratic voltage here often causes memory loss in newer head units.
The switched 12V (red) must tie into pin 6–this wire only energizes when the key is turned to ACC or ON. Skipping this step forces you to reset presets each time the vehicle starts. Use a crimp connector, not solder, if ambient temperatures exceed 85°F; solder joints can fracture under dashboard vibrations.
- Ground (black) attaches to chassis bolt behind the glove box–clean the surface with 120-grit sandpaper first. Paint or corrosion on the mounting point increases resistance, leading to alternator whine.
- Front left speaker positive (gray w/ violet stripe) maps to pin 10; negative (gray w/ pink stripe) to pin 9. Reverse polarity here flips stereo imaging, making instruments sound like they’re playing inside your passenger’s head.
- Rear speaker pairs mirror the front: right positive is purple w/ white stripe (pin 14), negative purple w/ black stripe (pin 16); left positive is light green w/ red stripe (pin 20), negative light green w/ black stripe (pin 22).
If retaining the stock amplifier, link the blue “remote turn-on” wire from the new deck to pin 1 on the OEM plug. Omitting this bypasses the amp entirely, dropping volume by 30 % and cutting subwoofer output. Test with a 1 kHz signal; if the meter jumps but you hear nothing, the amp is still asleep.
Factory Color Codes vs Aftermarket Labels
- Dark green = parking brake sensor (do not repurpose–interrupting this circuit triggers dash warning lights)
- Pink = rear defrost timer (shared circuit; tapping here trips a fuse under 10 amp loads)
- Tan = illumination dimmer (connects to dash dimmer rheostat; reversal dims headlights instead of the display)
- Light blue = vehicle speed sensor (used for auto-volume; splicing risks speedometer glitches)
Trim the starter harness carefully–excess wire loops act as FM antennas, picking up ignition noise even when the engine’s off. Bundle stray wires with spiral wrap every 4 inches; zip ties crush insulation over time. Double-check every splice with a continuity tester set to 200 ohms; anything above 0.5 ohms suggests a weak connection.
For vehicles with SYNC, leave pins 7 (data bus) and 11 (microphone input) untouched. Modifying these lines bricks the infotainment subsystem, requiring a dealer reflash ($150+). If flashing dash icons appear post-install, reconnect the battery negative for 10 minutes to reset the system controller; intermittent faults often resolve themselves during this cooldown.
Mapping the Audio System Harness for Custom Installations
Locate the factory plug behind the dash panel–typically an 8-to-12-pin rectangular connector in vehicles from this production period. Pin 1 carries the left front speaker positive, Pin 2 the left front negative, Pin 3 the right front positive, and Pin 4 the right front negative. Verify each terminal with a multimeter set to 20V DC; expect approximately 5-7V on the positive leads during playback. If readings differ, inspect the amplifier relay or fuse box under the driver-side kick panel.
Aftermarket adapters like Metra 70-1761 or Scosche FD17B streamline integration by matching OEM pins to ISO-standard harnesses. Connect the yellow constant 12V wire to Pin 5 or Pin 6 (depending on trim), red switched 12V to Pin 7, and black ground to Pin 8. Use a solder or crimp connector rated for 18-20 AWG wire; avoid twist-and-tape methods. For vehicles with premium sound, Pins 9-12 may include amplifier triggers–consult a trim-specific schematic to avoid short circuits.
Troubleshooting Common Mismatches
- Antenna motor drive (Pin A) often requires an aftermarket power antenna lead if the original system lacks remote turn-on. Test continuity from the head unit’s blue/white wire to the factory connector; if absent, run a new 18-gauge wire to the antenna base.
- Rear speaker outputs (Pins B-C for positive, D-E for negative) may reverse polarity on base models. Swap connections if audio plays from the wrong channel.
- Steering wheel controls (Pins F-G) use resistive programming. A PAC RP4-FD31 interface retains functionality without coding–connect it in-line between the OEM plug and new stereo.
For vehicles equipped with SYNC or voice control modules, Pins H-I carry CAN bus data–only splice these if replacing the entire infotainment system. Use a T-harness to preserve factory diagnostics. Label each wire with masking tape and color-coding before cutting; misrouted power wires risk blowing the 15A fuse in the junction box near the glovebox.
Final Verification Steps
- Reinstall the dash trim, then power the system. If the display stays dark, check the red switched wire–it must show 12V when the ignition is on (accessory mode).
- Play audio from multiple sources (FM, Bluetooth, USB). If one channel cuts out, recheck speaker wire polarity at the harness and head unit.
- Test all functions–AM/FM, CD (if applicable), auxiliary input, and hands-free calling. A single failed feature usually indicates a missed pin connection.
Step-by-Step Guide to Finding the OEM Wire Bundle Behind the Console

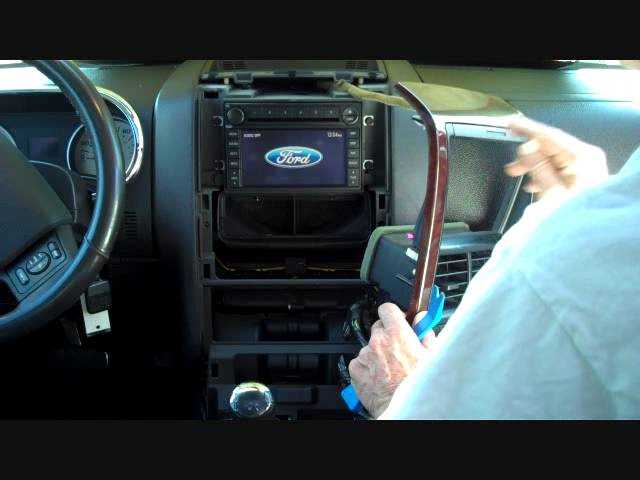

Begin by disconnecting the negative terminal of the vehicle’s battery to prevent short circuits or accidental airbag deployment. Remove the lower dash panel beneath the steering column by unscrewing the Torx T20 fasteners–typically two or three–hidden behind plastic snap clips. Slide the panel downward to expose the fuse box and adjacent harness routes.
Tracing the Loom to Its Origin
Locate the rectangular plastic cover on the driver’s side kick panel; it secures the main electrical conduit. Pry it gently with a trim removal tool, then follow the thickest black sheath–which contains power, ground, and accessory leads–upward toward the back of the audio unit’s mounting bracket. The bundle splits near the climate control module; the cluster you need runs parallel to the HVAC subsystem.
Identify the white 12-pin connector tucked behind the ashtray assembly by pulling the entire storage bin outward–no tools required. The factory loom terminates in a multi-colored cluster of 18-gauge wires; mark each with high-visibility tape before separating the harness from the retaining clips. Probe individual strands only with a multimeter set to 2kΩ to verify continuity against aftermarket schematics.
Color-Coded Connection Guide: Power, Earth, and Audio Line Mapping
Locate the solid yellow wire (B+) on the harness–this delivers constant 12V power from the fuse box, regardless of ignition state. Splice it directly to the aftermarket head unit’s red input using a 16-gauge crimp connector or solder with heat-shrink tubing to prevent corrosion. Verify voltage stability with a multimeter before securing; fluctuations above 14V or below 11V indicate alternator issues or aging battery cells that require immediate attention. The light green/red stripe (accessory) and dark green/yellow stripe (switched ignition) follow next, feeding 12V only when the key is in ACC or ON positions, respectively. Connect these to the corresponding head unit terminals (ACC and ILL/ILLUM) to ensure proper standby and illumination behavior during night driving without parasitic drain.
Identify the black wire (ground) at the harness–this single point carries return current for all audio components, including amplifiers and antenna motors. Attach it to a bare metal chassis point using a ring terminal and 10mm bolt, scraping away paint or rust to ensure a zero-resistance bond. Avoid daisy-chaining grounds; a single improper connection can introduce alternator whine or intermittent power loss. For speaker outputs, note the factory pairs: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, purple (+) and purple/black (-) for rear right, and green (+) and green/black (-) for rear left. Match polarity precisely–reversing +/– will invert audio phase, creating weak bass and hollow midrange. Use a tone generator at 1kHz to verify correct speaker operation before finalizing connections.
Label each wire with color-coded shrink tubing or masking tape immediately after cutting to prevent misrouting. For amplified systems, tap the blue/white remote turn-on wire to trigger external amplifiers–this signal mirrors the head unit’s power state. If retained factory steering controls are needed, trace the orange/light blue data bus wire to the vehicle’s communication module and interface it via a CAN bus decoder; failure to do so will disable volume knobs or voice commands. Test all functions (volume, balance, fade, seek) across temperature ranges–intermittent failures often trace back to cold-solder joints or loose crimps under thermal cycling.
