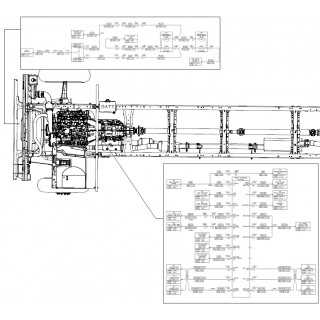

Complete Electrical Wiring Schematic for 2007 GMC C5500 Truck Models

Begin troubleshooting with the main power distribution module located under the driver’s side dashboard. Trace the battery feed wire (red, 10 AWG) from the fuse block to the starter solenoid–interruptions here often cause no-crank conditions. Verify the ignition switch circuit (purple/yellow, 16 AWG) at connector C101 (pin 5) for consistent 12V output during key-on tests. If voltage drops below 10.5V, inspect the run/crank relay and associated wiring for corrosion at terminal 87.

For lighting failures, focus on the headlamp control module. The low-beam circuit (light green, 14 AWG) runs from fuse 12 to the left-hand relay; test for continuity at connector C204 (pin 3). High-beam inconsistencies typically stem from a faulty BCM ground at G302–measure resistance to chassis (should read <0.5 ohms). Replace the entire harness segment if readings exceed 2 ohms.

Check the instrument cluster wiring (gray/orange, 18 AWG) at connector C1 (pin 12) for speed sensor signals. No signal indicates either a broken wire near the transmission plug or a malfunctioning VSS buffer circuit. For HVAC issues, probe the blower motor resistor (white/violet, 12 AWG) at connector C403–open circuits here require resistor pack replacement, not splice repairs.

Access the anti-lock brake module by removing the passenger kick panel. The wheel speed sensor circuits (yellow, 20 AWG) converge at connector C301–inspect for frayed insulation near suspension components. Use a T-pin probe to verify signal integrity; erratic waveforms point to damaged reluctor rings, not wiring faults. Always secure harness clamps under the cab with zip ties rated for 25kg to prevent chafing against frame rails.

Electrical Schematic for Heavy-Duty Chassis: Critical Components and Practical Uses

Begin troubleshooting by isolating the engine control module (ECM) harness connector C1. Pinouts 12 (orange wire) and 58 (purple) carry the primary throttle position signals–verify continuity with a multimeter set to 200Ω range. Resistance exceeding 2Ω indicates corrosion in the 18-gauge wiring, often traced to the firewall bulkhead grommet. Replace the grommet if brittleness is observed, as degraded insulation causes intermittent voltage drops that trigger P0122 or P0220 codes.

Fuse block F3B, positioned beneath the driver-side dash panel, protects the ABS and transmission control circuits. Use the schematic’s color-coded legend to confirm fuse ratings: 10A (yellow) for the ABS pump motor and 15A (blue) for the TCM. If the ABS pump fails to engage, probe terminal 30 of relay R3 with a test light while activating the brake pedal–absence of a 12V signal suggests a faulty relay coil or open circuit in the red/white wire leading to the brake pedal position sensor.

Connector Pin Assignments and Voltage Specifications

Connector	Pin	Wire Color	Function	Voltage (Key ON)
C2 (ECM)	24	Brown/White	Fuel Pump Relay Control	0.5V (active low)
S201 (Instrument Cluster)	1	Black/Orange	Tachometer Signal	5V square wave (varies with RPM)
C3 (Transmission	4	Dark Blue/White	Pressure Control Solenoid	1.5–4.5V (proportional to line pressure)

For auxiliary lighting circuits, note that the factory relay K48 controls the forward spotlamps via the gray 20-gauge wire terminating at the front bumper harness connector. Splice resistance should not exceed 0.3Ω–higher values degrade lumens output by 12% per ohm. When upgrading to LED assemblies, bypass the inline resistor (brown wire, pin 86 on K48) to prevent erratic flickering caused by insufficient load.

Ground stud G101, located adjacent to the driver-side taillight assembly, consolidates six chassis grounds. Corrosion here manifests as flickering dash lights or erratic gauge readings. Clean the stud with a stainless-steel wire brush, apply dielectric grease, and torque to 15 lb-ft. Verify ground integrity by measuring voltage drop across the battery negative terminal and G101–readings above 0.1V indicate compromised conductivity requiring stud replacement or relocation to a less exposed location.

Locating the Fuse Panel and Primary Electrical Connector Points

Begin beneath the driver-side dashboard: remove the lower trim panel secured by two 7mm bolts near the pedal assembly. The central fuse block sits directly above the brake pedal mounting bracket, accessed by pivoting the panel downward. Label positions using the factory silkscreen markings–C1 through C20 correlate to injection, ABS, and HVAC relays, while F1-F42 denote circuit protection for lighting, wipers, and powertrain modules.

• Disconnect battery ground terminal before handling any connectors–use a 10mm socket to loosen the clamp.
• Trace the bulkhead grommet (firewall pass-through) adjacent to the brake booster; the main wiring loom exits here, splitting into three sub-harnesses: engine bay, cabin, and rear chassis.
• Identify T-tap splices by silicone-sealed butt connectors–common failure points for accessory retrofits (e.g., auxiliary lighting).
• Test pin continuity with a multimeter set to 200Ω–expected readings: 0.2-0.8Ω for intact circuits, OL for open faults.

The under-hood junction box mounts on the driver-side inner fender, secured by four Torx T-25 screws. Open the cover to expose 12-position blade connectors (color-coded: red = ignition-switched power, yellow = constant battery feed, blue = dimmer-controlled). Release retaining tabs to detach terminals–avoid prying with metal tools to prevent bending contact fingers. Check for corrosion on aluminum terminals (common at ground stud G103 beneath front bumper support); clean with 600-grit emery cloth and apply dielectric grease before reassembly.

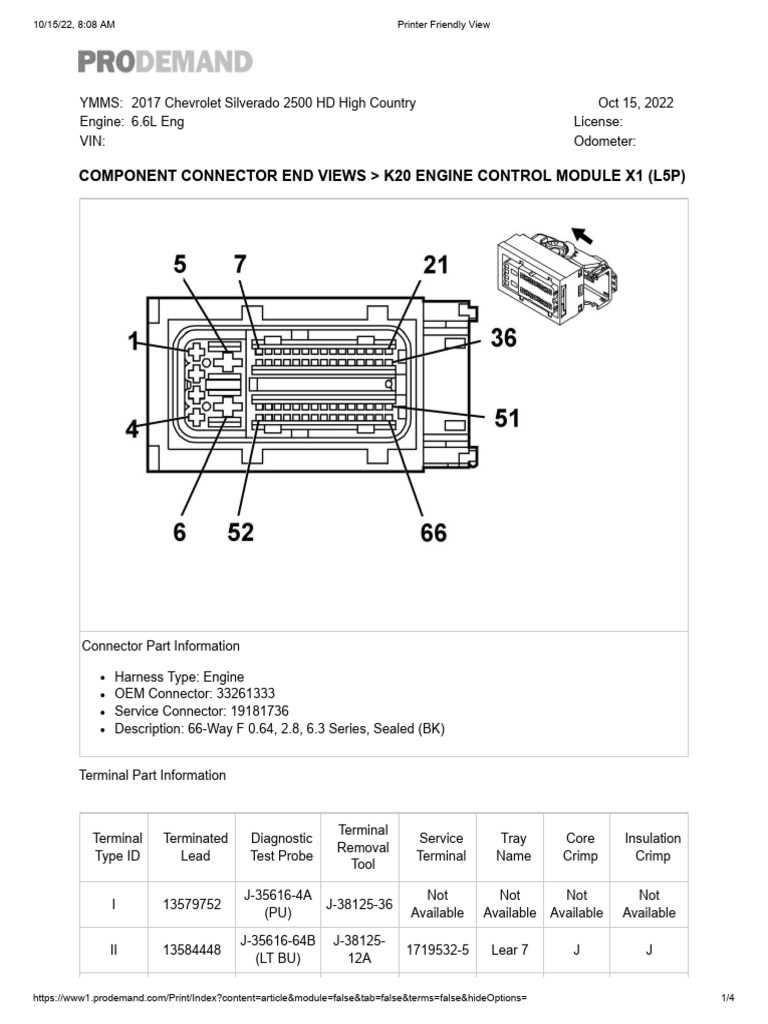

Identifying Engine Control Module (ECM) Connector Pinouts

Begin by locating the ECM under the dashboard or near the engine bay–common positions for medium-duty chassis. Disconnect the battery before handling any electrical interfaces to prevent shorts or sensor resets. Use a multimeter set to continuity mode to trace each terminal back to its source: injectors, sensors, or grounding points.

For the 81-pin connector (typically used in this class of vehicle), reference the following key assignments:

• Pins 1-10: Switched power inputs (ignition, 12V auxiliary)
• Pins 11-20: Fuel injector drivers (sequential order matches cylinder numbers)
• Pins 21-30: Ground references (dedicated engine and chassis grounds)
• Pins 31-40: Sensor inputs (MAP, IAT, ECT, TPS)
• Pins 41-50: CAN bus (high/low communication lines)
• Pins 51-60: Outputs (cooling fan relay, fuel pump relay)
• Pins 61-70: Unused or manufacturer-specific pins (check service manual)
• Pins 71-81: Transmission control interfaces (if equipped)

Label each wire with masking tape during testing–color codes alone are unreliable due to aftermarket modifications or OEM variances. Cross-reference findings with a factory service manual’s wiring schematic, focusing on connector views (not component diagrams). Pay special attention to twisted pairs (e.g., CAN bus wires), which must maintain consistent separation to avoid signal noise.

Common Pitfalls During Pinout Identification

Misidentifying power and ground terminals can destroy the ECM. Verify pins marked “Vref” (typically 5V) by probing with the multimeter in DC voltage mode–these should not exceed 5.5V. If injectors or relays aren’t responding, check for fused wires at the ECM connector (common failure point due to vibration).

Transmission-related pins often correlate with engine pins in automatic configurations–confirm whether the vehicle uses a standalone TCM or integrated ECM/TCM. For diesel variants, additional pins control glow plugs, turbo wastegate solenoids, or DEF dosing modules. Always re-secure the connector latch after inspection to prevent intermittent faults.

Tracing Trailer Conductors and Supplementary Illumination Schematics

Locate the main fuse panel beneath the dashboard near the driver’s side kick panel to begin isolating trailer light circuits. The harness routing from the vehicle’s rear often converges at a 12-pin connector or a modular plug labeled for towing integration. Verify pin assignments using a multimeter set to continuity mode–each terminal should correspond to a specific function: running lights (brown), left/right turn signals (yellow/green), brake lamps (red), and ground (white). Anomalies in voltage readings (12V nominal) indicate corroded contacts or damaged conductors, particularly in areas exposed to moisture or road debris.

Examine the auxiliary lighting setup by identifying the secondary power source, typically tapped from the tail lamp circuit or an independent relay. For aftermarket additions, trace the wire gauge–18 AWG suffices for LED marker lights, while 14 AWG is required for heavier loads like reverse lamps. Use a splice connector rated for automotive applications to avoid oxidation; crimp-style terminals with heat-shrink tubing yield the most reliable connections. Avoid soldering near flexible conduit, as repeated vibration can fracture joints over time.

Common Failure Points in Trailer Harness Assemblies

Inspect the ground path first–corrosion at the trailer frame attachment point or chassis connection is a frequent culprit for intermittent light failures. Scrape paint or rust from mounting surfaces and apply dielectric grease to prevent future oxidation. For seven-way connectors, prioritize testing the center pin (auxiliary power), which often sources 12V directly from the battery via a dedicated relay. If voltage drops below 11V under load, the circuit likely includes an undersized relay or a deteriorated fuse link.

Check the harness where it transitions near the suspension or exhaust components, as repetitive motion accelerates insulation wear. Split loom tubing or convoluted conduit can mask internal chafing; replace sections showing cracks or exposed copper strands. For vehicles equipped with ABS or pneumatic braking systems, ensure trailer wiring shares no proximity with sensor cables, as electromagnetic interference can disrupt signal integrity. Separate these pathways by at least 6 inches or route them perpendicularly.

Verifying Relay-Driven Auxiliary Circuits

Identify the relay block for supplementary lighting–usually mounted adjacent to the fuse panel or within a power distribution center. Remove the relay and test across the 85/86 coil terminals (12V expected with switch activation) and 30/87 power terminals (continuity when energized). If the relay clicks but fails to deliver current, inspect the load side for a short or excessive resistance. Replace relays exhibiting thermal discoloration, as this indicates overheating from sustained current draw beyond rated specifications (typically 30A).

For circuits powering high-amperage accessories (e.g., work lamps or refrigeration units), confirm the wire harness includes an inline fuse within 7 inches of the battery connection. Fuse ratings should match the conductor’s capacity–20A for 16 AWG, 30A for 14 AWG, and 40A for 12 AWG. Document each circuit’s path with labels or a schematic to simplify future diagnostics; even minor deviations in routing can create ground loops or voltage drops under load.

Terminate all exposed connections with waterproof butt connectors or junction blocks sealed with silicone. Avoid electrical tape, which degrades over time and traps moisture. For trailer-side troubleshooting, use a breakout box with LED indicators to isolate faults without back-probing the primary connector. If lights flicker under acceleration, suspect a poor ground or voltage regulator malfunction–test the alternator output with a load applied (target: 13.8–14.4V) while monitoring the trailer harness for fluctuations.
