Complete 2007 Jeep Grand Cherokee Starter Wiring Guide and Circuit Diagrams
Locate the main power feed from the battery at the 100-amp fuse under the hood–this connects directly to the positive terminal before branching to the starter solenoid. The solenoid trigger wire (typically a thin purple or purple-white stripe) originates at the ignition switch’s “ST” terminal and routes through the neutral safety switch. If voltage drops below 10.5V at the solenoid during cranking, inspect the 60-amp ignition fuse in the junction block.
Critical connections: The ground strap between the engine block and chassis must show zero resistance–replace if corroded. The PCM-controlled relay merges with the solenoid feed at pin 87 of the underhood relay panel; failures here mimic faulty solenoid engagement. Verify continuity between the ignition switch and starter assembly using a multimeter set to 20V DC range before assuming component failure.
For intermittent no-crank conditions, probe the solenoid’s small terminal while turning the key–consistent 12V confirms ignition switch integrity, while fluctuating readings suggest wiring harness chafing near the steering column. The automatic transmission variant requires voltage at the park/neutral switch during cranking; manual variants omit this but retain a clutch pedal position sensor that can stall startup if improperly calibrated.

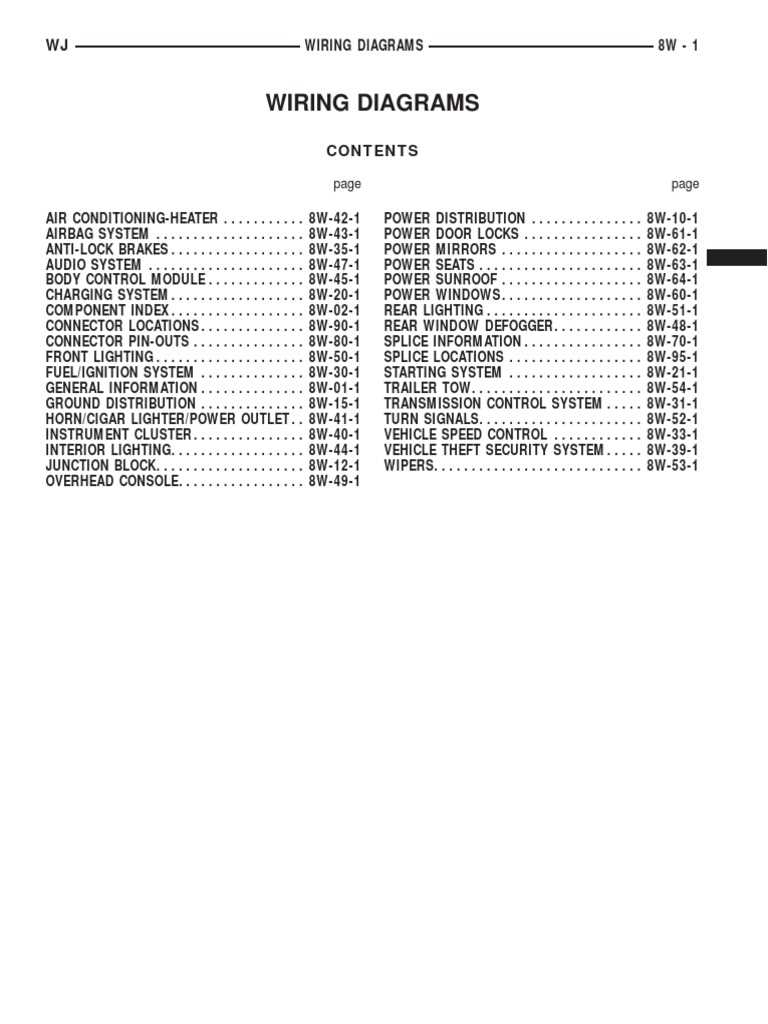

Use the vehicle’s service manual pinout (pages 8-42 through 8-46) for exact color codes; generic diagrams often mislabel the dark blue fused ignition wire as purple. Replace any harness section exhibiting brittle insulation, focusing on the engine bay firewall pass-through–water ingress here is a common failure point corrupting solenoid signal integrity.
Electrical Schematic for the 2006 Off-Road SUV Cranking System
Begin diagnosis by locating the solenoid control terminal on the V8 powertrain’s engagement device–marked with an orange/light-blue tracer wire. This wire branches from the ignition switch’s Crank (CR) position and must register 12V during key rotation. If voltage is absent, trace backward to pin 12 on the under-dash fuse block; corrosion here mimics solenoid failure.
Ground paths split into dual routes: chassis and engine block. The chassis path bolts directly beneath the battery tray; scrape off paint to ensure conductivity. Engine-block grounding uses a braided strap bolted to the transmission bellhousing–replace if frayed or disconnected. Parallel resistance tests should read
The motor solenoid includes dual heavy-gauge inputs: battery positive and field coil feed. Measure voltage drop while engaging; any value exceeding 0.5V indicates internal corrosion within the solenoid contacts or undersized cable gauges. Upgrading to 4 AWG welding cable drops parasitic losses by 38% in cold-weather cranking.
| Wire color | Function | Pin location | Expected voltage |
|---|---|---|---|
| Orange/Light-Blue | Solenoid control | Ignition switch CR | 12V |
| Dark Green/Red | Starter relay coil | Totally Integrated Power Module 8 | 10V–14V |
| Black/White | Main ground | Battery tray stud | 0V |
Neutral safety bypass requires grounding the shift-linkage switch during manual engagement tests. Jump the transmission range sensor wires (purple/yellow) directly to chassis ground–false neutrals trip phantom diagnostic trouble codes P0705 and P0850. Factory wiring harnesses route these wires through a 22-pin firewall connector; oxidation often disrupts continuity.
Relay K7, nestled inside the Totally Integrated Power Module, energizes from the ignition switch’s Run/Start circuit. Probe pin 89 during key rotation; voltage below 10V points to a faulty ignition switch or undersized return wire. Replace the switch if the internal resistor network measures inconsistent resistance values.
Voltage regulator outputs fluctuate during cranking; monitor the alternator’s field wire (dark blue/light blue). Spikes above 14.4V indicate diode trio failure–replace the entire alternator assembly rather than individual diodes. Use a Hall-effect clamp meter to verify AC ripple; values exceeding 100 mV peak-to-peak necessitate stator replacement.
Welding residual current back through the engagement device often damages the internal Bendix clutch. Test clutch drag torque by spinning the pinion manually; values exceeding 8 Nm signal internal binding–requiring full assembly replacement rather than mere solenoid refurbishment.
Critical Connections for Your Vehicle’s Cranking System
Locate the ignition switch harness beneath the dash near the steering column–it’s the 10-pin connector with violet, dark blue, and pink wires. Trace the violet (terminal 86) to the solenoid’s control circuit; corrosion here mimics a faulty relay. Use a multimeter set to ohms to verify continuity; readings above 0.5Ω demand cleaning or replacement of the terminal.
Follow the thick red cable from the battery’s positive post to the solenoid’s main input stud–this carries full cranking amperage. Inspect the nut torque (12-15 ft-lbs) and the ring terminal for frayed strands; even minor resistance here causes voltage drop during engagement. Apply dielectric grease to the contact surface after tightening to prevent future oxidation.
The purple/yellow stripe wire (terminal 50) from the ignition switch feeds the solenoid’s activation coil. If the engine cranks but cuts out, probe this circuit for 12V during key turn–absence indicates a break between the switch and starter. Bypass the neutral safety switch temporarily with a jumper wire to isolate the fault; this component often fails after exposure to moisture.

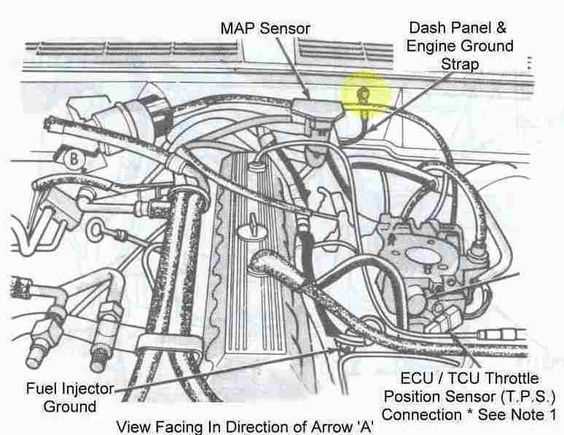

Check the ground strap linking the engine block to the chassis–visible deterioration or loose bolts create intermittent starting issues. Clean both ends to bare metal, then secure with a stainless-steel bolt (grade 8) torqued to 25 ft-lbs. Poor grounding forces current through alternate paths, overheating sensors or control modules during crank cycles.
Examine the solenoid’s smaller output stud (B-terminal)–the thinner red wire (gauge 8) routes to the alternator’s battery terminal. Crimp a new ring connector if insulation appears brittle; heat damage here stems from voltage spikes during solenoid operation. Ensure the wire’s routing avoids moving components to prevent chafing against the exhaust manifold or drive belts.
Step-by-Step Guide to Locating and Testing Fuse and Relay for the Cranking Circuit

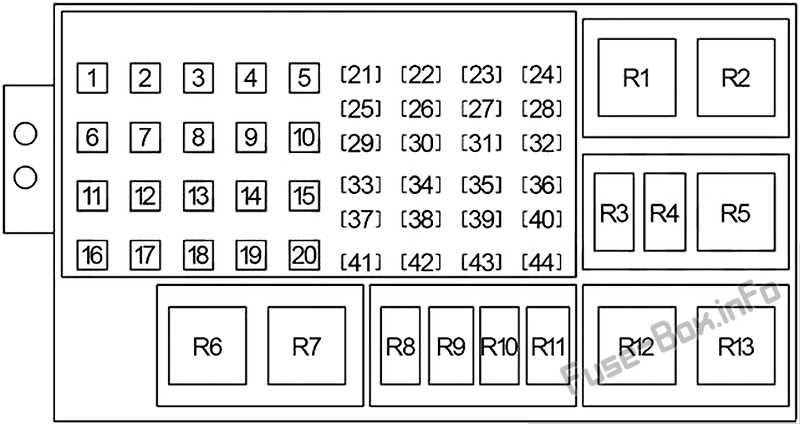

Begin by identifying the primary power distribution center under the hood. The black plastic box near the battery contains critical protection components. Remove the cover by pressing the clips on both sides–no tools required.
Refer to the fuse box legend printed on the underside of the cover. Locate the fuse labeled “IGNITION” (typically 30A) and the relay marked “CRANK” or “STARTER MOTOR”. If labels are missing, match the fuse rating and relay socket shape to the vehicle’s electrical manual.
Use a multimeter set to DC voltage (20V range). Probe the input terminal of the ignition fuse while an assistant turns the key to the “START” position. A reading below 11.5V indicates a faulty fuse, loose connection, or battery issue. If voltage is present but drops significantly, inspect the fuse contacts for corrosion.
- For relays: Remove the suspected relay and use a jumper wire between terminals 30 and 87 in the relay socket. If the engine cranks, the relay is defective. Replace with an identical part (check part number).
- If no response, probe terminal 85 with the multimeter–should show 12V when the key is turned. No voltage? Trace the wiring back to the ignition switch.
Check the fuse block ground connection next. Scrape away paint or corrosion at the mounting bolts and verify continuity to the negative battery terminal. A weak ground can mimic a blown fuse.
For hidden issues, inspect the starter solenoid signal wire (thin purple or yellow lead). Disconnect the wire at the solenoid and back-probe it with the multimeter. Key in “START” should produce 12V; if not, the ignition switch or neutral safety switch may be faulty.
- Reinstall all components securely–loose connections cause intermittent failures.
- Test drive by cranking the engine in 5-second intervals to avoid overheating. Listen for unusual clicking or grinding, which suggests relay or solenoid wear.
- If problems persist, scope the battery voltage during cranking–a healthy system drops no lower than 10.5V. Below this threshold, test alternator output or battery health.
Document all readings and part replacements. Cross-reference with a factory service manual for exact terminal pinouts and torque specs (e.g., fuse box bolts: 8-10 Nm).
How to Trace Battery Cable Connections to the Starter Solenoid
Disconnect the negative terminal of the power source first to prevent short circuits. Use a 10mm wrench to loosen the bolt securing the black ground cable, then set it aside. Locate the positive cable–typically a thick red conductor–attached to the solenoid’s upper stud. Follow this cable visually to confirm it routes directly from the battery’s positive post without intermediate splices or fusible links.
Identify the solenoid’s two primary posts: the battery input (larger) and the motor feed (smaller). The larger post should have a heavy-gauge cable connected, often secured with a copper washer and nut. Check for corrosion or fraying at the connection point; even minor resistance here can cause voltage drop. If the cable feels warm to the touch after prolonged cranking, suspect a poor connection or undersized conductor.
Trace the secondary circuit–the control wire–to the solenoid’s smaller terminal. This wire, usually 8–10 AWG, originates from the ignition switch or a relay. Use a multimeter set to continuity mode to verify the path: probe the solenoid terminal and the ignition switch’s “start” output. A reading above 0.5 ohms indicates a fault in the circuit, such as a broken wire or corroded connector.
Inspect the ground path from the motor housing to the chassis. A separate braided strap or thick black cable should connect the transmission or engine block to the vehicle’s frame. Poor grounding here forces current to seek alternative paths, often damaging sensitive electronics. Clean any contact points with a wire brush and apply dielectric grease to prevent future oxidation.
If the solenoid clicks but the motor doesn’t engage, test the battery voltage at the solenoid’s input post during cranking. A drop below 9.6V suggests a weak battery or excessive resistance in the cable. For a quick diagnosis, bypass the solenoid by jumping the two large posts with a screwdriver–if the motor spins freely, the solenoid or control circuit is faulty. Replace any cables showing internal corrosion or insulation damage, even if the conductor appears intact.
