Complete 2007 Mazda 6 Car Audio System Wiring Color Codes Guide

Begin by securing the factory radio harness pinout for the * model year variant–this avoids guesswork and prevents irreversible modifications. The vehicle’s infotainment connector splits into two primary plugs: a 12-pin (gray) and an 8-pin (black). Identify each wire’s purpose immediately–rear defroster (pink/green), illumination (blue/white), and amplifier trigger (gray/red) demand precise handling. Mistakes here can disable climate controls or drain the battery.

For aftermarket integration, use a wiring adapter tailored to the * brand’s harness layout. Cutting factory wires risks voiding the OEM harness integrity–opt instead for soldered connections protected with heat-shrink tubing. Ground locations matter: the bolt behind the glove box (accessible by removing the passenger kick panel) provides the cleanest signal path. Avoid door hinge grounds; they introduce interference.

Test circuits with a multimeter before finalizing connections. A constant 12V source (yellow/black) powers memory functions, while the ignition-switched lead (red/green) activates the unit. Reverse polarity or mixed speaker wires (front left: gray/black trace; rear right: green/red trace) will distort audio or damage the amplifier. Label each wire with flags or colored tape–this saves hours of troubleshooting.

When installing an amplifier, route power cables through existing grommets beneath the dashboard. Avoid routing near the ECU or ABS modules to prevent electrical noise. Fuse the power wire within 18 inches of the battery using the manufacturer’s recommended amperage–skipping this step risks fire hazards. For fiberglass-insulated models, additional stiffening of the door panels may be required to prevent rattle at high volumes.

The ***’s CAN bus system complicates steering wheel control retention. Verify compatibility with your chosen interface module before purchase. If controls fail, check the data bus resistor (typically 640Ω); incorrect values disrupt communication between the radio and vehicle systems. Calibration software (often proprietary) may be needed to restore full functionality.

Automotive Sound System Color Codes for the 2006 Atenza Audio Interface

Locate the 12-pin ISO connector behind the factory radio slot–pins 1–6 handle speaker outputs, 7–9 manage power, and 10–12 control illumination and muting. Pin 7 (yellow, constant 12V) must connect to a fused circuit; pin 8 (black, ground) should terminate directly to chassis metal rather than a wire splice to prevent buzz. For illumination sync, pin 10 (orange/white) requires 12V only when headlights activate; test continuity with a multimeter to confirm.

Speaker Impedance Matching

Each door tweeter runs 2 Ω impedance; wiring harness adapters often include 4-to-2 Ω resistors–omit these if upgrading to bypass-capable amps. Front door woofers are 4 Ω; rear coaxial units bridge 6 Ω each. Use twisted-pair 18 AWG oxygen-free copper for lengths under 12 ft to reduce signal loss below 0.5 dB. Solder joints with 60/40 rosin-core; avoid crimp connectors on speaker feeds–they introduce 3–5 Ω resistance spikes.

Aftermarket head units often label “antenna power” (typically blue) incorrectly; the Atenza’s auto-dimming system pulls 300 mA at 12V from pin 12 (blue/white), not standard coax feeds. Verify with a 12V test light–if flickering occurs, disconnect the factory amp under the passenger kick panel to isolate parasitic draw. Retain the inline 5A fuse on any accessory tap from pin 7 to prevent dashboard cluster errors.

Rear parking sensor chimes route through the OEM radio’s mute function; after disconnecting, splice pin 11 (pink) to an external 1 kΩ resistor tied to ground to silence false alerts. For vehicles with satellite prep, the roof-mounted antenna amplifies via pin 9 (purple)–replace the factory noise filter with a high-pass capacitor (0.1 µF) if static persists during heavy acceleration.

Finding the Original Audio System Plug in a First-Gen Atenza

Start by removing the center console trim panel beneath the climate controls. The plastic cover snaps into place–pull upward from the bottom edge near the gear shift to release it without cracking the clips. Behind this panel, you’ll find a gray 16-pin harness connector attached to the back of the OEM head unit mount; it’s usually tucked slightly to the left, parallel to the emergency brake.

The plug color-coding follows the ISO 10487 standard: solid red carries switched power, yellow delivers constant battery feed, black grounds the unit, and blue-white triggers amplifier activation. Thicker wires–typically purple, green, and brown–handle front and rear speaker outputs, while orange and orange-white manage illumination and dimmer functions.

If the connector is missing, trace the loom leading from the dash cavity downward along the transmission tunnel. Mazda routed this bundle behind the driver-side kick panel, secured with a single 10mm bolt and a clear corrugated sheath. Cutting the sheath open reveals the harness nestled against the firewall–avoid disturbing the adjacent climate control wiring cluster, identifiable by its smaller gauge wires and distinct white label wraps.

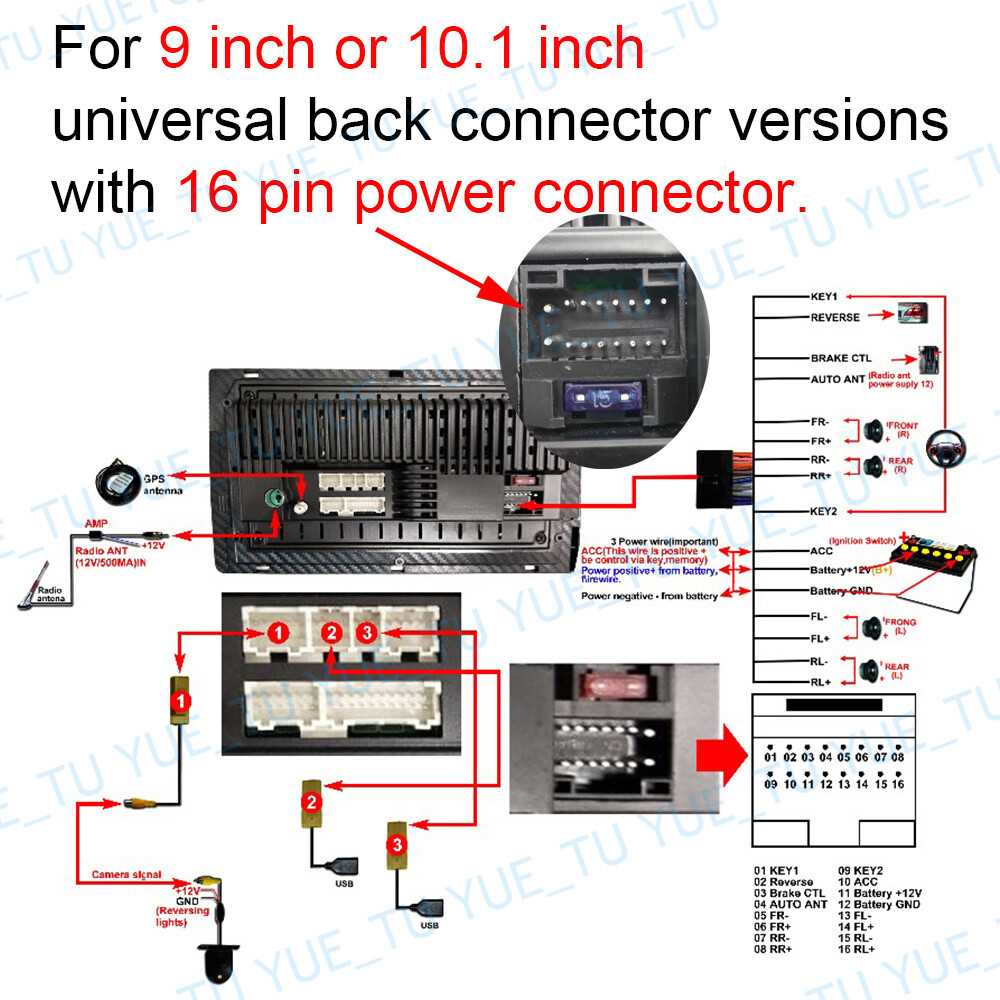

Matching Harness Colors to Head Unit Connections for Seamless Upgrades

Begin by locating the yellow 12V constant power lead–this wire retains memory settings and must connect directly to the battery’s positive terminal with an inline fuse no further than 12 inches from the connection point. Factory harnesses in this model series often bundle it with a thinner gauge than aftermarket units expect, so verify current capacity matches the new equipment’s requirements before splicing. Use a multimeter to confirm voltage remains steady at 12V when the ignition is off, as inconsistencies here will reset presets.

Trace the red ignition-controlled supply–distinguished by its slightly smaller diameter compared to the yellow lead–back to the harness and connect it to the corresponding turn-on wire of the replacement unit. This cable activates the system when the key is in the ACC or ON position; test continuity with the ignition cycled to ensure reliable power-up sequencing. Avoid common pitfalls like mistakenly pairing it with accessory circuits that draw excess current, as this can drain the battery overnight.

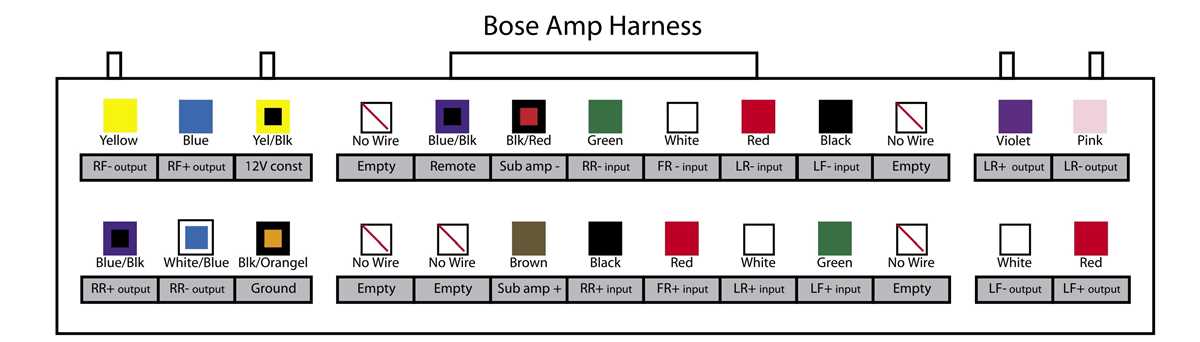

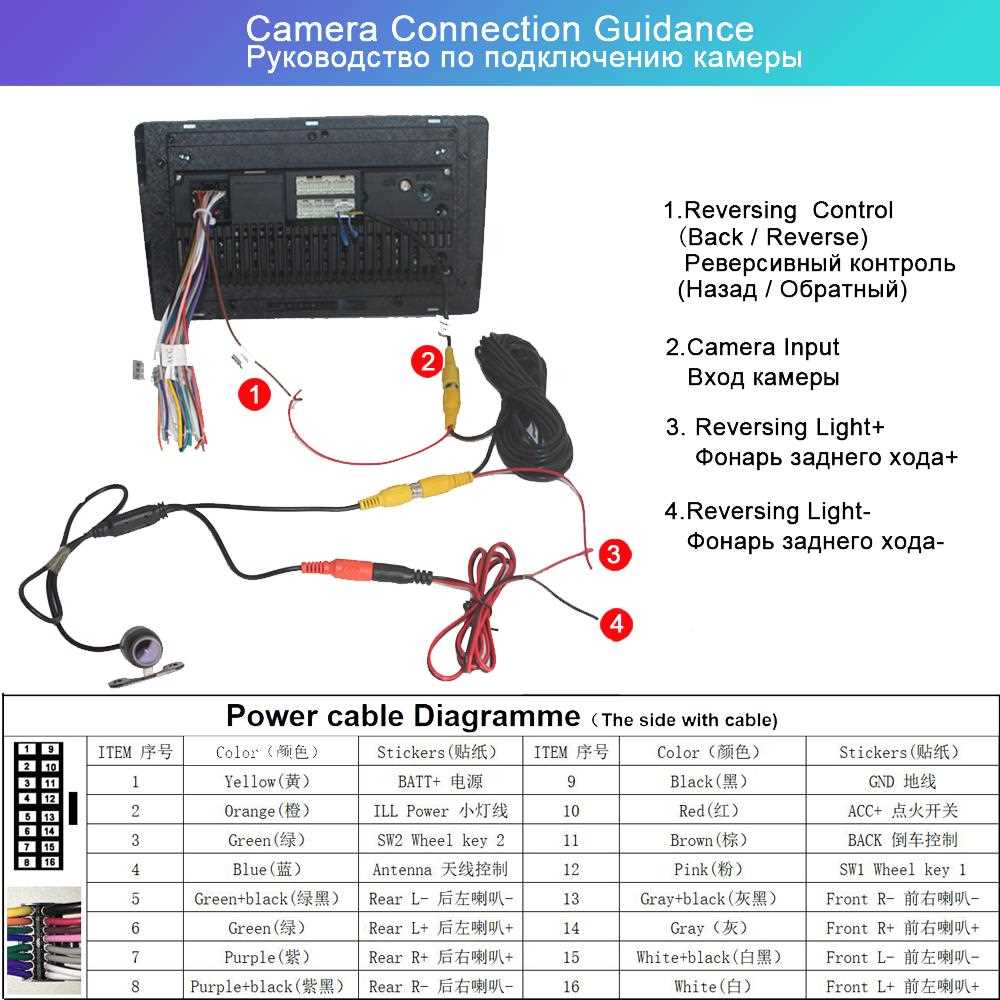

Factory Color	Aftermarket Label	Function	Voltage Check (Key Off/On)
Yellow	Battery/Constant	Memory retention	12V / 12V
Red	Ignition	System activation	0V / 12V
Black	Ground	Common return	0V / 0V
Purple (striped)	Front Right (+)	Speaker output	N/A (AC signal)
Light Green (striped)	Rear Right (+)	Speaker output	N/A (AC signal)

Ground connections (black wires) demand direct chassis attachment or bundling with the vehicle’s original grounding point–not daisy-chained–using a minimum 16-gauge wire for proper current dissipation. Scrape paint or corrosion from the mounting surface to ensure minimal resistance; a poorly executed ground manifests as engine noise through the speakers or intermittent shutdowns. For vehicles with amplified systems, verify against factory service manuals that the ground isn’t shared with high-draw components like electric coolers or heated seats.

Speaker wires follow a consistent polarity convention: solid colors (white, gray, green, purple) denote positive leads, while their striped counterparts indicate negative. Test each channel with a 9V battery–briefly touching the wires should produce a distinct pop from the corresponding speaker–to confirm phase alignment before permanent connection. Avoid substituting wires based on color alone; cross-referencing with a pinout reference prevents short circuits that can damage both the harness and the replacement gear.

Illumination control (typically an orange or orange/white wire) adjusts the display brightness when headlights activate. Connect this to the dimmer input of the new unit if ambient lighting integration is desired; failure to do so may leave the screen overly bright at night. Some models route this through a dedicated module–check for a pink wire labeled “DIM” if illumination behaves erratically. For vehicles with auto-dimming mirrors, ensure compatibility before modifying this circuit, as conflicts can trigger dashboard warning lights.

Anticipate variations in factory harnesses for trim levels equipped with premium systems–look for additional wires like a gray/violet pair for steering wheel controls or a blue/white lead for amplified outputs. Intercept these with a dedicated adapter rather than cutting, as removing these wires can disable vehicle functions like hands-free calling. For amplified setups, red/black twisted pairs often indicate a high-level signal meant for external power boosters; bypassing these without proper load-matching may result in distorted audio.

Finalize connections by verifying all splices with solder and heat-shrink tubing rather than crimp connectors, which can corrode over time. Route excess cable away from moving parts, sharp metal edges, and heat sources like catalytic converters. Power up the system and check for: immediate startup (yellow lead), ignition-dependent operation (red lead), clean left/right audio balance, and correct dimming behavior before securing panels–reversing this order risks overlooking faults that could damage the new equipment.

Step-by-Step Guide to Safely Removing the Factory Audio System

Begin by locating the dashboard trim panel surrounding the head unit. Use a plastic pry tool to gently lift the edges of the panel, starting at the bottom near the climate controls. Work clockwise to avoid cracking the clips–apply even pressure but stop if resistance increases. Disconnect the hazard light button if it’s integrated into the trim; it’s held by a small snap-on connector that releases with a gentle pull.

Tools required:

• Plastic pry bars (2–3 mm thickness)
• #2 Phillips screwdriver
• Needle-nose pliers (for stubborn harness clips)
• Non-conductive tape (to secure loose wires)

Remove the four screws securing the head unit–two at the top, two at the bottom, typically 8–10 mm in length. Slide the unit forward carefully; the rear harness and antenna lead will remain attached. Press the release tabs on the main wiring connector and the smaller antenna plug simultaneously–misalignment can damage the pins. Label each connector with masking tape to avoid confusion during reinstallation.

For models with satellite radio or amplified systems, an additional 12-pin connector may be present on the right side. Depress the locking tab fully before separating; partial release risks bending the pins. If resistance persists, check for hidden screws behind the unit or adhesive strips often overlooked near the HVAC vents. Tugging forcefully can tear the harness or damage the vehicle’s central network bus.

Handling Power and Ground Cables

Identify the constant 12V power wire (usually yellow), accessory wire (red), and ground (black or brown). Wrap the exposed ends with non-conductive tape immediately after disconnection–accidental shorts can drain the battery or trigger airbag faults. For vehicles equipped with steering wheel controls, isolate the corresponding wires (often violet or gray) to prevent signal interference with aftermarket units.

Final Checks Before Removal

1. Verify no tools or screws are left inside the dashboard cavity.
2. Check for broken clips in the trim–replace them before reassembly to prevent rattles.
3. Store the factory unit in a dry place if retention is planned; moisture can corrode internal circuits.
4. Test the vehicle’s warning lights (ABS, airbag) before driving–disrupted harnesses may trigger false errors.

Reinstall the trim panel by aligning the top edge first, then pressing the sides until the clips audibly snap into place. Avoid overtightening screws to prevent stripping the mounting bosses in the dashboard frame. If the panel doesn’t sit flush, revisit clip placements–common gaps indicate misalignment near the defroster vents.
