Complete 2007 Pontiac G6 Stereo Wiring Diagram for Car Audio Installation

To replace or upgrade the factory sound system in this mid-size model, start by disconnecting the negative battery terminal to prevent electrical shorts. The amplifier, typically located under the passenger-side dashboard, uses a 12-pin connector labeled “AMP” with wires arranged as follows: pins 1-4 carry constant 12V (orange), ground (black), ignition-switched power (yellow), and illumination (gray). Speaker outputs occupy pins 5-12–front left (+) purple, front left (-) violet, front right (+) light blue, front right (-) tan, rear left (+) green, rear left (-) dark green, rear right (+) brown, rear right (-) dark brown.

For aftermarket head units, cut the factory wiring harness adapter at the ISO connector. Match these colors: red to yellow (switched power), black to black (ground), orange to orange (memory), blue/white to blue (remote turn-on), and purple/violet to front left/right speaker leads. The steering wheel controls require a separate ASWC-1 interface module–connect this to the data bus behind the climate control panel, then run a single wire to the new radio’s SWI input. Always test continuity with a multimeter before finalizing connections.

Factory tweeters in the A-pillars use thin 18-gauge wires–gray for the left channel, purple for the right. These connect to passive crossovers under the front seats. If bypassing crossovers, tap directly into the door speaker wires: front doors use 20-gauge harnesses with silver-plated connectors, rear doors use smaller 22-gauge spades. Solder all joints or use crimp connectors with heat shrink tubing to prevent corrosion. The trunk-mounted subwoofer, if equipped, draws power from a dedicated pink wire in the main harness; this requires a separate in-line fuse (15A) near the battery.

Backup cameras (OEM or aftermarket) integrate via the purple/white video wire in the radio harness. Route this cable through the headliner to the trunk, securing with zip ties every 12 inches. For GPS navigation units, avoid tapping the CAN bus–the OnStar module (located behind the rear passenger kick panel) uses the same data stream and may trigger error codes. Instead, connect USB or Bluetooth adapters to the auxiliary input or use a Metra AX-ADBOX if retaining factory displays.

2007 Pontiac G6 Audio System Connection Guide

Begin by locating the harness connectors behind the factory head unit. The G6’s aftermarket integration relies on the 12-pin main plug (labeled “A”) and an 8-pin auxiliary connector (“B”). Solid yellow wires supply constant 12V power, while red delivers switched voltage–fuse both at 10A to prevent damage. The orange/white illumination wire adjusts brightness with the instrument cluster; improper grounding here causes erratic dimming. Verify compatibility with single-DIN or double-DIN units, as the G6’s dash structure requires a mounting kit (Metra 99-3002 for seamless fitment).

Critical Wire Color Codes and Functions

• Yellow (B+): Direct battery feed–use a 4-gauge wire to the fusebox to avoid voltage drops during high-volume playback.
• Red (ACC): Ignition-switched–connect to terminal 30 of the under-dash fuse panel to retain memory settings.
• Black (Ground): Secure to the chassis near the driver’s kick panel; sand paint to bare metal for zero interference.
• Gray/Black & Gray/Red: Front left/right speaker outputs–4Ω impedance mandatory; mismatches risk amp overheating.
• Green/Black & Green/Red: Rear signals–polarity matters; reverse connections invert audio phase, muddying bass.
• Blue/White (Remote): Triggers amplification–link to aftermarket amp’s remote turn-on terminal with 18-gauge wire.
• Brown (Mute): Coil-on-plug systems may disrupt audio; splice into OnStar harness if factory noise cancellation is disabled.

For steering wheel control retention, splice the gray/white data wire into a PAC RP4-GM11 adapter ($60–$80). Without this, buttons revert to fixed functions (e.g., volume-only). Test all connections with a multimeter before inserting the new unit–reversed wires can fry the head unit’s circuitry in seconds. If static persists, reroute RCA cables away from ECU/OBD-II ports to minimize interference. For amplified systems, add a 0.1µF capacitor between the amp’s ground and chassis to eliminate alternator whine. Keep the factory antenna adapter (GM p/n 13615713) to maintain AM/FM reception without signal loss.

Finding the Audio System Plug-In Port on a G6 Sedan

Remove the center stack trim panel by prying outward along the bottom edge with a plastic trim tool–disconnect the hazard switch and traction control button harnesses first to avoid snapping the clips. The 12-pin radio connector sits directly behind the climate control housing, secured by two 7 mm bolts; trace the lower dash brace if visibility is limited.

Key Landmarks

• HVAC ductwork–follow the curved plastic ridge upward to locate the gray rectangular plug.
• Driver kick panel–pull back the carpet to expose the bundled harness entering the firewall; the radio feed runs parallel to the pink/black ignition wire.
• Glove box hinge–peek behind the left hinge bolt to find the smaller 8-pin auxiliary connector if equipped with OnStar.

Mark each terminal with masking tape before unplugging: pin 1 (constant 12V) is red, pin 4 (ground) is black, and pin 7 (illumination) is light green–mismatches trigger theft-lock mode requiring dealer reset.

Decoding Vehicle Audio Harness Colors for Upgraded Head Unit Fitting

Start by locating the 12-pin connector behind the factory radio–pins 1 (yellow) and 8 (red) deliver constant and switched power, respectively. Crimp these to your new harness’s corresponding wires using butt connectors rated for 18-gauge; avoid soldering as heat can weaken the insulation on older vehicle circuits. Pin 2 (black) grounds to the chassis via a dedicated bolt near the climate controls–secure with a star washer to prevent corrosion-induced voltage drops.

Speaker and Data Leads

Right front (+) and (-) outputs are orange with a white stripe and gray with a white stripe; match these to your amplifier’s transparent blue (+12V remote turn-on) wire without splicing into the factory mute (pin 7, pink). The left rear outputs (light green/white stripe for positive, dark green/white stripe for negative) often carry weaker signals–test with a multimeter set to 2V AC before connecting to ensure polarity isn’t reversed. For vehicles with OnStar, isolate pin 6 (purple)–this carries serial data and must not be grounded or tapped into.

Auxiliary inputs (if equipped) reside on pin 12 (white with black stripe) and require a resistor (1KΩ ¼W) in line to prevent phantom power feedback. Adjustable illumination dimming (pin 3, beige) connects to your aftermarket unit’s orange wire via a 1/4W 560Ω resistor to match factory fade settings. Skip the convenience features (pin 9, tan) unless your new head unit explicitly supports GM’s Class 2 protocol–improper pairing can trigger error codes in the BCM.

Label every connection with heat-shrink tubing or numbered flags before reassembling the dash. Verify each channel’s output with a 10-second sine wave test at 1kHz and 0.5V RMS; distortion above 3% indicates a miswired ground or damaged factory harness. Keep a fuse puller and spare 15A blade fuses on hand–factory circuit protection often reset only after a full battery disconnect.

Direct Method to Eliminate the OEM Sound Booster

Disconnect the battery’s negative terminal before any modifications to prevent short circuits. Locate the amplifier behind the dashboard on the passenger side–it’s a black box with multiple cables entering it.

Identify the speaker outputs from the head unit: four pairs of wires (front/rear, left/right). Cut these wires at the amplifier’s input side, avoiding the larger power and ground leads marked in red and black.

Strip 5mm of insulation from the cut ends of the speaker wires. Match each head unit output to its corresponding speaker by color: white/white-black (front left), gray/gray-black (front right), green/green-black (rear left), purple/purple-black (rear right). Twist these pairs together securely.

Test the speakers by reconnecting the battery and turning on the radio. If audio distorts, verify connections–loose twists or reversed polarity often cause crackling. Use a multimeter to confirm 4-8 ohms impedance across each pair.

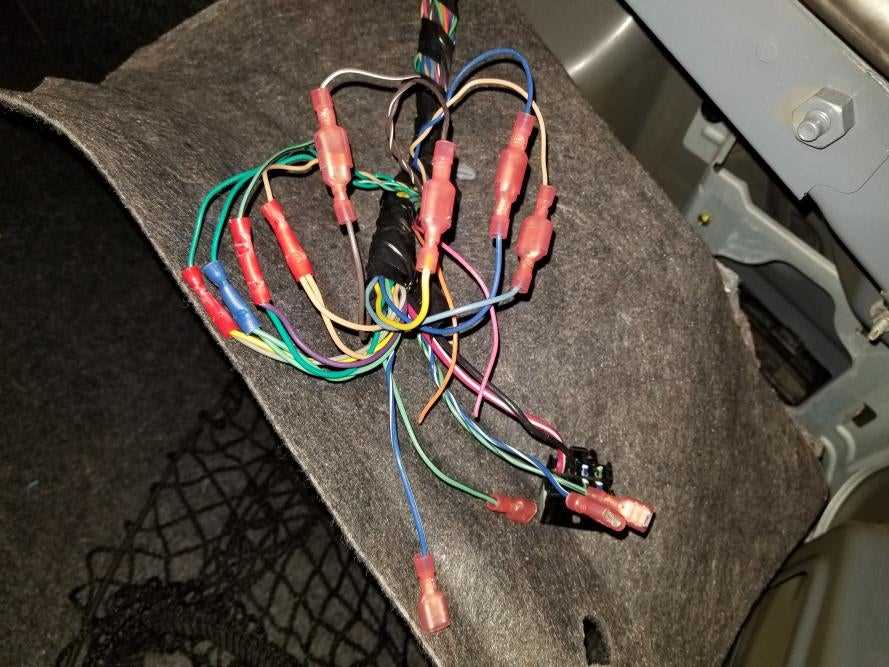

Remove the amplifier entirely after confirming functionality. Secure the spliced wires with heat-shrink tubing or electrical tape, bundling them away from moving components like the glove box or pedal assembly.

Reinstall any dashboard panels carefully. Ensure no wires interfere with airbag sensors–snagged cables can trigger false collision warnings.

Replace the fuse in the radio circuit with one matching the aftermarket unit’s amperage (typically 10-15A). Store the factory booster in a dry location if future reinstallation is desired.

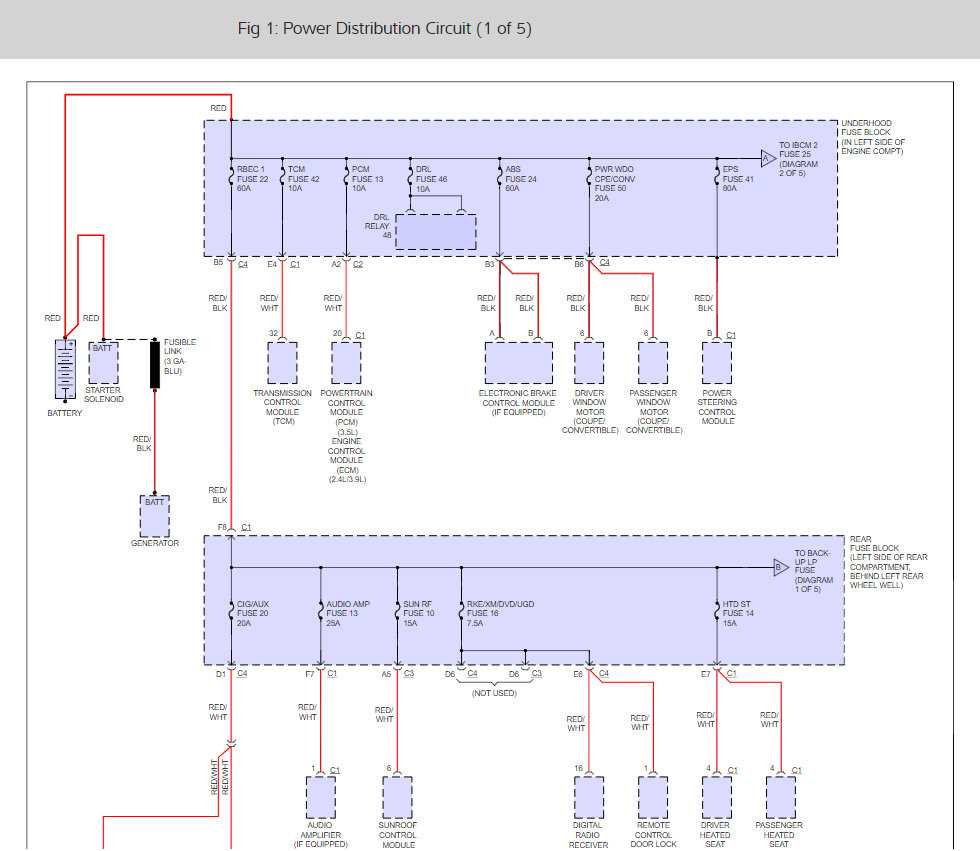

Proper Power, Earth, and Audio Line Connection for Vehicle Audio Systems

Begin by identifying the constant 12V power source–typically a yellow wire rated for 20A or higher–before routing it directly to the battery’s positive terminal. Avoid splicing into accessory circuits (such as ignition or lighting), as voltage drops during startup or heavy electrical loads can cause audio dropouts or resets. Use a 10-gauge or thicker wire for runs exceeding 12 feet to minimize resistance and ensure stable current delivery.

Ground connections must terminate at a bare metal chassis point within 18 inches of the audio unit’s installation location. Scrape off paint, rust, or corrosion at the attachment site, then secure the ground wire (black, 8-12 gauge) with a star washer and a stainless-steel bolt. A poor earth connection introduces alternator whine or intermittent operation, especially under high-power demands. Test continuity with a multimeter–readings above 0.2 ohms indicate a compromised connection requiring re-cleaning or relocation.

Speaker wires (typically 16-18 gauge) must pair precisely to prevent phase cancellation: positive (+) wires often have a stripe or solid color, while negatives (-) are plain or black-traced. Mismatching channels distorts stereo imaging and weakens bass response. Verify each connection with a 1.5V AA battery–touching wires briefly produces a click in the correct speaker. For long runs (over 15 feet), upgrade to 14-gauge wire to reduce signal loss.

Wire Termination	Recommended Connector	Crimp Tool Setting
12-14 gauge power/ground	Closed-barrel crimp (non-insulated)	Full-cycle press (1.0mm jaw)
16-18 gauge speaker	Open-barrel crimp (insulated)	Partial-cycle press (0.8mm jaw)
RCA signal lines	Solder + heat-shrink sleeve	N/A (30W iron, 60/40 solder)

Use friction-fit connectors or solder joints for speaker wires; avoid electrical tape as insulation degradation leads to short circuits over time. Heat-shrink tubing provides reliable sealing when applied with a heat gun set to 250°F–ensure overlap exceeds 1/4 inch on both sides of the joint. For high-power applications (above 50W RMS per channel), solder all joints to prevent oxidation-induced resistance buildup.

Install an inline fuse (20-30A) within 7 inches of the battery connection to protect the power wire–AGU or mini-ANL fuse holders work best. Avoid glass fuses in engine-bay environments; opt for blade-type or ceramic units. Route wires away from moving parts, sharp edges, and exhaust manifolds, securing every 12 inches with loom clamps or spiral wrap. Zip ties degrade under UV exposure–replace them annually in exposed sections.

Verify impedance compatibility before connecting amplifiers or aftermarket speakers. Most factory audio units expect 4-ohm loads; bridging channels or adding low-impedance drivers without proper recalibration risks overheating. A basic multimeter in resistance mode ensures speaker coils read within 10% of their rated value (e.g., 3.6-4.4 ohms for a 4-ohm driver). Reverse polarity on a single channel cancels bass frequencies–double-check connections against the manufacturer’s color code chart.
