Complete 2007 Sterling Truck Wiring Diagram Schematic Guide

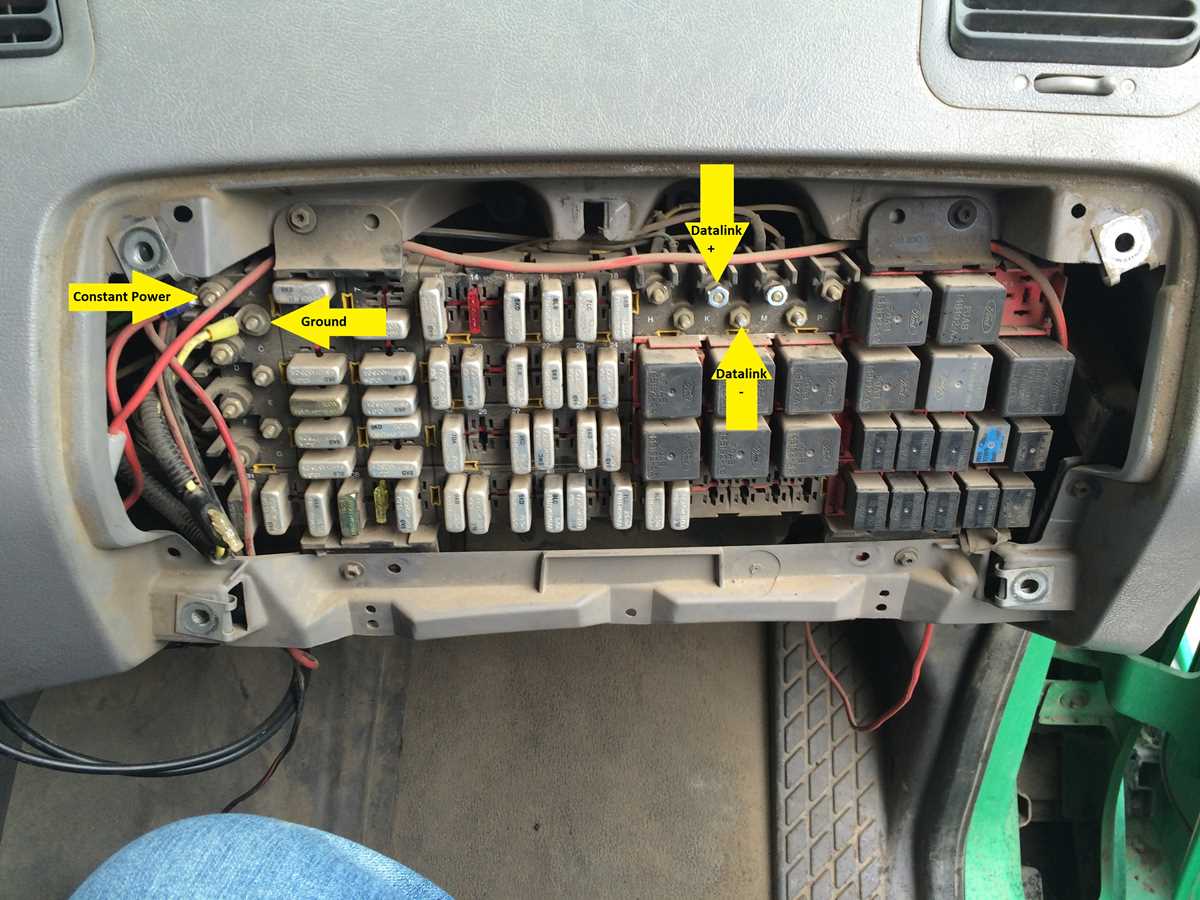

Locate the central fuse box under the driver’s side dashboard–this is the primary hub for all critical circuits. Use a multimeter set to 20V DC to test each fuse slot while the ignition is on; a reading below 11.8V signals a corroded terminal or faulty relay. Replace any fuse with resistance above 0.5 ohms immediately–even if visual inspection seems normal.

Trace the power distribution harness from the battery to the engine control module (ECM); look for abrasions near the frame rails where vibration wears through insulation. A failed connection here often mimics fuel pump issues. Verify voltage at the ECM connector (pin 54, 12V constant; pin 30, 12V key-on) before diagnosing sensors–this eliminates false trouble codes.

Check the alternator output at the B+ terminal with the engine running; readings should stabilize between 13.8V and 14.4V. Voltage spikes above 15V indicate a bad voltage regulator, while drops below 12.5V suggest a short in the charging circuit. Isolate the circuit by unplugging one auxiliary device at a time–start with climate controls.

For trailer brake circuits, test the blue wire at the 7-way connector with a load-test light. If the brake lights function but trailer brakes don’t engage, probe the brake controller’s output pin (typically 4–8 ohms under load). A burnt smell or melted insulation confirms a short–replace the entire wiring loom if damage extends beyond the first splice.

Use a thermal imaging camera to detect hidden overheated connections, especially in the starter relay cluster–excess heat (>70°C) points to loose crimped terminals. Re-crimp all connectors with heat-shrink butt splices rated for 16-14 AWG wire to prevent future failures. Never rely on electrical tape–it traps moisture and accelerates corrosion.

Electrical Schematic Reference for Heavy-Duty Models: Hands-On Solutions

Locate the central fuse box beneath the driver-side dashboard by removing the kick panel–fasteners hide behind a snap-off cover marked “FD-6.” Label each wire using the original manufacturer color codes printed on the insulation: red (circuit 30), yellow (15), brown (ground), and blue stripes (accessory). Cross-reference these against the pinout table in the service manual’s appendix B to avoid misrouting during repairs.

Use a multimeter set to 20V DC to test voltage drop across connections–values above 0.2V indicate corrosion or loose terminals. Focus on the engine bay relay cluster, particularly relays R1 (headlights) and R3 (fuel pump), where oxidation frequently disrupts current. Bypass temporarily with a jumper wire to confirm relay failure before replacing.

Component	Color Code	Test Point Voltage (Key On)	Fault Symptoms
Alternator B+ Terminal	Orange/Black Stripe	13.8–14.4V	Dim lights, slow crank
Starter Solenoid	Purple	12V (momentary)	Clicking noise, no turnover
ECM Power Supply	Gray/Red Stripe	5V reference	Erratic idle, no start

Repair damaged harness sections by splicing in new wire using solder and adhesive-lined heat shrink–avoid twist-and-tape methods, which degrade within months under vibration. Target common chafing points: near the transmission bellhousing, along the frame rail near the rear axle, and behind the instrument cluster where wires transition from cabin to engine bay.

Clean corroded connectors with contact cleaner and apply dielectric grease before reassembly; neglecting this step guarantees repeat failures within 500 miles. For intermittent issues, flex harnesses by hand while monitoring live voltage–intermittent drops pinpoint the fault location. Replace factory crimp terminals with gold-plated versions if overheating is evident from discoloration.

Document all modifications directly on the schematic with a permanent marker, noting date and nature of the repair. This creates a trail for future technicians and prevents diagnostic dead-ends. Keep the updated paper copy in a sealed plastic sleeve taped inside the glovebox–digital backups fail when needed most.

Finding Primary Electrical Connector Junctions in a Heavy-Duty 2007 Model Freightliner Variant

Begin under the dashboard on the driver’s side, just above the clutch pedal assembly. Three large harness bundles emerge here–two 24-pin connectors (gray and black) and a single 16-pin plug (white). The gray 24-pin supplies power to the instrument cluster, while the black routes signals to the transmission control module, identifiable by its thicker gauge wires.

Trace the firewall bulkhead behind the glovebox; a circular rubber grommet conceals the main engine bay feed. Puncture-resistant loom encases the bundle–split it open at the midpoint to reveal a 40-pin split connector (tan and dark blue halves). The left half handles fuel injectors, the right governs sensors including EGR and turbo boost. Label each segment before unplugging to prevent cross-circuiting.

Chassis and Rear Integration Points

Mid-frame, adjacent to the diesel exhaust fluid reservoir, locate a rectangular distribution box. Inside, a trio of blade-style fuses (80A, 60A, 40A) protect feeds to the sleeper compartment, trailer lighting, and auxiliary brakes. Follow the 80A line rearward; it terminates in a weatherproof plug beneath the frame cross-member–this feeds the rear axle differential heater and lift gate motor.

Open the driver-side door jamb panel; a concealed 12-pin connector (yellow) bridges the cab and door modules. Pinouts 8-12 manage window regulators–corrosion here often mimics motor failure. Scrape terminals with a wire brush, then apply dielectric grease rated for 220°C to prevent arcing.

For the anti-lock brake system, crawl beneath the tractor behind the fifth wheel plate. A shielded junction block (silver) houses six Delphi Metri-Pack 630 connectors. The top row (pins 1-3) corresponds to wheel sensors; bottom row (pins 4-6) links to the ABS pump relay. Verify continuity with a multimeter–readings below 0.2 ohms indicate terminal fatigue.

Decoding Power Line Paths via Conductor Hue Guidelines

Start by isolating the main feed lines: red conductors (typically 10–8 AWG) supply constant voltage from the battery bank to primary fuses or relays, while orange stripes on smaller 16–14 AWG runs indicate switched ignition-controlled feeds. Trace yellow branches (12 AWG) for lighting circuits–headlamp clusters use solid yellow, marker lamps add a black stripe. Ground paths follow bare copper or brown sleeves; verify continuity at chassis tie-points every 2 meters. For auxiliary systems, purple wires deliver 12V accessory power (radios, HVAC controls), whereas gray with red stripes denote high-current alternator outputs. Use a multimeter to confirm voltage drops below 0.2V over any 3-meter stretch; readings above indicate corroded junctions.

• Blue/white: ABS module inputs–test for 5V sensor reference signals.
• Green/white: Coolant temperature sender–expect 0.5–4.5V sweep range.
• Black/white: ECM grounds–resistance must not exceed 0.1Ω.
• Pink/black: Fuel pump relay trigger–12V only when ignition is active.
• White/red: Reverse light switch–verify 12V presence in engaged position.

Label each terminus with numbered tags before disconnecting; map in a spreadsheet correlating hue patterns to pin-out charts. Replace insulation tape every 12 months; use heat-shrink tubing for splices near moving components.

Solving Electrical Faults with the Acterra Circuit Blueprint

Begin by isolating the battery-to-starter circuit on sheet 5 of the schematic. Trace the thick red cable from the positive terminal to the starter solenoid, verifying continuity at each connection point–terminal block TB-12, fusible link FL-3, and relay RY-7. Voltage drops above 0.2V at any junction indicate corrosion or loose terminals; clean with a wire brush and re-tighten to 12 Nm. For intermittent no-start conditions, probe the solenoid’s S-terminal while cranking–readings below 10V suggest a faulty ignition switch or neutral safety switch, both detailed on sheet 18.

Check the lighting circuits on sheet 9 for dim or flickering outputs. Locate the headlight module near the driver’s side fender; inspect the orange feed wire (14 AWG) from fuse F-15 (15A) to the module’s pin 8. If voltage is present but lights remain dim, swap the halogen bulbs for OEM-spec 9006 types–aftermarket bulbs often cause resistance issues. For trailer light failures, follow the brown/white striped wire from the 7-way connector to ground point G-201; resistance should not exceed 1 ohm.

Diagnosing Sensor and Gauge Anomalies

For erratic fuel gauge readings, access the instrument cluster wiring at connector C-301. The pink/black wire (pin 4) carries the signal from the tank sender–test resistance with a multimeter (empty: 110Ω, full: 10Ω). If values deviate, replace the sender unit; bypass the circuit temporarily with a 47Ω resistor to confirm. Similarly, test the oil pressure sender via the gray wire (pin 6) at connector C-301; normal readings fluctuate between 2-8V at idle. Readings outside this range require sender replacement or oil pump inspection.

Examine the alternator charge circuit on sheet 3. Measure voltage at the B+ terminal with engine running–acceptable range is 13.8-14.4V. If low, verify the yellow exciter wire from the alternator to fuse F-2 (10A) and ignition switch (sheet 18). For parasitic battery drain, disconnect the negative terminal and measure current across the connection–readings above 50mA require methodical fuse removal (start with F-14, F-15) to isolate the culprit circuit. Common offenders include the radio memory (sheet 24) and ECU standby circuits (sheet 12).

For ABS faults, reference sheet 16. Probe the wheel speed sensor circuits at connector C-401–front sensors use green/black wires; rear sensors use gray/yellow. AC voltage output should exceed 200mV at 30 RPM. If absent, inspect the sensor air gap (0.3-1.2mm) and tone ring condition. For chronic traction control activation, check the gray/red wire from the ABS module to the brake switch–continuity must be maintained with the pedal depressed.

Address HVAC blower motor issues using sheet 20. The dark blue/white wire at the blower resistor (behind the glovebox) should carry 12V from fuse F-22 (30A). If voltage is present but the motor runs at one speed only, replace the resistor–common failure point. For inoperative A/C clutch, verify the purple wire at connector C-204 carries 12V when engaged; if absent, test the pressure switch and clutch relay (RY-11) on sheet 22. Refrigerant levels below 200 psi or faulty switches prevent clutch engagement.
