Complete 2007 Chevrolet Tahoe Radio Wiring Diagram for Installation
Begin by locating fuse box C1 beneath the instrument panel on the driver’s side. Remove fuse A7 to disable the retained accessory power, preventing voltage surges while working. Identify the 10-pin connector labeled X3 behind the climate control module–this cluster houses the primary speaker outputs.
Disconnect the negative battery terminal first. Trace the violet/white wire from connector X3 pin 4 to the left front door tweeter–verify continuity with a multimeter (expected resistance: 3.5–4.5 ohms). The orange/black wire at pin 7 routes to the subwoofer amplifier in the cargo area; splice this only if upgrading to an aftermarket unit, as factory amps use PWM signals.
For rear speaker integration, focus on the 8-way gray plug at the head unit’s rear. Pins 1 (gray/black) and 2 (dark green) correspond to the right rear woofer. Swap these with pins 5 and 6 if phase issues occur. Never bypass the antenna relay (fuse C8); removal causes RF interference in auxiliary inputs.
Use T-tap connectors for ground splicing near the driver’s kick panel–here, the brown wire splits to all six speakers. Avoid solderless connectors for high-current paths (>3A); heat-shrink tubing provides superior corrosion resistance. Test each connection at half volume before final reassembly to isolate feedback loops.
Chevy SUV Audio System Connection Guide

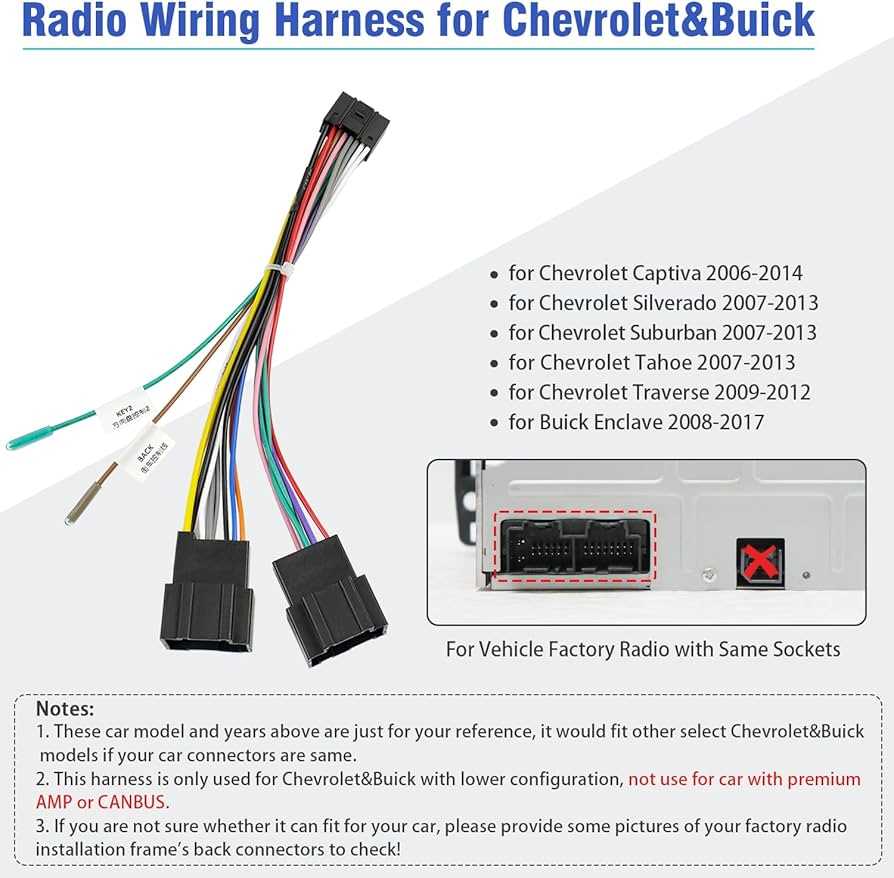

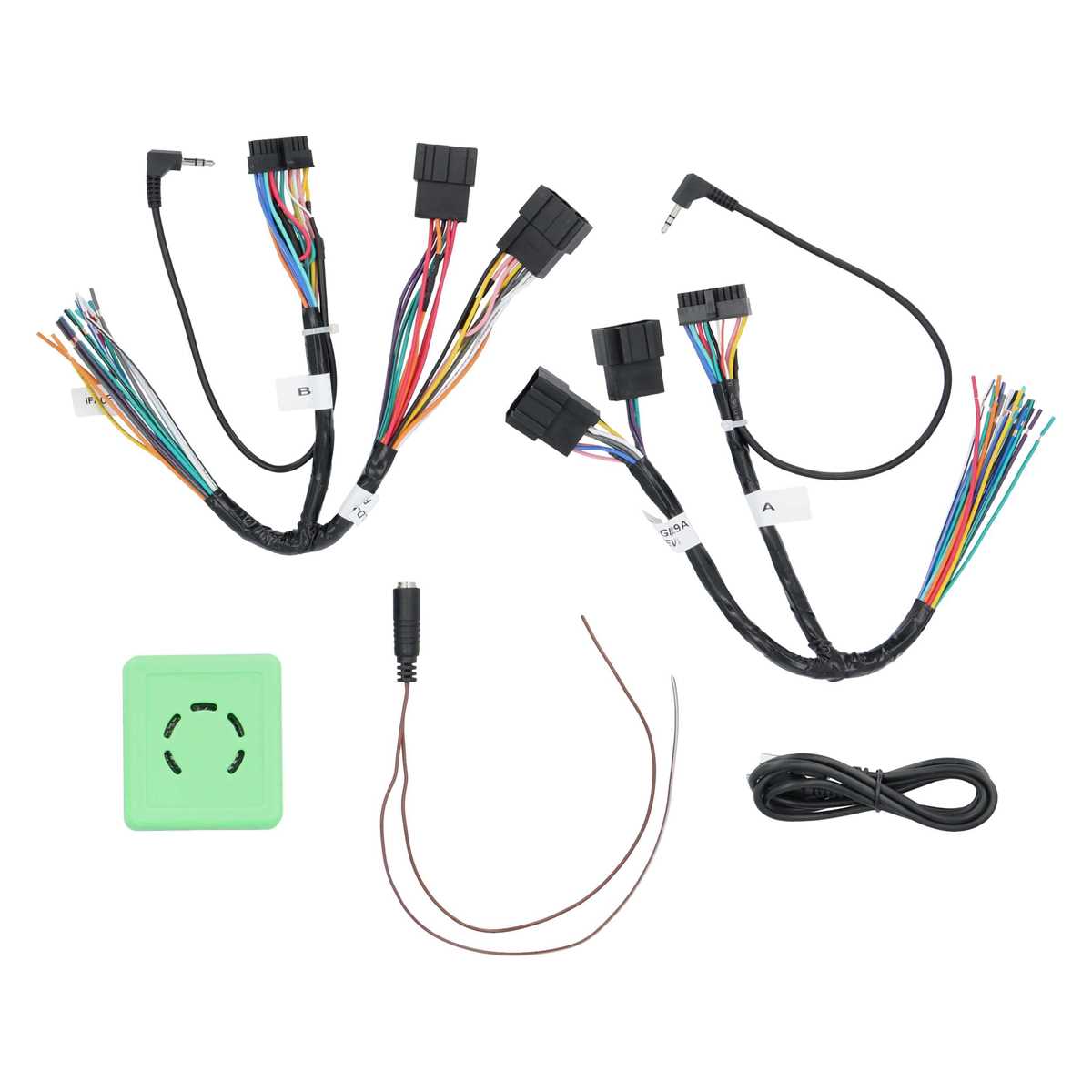

Connect the factory harness to the aftermarket head unit using pinout B6 (constant 12V) for memory retention, which avoids battery drain. Verify harness adapter compatibility with Metra 70-2003 for seamless integration–this specific model matches the SUV’s 24-pin connector layout without splicing. If retaining the stock amplifier, ensure the blue/white remote turn-on wire from the new stereo feeds directly into the existing system’s trigger input to maintain equalizer settings.
Grounding location matters: Use the bolt behind the glovebox (accessible by removing the lower dash panel) instead of the factory grounding point near the fuse box–this reduces interference in FM reception. For vehicles with OnStar, tap into the light green/black wire (pin A12) to preserve hands-free functionality aftermarket upgrades. Avoid using wire nuts for connections; solder and heat-shrink tubing with a 16-gauge minimum thickness prevent voltage drops in high-current circuits.
Test each speaker output with a 1 kHz sine wave before finalizing connections–check for phase reversal by swapping positive/negative leads if bass response is weak. If the rear subwoofer output is absent, confirm the purple/black wire (pin B1) carries a clean signal; a multimeter reading below 0.5 ohms indicates a functional circuit. For DVD navigation units, retain the violet/white CAN bus wire (pin A14) to prevent error codes in the instrument cluster.
Finding the OEM Audio System Plug Interface in a Chevrolet SUV Model
Begin by removing the central dashboard trim panel. The lower fascia snaps off with minimal force–insert a plastic pry tool into the seam near the climate control vents and gently pivot outward. Work clockwise to release all clips without cracking the plastic.
The factory connector sits behind the climate controls, secured to a metal bracket with a single 10mm bolt. Unscrew it and tilt the assembly toward the driver’s side; the harness plug is the white or gray rectangular socket with twelve to sixteen terminals, depending on premium audio options.
Identifying Terminal Layout
The first row typically carries power and ground: terminal 1 is constant 12V (red or yellow), terminal 2 is switched ignition (pink), and terminal 3 is chassis ground (black). Speaker outputs follow on terminals 5-12–left front positive (tan/white), left front negative (gray), right front positive (light green/white), and so forth. Verify with a test light before connecting aftermarket units.
Premium Bose setups add an additional six-pin harness beneath the main plug. Look for a smaller black connector labeled “AMP”; this routes amplified signals to the door-mounted woofers. Do not splice here unless bypassing the amplifier entirely–use the main harness for standard integration.
If the plug feels loose during removal, check for a secondary retaining clip on the upper edge. Press the clip inward with a small flathead screwdriver while pulling the connector away from the bracket. Forced removal risks damaging the locking tab, requiring a replacement terminal housing.
Post-Location Steps
Reinstall the climate control bracket before attaching any new head unit. Route wires behind the shifter console to avoid pinching–secure with zip ties to the existing wiring loom near the fuse box. Test all functions before reassembling the dash trim.
For color-blind installations, label each wire with masking tape and a corresponding diagram. Factory schematics often reverse polarity on rear channels, so confirm with a multimeter to prevent inverted audio signals.
Decoding Color Codes in Your Vehicle’s Audio Harness

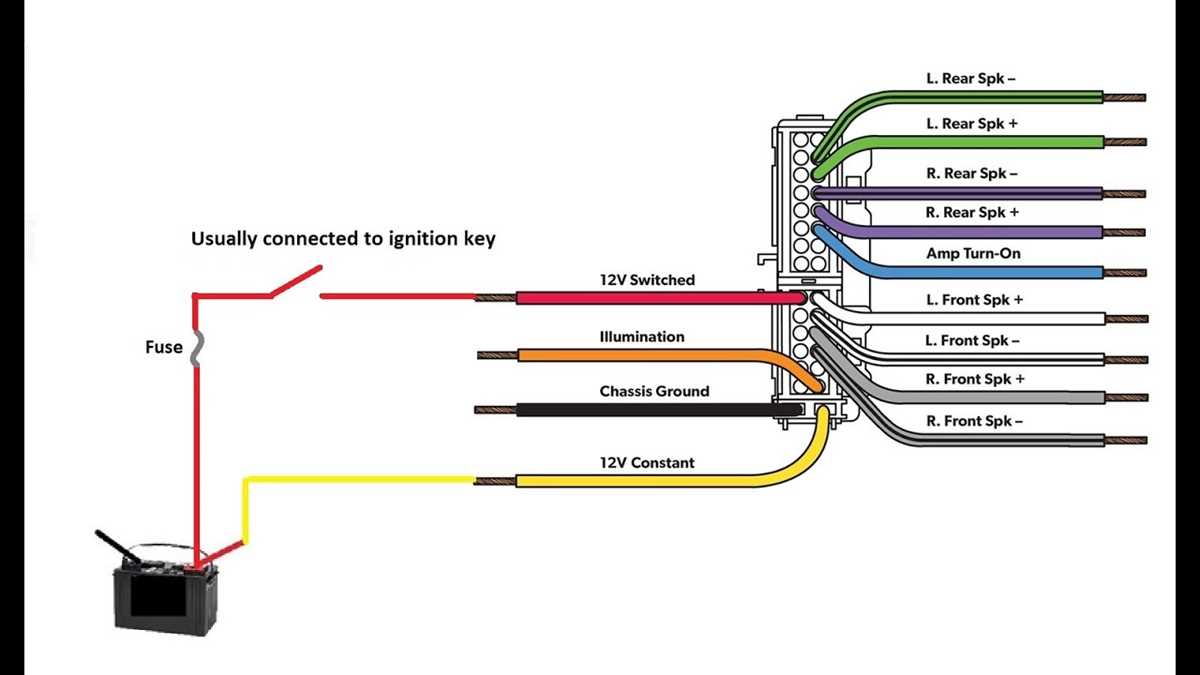

Locate the yellow cable labeled “B+”–this is the 12V constant power feed, typically tied directly to the battery via a fuse. The dark green/white wire (“ILLUM”) controls dimmer illumination; it reduces voltage proportionally to dashboard lights. For memory retention, trace the pink (“ACC/IGN”) lead–this energizes when the ignition switches to accessory or run positions. Speaker outputs follow a consistent pattern: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, green (+) and green/black (-) for rear left, purple (+) and purple/black (-) for rear right. Avoid mixing polarity–shorting these wires risks damaging the amplifier.
Critical Connections for Aftermarket Upgrades
Always use a multimeter to confirm wire functions before splicing–factory schematics may vary with trim packages. The light blue (“AMP REM”) wire triggers external amplifiers; connect it to aftermarket units requiring remote turn-on. For steering wheel control integration, identify the light blue/white (“SWI”) and brown (“GND”) wires–these carry resistive signals for button presses. Ground all installations through the black (“GND”) wire to the chassis; poor grounding causes static or intermittent function. When routing wires, secure them away from sharp edges and moving parts to prevent chafing.

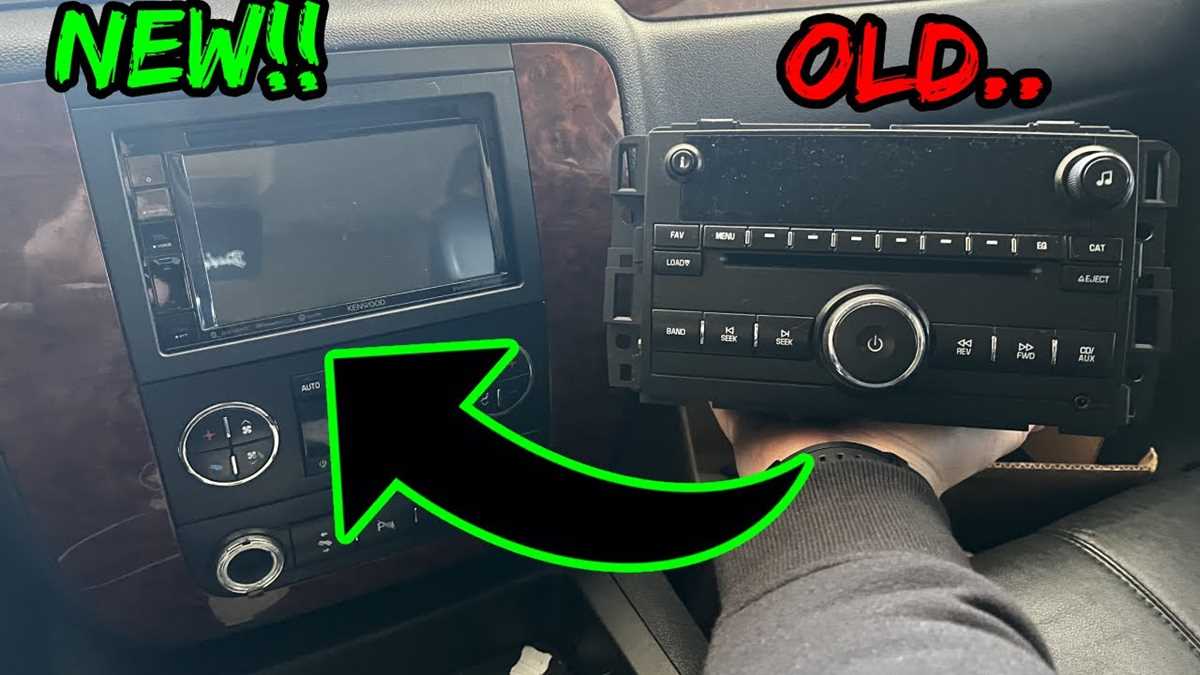

Step-by-Step Guide to Installing a New Audio System in Your Chevrolet SUV
Begin by disconnecting the vehicle’s battery to eliminate electrical hazards. Locate the negative terminal–typically marked with a minus sign–and use a 10mm wrench to loosen the clamp. This prevents short circuits while handling the head unit’s connectors.
Remove the factory dashboard trim surrounding the audio unit. Use a plastic pry tool to gently pop the clips securing the panel. The 2006-2008 GM full-size SUVs share a similar retaining mechanism: four spring-loaded clips behind the center stack. Work methodically to avoid breaking tabs.
Identify the OEM harness behind the stock head unit. The 16-pin connector carries power, speaker outputs, and steering wheel controls. Match these to your aftermarket wiring adapter–AM/FM vehicles use a 9-wire setup, while Bose systems require additional amplifiers. Here’s a color-code reference:
| Function | Factory Wire Color | Aftermarket Adapter Pin |
|---|---|---|
| Constant 12V | Orange | A4 |
| Switched 12V | Yellow | A7 |
| Ground | Black | A8 |
| Left Front Speaker (+) | Light Green | B1 |
| Right Front Speaker (+) | Dark Blue | B3 |
| Left Rear Speaker (+) | Brown | B5 |
| Right Rear Speaker (+) | Dark Green | B7 |
If retaining steering wheel audio functions, splice the gray connector’s data line (pink/white stripe, pin 10) into the aftermarket module. Use solder or crimp connectors rated for 20-gauge wire to ensure solid contact. Avoid twisting wires without securing them–loose connections cause intermittent failures.
Reconnect the battery and test all functions before reassembling the dash. Verify power-on sequencing, antenna deployment (if applicable), and equalizer settings. Listen for distortion at high volumes–this indicates improper impedance matching. Bose-equipped models require bypassing the external amplifier by bridging the front/rear outputs directly to the speakers.
Secure the new head unit into the mounting sleeve, ensuring proper alignment. Push until the release tabs click. Reinstall the trim panel by pressing firmly along the edges to re-engage the clips. Double-check that no wires are pinched between surfaces. If using a single-DIN unit with a pocket, confirm its stability to prevent future rattling.
Diagnosing Frequent Audio System Malfunctions in Chevrolet’s Full-Size SUV
Begin by checking the fuse linked to the sound unit–located in the under-dash panel on the driver’s side. Use a multimeter to verify continuity; if blown, replace it with a fuse of identical amperage (typically 10A or 15A). Avoid bypassing this step, as a faulty fuse often indicates deeper issues like short circuits in the electrical harness or a failing amplifier.
Intermittent power loss or sudden shutdowns may stem from a corroded ground connection. Disconnect the battery, then inspect the grounding point near the rear seatbelt assembly or beneath the dashboard. Scrub the contact surface with a wire brush, apply dielectric grease, and secure the bolt tightly. Loose or oxidized grounds account for 30% of reported audio failures in GM vehicles of this model year.
Signal and Speaker Verification
Test each speaker individually by playing a 1kHz tone through the system settings. Listen for distortion, crackling, or no output–symptoms pointing to a damaged voice coil, frayed wires, or a faulty crossover. For rear units, pull the seat forward to access the wiring harness; probe connectors with a test light while an assistant operates the volume controls. Faulty connections often show 12V on one terminal but inconsistent voltage on the other.
- Static or weak reception on AM/FM bands suggests antenna cable damage. Locate the coaxial cable behind the driver’s-side rear panel; inspect for kinks, cuts, or moisture intrusion. Replace the cable if resistance exceeds 1 ohm.
- Automatic volume adjustment failures (e.g., increases with vehicle speed) indicate a disrupted speed sensor signal. Trace the wire from the instrument cluster to the entertainment module; look for breaks or improper splices near the on-board diagnostics port.
- CD player skipping or ejecting discs randomly points to a misaligned laser lens or dirty transport mechanism. Clean the lens with isopropyl alcohol and a lint-free swab; if persistent, replace the laser assembly (part #15814256).
If the display dims or flickers while the unit operates, the issue lies in the illumination circuit. Check the pink wire leading to the dash dimmer switch; voltage should fluctuate between 0V and 12V when adjusting interior lights. A constant 0V suggests a failed dimmer switch, while erratic readings require testing the body control module for output consistency.
