Complete Wiring Diagram Guide for 2008 Chevy Express Van Electrical System

Begin repairs by locating fuse block F3UB beneath the driver’s-side dashboard–ground points G100, G200, and G201 along the firewall serve as critical junctions for the BCM, IPC, and ABS modules. Replace corroded terminals with GM p/n 12086018 crimp connectors, rated for 18-22 AWG conductors at 20A continuous load.

Critical circuits: The ignition switch (p/n 30-338) feeds the ECM via pink/black wire (GMLAN high) and tan/black wire (GMLAN low)–test voltage drop at C101 (white 12-pin connector) with a Fluke 87V, ensuring

HVAC blower motor resistor failures occur commonly at the tan/white and light blue/white wires–bypass with a Delphi 12138027 resistor assembly, heat-shrink all splices with 3M 3140 Scotchcast sealant to prevent moisture ingress. Check continuity on the LT green instrument cluster dimming wire at pin 17 of C201 (gray 32-pin connector) using a picoammeter; readings above 1.5 mA indicate a faulty dash dimmer switch requiring replacement (Delco 20944820).

For trailer wiring verification, probe the orange trailer feed wire at the frame-mounted junction box (J131) with a Snap-on CT4850 circuit tester; a steady 12.6V at engine idle confirms proper alternator charging through the fusible link near the battery tray. Isolate parasitic drains exceeding 50mA by pulling fuses systematically–start with the underhood MEM-CAL fuse (10A) and progress to SAI pump fuse (15A) while monitoring amperage drop at the negative battery terminal.

Electrical Schematic Guide for GM Passenger Carrier Models: Key Insights

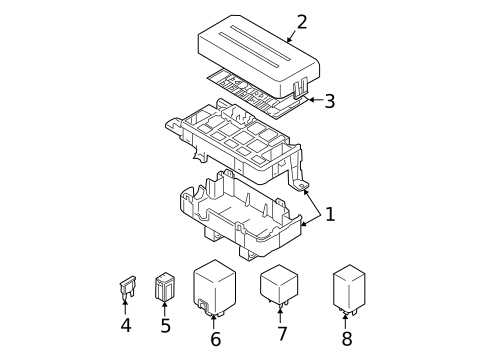

Locate the under-dash fuse block first–most power distribution nodes are hidden behind the driver-side kick panel, not under the hood. Pull the black plastic cover off by squeezing the top clips, exposing the 32-circuit relay center. Use a multimeter set to DC volts to verify feed wires; terminal 30 on relay sockets should read 12.6V with ignition off.

Trace the orange 10-gauge starter wire from the positive battery terminal through the main 400-amp fuse link, then split at the junction box beneath the windshield cowl. One branch feeds the ignition switch (terminal “B”), the other runs straight to the alternator “B+” stud–label each branch with masking tape before disconnecting to prevent cross-contact.

Inspect the body control module (BCM) harness connector C1, a 48-pin plug colored light gray, tucked above the brake pedal on 1500–3500 series models. Pinout is silk-screened on the backside; probe pins 3 (park lamps), 5 (left turn), 7 (right turn), 8 (stop lamps), and 11 (rear defogger) with a needle probe. A 0.3–0.7 ohm reading indicates intact circuit; anything higher suggests corroded splices near the rear tail light cluster.

• Front marker lights: violet #24 AWG, spliced within the headlamp assembly, protected by a 15-amp fuse.
• Cargo dome light: tan/black #18 AWG, routed along the headliner rail, fuse #20 (7.5A).
• Power sliding door: dark green/orange #14 AWG, controlled via BCM pin 43, relay K90 under instrument panel.

Strip ¼-inch insulation from suspect wires using precision strippers; avoid nicking copper strands. Crimp butt connectors with heat-activated adhesive, shrink with a 30-watt heat gun, then wrap with silicone electrical tape. Avoid solder on battery-positive lines–vibration causes brittle joints. Ground straps terminate at G101 (driver-side rocker panel) and G200 (passenger frame rail); clean contact surfaces with a wire brush and apply dielectric grease.

Diagnosing Intermittent Faults

Switch the ignition to “Accessory” and wiggle the steering column tilt lever; erratic instrument cluster behavior points to chafed ignition wire #100 (yellow/black #16 AWG) inside the column shroud. Replace the entire wiring harness segment between the ignition switch and fuse block–partial splices increase resistance.

1. Remove the lower knee bolster by prying out four push-pins.
2. Disconnect negative battery cable, wait 10 minutes.
3. Unplug C102 (transmission range sensor) and C201 (antilock brake module).
4. Peel back carpet to expose wire channels; trace affected circuits back to splice pack SP103 under the driver seat.

Use a non-contact infrared thermometer to scan hotspots; anything above 60°C (140°F) indicates excessive resistance. Replace the entire battery cable if the positive battery clamp shows bright blue/green corrosion; clean terminals only mask the issue.

OEM Connector Pinout Quick Reference

• X2 (instrument cluster): 24-pin gray, terminals 1–4 (low-speed GMLAN), 5 (fuel gauge), 6 (temp), 9–16 (warning lamps), 22–24 (tachometer).
• C301 (HVAC control): 12-pin black, pin 4 (recirc door), 5 (blower motor), 7 (A/C compressor).
• C352 (rear wiper motor): 4-pin green, pin 1 (common), 2 (low speed), 3 (high speed), 4 (park).

Label every connector with a permanent marker before unplugging–restoration becomes impossible without reference. Keep a spare 30-pin PCM harness connector on hand; terminal retention clips break easily during field repairs.

Finding Primary Electrical Bundle Links in a GMC Savana Cargo Hauler

Begin under the driver’s side dashboard near the steering column. The central fuse block mounts here, secured by two 10mm bolts and hidden behind a snap-off plastic cover. Release the cover to reveal the main relay cluster–look for a thick gray bundle exiting the block; this is the primary power spine feeding the instrument panel and body modules.

Trace the bundle backward through the firewall grommet adjacent to the brake booster. Inside the engine bay, the harness splits: one branch heads toward the starter solenoid (measuring roughly 2.5 inches in diameter), while the other climbs to the under-hood fuse box. Verify connections using a multimeter–expected voltage at the starter branch should read 12.6V with the ignition off.

Inspect the mid-chassis bulkhead connection by removing the driver’s seat. Four 12mm bolts secure a metal access plate beneath; remove it to expose the crossover tube where the main harness transitions from cabin to cargo area. A black cylindrical connector, sealed with blue dielectric grease, joins the front and rear segments–check for corrosion or bent pins, as this link routes signals to rear lamps and sliding door actuators.

Locate the rear body junction behind the left taillight assembly. Peel back the interior trim panel to uncover a plastic junction block; two wire ties and a foam sleeve protect a six-pin Delphi connector here. Disconnect it by pressing the release tabs inward–pin 3 delivers 5V reference to the load-sensing module, while pin 5 carries ground for trailer lights.

Follow the roofline conduit above the windshield header. A corrugated conduit runs from the A-pillar to the rear door frame, terminating at a twelve-way connector under the center high-mounted stop lamp. Remove the lamp housing to access it; wires here are color-coded for specific systems (red/white stripe = turn signal, yellow/black stripe = brake signal). Test continuity using a tone generator–no signal indicates a broken conductor inside the conduit.

For sliding-door power feed, remove the door’s interior trim panel. Behind the upper motor assembly, a three-wire spade connector plugs into the door control module–pink wire delivers 12V constant, dark green/white stripe handles door ajar signal, and light blue/black stripe triggers the motor relay. Probe each terminal with the door ajar; the motor relay should click within 2 seconds.

Verify engine bay sensors and actuators by locating the engine control harness. It exits the firewall beside the brake master cylinder and branches into individual injectors, coil packs, and the mass airflow sensor. Two primary connectors link here–a 54-pin Delphi connector for ECM signals and an eight-pin oval connector for transmission communication. Unplug the ECM connector by releasing the retaining clip; pin 42 carries throttle position data (expected voltage 0.5-4.5V with pedal movement).

Step-by-Step Color Coding for Fuse Panel and Instrument Cluster Connections

Locate the primary power distribution module under the driver-side dashboard–remove the lower trim panel secured by three 7mm bolts. Identify the thick red wire (10-gauge) supplying constant 12V+ from the battery; trace it to fuse position 30 (30A) on the inner panel, marked in bright orange. Label this wire with heat-shrink tubing code RD/YL for redundancy. Next, isolate the ignition-switched 12V+ line (pink, 18-gauge) exiting fuse slot 17 (10A); verify voltage with a multimeter during key-on testing. Cross-reference this with the PN/BK striped wire feeding the instrument cluster backlighting–ensure continuity by probing pin 18 on the 12-pin C2 connector beneath the gauge cluster.

Critical Wire Color Reference for Accessory Circuits

Circuit Function	Wire Color Code	Fuse Rating	Connector Pin	Verification Method
Blower Motor High Speed	Dark Green (DK GN)	30A (slot 12)	C1-6 (HVAC module)	Spin blower with probe grounded
Fuel Pump Relay Signal	Gray (GY) with violet stripe (VT)	20A (slot 6)	PCM C1-58	Listen for relay click at key-on
Left Front Park Lamp	Light Blue (LT BLU)/Black (BK)	10A (slot 19)	Headlamp switch C3-11	Test with lamp grounded
Rear Defrost Grid	Brown (BN)/Yellow (YL) stripe	30A (slot 2)	Rear window relay C1-8	Measure 12V across grid terminals

Strip 1/2 inch of insulation from the YL/BK auxiliary power outlet wire (slot 27, 20A) before crimping a 16-gauge spade terminal. Route this wire through the firewall grommet adjacent to the brake master cylinder, securing it with nylon ties every 6 inches to prevent contact with moving components. For the WH starter solenoid signal, splice into the existing harness using a Scotchlok T-tap connector, ensuring the exposed copper faces downward to avoid moisture accumulation. Document each step with timestamped photos for troubleshooting.
